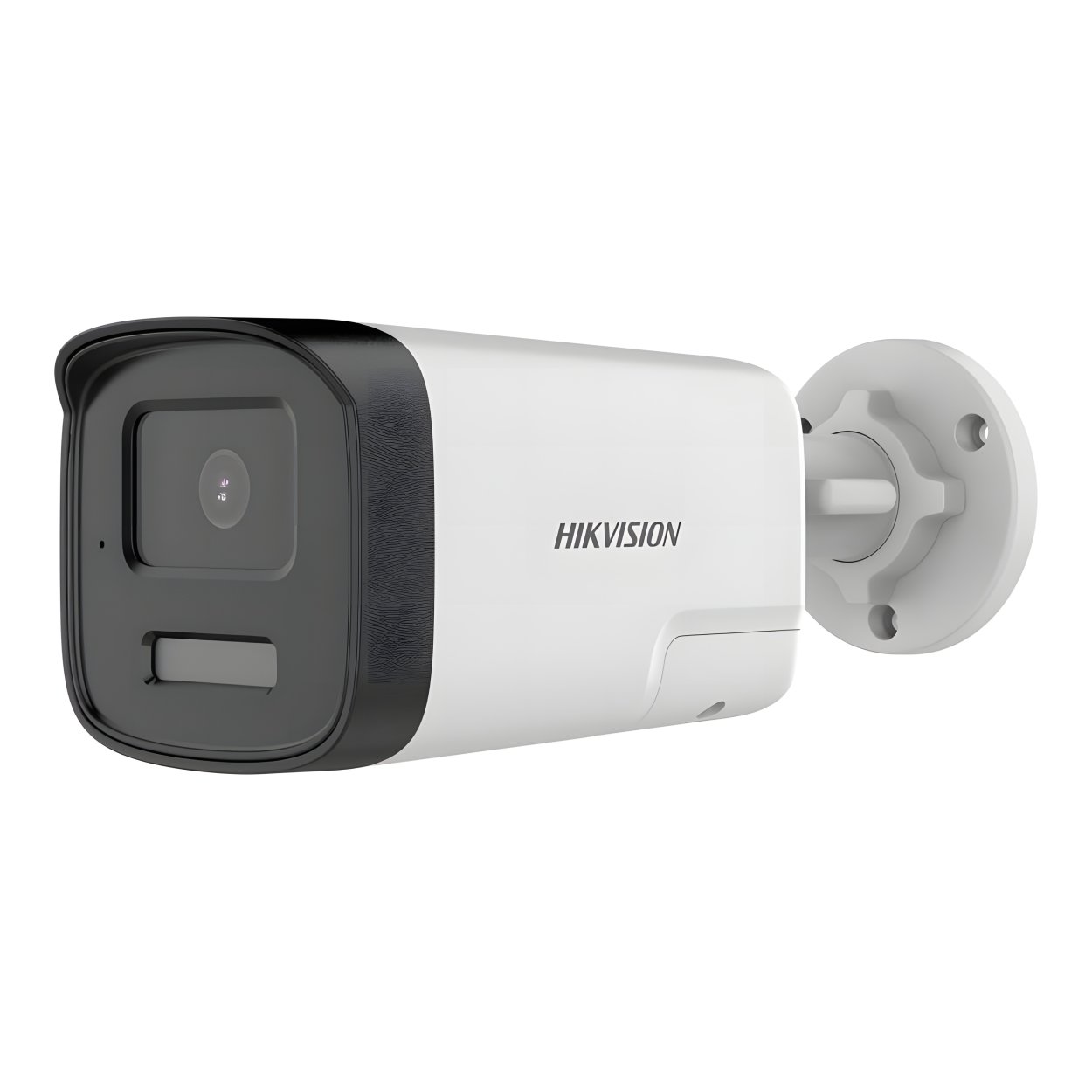

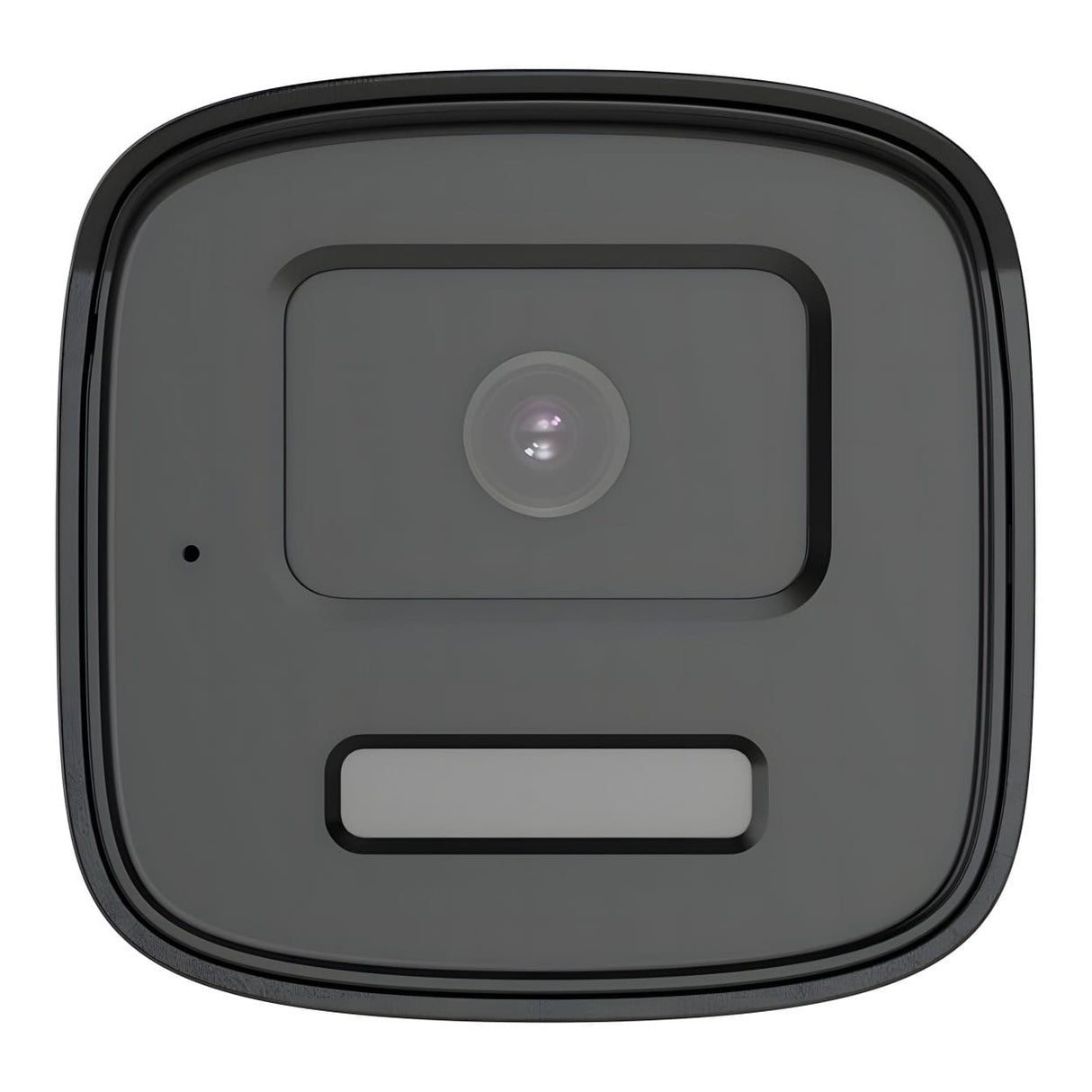

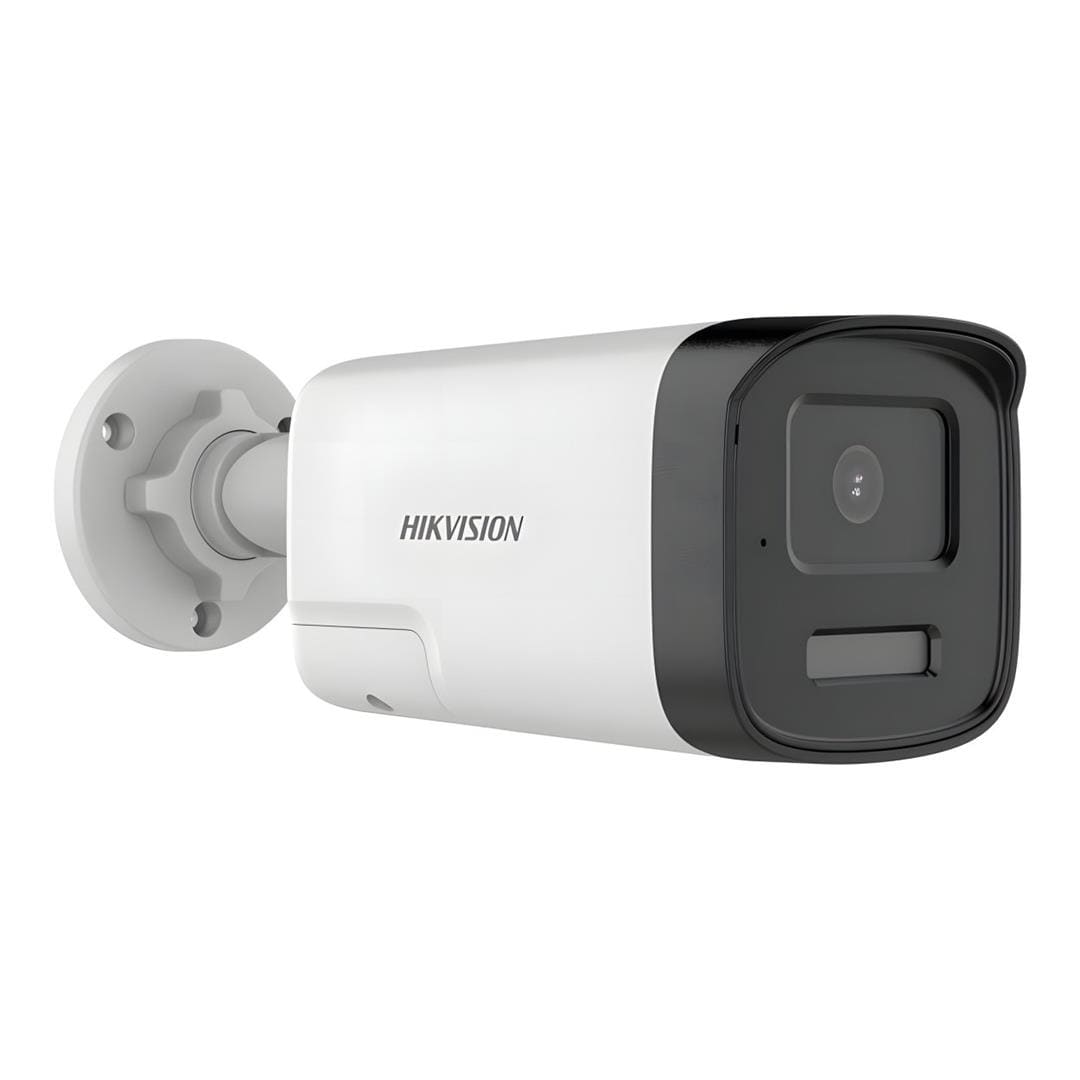

Hikvision 2MP 2.8mm Two Way Audio & Siren Fixed Bullet Camera DS-2CE17D0T-LXTS(2.8mm)

Hikvision 2MP 2.8mm Two Way Audio & Siren Fixed Bullet Camera DS-2CE17D0T-LXTS(2.8mm)

Features:

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 2.8 mm fixed focal lens
• Up to 40 m IR distance for bright night imaging
• Up to 40 m white light distance for bright night imaging
• Smart-Hybrid Light, optimize your security with flexible lighting options
• Active strobe light and audio alarm
• High quality audio with audio over coaxial cable, built-in mic, and built-in speaker
• Provide real-time communication via built-in two-way audio
• Water and dust resistant (IP67)

Technical Specifications:

Camera

Image Sensor
2 MP CMOS

Maximum Resolution
1920 (H) × 1080 (V)

Minimum Illumination
0.01 Lux @(F1.6, AGC On), 0 Lux With IR

Shutter Time

• PAL: 1/12.5 s To 1/50,000 s
• NTSC: 1/15 s To 1/50,000 s

Day/Night Mode
ICR

Angle Adjustment

• Pan: 0° To 360°
• Tilt: 0° To 180°
• Rotate: 0° To 360°

Signal System
PAL / NTSC

Lens

Lens Type
2.8 mm  Fixed Lens

Focal Length And Field Of View

2.8 mm

• Horizontal FOV: 101°
• Vertical FOV: 56°
• Diagonal FOV: 118°

Lens Mount
M12

Microphone

Pickup Distance
Up To 5 m Radius

Quantity
1

Speaker

Rated Power
2 W

Speaker Range
Up To 5 m Radius

Illuminator

Supplement Light Type
Smart IR, IR, White Light

Supplement Light Range

• IR: Up To 40 m
• White Light: Up To 40 m


Image Settings

• Anti-Banding
• Brightness
• Sharpness
• Smart IR

Frame Rate
TVI: 1080p @ 25 fps / 30 fps

Day/Night Mode
Auto / Color

Wide Dynamic Range (WDR)
Digital WDR

Image Enhancement

• DWDR
• BLC
• HLC
• Global
• HLS

Noise Reduction
3D DNR

White Balance

• Auto
• Manual

Audio

Audio Functions

• Echo Cancellation
• AI Noise Reduction
• Automatic Gain Control

Interface

Video Output
1 × HD Analog Output

Alarm
Flashing Light Alarm (Red And Blue)

General

Power Supply
12 V DC ± 25%, Max. 9.9 W

Material

• Main Body: Metal
• Enclosure: Plastic

Dimensions
211 × 83.5 × 80.7 mm

Weight
Approx. 440 g

Operating Conditions
-40 °C To 60 °C (-40 °F To 140 °F), ≤ 90% RH Non-Condensing

Communication Protocol
HIKVISION-C

Language
English

Protection Rating
IP67
