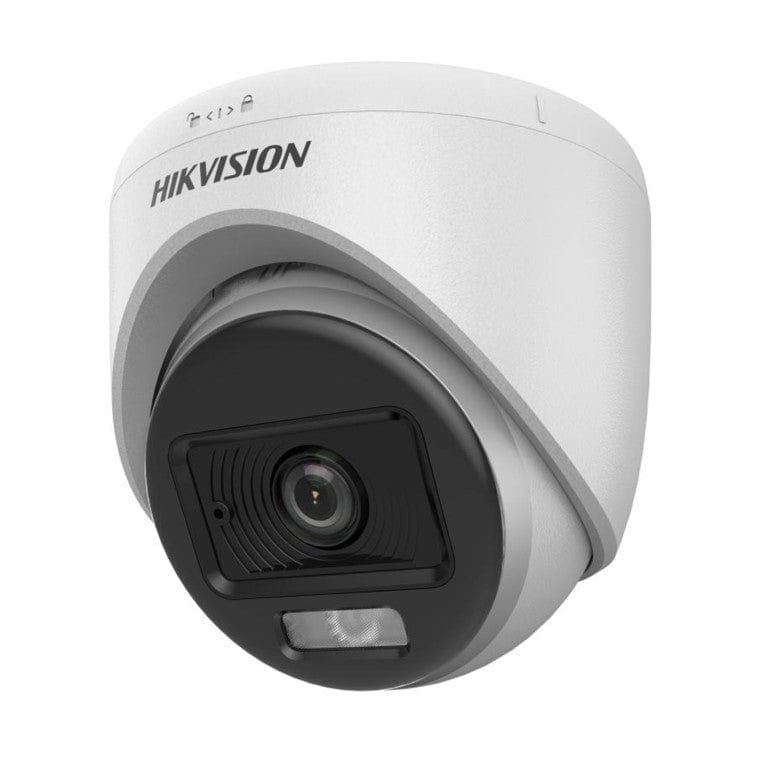

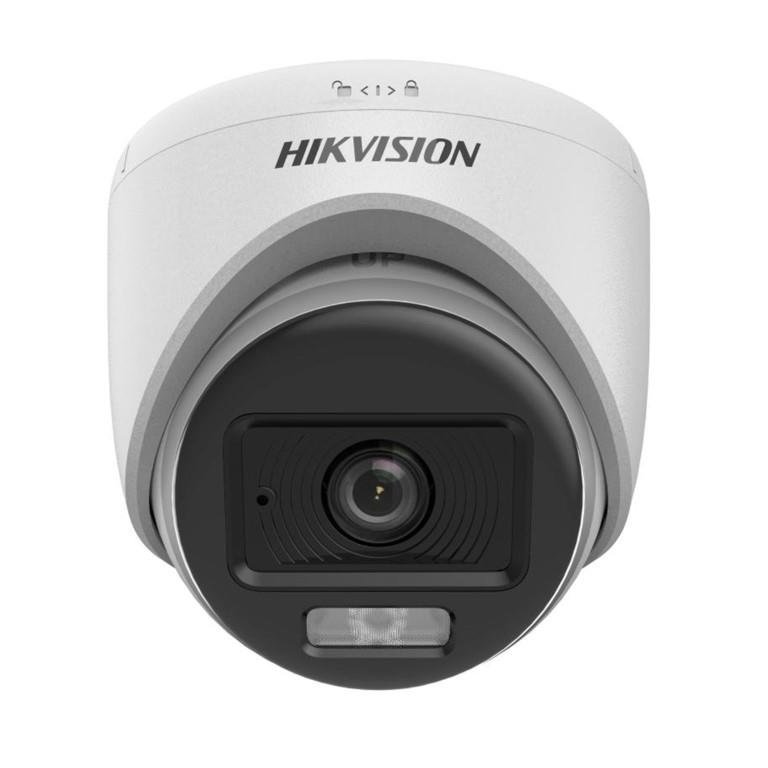

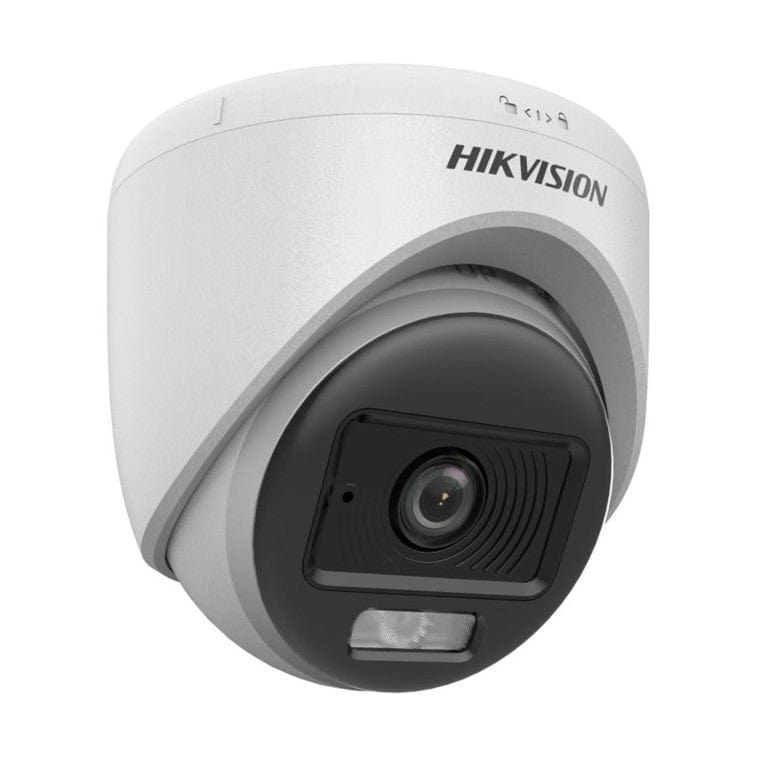

Hikvision 2MP 2.8mm Smart Hybrid Light with ColorVu Indoor Fixed Turret Camera DS-2CE70DF0T-LPFS(2.8mm)

Hikvision 2MP 2.8mm Smart Hybrid Light with ColorVu Indoor Fixed Turret Camera DS-2CE70DF0T-LPFS(2.8mm)

Features:

• High quality imaging with 2 MP CMOS
• 1920 × 1080 Max. Resolution
• 2.8 mm Fixed Lens
• Horizontal FOV: 105°, Vertical FOV: 56°, Diagonal FOV: 126°
• 24/7 color imaging with F1.0 aperture
• Smart-Hybrid light, optimize your security with flexible lighting options
• 3D DNR technology delivers clean and sharp images
• Up to 20 m white light distance for bright night imaging
• Up to 20 m IR distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• 12 VDC ± 25%, max. 2.9 W (Purchase PSU separately)

Technical Specifications:

Camera
Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night: ICR
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Signal System: PAL/NTSC

Lens
Lens Type: 2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV:

• 2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126°
• 3.6 mm, horizontal FOV: 84°, vertical FOV: 46°, diagonal FOV: 98°

Lens Mount: M12

Microphone
Pickup Distance: In a radius of up to 5 m
Amount: 1

Illuminator
Supplement Light Type: Smart, IR, White Light
Supplement Light Range: IR: Up to 20 m, White Light: Up to 20 m

Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
Image Settings: Brightness, Sharpness, Anti-banding, AGC
Frame Rate:

• TVI: 1080p @ 25 fps / 30 fps
• CVI: 1080p @ 25 fps / 30 fps
• AHD: 1080p @ 25 fps / 30 fps
• CVBS: PAL/NTSC

Day/Night Mode: Auto/Color
Wide Dynamic Range (WDR): Digital WDR
Noise Reduction: 3D DNR / 2D DNR
Image Enhancement: DWDR, BLC, HLC, Global
White Balance: Auto, Manual

Interface
Video Output: Switchable TVI/AHD/CVI/CVBS

General
Material: Plastic
Power: 12 VDC ± 25%, max. 2.9 W (It is recommended to use one power adapter per camera)
Dimension: Ø85.02 mm × 81.25 mm (Ø3.35" × 3.2")
Weight: Approx. 155 g (0.34 lb.)
Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing)
