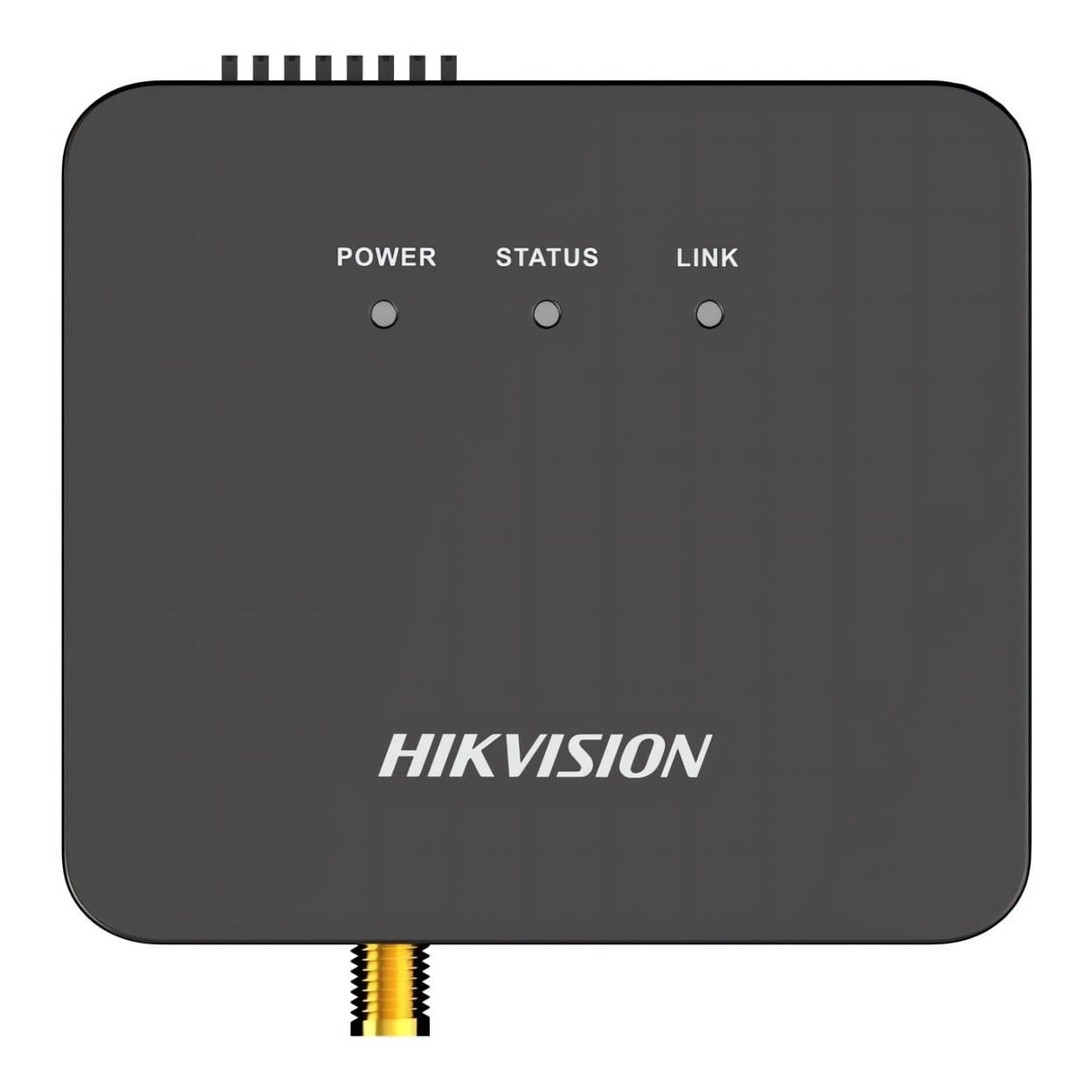

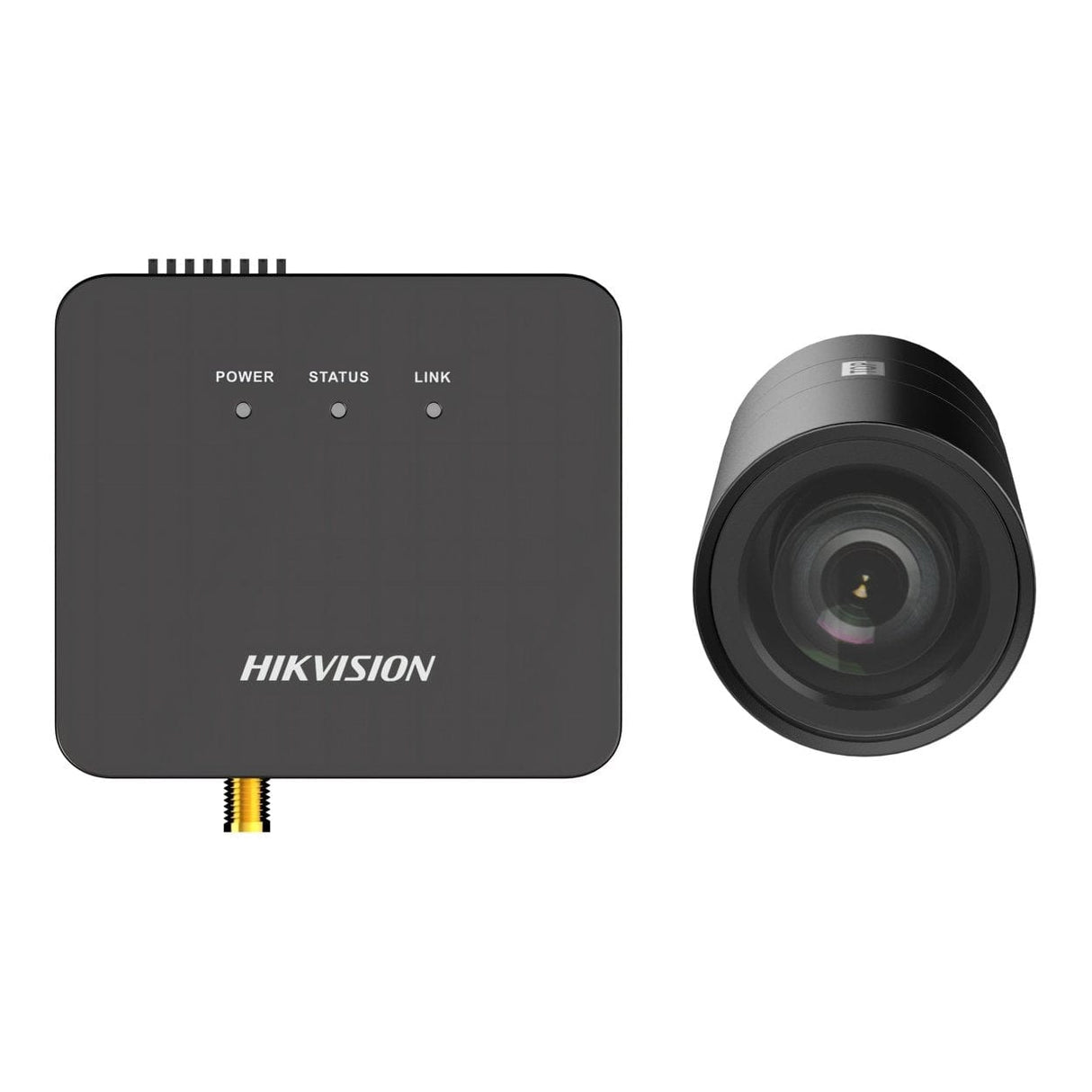

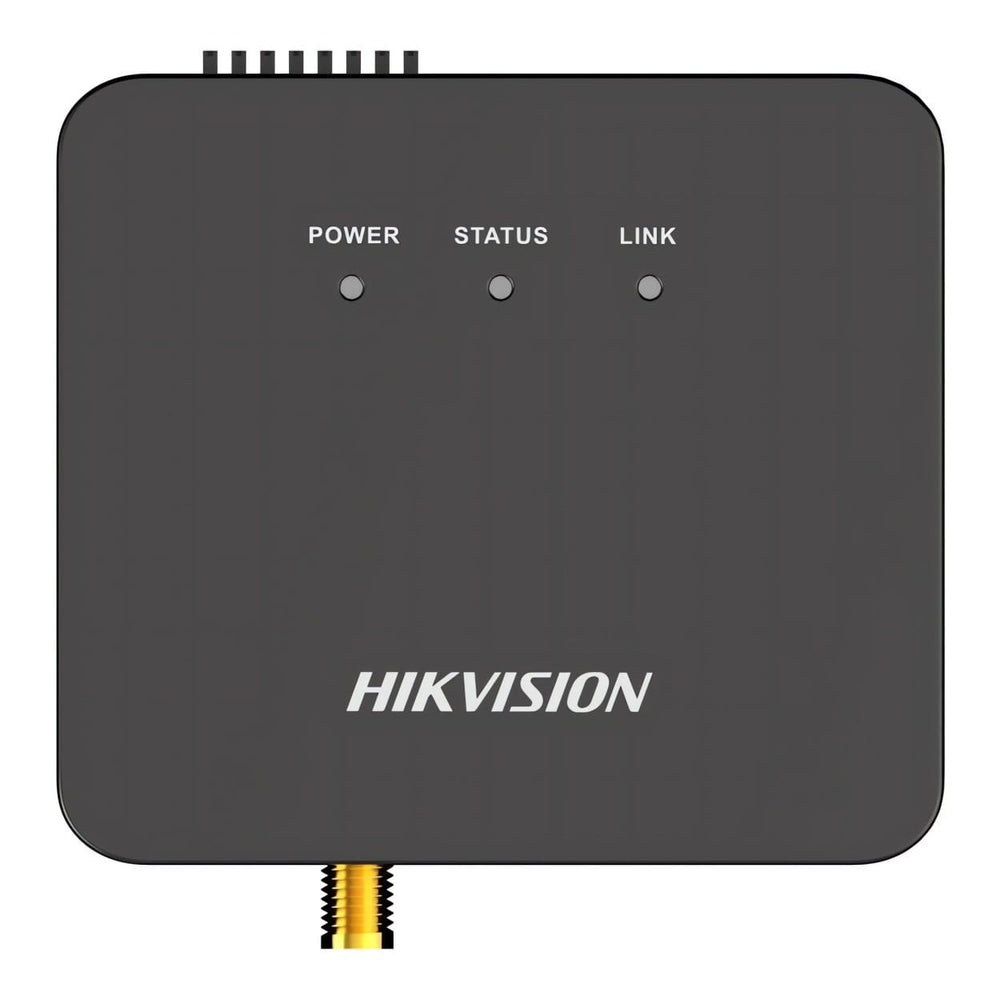

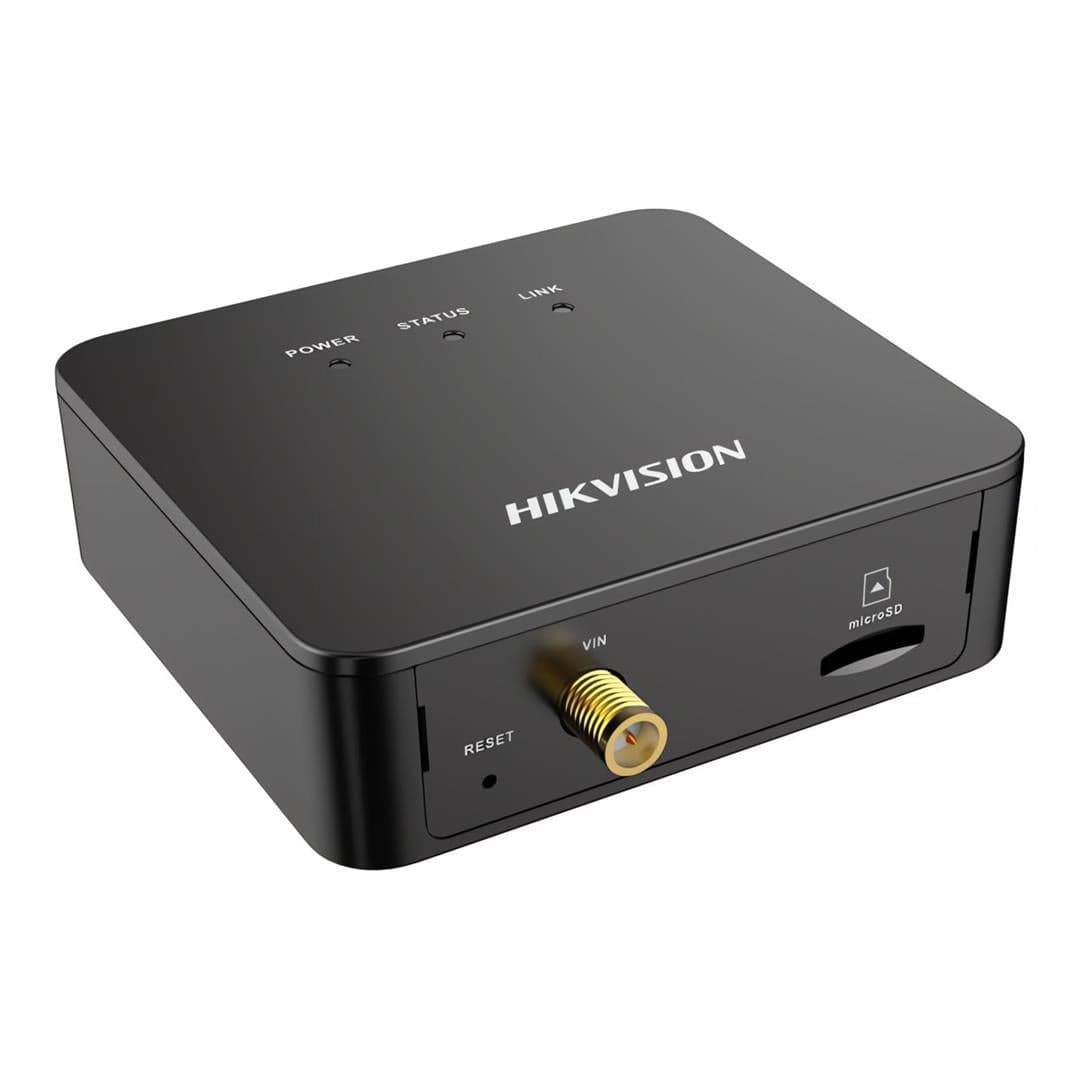

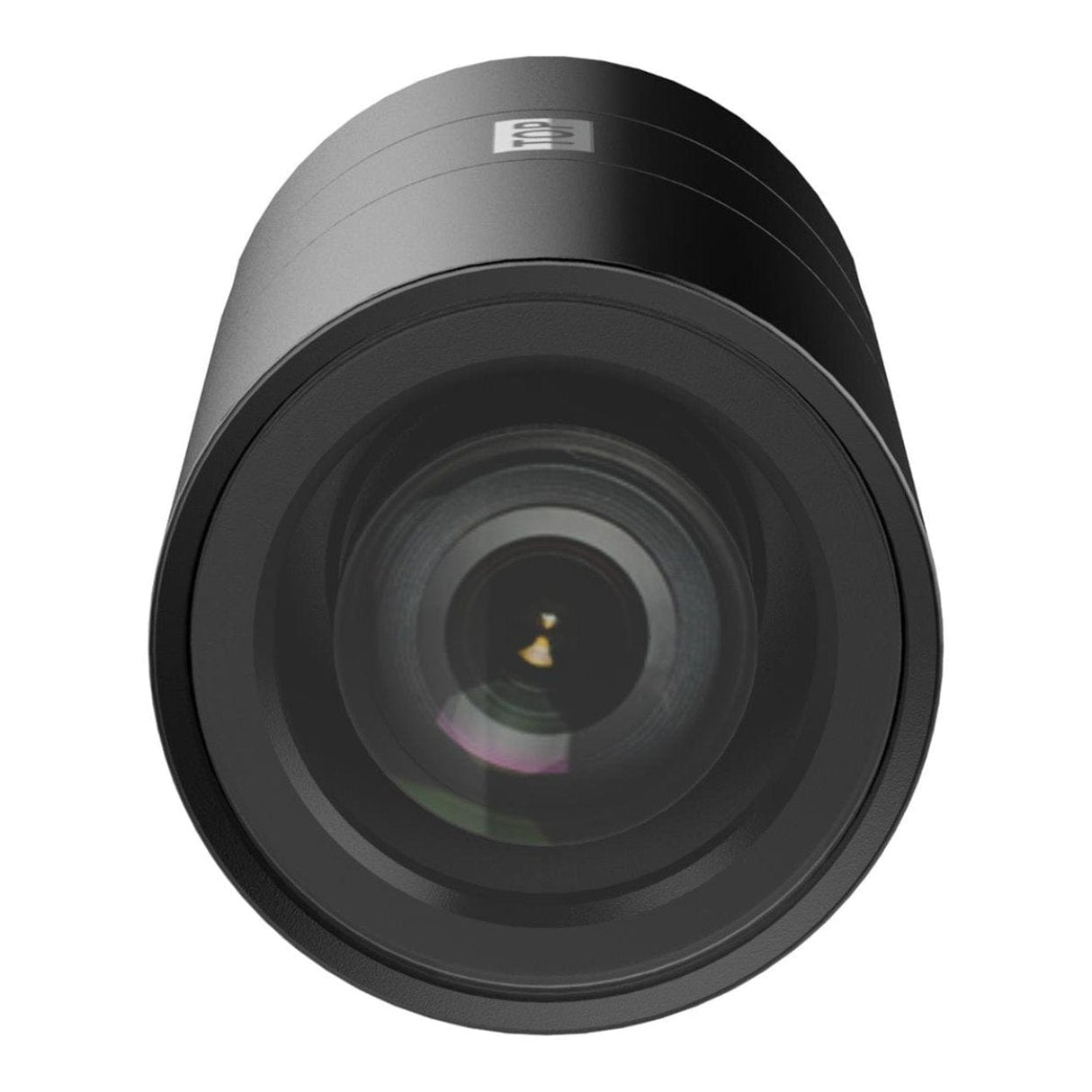

Hikvision 2MP 2.8mm Covert Camera with 8m Cable DS-2CD6425G1-30(2.8mm)8m

Hikvision 2MP 2.8mm Covert Camera with 8m Cable DS-2CD6425G1-30(2.8mm)8m

Features

• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology to save bandwidth and storage
• Clear imaging against strong back light due to 120 dB true WDR technology
• Audio and alarm interface available
• 3D DNR technology delivers clean and sharp images

Technical Specification

Image Sensor: 1/2.8" Progressive Scan CMOS

Max. Resolution: 1920 × 1080

L30 model Focal Length: 2.8 mm

L30 model FOV: Horizontal FOV: 107.8°, Vertical FOV: 57.9°, Diagonal FOV: 126.7°

L30 model DORI: D: 42.8 m, O: 17 m, R: 8.6 m, I: 4.3 m

Length of Lens Cable: 8 m

Audio: 1x input (line in) , 1x output (line out)

Alarm: 1x input , 1x output (max. 12 VDC, 30 mA)

RS-485: 1x RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Ethernet Interface: 1x RJ45 10 M/100 M self-adaptive Ethernet port

Dimension Main body: 77.5 mm × 69 mm × 26 mm

Dimension L30 model: 26 mm × 50 mm

Power: 12 VDC ± 20%, 0.25 A, max. 3 W, two-core terminal block or PoE: 802.3af, Type 1, Class 3, 36 V to 57 V,0.1 A to 0.07A, max. 3.65 W

• Please note: Power supply is not included
