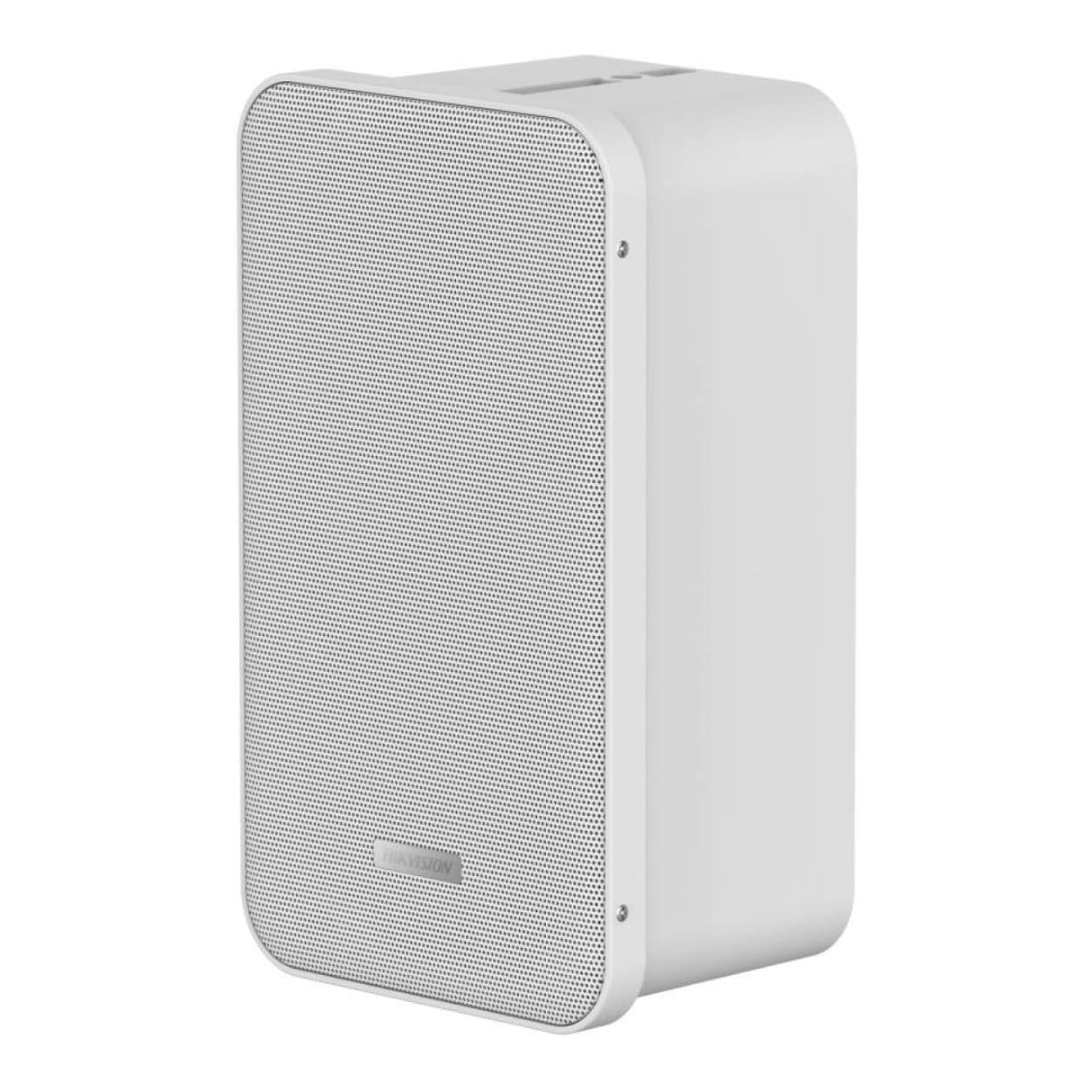

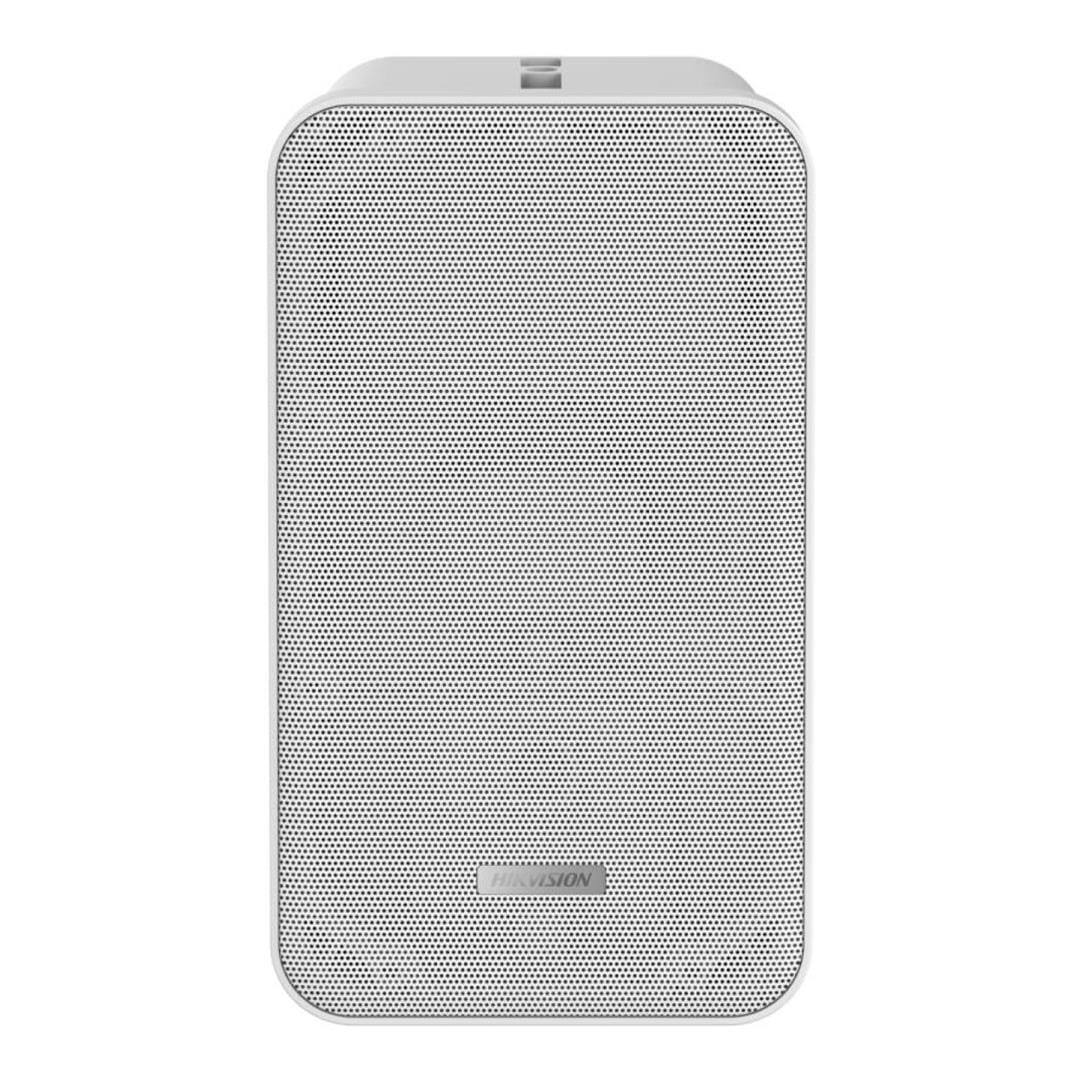

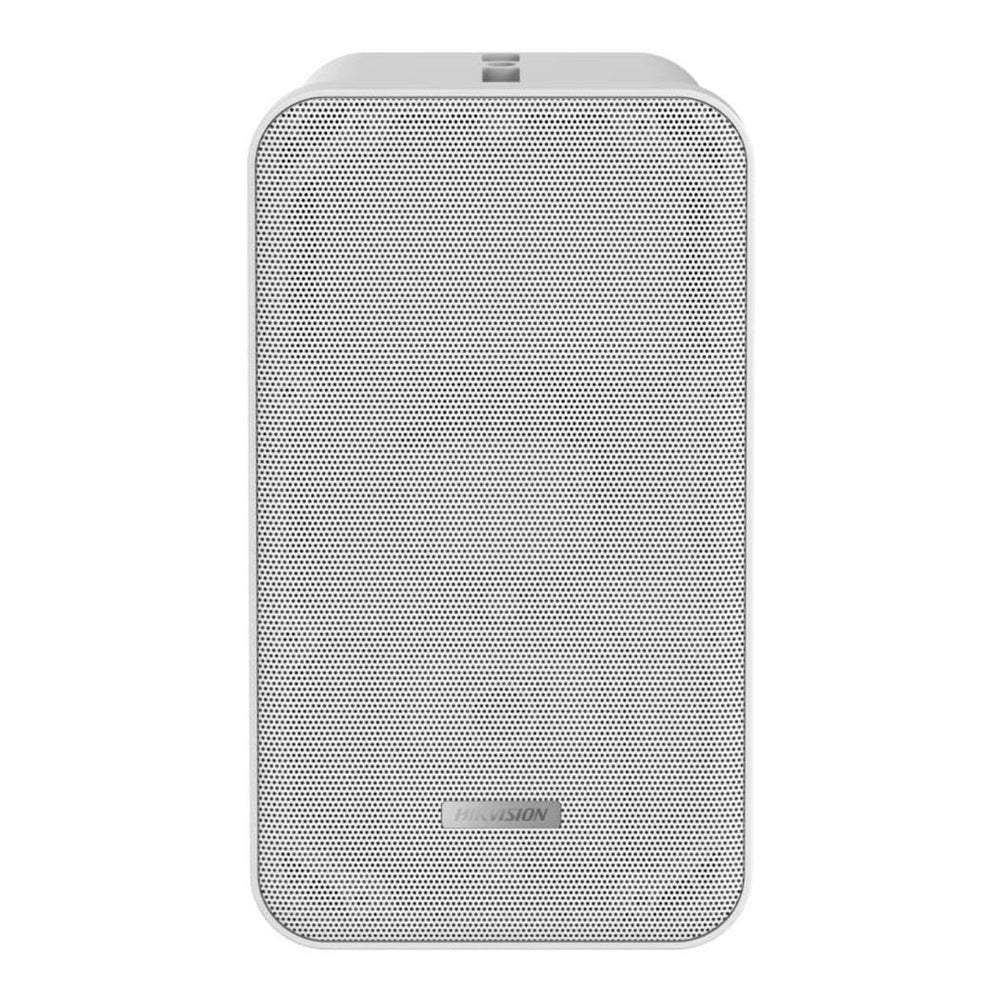

Hikvision 20W Analog Column Speaker DS-QAE0420G1-V

Hikvision 20W Analog Column Speaker DS-QAE0420G1-V

Features:

• Full frequency 4′′ × 1, high frequency 0.75′′ × 1
• Rated Power: 20 W
• Sensitivity(1 m, 1 W): 89.5 dB ± 3 dB
• Max. SPL: 96 dB
• Frequency Response: 100 Hz to 20 kHz
• White

Technical Specifications:

Interface

Audio Input
Green End (Terminal Block), Constant Voltage Input: 100 V, COM

Speaker Specifications

Impedance
8 Ω

Rated Power
20 W

Sensitivity (1 m, 1 W)
89.5 dB ± 3 dB

Maximum Acoustic Pressure
96 dB SPL

Frequency Response
100 Hz To 20 kHz

Speaker Unit

• Full Frequency: 4-Inch × 1
• High Frequency: 0.75-Inch × 1

Coverage Angle

Horizontal
150°

Vertical
160°

Protection

Protection Rating
IP66

General

Color
White

Material

• Front Cover: Steel Mesh
• Back Cover: Plastic

Operating Temperature
-25 °C To 55 °C (-13 °F To 131 °F)

Operating Humidity
< 90% (Non-Condensing)

Physical Specifications

Dimensions
280 × 161.9 × 119.8 mm

Weight
Approx. 1862.4 g

Package Dimensions
340 × 306 × 175 mm

Package Weight
Approx. 2610.2 g

What's in the Box:

• 1 x Hikvision 20W Analog Column Speaker
• Screw Pack
• 2 x L-Brackets
• Regulatory Compliance And Safety Information
