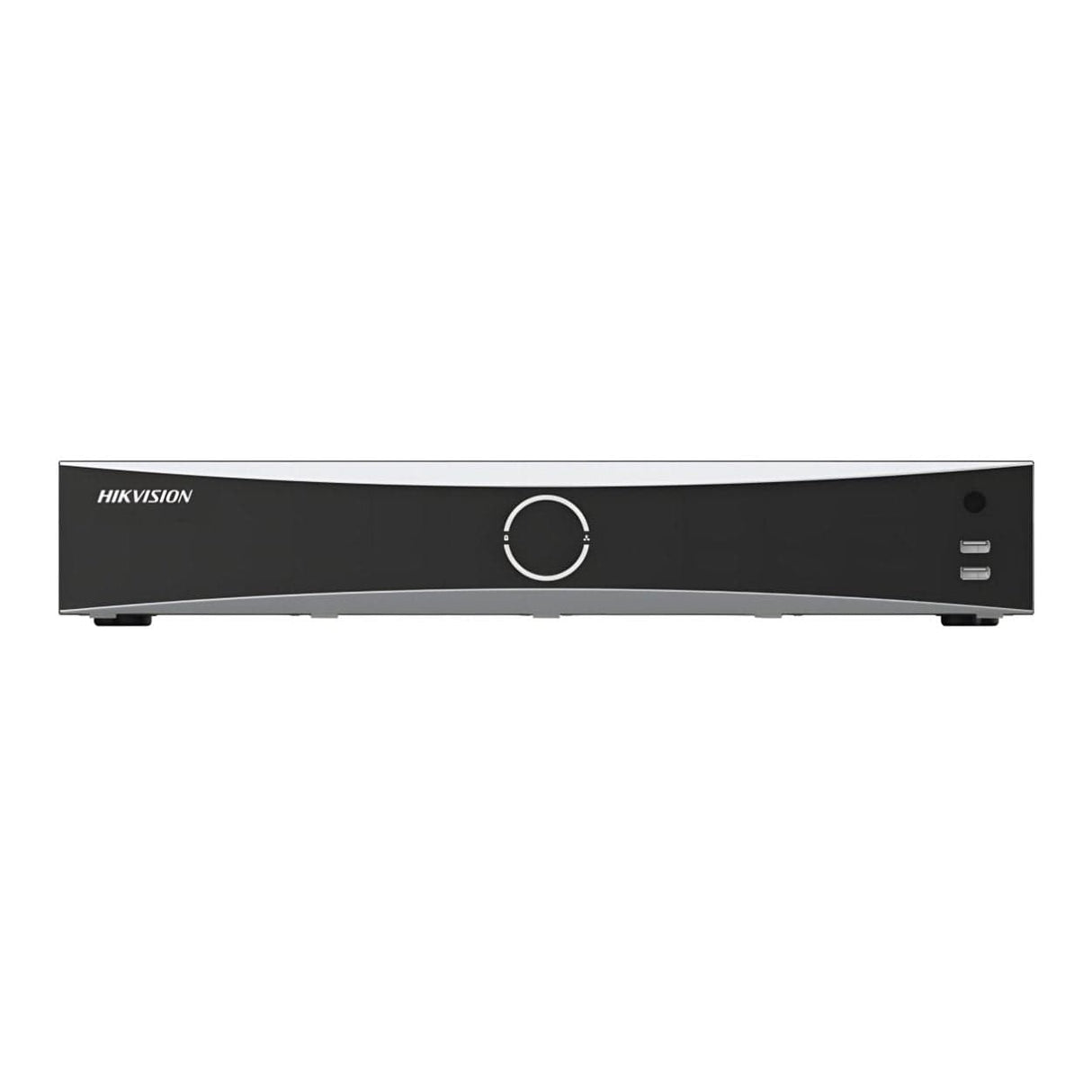

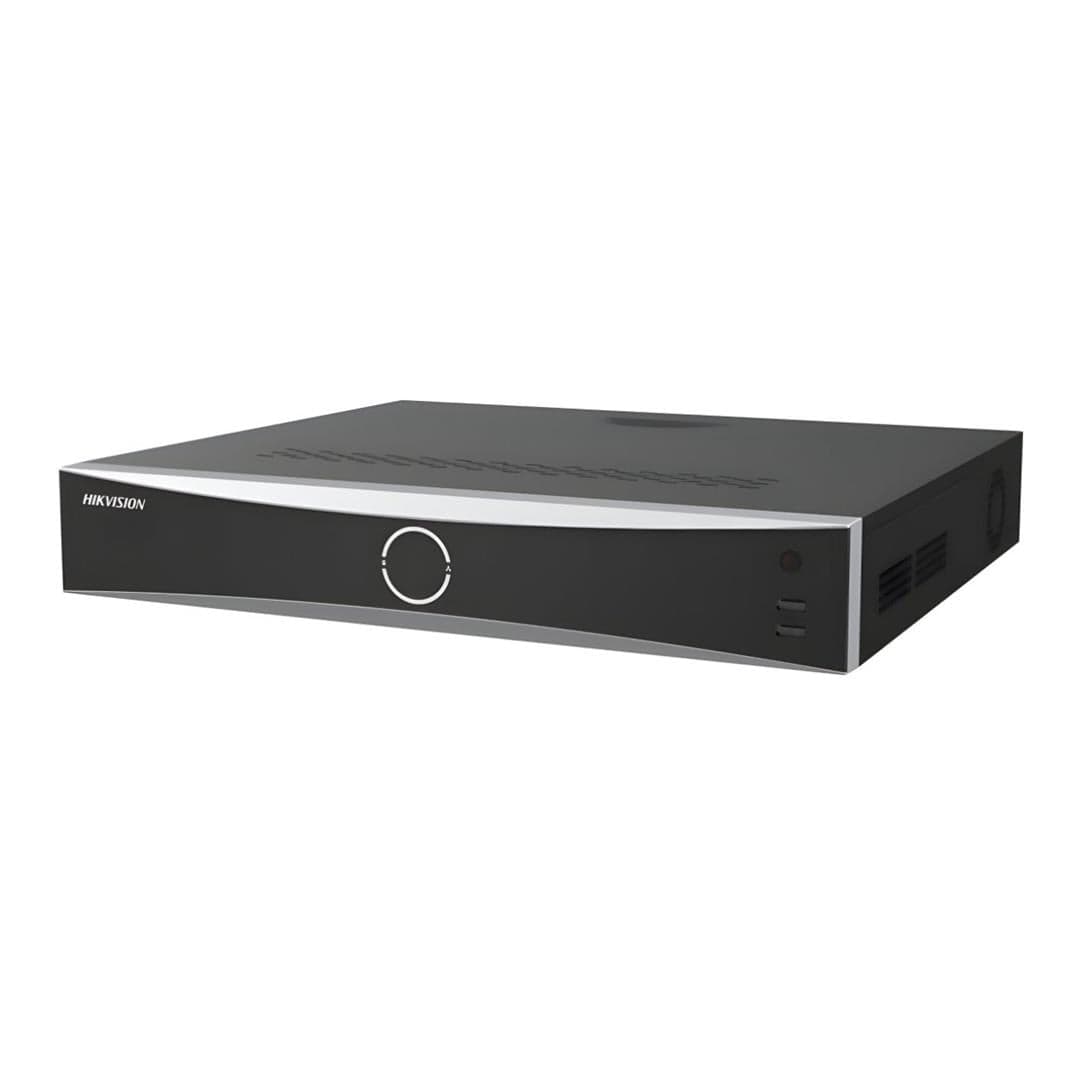

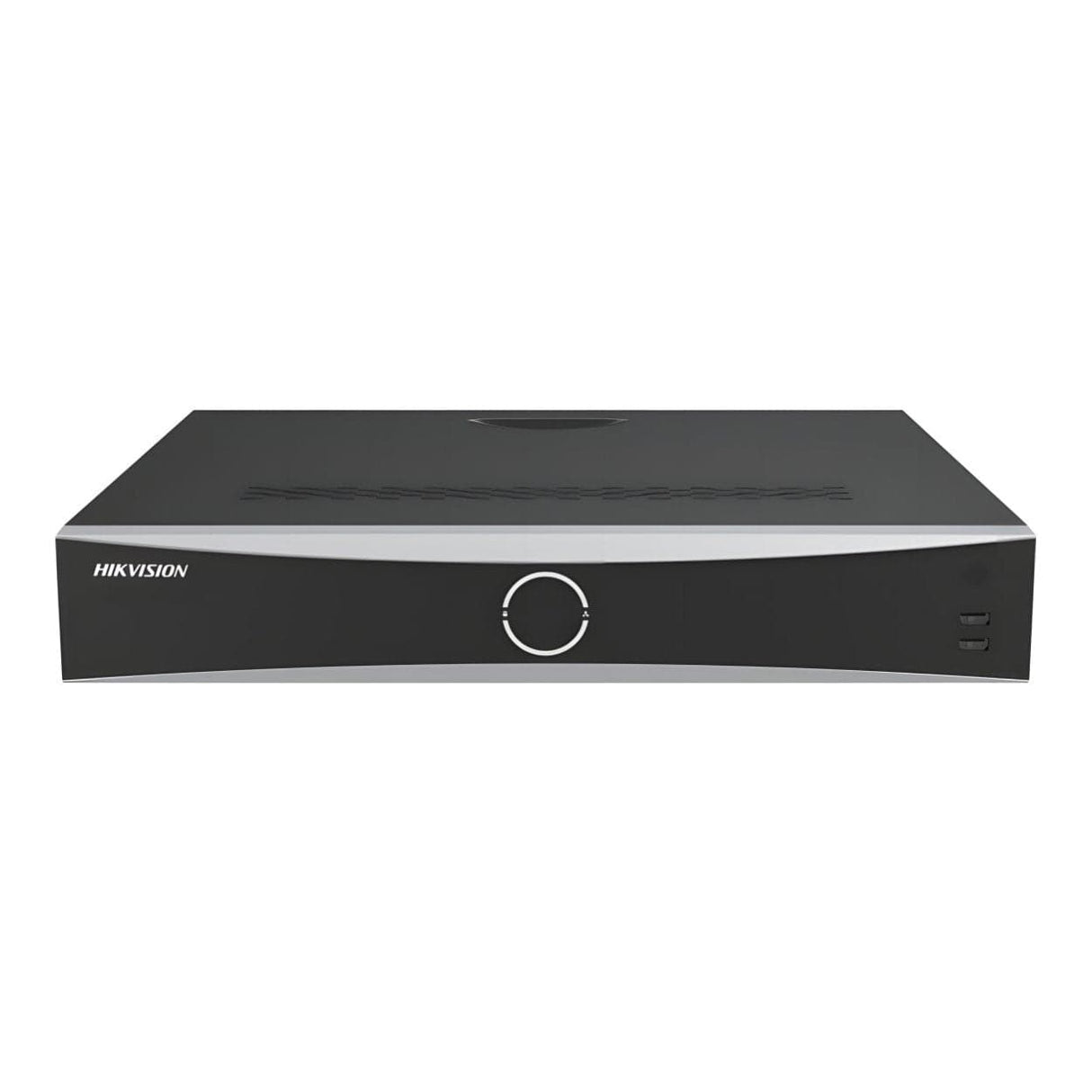

Hikvision 16-channel 4K I/VPro Series NVR with AcuSeek DS-7716NXI-I4/VPRO

Hikvision 16-channel 4K I/VPro Series NVR with AcuSeek DS-7716NXI-I4/VPRO

Features:

• H.265+/H.265/H.264+/H.264 video formats
• Intelligent analytics based on Guanlan Large-Scale AI Models
• Up to 16-ch AcuSeek and AcuSearch function
• Up to 8-ch facial recognition for face picture
• Up to 16-ch IP camera inputs
• Up to 32-ch 1080p decoding capability
• Up to 8-ch IP speakers can be connected

Technical Specifications:

Intelligent Analytics

AI by NVR
Facial recognition

AI by NVR and Camera
Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek

Engine
2 engines. 1 is for face picture and AcuSearch. 1 is for AcuSeek

AcuSearch
Performance
If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSearch in all channels, capable of modeling 300,000 targets/day

AcuSeek
Performance
If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 300,000 targets/day

Search Language
English

Facial Recognition
Face Picture Library
Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)

Face Picture Comparison
8-ch

Facial Detection and Analytics
Face picture comparison, human face capture, face picture search

Facial Detection and Analytics Performance
4-ch human face capture (HD network camera, 4-ch 2MP, 2-ch 4MP, 1-ch 8MP, H.264/H.265)

ANPR
By Camera
All channels

Support Countries & Regions

1. Myanmar, Philippines, Indonesia, Vietnam, Pakistan, New Zealand, Australia, Sri Lanka, Singapore, Malaysia

2. Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, United Kingdom, Ireland, Germany, Italy, Austria, Palestine, Latvia, Lithuania, Estonia, Belgium, Luxembourg, Ukraine, Uzbekistan, Kazakhstan, Mongolia, Moldova, Kyrgyzstan, Azerbaijan, Georgia, Armenia, Albania, Kosovo, Belarus, Cyprus, Denmark, Finland, Malta, Portugal, Romania, Slovenia, Sweden, Israel, Bosnia and Herzegovina, Turkmenistan, Montenegro, Serbia, Tajikistan, Iceland, Liechtenstein

3. Argentina, Brazil, Chile, Colombia, Peru, Ecuador, Paraguay, Uruguay, Salvador, Bolivia, Canada, Algeria, Mexico, Panama, Costa Rica, Nigeria, Kenya, Mauritius, Tanzania, Cote d'Ivoire, South Africa, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Republic of Trinidad and Tobago, Dominica, Guatemala, Senegal, Algeria, Cameroon

4. Qatar, Kuwait, Oman, Jordan, Lebanon, Iraq, United Arab Emirates, Saudi Arabia, Bahrain, Egypt, Libya

Vehicle Attributes
Plate number, license plate color, license plate type

Plate Attributes
Vehicle brand, vehicle color, vehicle type

Video and Audio

IP Video Input
16-ch

Incoming Bandwidth
192 Mbps

Outgoing Bandwidth
256 Mbps

HDMI Output
HDMI1: 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 720/60 Hz
HDMI2: 1920 × 1080/60 Hz, 1280 × 720/60 Hz

VGA Output
1920 × 1080/60 Hz, 1280 × 720/60 Hz

Video Output Mode
HDMI/VGA independent output

CVBS Output
NA

Audio Output
1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding
Decoding Format
H.265+, H.265, H.264+, H.264

Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
The NVR supports up to 4-ch 32 MP/24 MP IP video inputs

Synchronous Playback
16-ch

Live View Window Division
1/2/4/6/8/9/16

Aux Port Window Division
1/2/4/6/8/9/16

Decoding Capability
Enable AI by NVR: 20-ch@1080p (30 fps)
Disable AI by NVR: 32-ch@1080p (30 fps)

Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Dual-Stream Recording
Support

Stream Type
Video, Video & Audio

Network

Network Interface
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Remote Connection
128

Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

API
ONVIF (profile S/G), SDK, ISAPI

Compatible Browser
IE11, Chrome V57+, Firefox V52+, Safari V12+, Edge V89+

Camera Access Protocol
ONVIF(Version 2.5), RTSP

Auxiliary Interface

SATA
4 SATA interfaces, up to 20 TB capacity per disk

Alarm In/Out
16/9

USB Interface
Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0

General

GUI Language
English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian, Hebrew

Power Supply
100 to 240 VAC, 50 to 60 Hz

Consumption
≤ 50 W (without HDD)

Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity
10% to 90%

Chassis
1.5U chassis

Dimension (W × D × H)
440 × 391 × 72 mm (17.32" × 15.39" × 2.81")

Weight
≤ 5 kg (without HDD, 11.02 lb.)

Certification
CE, CB, REACH, WEEE, UKCA, RCM, IC, LOA, KC. CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
