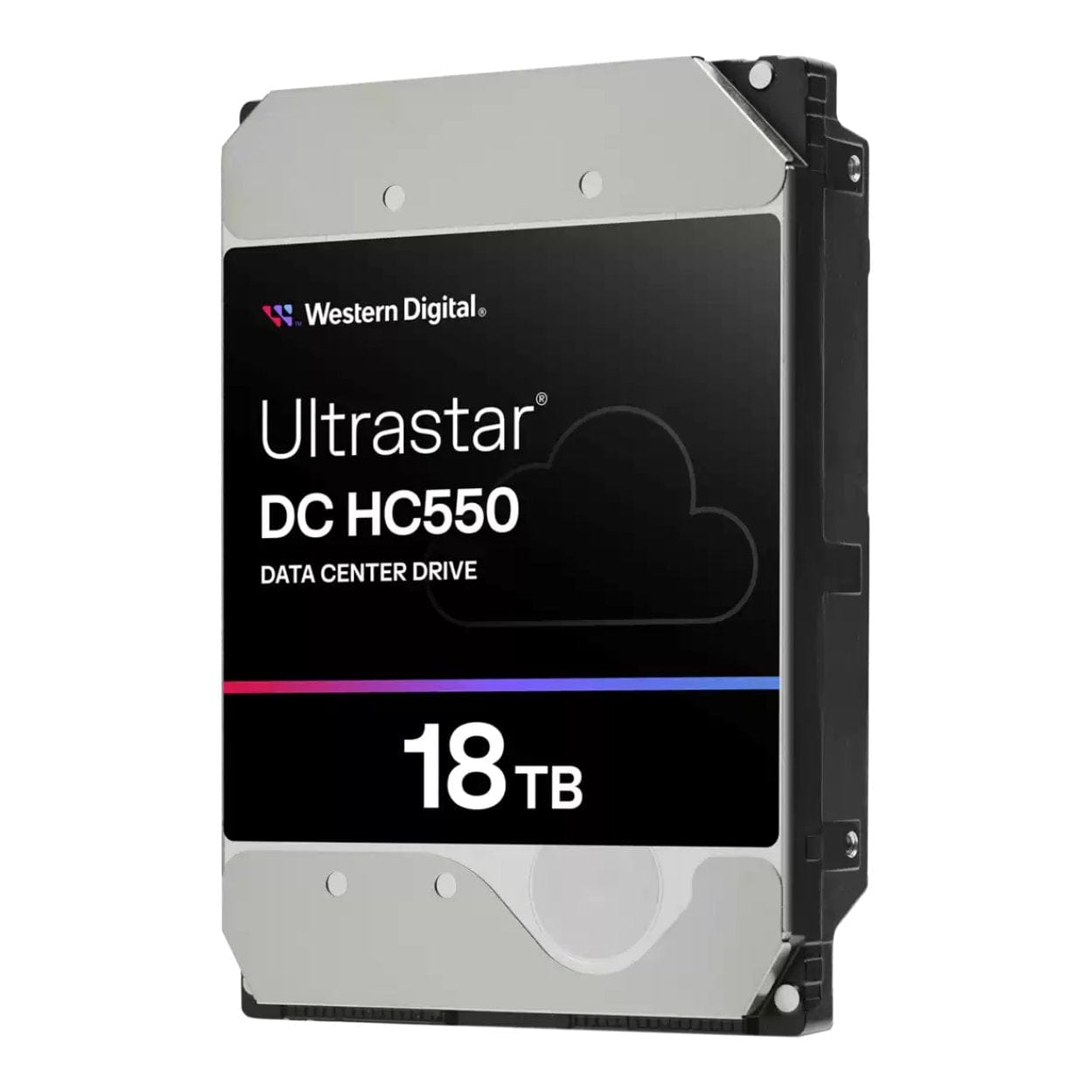

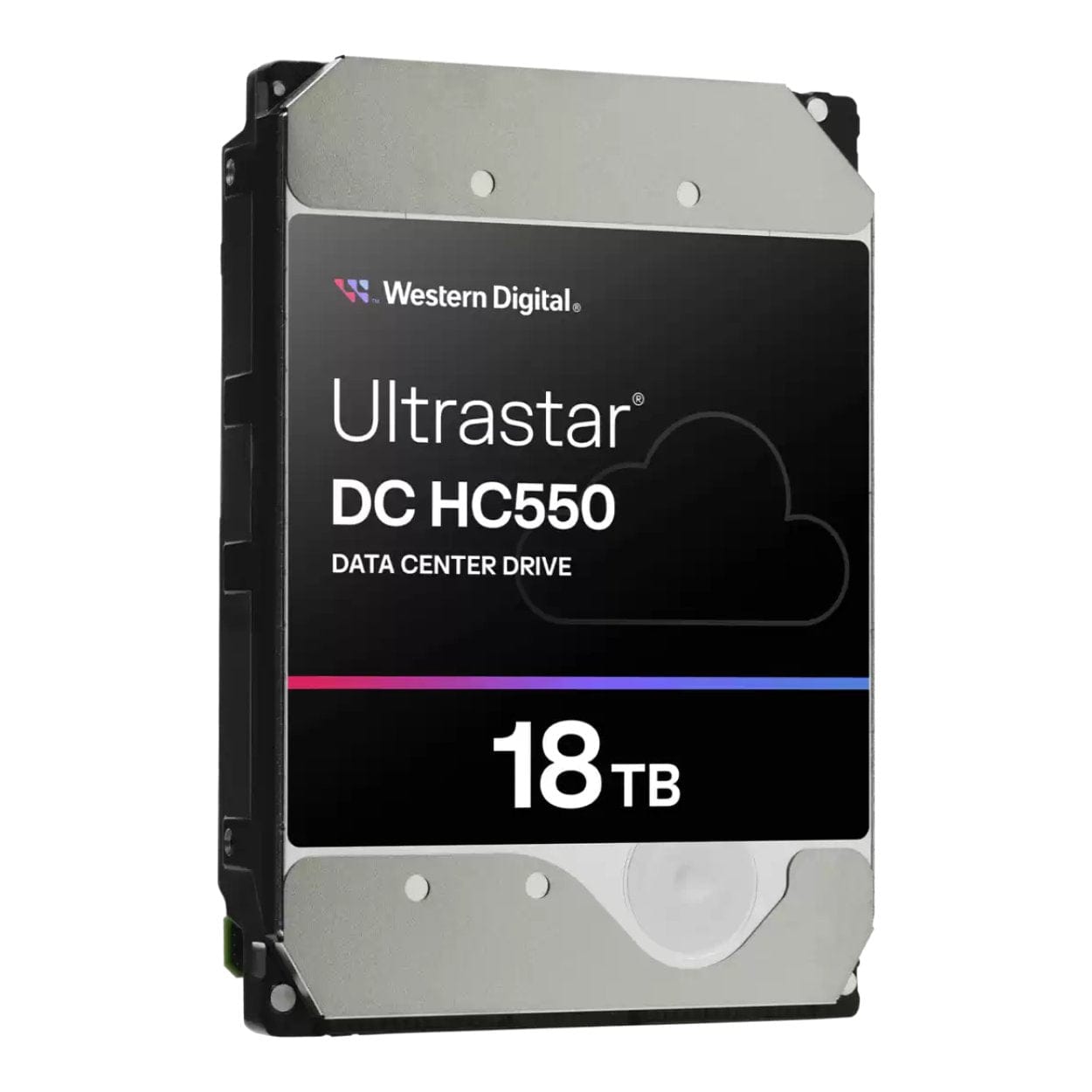

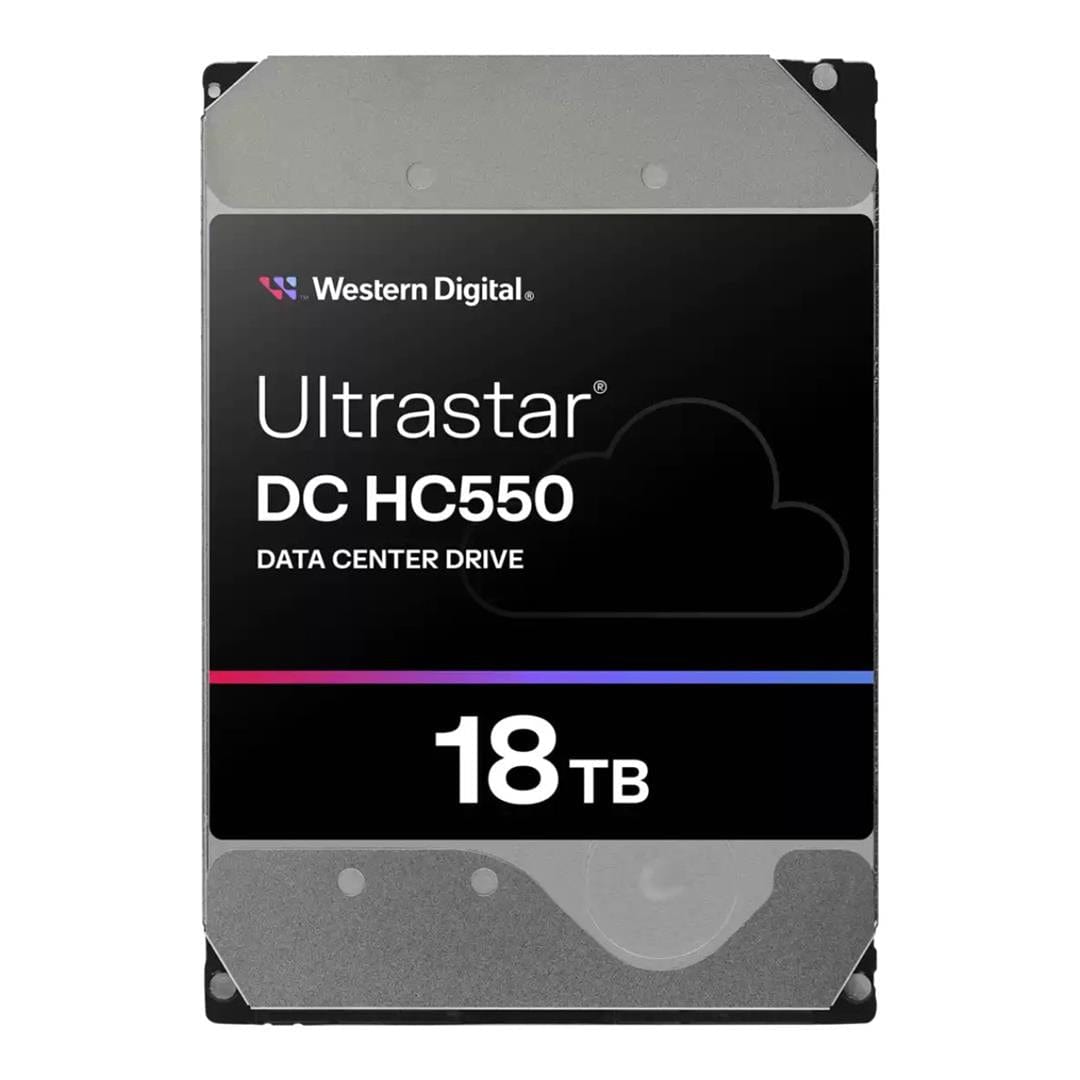

WD Ultrastar DC HC550 3.5-inch 18TB SATA SE Internal Data Centre Hard Drive 0F38459

WD Ultrastar DC HC550 3.5-inch 18TB SATA SE Internal Data Centre Hard Drive 0F38459

Features

Internal hard drives with higher capacities and lower TCO

Data center decisions are driven by TCO. The Ultrastar DC HC550, with 18TB, play a leading role in reducing TCO.

Total Cost of Ownership (TCO) Drives the Data Center Architecture

Data center decisions are driven by TCO. Higher capacity hard drives play a leading role in reducing TCO. An 18TB data center internal hard drive provides 29% more capacity in the same form factor as a 14TB HDD. Higher capacity HDDs enable data centers to lower CapEx by reducing supporting hardware and system level costs when compared to lower capacity drives. Helium-sealed, low power, high reliability drives reduce energy and maintenance costs, contributing to OpEx savings. For example, a data center using 18TB HDDs vs. 14TB HDDs can require 22% fewer racks while consuming 21% less power per TB at idle, resulting in significant overall TCO reduction for data center environments.

Raising the Capacity Bar with New Technologies

Ultrastar DC HC550 integrates a suite of technologies on a 9-disk platform to create a new class of HDDs. 18TB capacity is achieved by combining technologies that improve areal density working together with technologies that improve performance and reduce power consumption.

• The first internal hard drives in the industry to harness Energy-Assisted Magnetic Recording (EAMR) technology improves writability and therefore increases areal density.
• The industry’s first Triple Stage Actuator (TSA) enhances head-positioning accuracy, delivering better performance and increased areal density.
• HelioSeal technology is the foundation for Western Digital’s high capacity HDDs and this is the 6th generation of HelioSeal product. Western Digital has shipped >65 million HelioSeal products to date.

Technical Specification

Product: WD Ultrastar DC HC550 18TB HDD

Capacity: 18TB

Form Factor: 3.5-Inch

Interface Connector: SATA III

Transfer Rate: up to 269MB/s

Disk Speed (RPM): 7200 RPM

Recording Technology: EAMR

Cache Size: 512MB

Security: SE

Weight: 690gms

Compatibility: Windows, Windows Server, Linux

Features

• CMR technology works with all capacity enterprise applications and environments
• Industry's first HDD with Energy Assisted-Magnetic Recording technology
• Industry's first Triple Stage Actuator
• HelioSeal design delivers outstanding power efficiency (Watts/TB)
