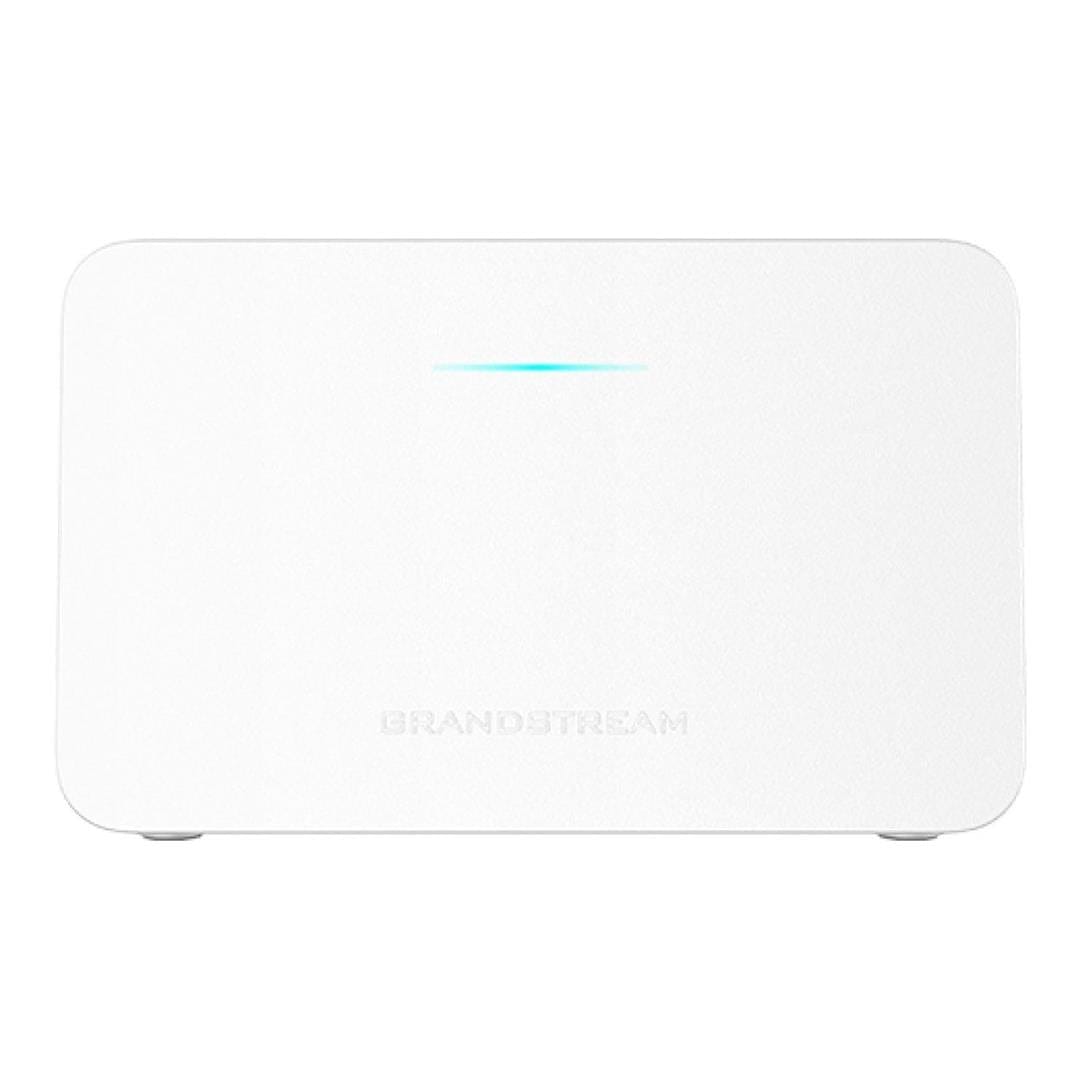

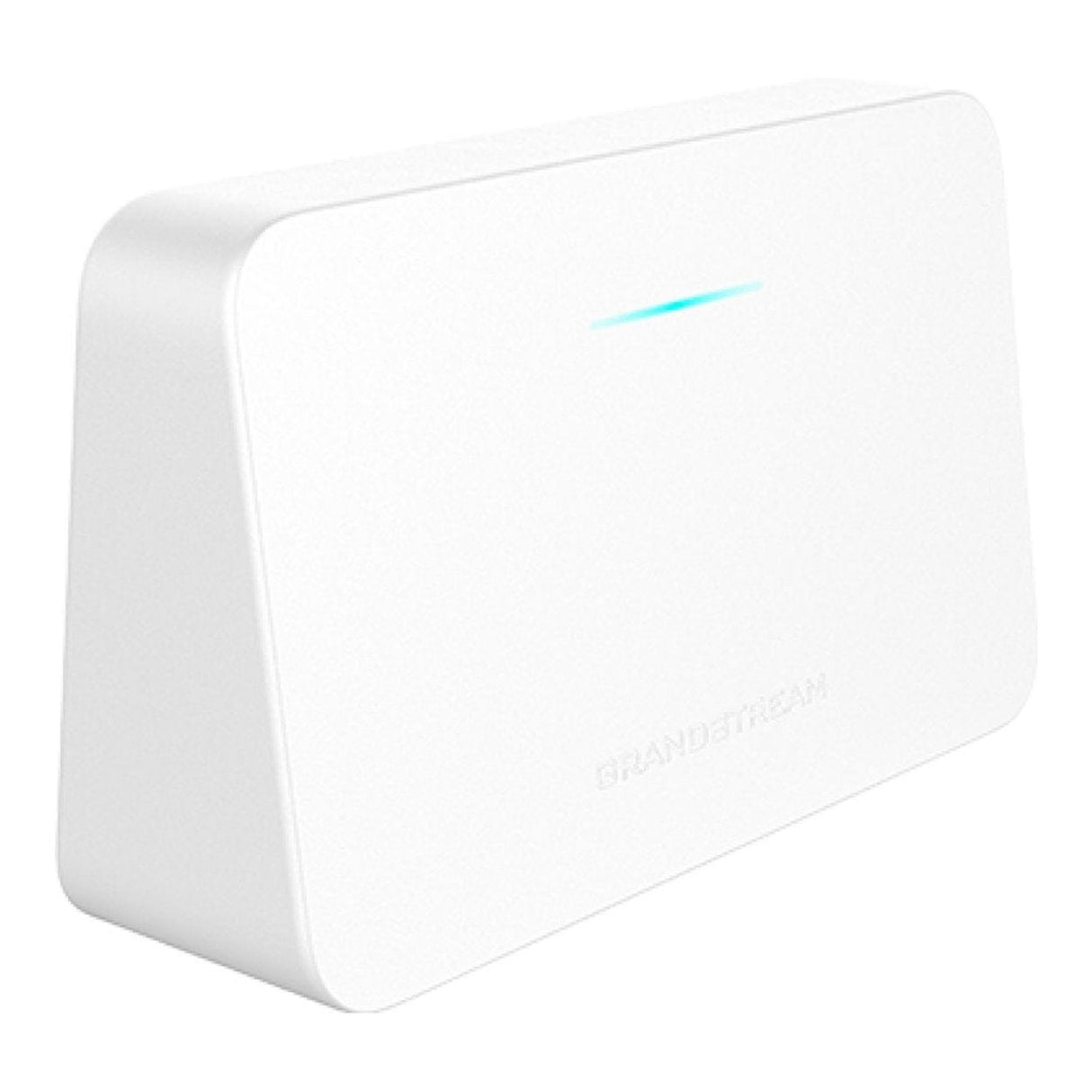

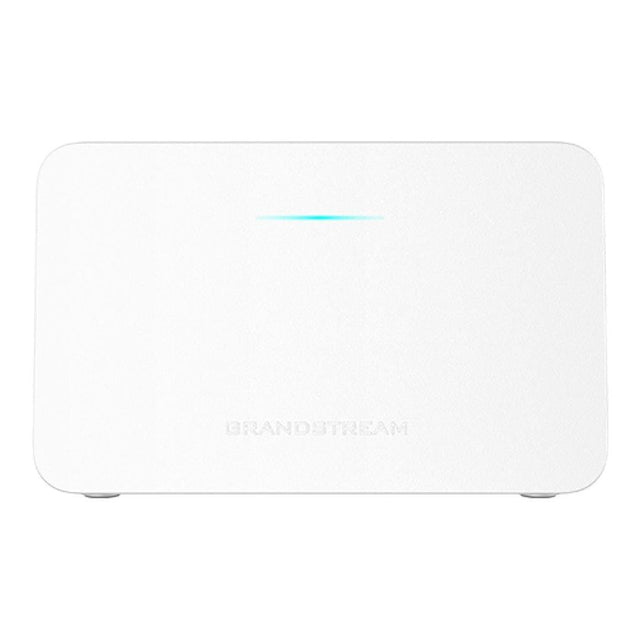

Grandstream GWN Series Dual-Band Wi-Fi 6 Router GWN7062ET

Grandstream GWN Series Dual-Band Wi-Fi 6 Router GWN7062ET

The GWN7062ET are Wi-Fi 6 Routers powered by a 1.3GHz dual-core processor to provide Wi-Fi speeds up to 3 Gbps for up to 128 concurrent devices, ideal for small-to-medium businesses and home networks.

• Powered by Wi-Fi 6 (802.11ax) with up to 3Gbps wireless throughput
• GWN7062ET: 3x Gigabit ports + 2x FXS ports to provide internet and telephony access
• Dual-band (2.4G 2x2:2 and 5G 3x3:2) MU-MIMO with DL/ UL OFDMA technology
• Built-in VPN support allows easy access to corporate networks for remote employees
• Supports up to 128 concurrent wireless client devices
• Secure cloud provisioning through GDMS Networking
• Powerful security features include guest network, network blocklist, anti-hacking secure boot & critical data/control, lockdown via digital signatures, and more
• Rich firewall features including DoS, blocklist, and URL content filtering
• Supports Mesh networking with Grandstream Wi-FI points and routers to provide easy network expansion

Designed for Small Business and Home Networks

By combining accelerated Wi-Fi speeds with mesh networking, VPN, intelligent QoS URL filtering, and more, these Wi-Fi 6 routers are the ideal for a growing home and small business network.

Powerful Dual-Core Processor

These Wi-Fi 6 Routers are powered by a 1.3GHz dual-core processor to support smart offices, home automation, 4K HD streaming, web meetings, online gaming and more.

Maximum Network Efficiency with MESH

Maximize network efficiency and easily expand your network at any time by building Mesh networks that pair the GWN7062ET with other Grandstream Wi-Fi access points and routers.

All-in-One Solution for Internet and Telephony

The GWN7062ET also includes two FXS ports to provide internet and telephony access with one device, ideal for service providers, homes, and small businesses.

Full Network Control

Intelligent QoS allows users to prioritize critical data streams to guarantee a smooth experience for high-bandwidth services and applications.

Content and URL Filtering

Admins can easily monitor and manage network traffic thanks to URL filtering and content blocking while accessing detailed network and traffic statistics, reports, and alerts.

Parental Control Keeps Families Safe

Built-in parental controls manage and control online time, block inappropriate content, and offer network usage statistics to keep families safe while online.

Specifications:

Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax

Antennas: 1x 5GHz: maximum gain 3.4dBi; 2x 2.4GHz&5GHz: maximum gain 4.7dBi for 2.4GHz, 4.3dBi for 5GHz

Frequency Bands: 2.4GHz radio: 2400-2483.5MHz; 5GHz radio: 5150-5895MHz (Not all frequency bands can be used in all regions)

Channel Bandwidth: 2.4G: 20 and 40MHz; 5G: 20, 40, 80 and 160MHz

Security: WPA/WPA2, WPA2, WPA2/WPA3, WPA3; anti-hack security boot and critical data/control lockdown via digital signatures; unique security certificate and random default password per device; security firewall including DoS, blocklist and URL content filtering; application monitoring and traffic statistics with DPI

MU-MIMO: 2×2:2 2.4GHz; 3×3:2 5GHz

Maximum TX Power: 2.4G: 24dBm; 5G: 26dBm (Maximum power varies by country, frequency band and MCS rate)

SSIDs: 4

Concurrent Wireless Clients: Up to 128 wireless clients

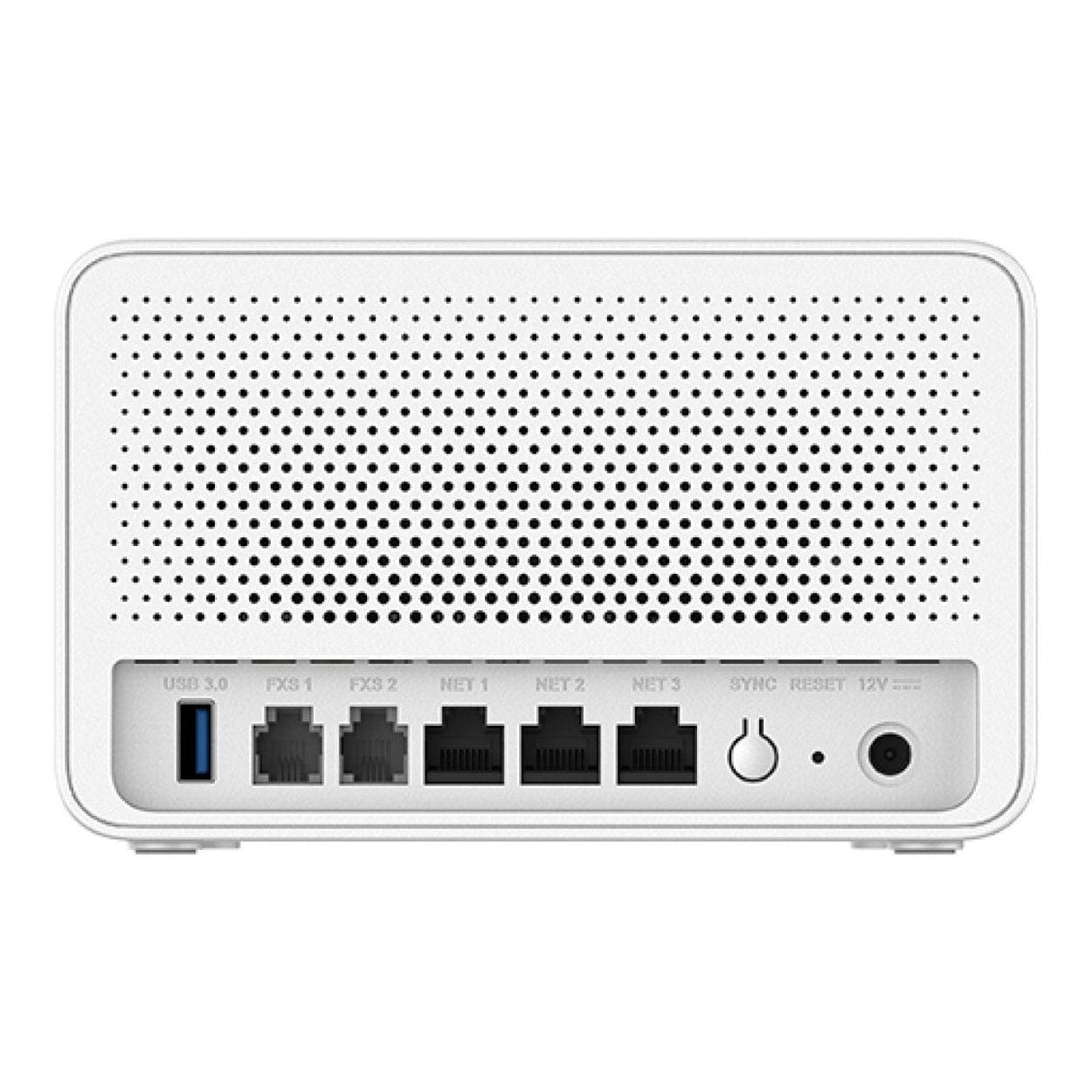

Networking Interfaces: 3x autosensing 10/100/1000Mbps Ethernet ports

Analog Telephone: FXS Ports 2x RJ11 Ports

Auxiliary Ports: 1x USB 3.0, 1x SYNC, 1x RESET Pinhole

Mounting: Desktop or wall-mount

LED: 1x tri-color LED for device tracking and status indication

Network Protocols: IPv4, IPv6, 802.1p, 802.11e/WMM, DSCP

QoS Support: 8 queues with multiple traffic priority and bandwidth; APP QoS; QoS rules

NAT: DDNS, Port Forwarding, DMZ, UPnP

VPN: Supports 1 VPN tunnel: L2TP Client, PPTP Client, IPSec Site-to-Site & Client-to-Site, OpenVPN® Server, WireGuard® Site-to-Site & Peer-to-Site

Networking Management: Embedded controller (can only manage itself); GDMS (Networking) offers a free cloud management platform for unlimited GWN Routers; GWN Manager offers premise-based software controller; TR-069

Power and Green Energy Efficiency: USB Type-C power adapter included: Input: 100~240V 50/60Hz; Output: 5V/1.5A(18W)

Environmental: Operation: 0°Cto 40°C, humidity: 10% to 90% RH (Non-condensing); Storage: -20°C to 60°C, humidity: 10% to 90% RH (Non-condensing)

Unit Dimensions: 160mm(L)*50mm(W)*98mm(H); Entire Package Dimensions: 187mm(L)*193mm(W)*76mm(H)
