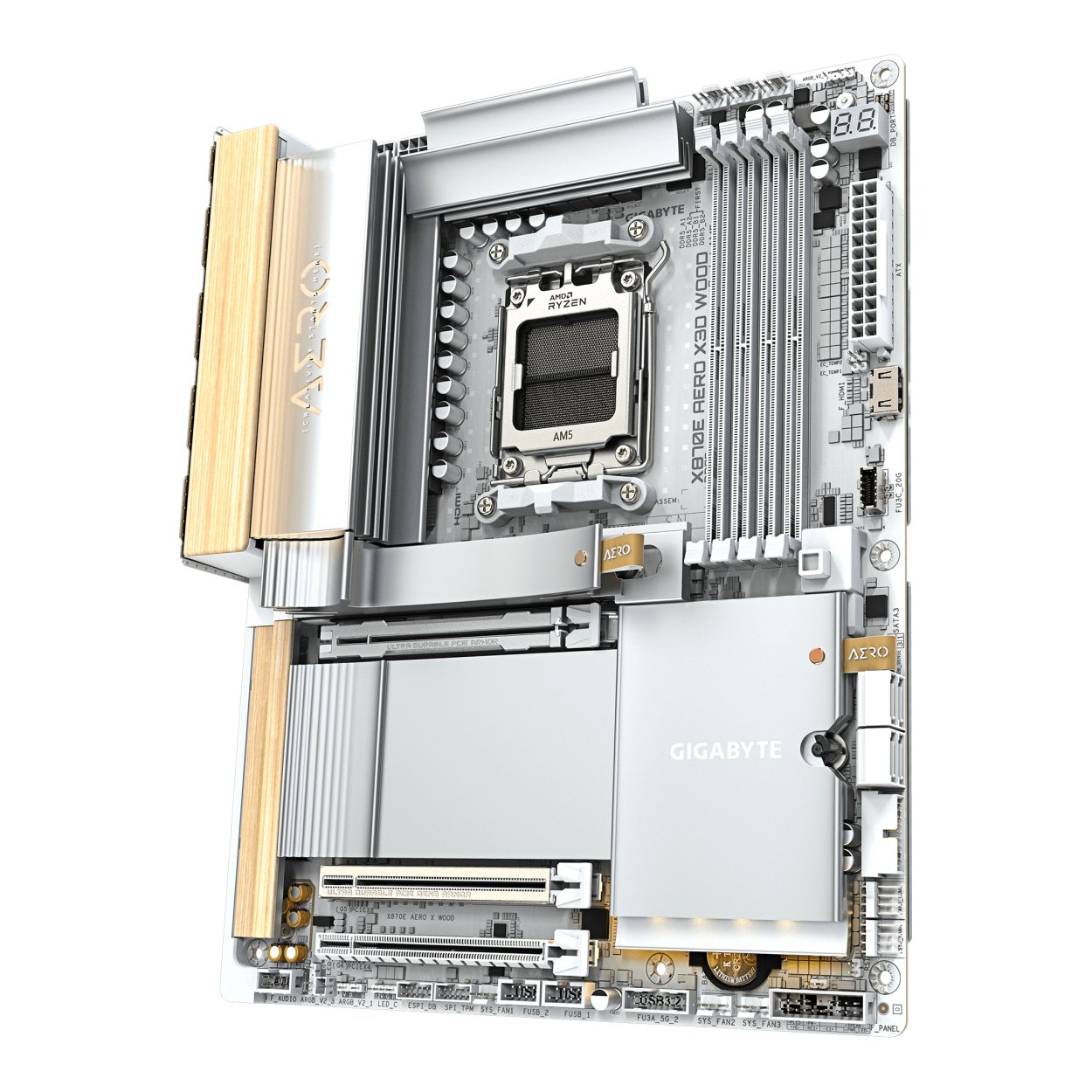

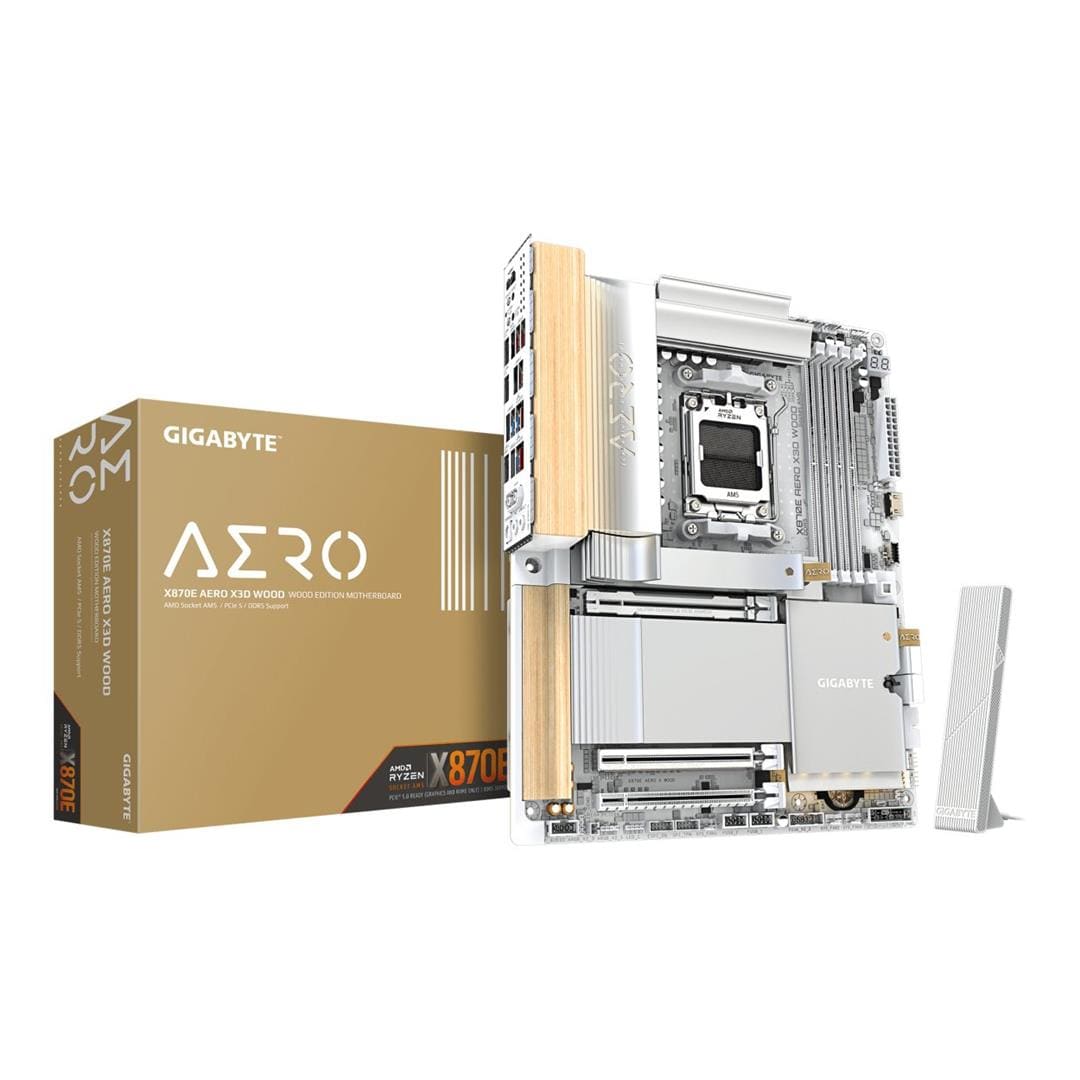

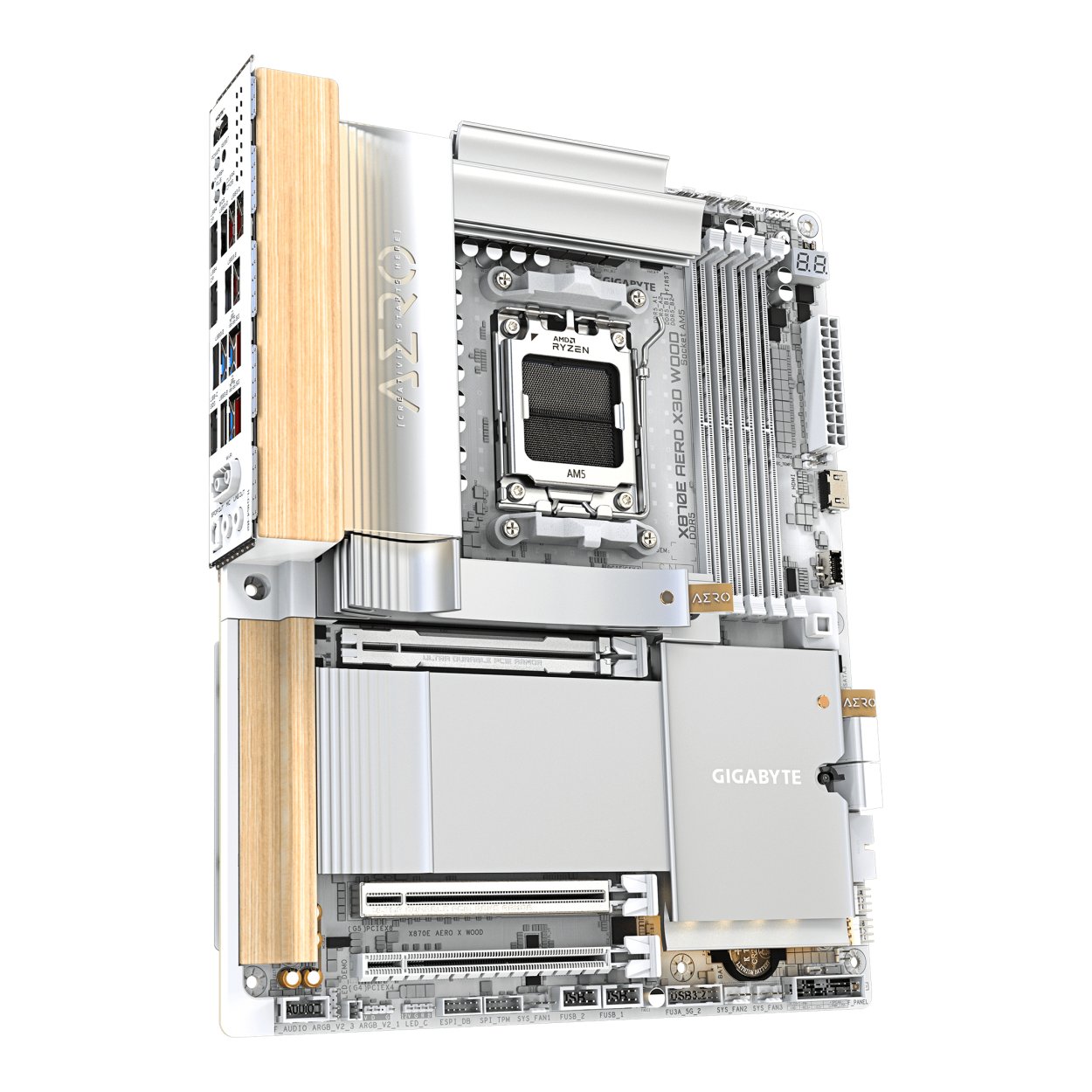

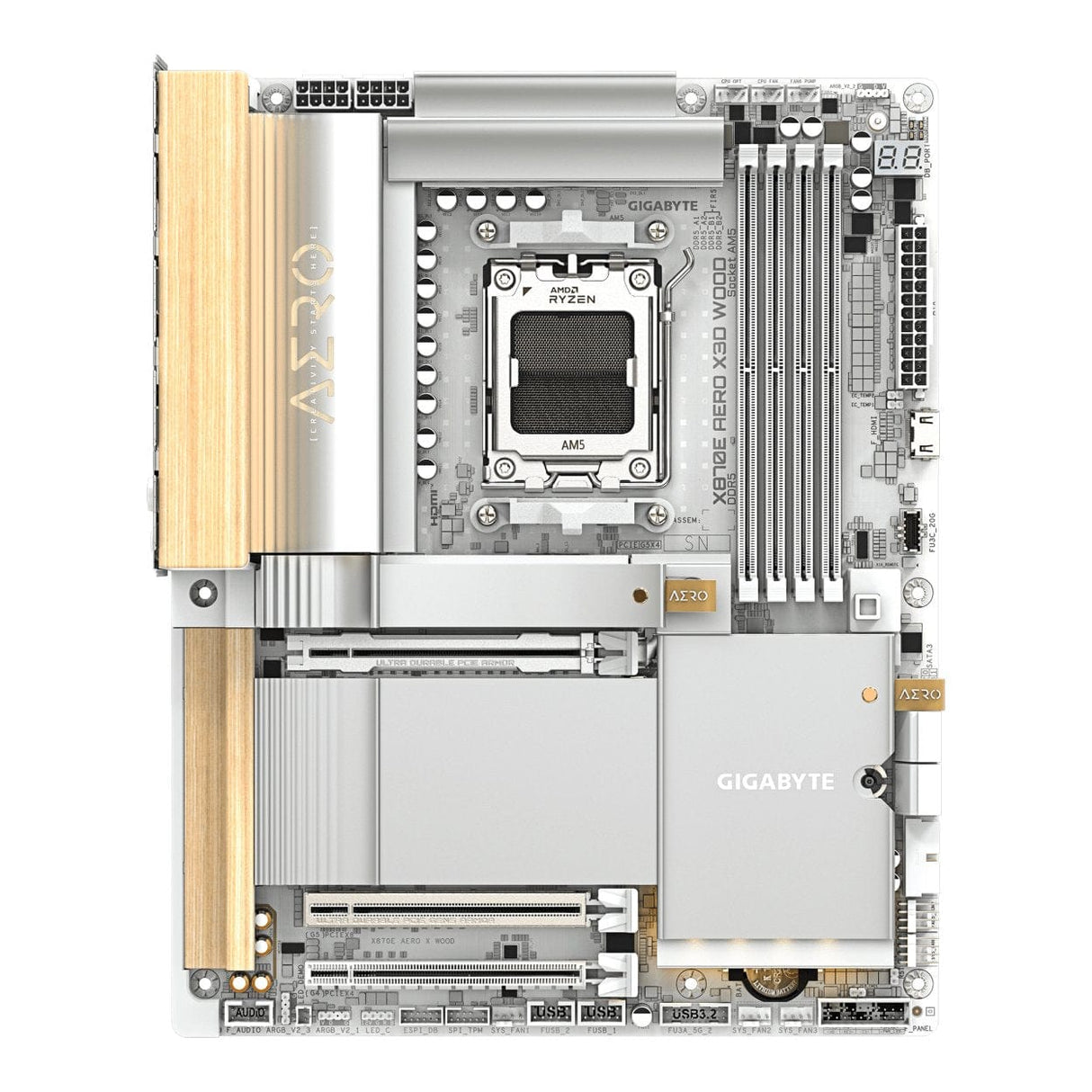

Gigabyte X870E AERO X3D Wood Wi-Fi 7 AMD Socket AM5 ATX Motherboard

Gigabyte X870E AERO X3D Wood Wi-Fi 7 AMD Socket AM5 ATX Motherboard

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Features:

• Raw textures reveal timeless elegance
• X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
• DDR5 OC up to 9000MT/s
• DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 16+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
• M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
• Friendly UI : Multi-Theme, One click to screenshot, and Click to go BIOS path in BIOS
• Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4

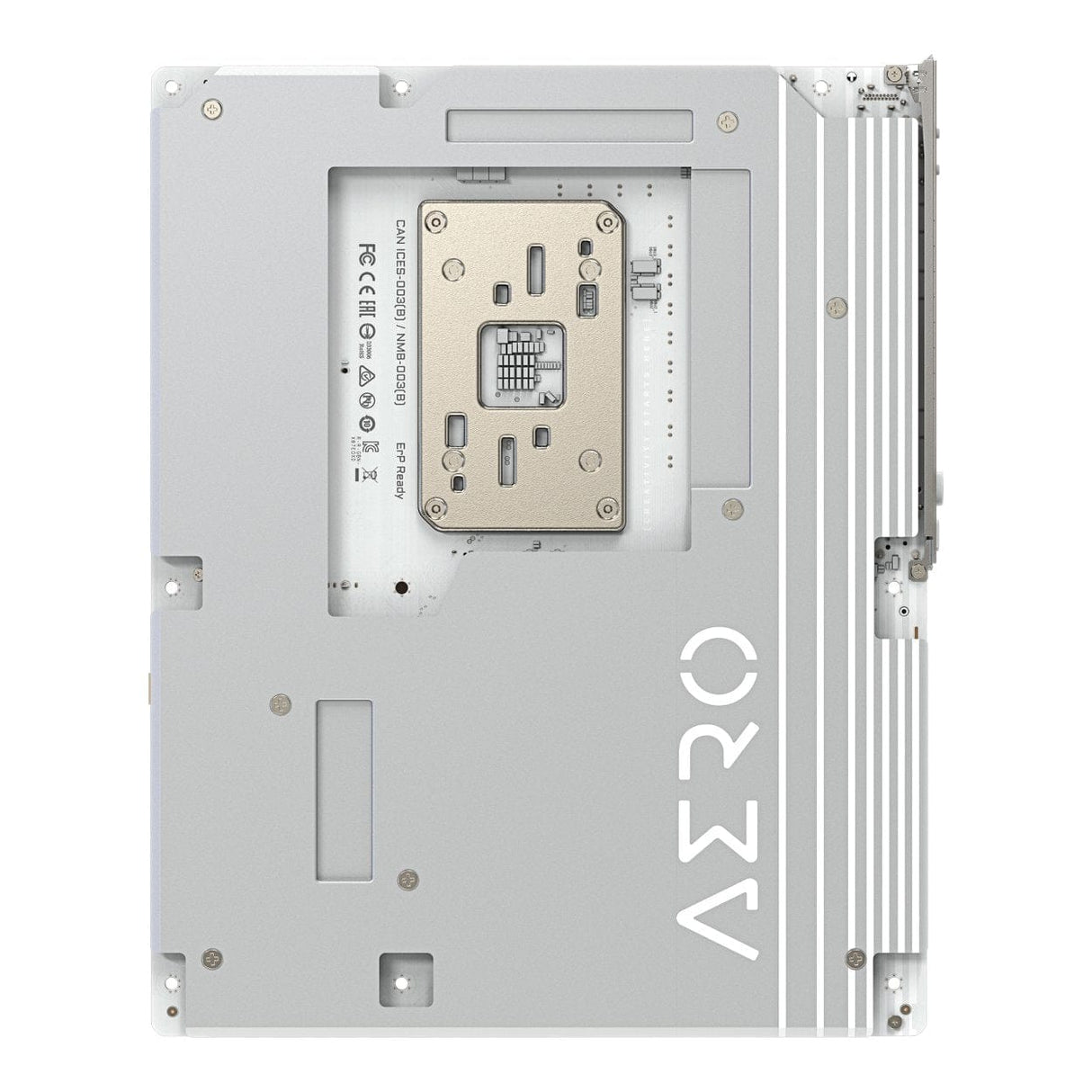

• PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
• Fast Networking : Dual 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

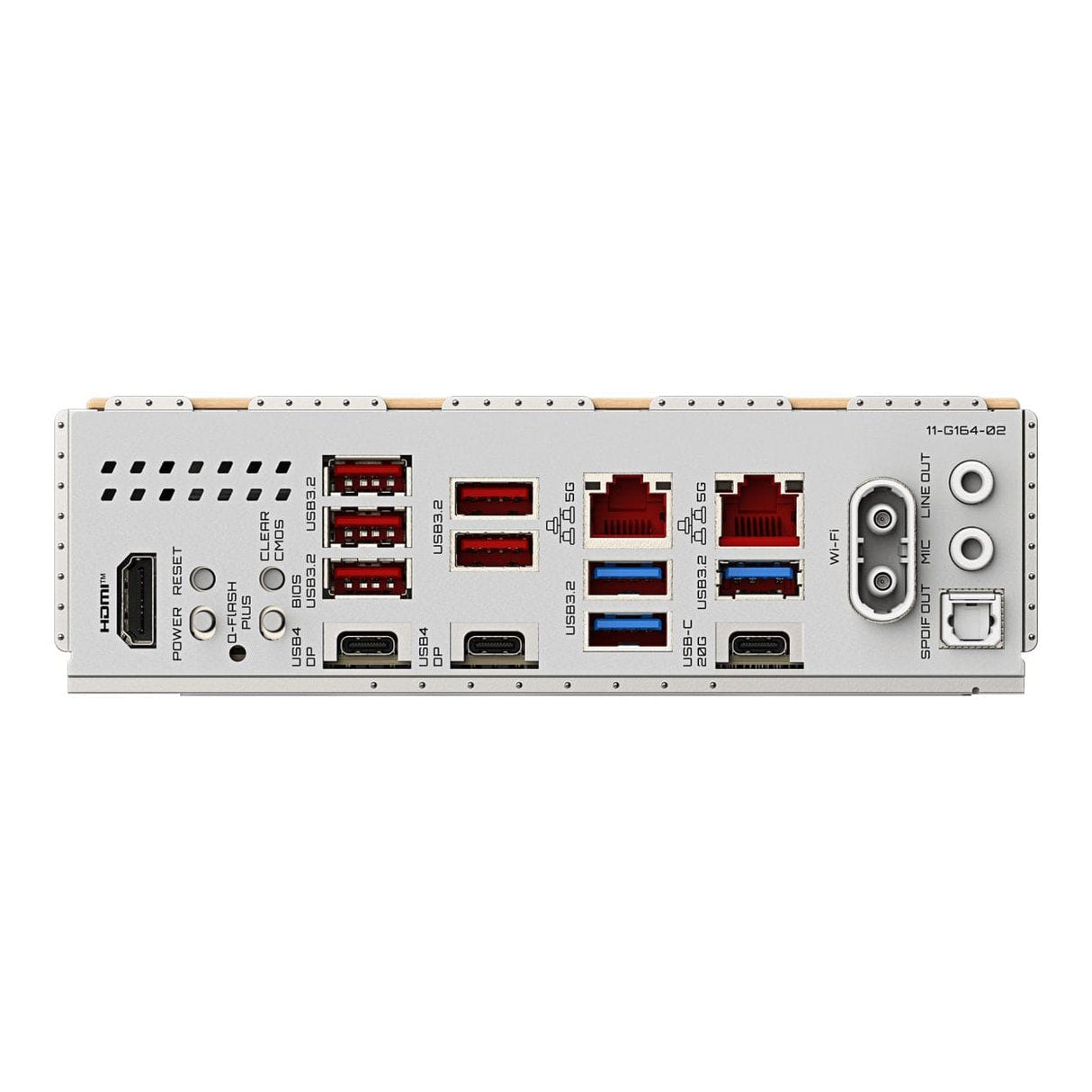

• Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt
• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

Raw Texture Reveal Timeless Elegance

Inspired by the Zain aesthetic of embracing imperfection, AERO WOOD recognizes beauty in the natural transformations of time and decay, embracing their quiet presence as a form of deep aesthetic appreciation.

X870E AERO X3D WOOD whispers into your space like a gentle breeze bringing comfort and harmony. Its natural wood aesthetic evokes the warmth of home, transforming cold technology into something inviting belongs in your living room.

Cooling

Comprehensive Thermal

Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

Brand New Performance Experience

X3D Turbo Mode 2.0

Incredible X3D performance unleashed by AI.

X3D Turbo Mode 2.0 delivers enhanced gaming and multitasking performance over the first generation. Built-in AI model and hardware circuits dynamically optimize X3D processor parameters in real-time, significantly boosting Ryzen™ X3D performance.

Through GIGABYTE's innovative X3D Turbo Mode 2.0 technology, users can enjoy a smoother gaming experience.

One-Click Acceleration:

Faster, fiercer, more precise with a single click.

Memory

Infinite Memory Performance

AERO WOOD series gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

PCB Mastery

Enhanced PCB Design for Superior Gameplay

Serving as the cornerstone of the motherboard, the PCB holds a fundamental and vital influence on system performance.

Ultra Durable™

Born from Ultra Durable™

Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AERO WOOD series motherboards are engineered to endure and excel.

Tailored Computing

Collaborative Excellence in Computing

GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

Technical Specifications:

CPU

Socket AMD Socket AM5
Processor Support AMD Ryzen™ 9000 Series Processors
AMD Ryzen™ 8000 Series Processors
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

Chipset AMD X870E

Memory

Memory Type Support Support for DDR5 9000(O.C) /8800(O.C) /8600(O.C) /8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules
Support for DDR5 5200/4800 MT/s memory modules

Memory Slots 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Architecture Dual channel memory architecture

Memory Support Support for non-ECC Un-buffered DIMM memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Support Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller

USB4 Video Output 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
Support for DisplayPort 1.4 version and HDR

HDMI Output 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version, HDCP 2.3, and HDR
Support for native HDMI 2.1 TMDS compatible ports

Front HDMI 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Support for HDMI 1.4 version

(Graphics specifications may vary depending on CPU support.)

Audio

Audio Codec Realtek® ALC1220 CODEC

Audio Support High Definition Audio
2/4/5.1/7.1-channel

(The back panel line out jack supports DSD audio.)

Support for S/PDIF Out

LAN

Ethernet 2 x Realtek® 5GbE LAN chips (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module

Wireless Module MediaTek Wi-Fi 7 MT7927, RZ738

Wireless Standards 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth BLUETOOTH 5.4

Wireless Features Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

Expansion Slots

CPU Integrated Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode

The PCIEX8 slot becomes unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.

Chipset Slot
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface

CPU Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in the M2B_CPU connector, both the M2B_CPU connector and the USB4 port supported by the ASMedia USB4® controller operate at up to x2 bandwidth.

When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.

Chipset Storage
2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors

RAID Support
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

(Additional sections such as USB, Internal I/O, Back Panel Connectors, BIOS, Software, and Form Factor continue as provided in the uploaded specification.)
