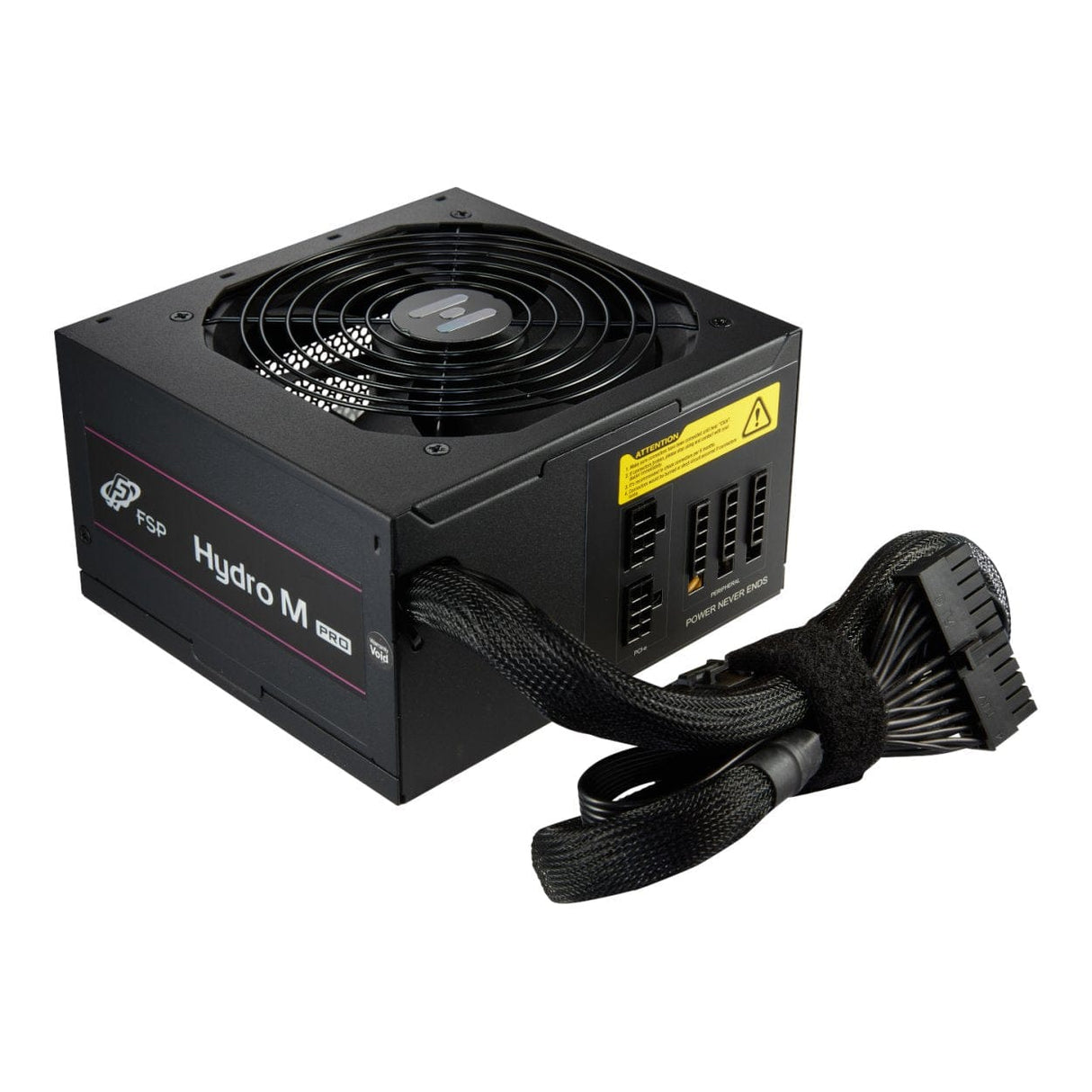

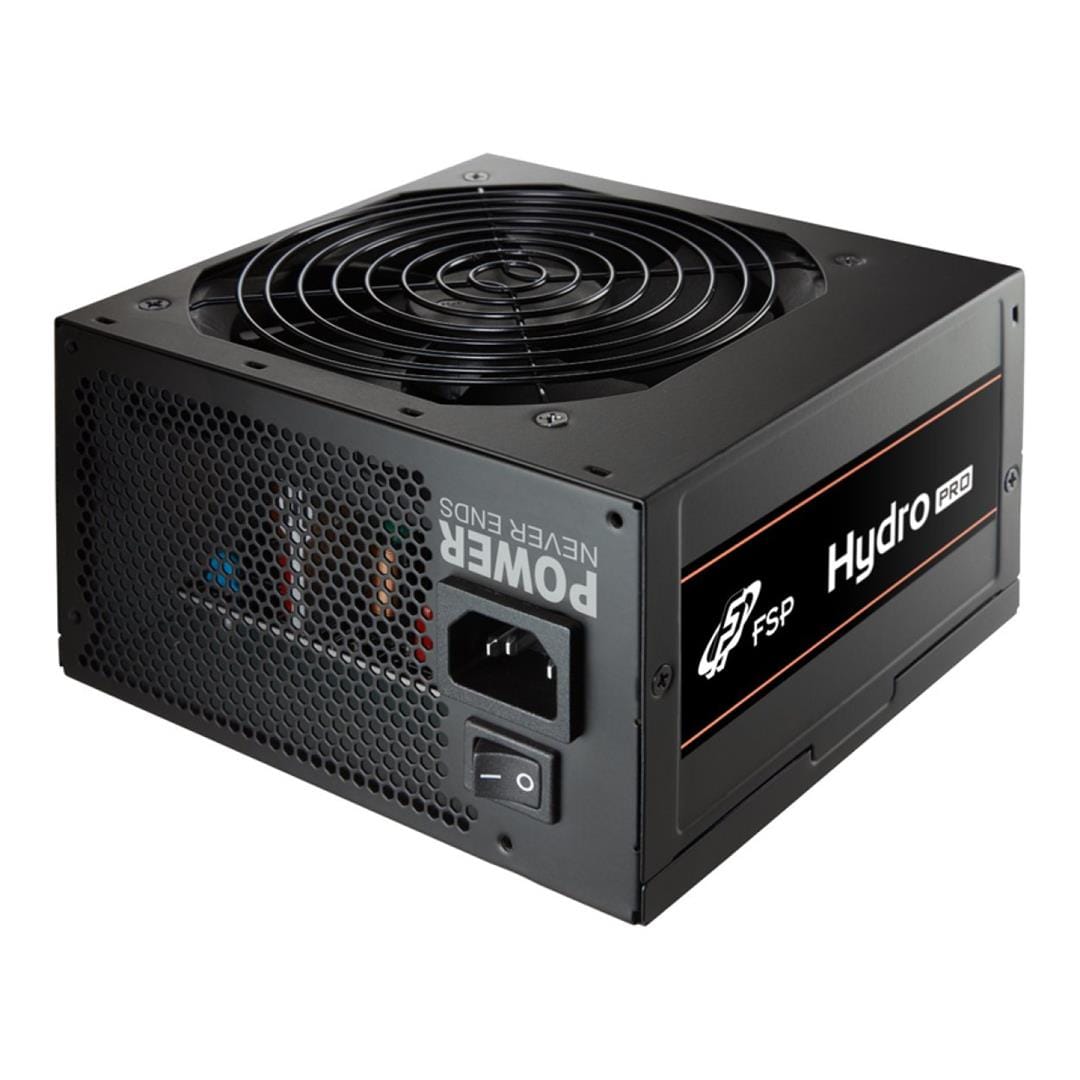

FSP Hydro M Pro 800W 80 PLUS Bronze Gen5 Semi-modular Power Supply HP2-800MGEN5

FSP Hydro M Pro 800W 80 PLUS Bronze Gen5 Semi-modular Power Supply HP2-800MGEN5

80 Plus® 230V EU Bronze Certification

HYDRO PRO series, 80 PLUS® 230V EU bronze certified, saves energy through its high efficiency up to 85% and excesses the standard through its high efficiency up to 88%.

Features:

• Complies with ATX12 v2.52 & EPS12 V2.92
• Efficiency ≥ 88% at typical Load
• Active PFC ≥ 0.9
• Hold up time > 17ms at 80% Load
• +5V & 3.3V DC to DC module design
• +12V Single-Rail Design

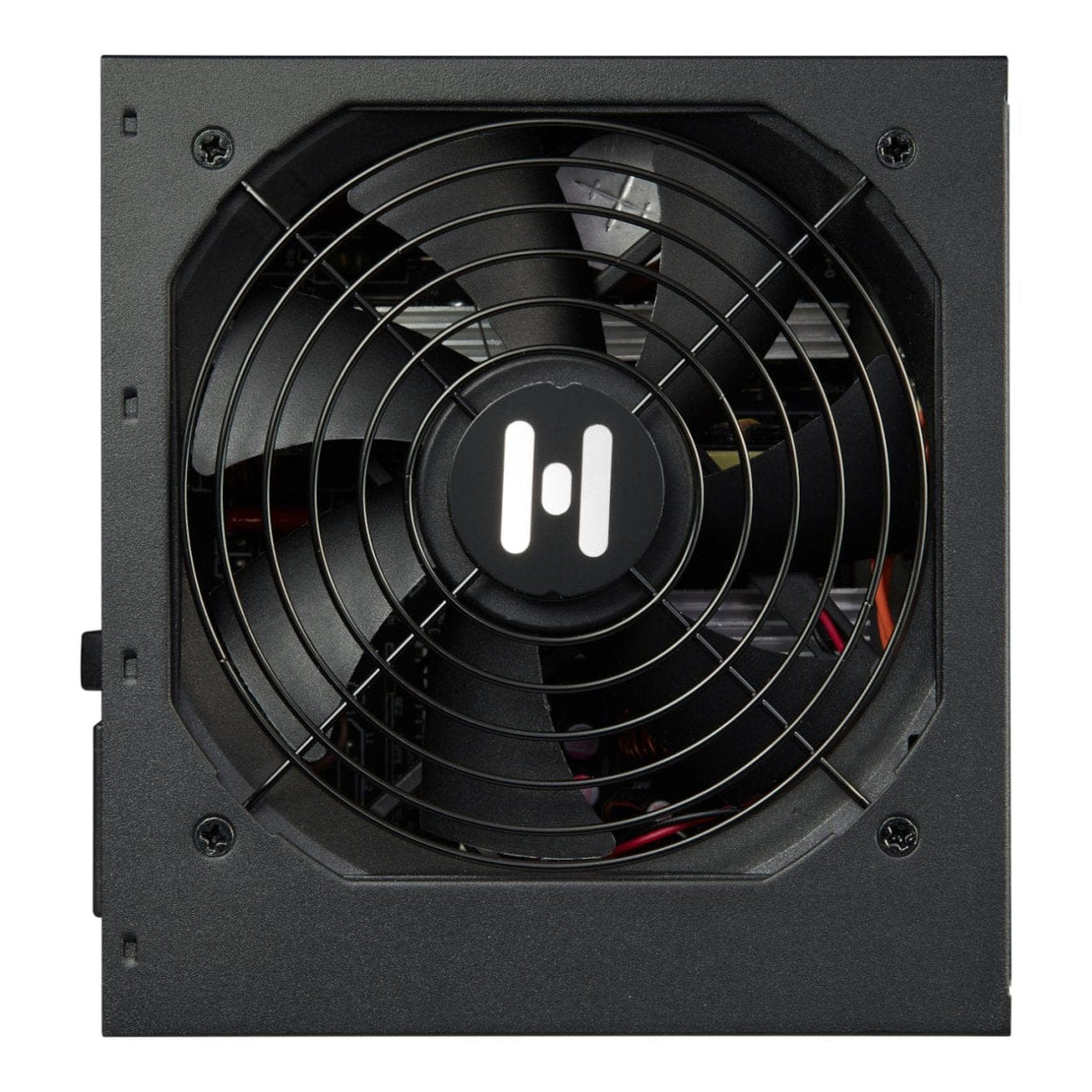

• 120mm Silent & long life Fan
• Complete Protections: OCP/OVP/OPP/SCP

Intelligent Fan Speed Control

An advanced fan control designs to detect heat, adjusts fan speed for optimal cooling performance and also protects valuable components at their time of maximum heat stress.

Optimal Cooling

HYDRO PRO series are quieter at idle, and the 120mm fan reduces noise even when you're pushing your system hard.

DC-to-DC Module Design

With a 12V SR circuit and the DC to DC structure, HYDRO PRO series ensure you outstanding conversion efficiency and provides stable output voltage.

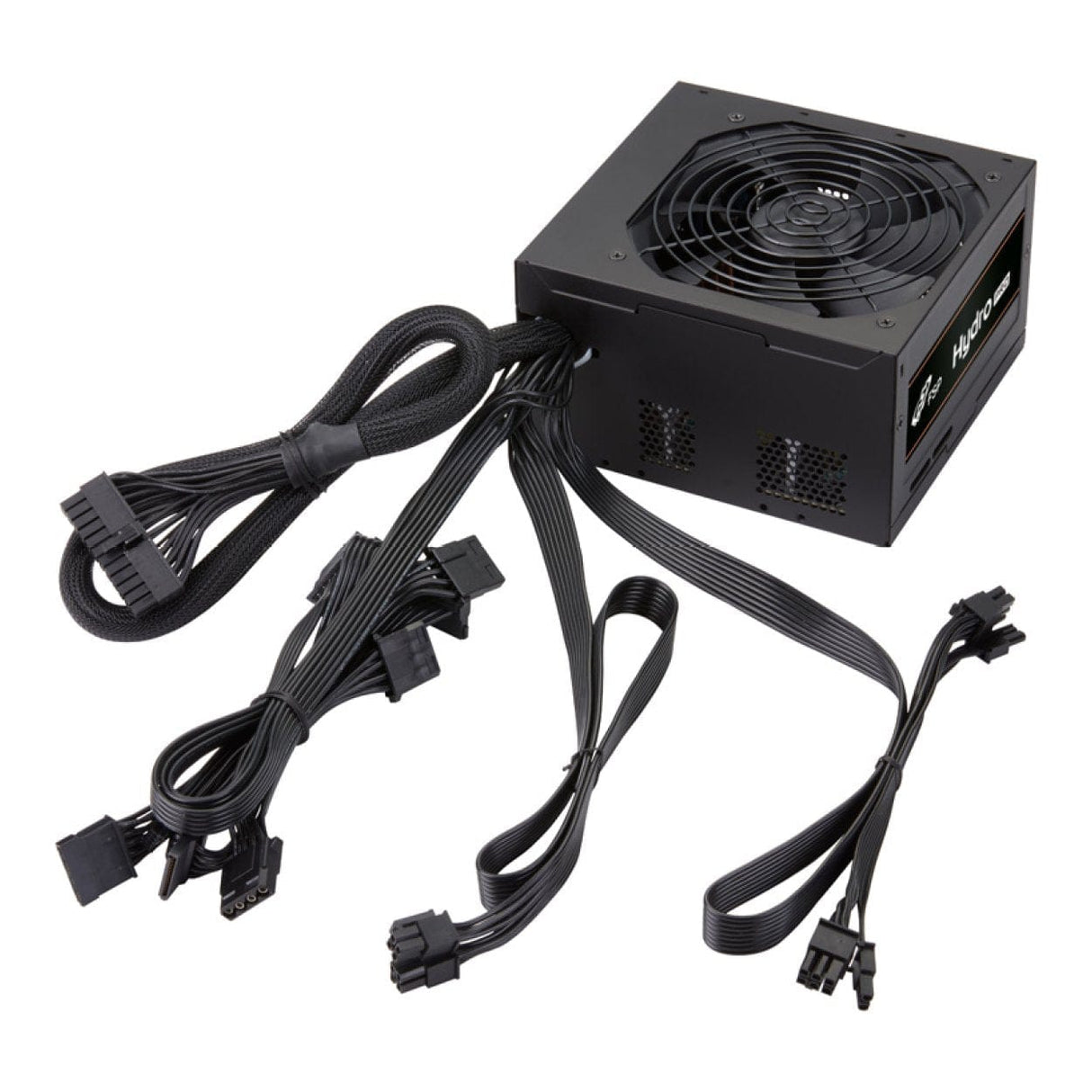

All Black Coating and Cables

The mat black coating and flat cables give your system a superior look and straightforward rather so many entry-level power supplies.

Energy Related ErP/Eup 2013

Green Power! The total AC power consumption of the completed system is less than 5Vsb rail to support the new EU Regulation ErP 2013 for modern day systems.

Technical Specifications:

General
Model:
HP2-800

Rated Output Power:
800 W

Form Factor:
ATX

80 PLUS Certification:
80 PLUS® Bronze 230V EU

Warranty:
5 Years

Input
Input Voltage:
200 – 240 V

Input Current:
6 A

Input Frequency:
50 – 60 Hz

PFC:
Active PFC

Performance
Efficiency:
≥ 88%

Cooling
Fan Type:
Sleeve fan

Protection
OCP (Over Current Protection)
OVP (Over Voltage Protection)
OPP (Over Power Protection)
SCP (Short Circuit Protection)

Physical
Dimensions (L × W × H):
150 × 140 × 86 mm

Weight:
1.472 kg
