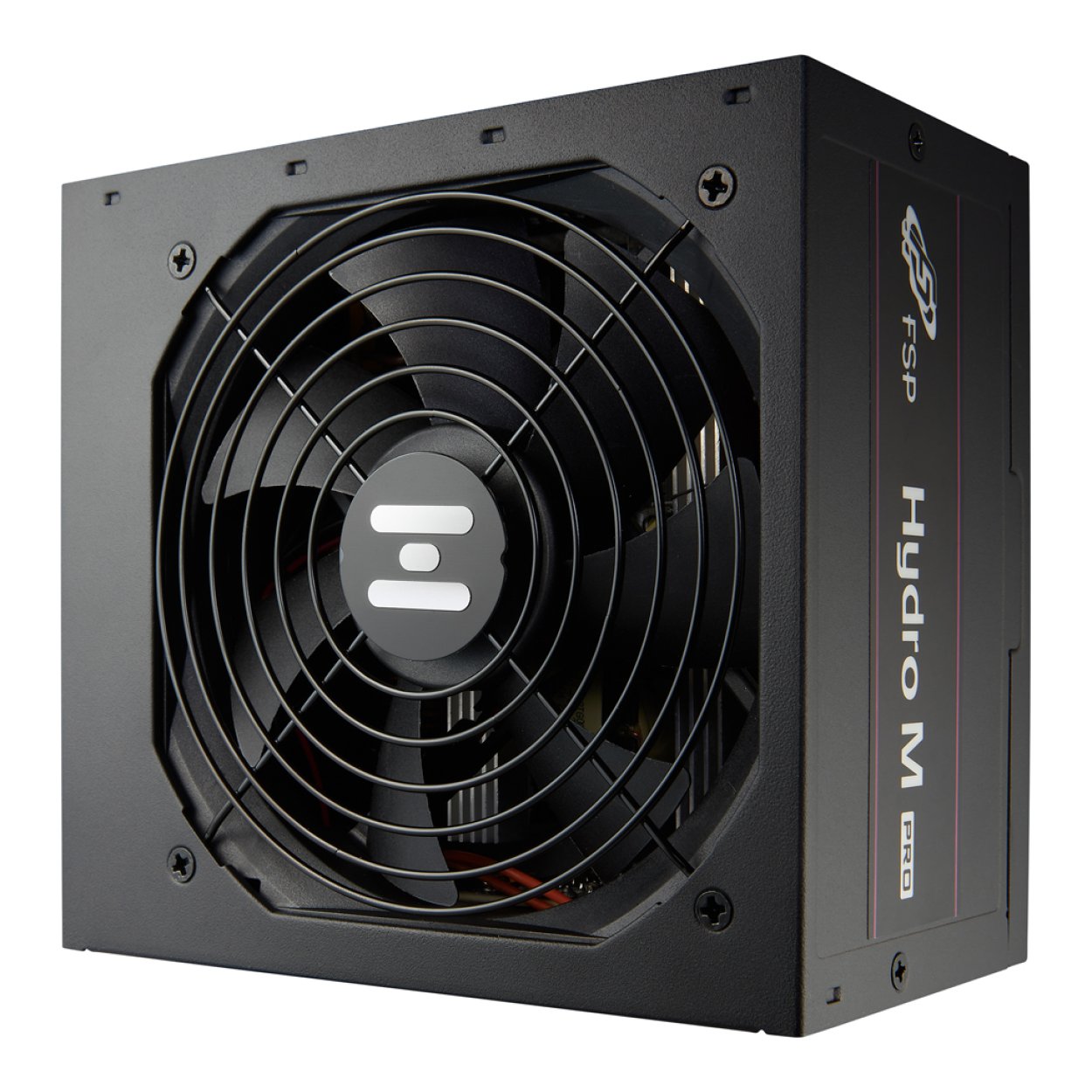

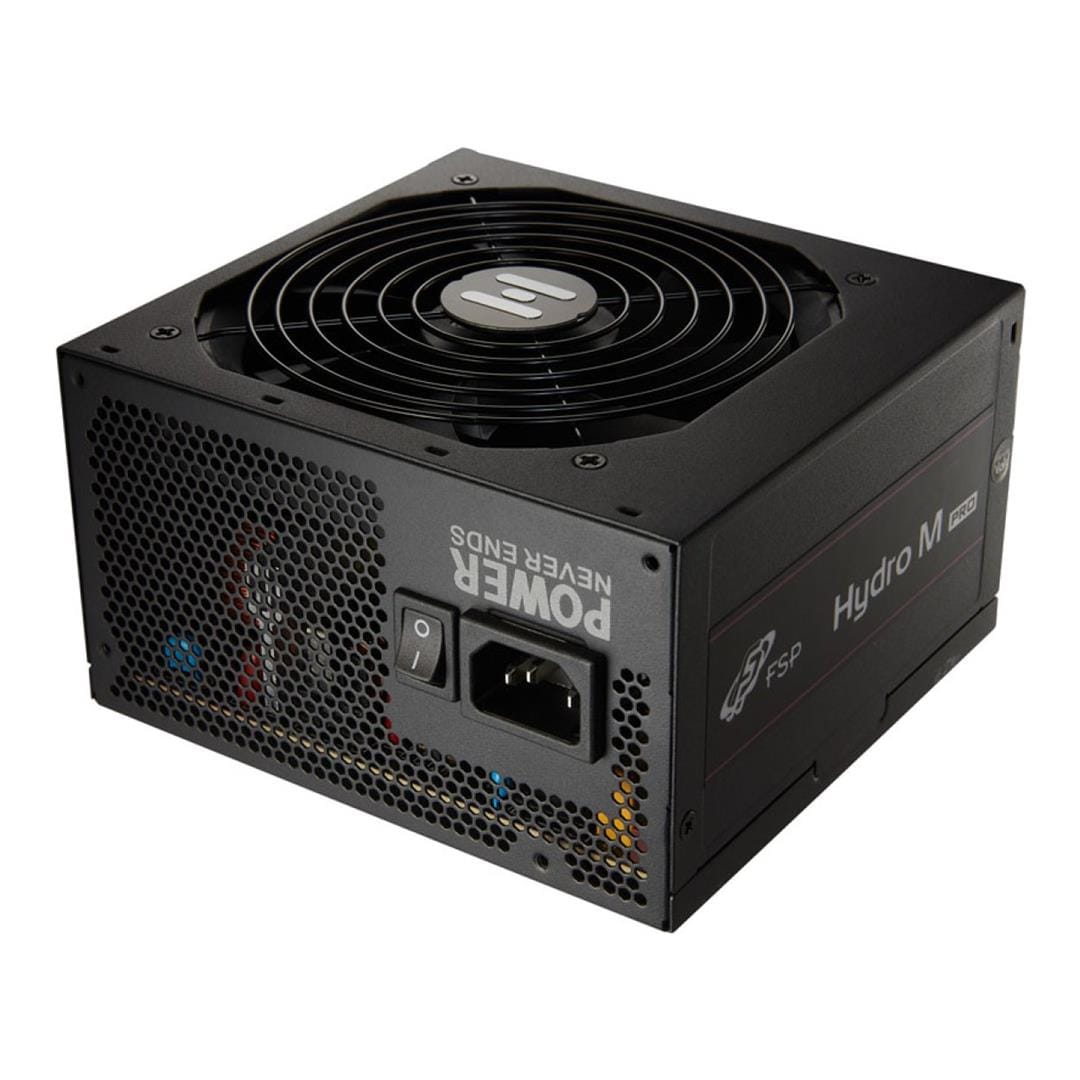

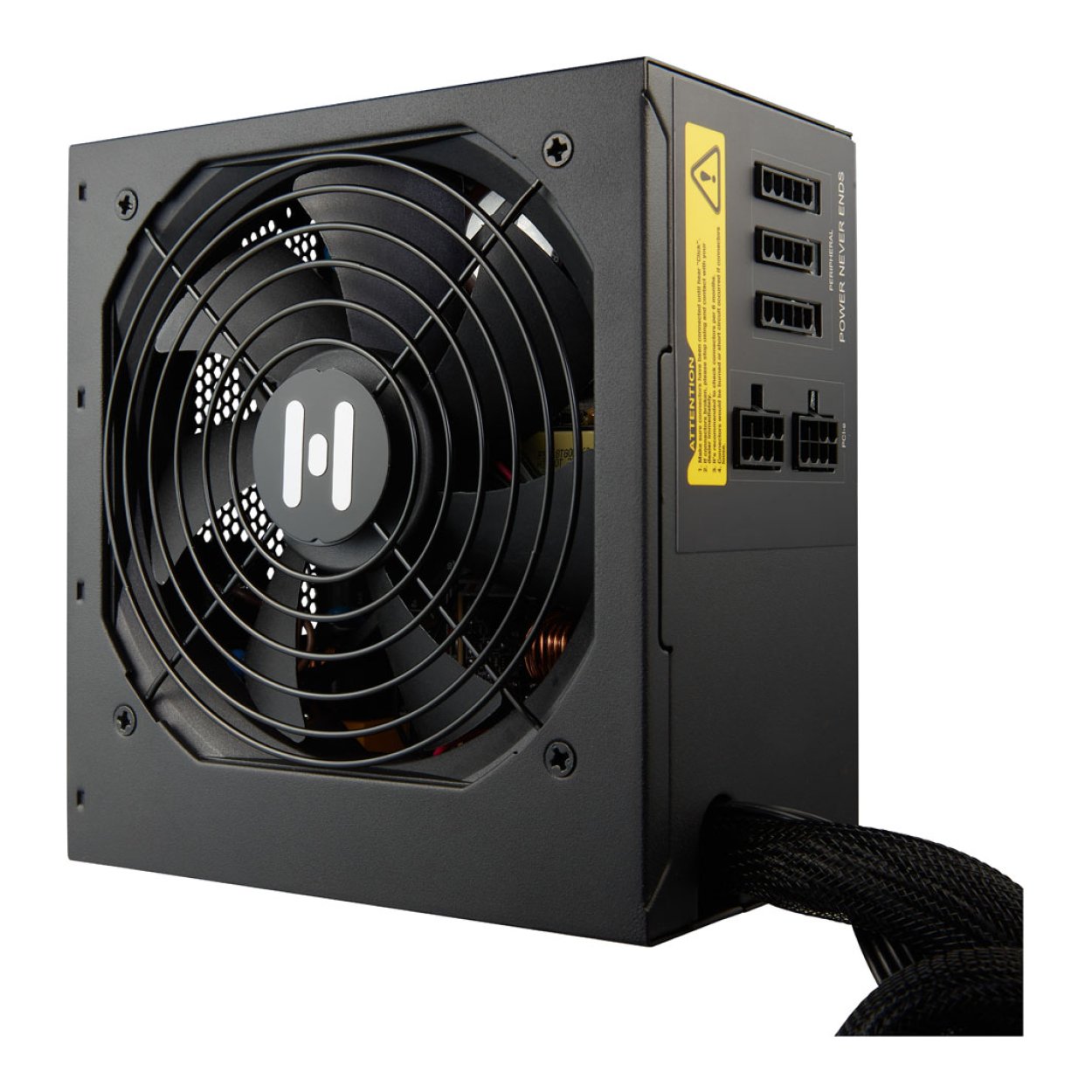

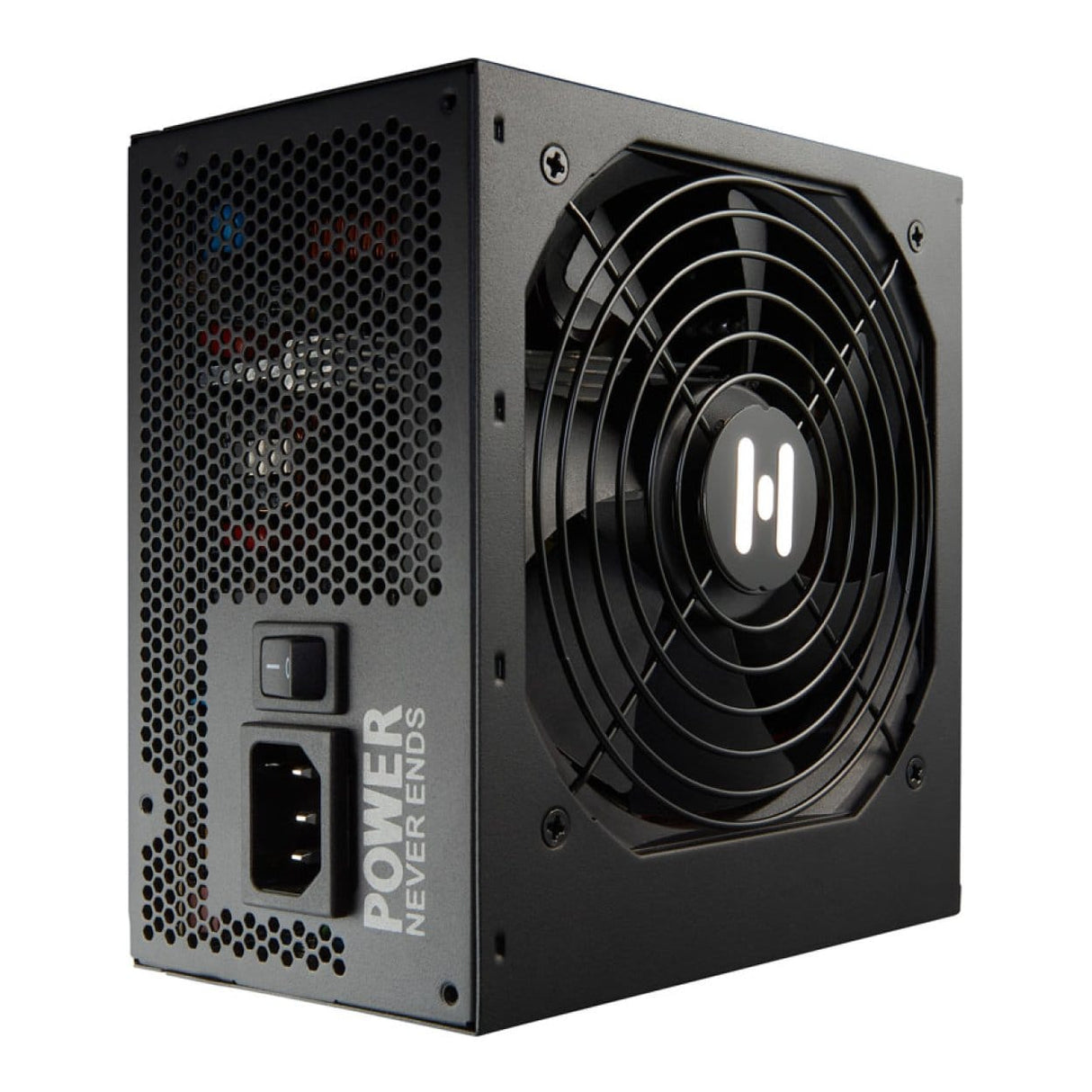

FSP Hydro M Pro 700W 80 PLUS Bronze Gen5 Semi-modular Power Supply HP2-700MGEN5

FSP Hydro M Pro 700W 80 PLUS Bronze Gen5 Semi-modular Power Supply HP2-700MGEN5

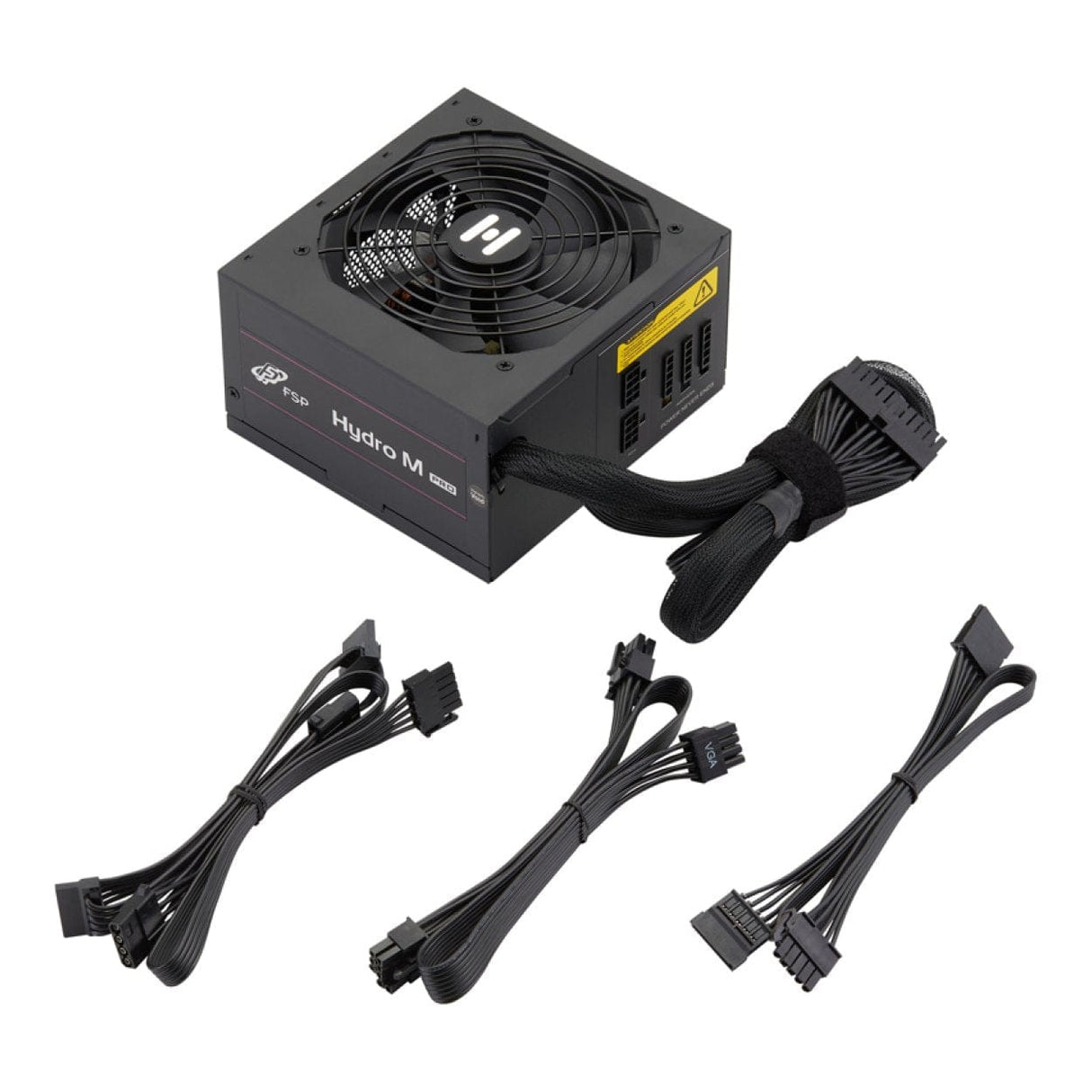

Semi-modular design with ribbon cables

We know what builders need. The all black coating ribbon cables give your system a superior look.

Features:

• Complies with ATX12 v2.52 & EPS12 V2.92
• Efficiency≧ 88% at typical load
• Active PFC ≧ 0.9
• Hold up time ≧ 17ms at 80% Load
• Semi-modular design with ribbon cables
• 450V, 105°C capacitors for a long product life cycle
• 120mm hydraulic bearing (HYB) fan
• +5V & 3.3V DC to DC module design
• +12V Single-Rail Design
• Complete protections : OCP/OVP/OPP/SCP

Low Noise, Less Heat

Hydro M PRO series is equipped with the 120mm hydraulic bearing fan (HYB) which makes optimum cooling and reduces noise. Moreover, the lifespan of fan is longer than standard one.

+12V Single Rail Design

Designed for power-intensive VGA cards, provides strong power to any overloading condition.

Stable DC to DC Output Quality

Hydro M PRO series applies DC to DC modules to improve the reliability for greater compatibility as well as low ripple noise to reduce interference of system components for a prolonged system lifetime.

450V 105°C, Heave-duty Capacitor

The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

80 Plus® Bronze Certification

With an 230V 80 Plus ®rating, Hydro M PRO series delivers over 88% high efficiency.

Energy Related ErP/Eup 2013

Green Power! The total AC power consumption less than 5Vsb rail to meet the new EU Regulation ErP 2013 for modern systems.

Technical Specifications:

General
Model:
HP2-700M

Rated Output Power:
700 W

Form Factor:
ATX

80 PLUS Certification:
80 PLUS® 230V EU Bronze

Warranty:
5 Years

Input
Input Voltage:
200 – 240 V

Input Current:
5 A

Input Frequency:
50 – 60 Hz

PFC:
Active PFC

Performance
Efficiency:
≥ 88% at typical load

Cooling
Fan Type:
120 mm HYB fan

Protection
OCP (Over Current Protection)
OVP (Over Voltage Protection)
OPP (Over Power Protection)
SCP (Short Circuit Protection)

Dimensions (L × W × H)
150 × 140 × 86 mm
