Cudy R700 5-port Gigabit Multi-WAN VPN Router

Cudy R700 5-port Gigabit Multi-WAN VPN Router

A router as the gateway of business networks, featuring up to four Multi-WAN for improved redundancy, load balancing, and VPN functions.

Features:

• AX3000 dual-band Wi-Fi 6 (2402 Mbps + 574 Mbps)
• EasyMesh supports seamless mesh networking
• Dual-core CPU for stable multi-device performance
• Gigabit Ethernet port for high-speed wired access
• Smart signal indicator for optimal placement
• Four high-gain external antennas for wide coverage
• Three-in-one operation: Repeater, AP, Gigabit Bridge
• Advanced WPA3 encryption for secure connectivity

The Cudy R700 Gigabit Multi-WAN VPN Router brings next-generation wireless performance to modern homes and offices, delivering seamless connectivity and extended coverage with industry-leading Wi-Fi 6 technology. Designed to eliminate dead zones and enable high-speed wireless expansion, the R700 combines advanced dual-band speeds with smart roaming features, ensuring uninterrupted streaming, conferencing, and gaming across your entire space.

With combined speeds of up to 3000 Mbps (2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz), the R700 ensures high-efficiency data delivery across multiple connected devices. Four external high-gain antennas and a robust dual-core processor enhance signal stability and penetration, even through walls or between floors. Whether you’re working remotely, managing smart home systems, or supporting high-definition streaming, the Cudy R700 delivers consistent, high-speed performance.

EasyMesh compatibility allows the R700 to integrate effortlessly with other mesh-enabled routers and extenders, forming a unified, scalable network with seamless roaming capabilities. Smart LED signal indicators simplify placement for optimal coverage, while the device’s three-in-one functionality — operating as a repeater, access point, or Gigabit bridge — ensures flexible deployment in diverse network environments.

Equipped with a full Gigabit Ethernet port, the R700 is ideal for bandwidth-heavy wired devices, including smart TVs, game consoles, and desktop PCs. Enhanced security protocols, including WPA3-SAE, provide advanced encryption and improved network protection for modern smart homes and small businesses.

Compact, powerful, and future-ready, the Cudy R700 redefines what a range extender can do — providing the speed, control, and flexibility to match today’s digital lifestyles.

Powerful VPN Server and Client

R700 supports PPTP/ L2TP/ WireGuard/ OpenVPN/ IPsec protocols. The dashboard allows you to assign all or specific clients to use the VPN. It can force all traffic from the selected clients to satisfy more secure demanding scenarios than a standard proxy method.

Multi-Wan Load Balancing

Intelligent load balancing function distributes data streams according to the bandwidth proportion of each WAN port to raise the utilization rate of multi-line broadband allowing one device to satisfy various internet requirements.

Internet Access Management Strategy

Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL).

Flexible Traffic Control

Bandwidth Control and Session Limit enables the administrators to flexibly manage network bandwidth to optimize usage.

Compact Desktop Design

Durable metal casing and desktop/wall-mounting design suited for different environments.

Specifications:

CPU

• CPU Details: 880 MHz Dual-Core

Memory/Storage

• Flash/ROM: 16 MB (128 Mbit) NOR
• DDR/RAM: 128 MB (1 Gbit) DDR3

Interfaces

• Gigabit RJ45 Ports: 5
• Ethernet Notes: 1× WAN Port, 3× WAN/LAN Ports, 1× LAN Port
• LED:
• Power
• System
• Speed/Link/ACT of Ethernet Port
• Physical Buttons: Reset Button
• Power Input: DC Jack

Power

• Power Methods: DC
• DC: 12V 1A
• Power Adapter:
• Input: 100 ~ 240 V, 50/60 Hz AC
• Output: 12V 1A DC

Reliability

• Environment:
• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing
• Grounding Methods: Grounding Point
• Certifications: FCC, CE

Mechanical

• Installation:
• Desktop
• Wall-mount
• Casing Material: Metal
• Dimension: 1.19×8.5×2.8 cm
• Product Weight: 273 g

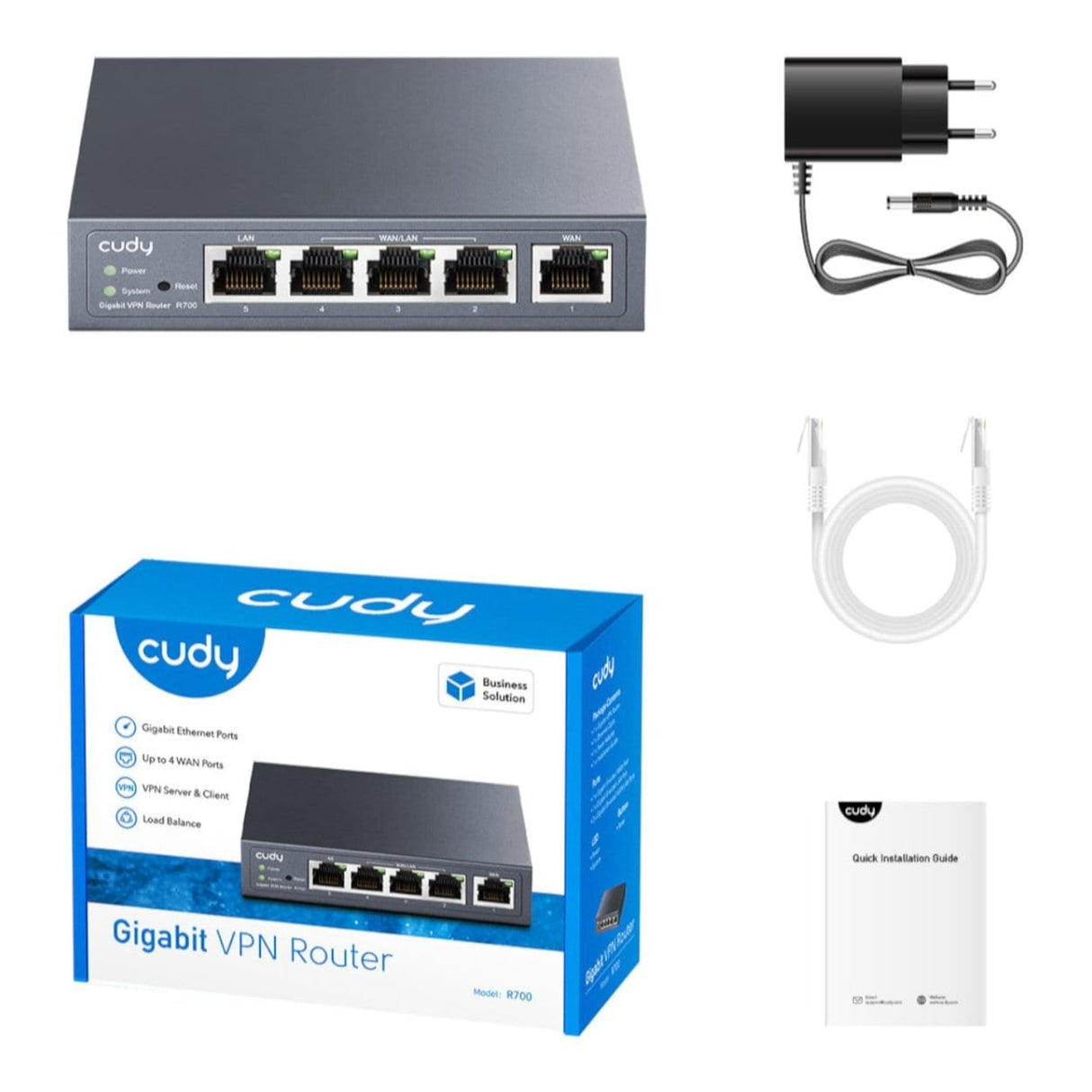

What's in the Box:

• Cudy R700 Gigabit Multi-WAN VPN Router x1
• Power Adapter x1
• Ethernet Cable x1
• Installation Guide x1
