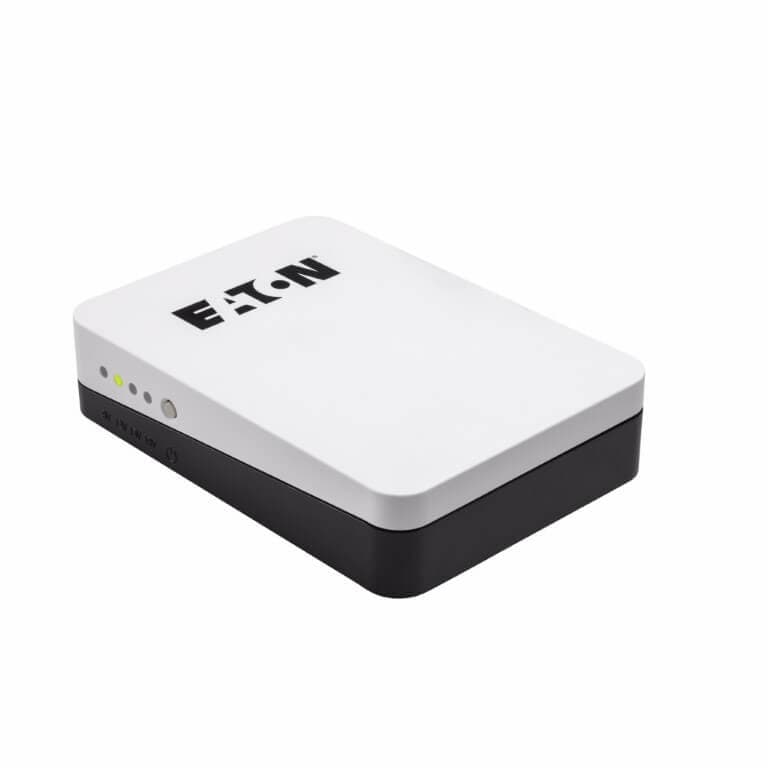

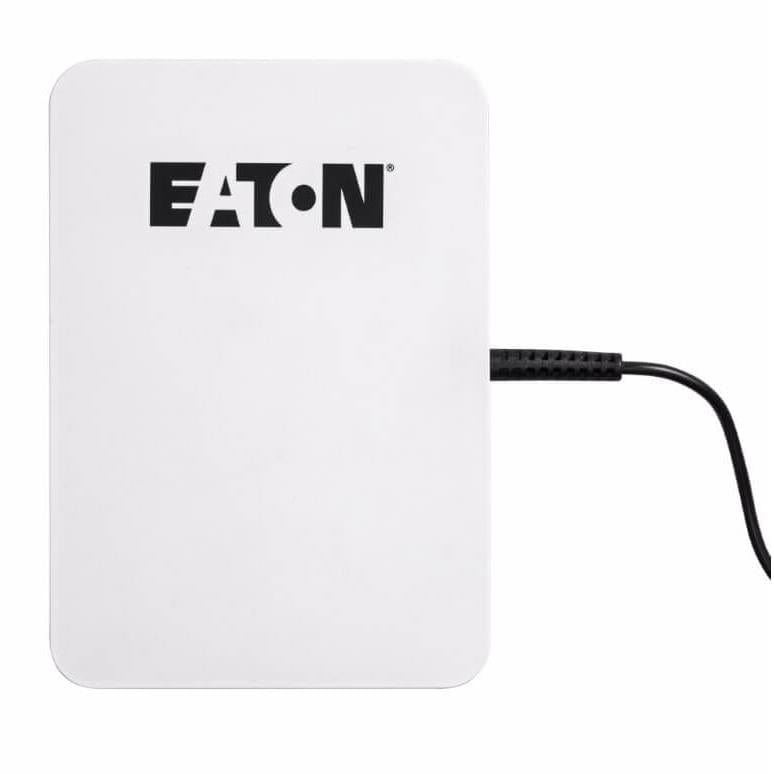

Eaton 3S 36W Mini UPS 3SM36

Eaton 3S 36W Mini UPS 3SM36

Outputs: (4) Barrel, Output voltages: DC 9V-3A, 12V-3A, 15V-2.4, 19V-1.89A, Tower

Specifications:

• PRODUCT NAME: Eaton 3S Mini UPS
• CATALOG NUMBER: 3SM36
• PRODUCT LENGTH/DEPTH: 136 mm
• PRODUCT HEIGHT: 30 mm
• PRODUCT WIDTH: 95 mm
• PRODUCT WEIGHT: 0.37 kg
• COMPLIANCES: CE Marked
• CERTIFICATIONS: CE, IEC/EN 62040-2, IEC 62477-1, IEC 62040-5-3
• MODEL CODE: Eaton 3S Mini 36W

BATTERY

• BATTERY TYPE: Lithium-ion
• RUNTIME GRAPH: View runtime graph
• BATTERY REPLACEMENT: User replaceable

ELECTRICAL OUTPUT

• OUTPUT NOMINAL VOLTAGE: 9 V (12/15/19 V)

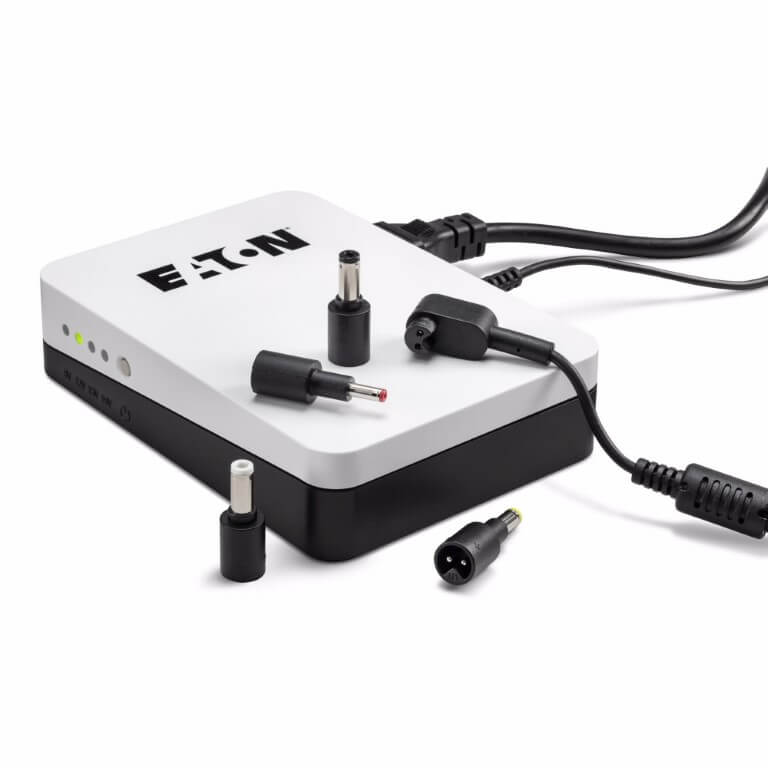

• RECEPTACLE: (4) Barrel adaptators
• WATTAGE: 36W
• TOPOLOGY: Offline

ELECTRICAL INPUT

• INPUT CONNECTION: Other
• INPUT CORD LENGTH: 1 m
• INPUT VOLTAGE RANGE: 100-240 V
• INPUT FREQUENCY RANGE: 46-70 Hz

COMMUNICATIONS

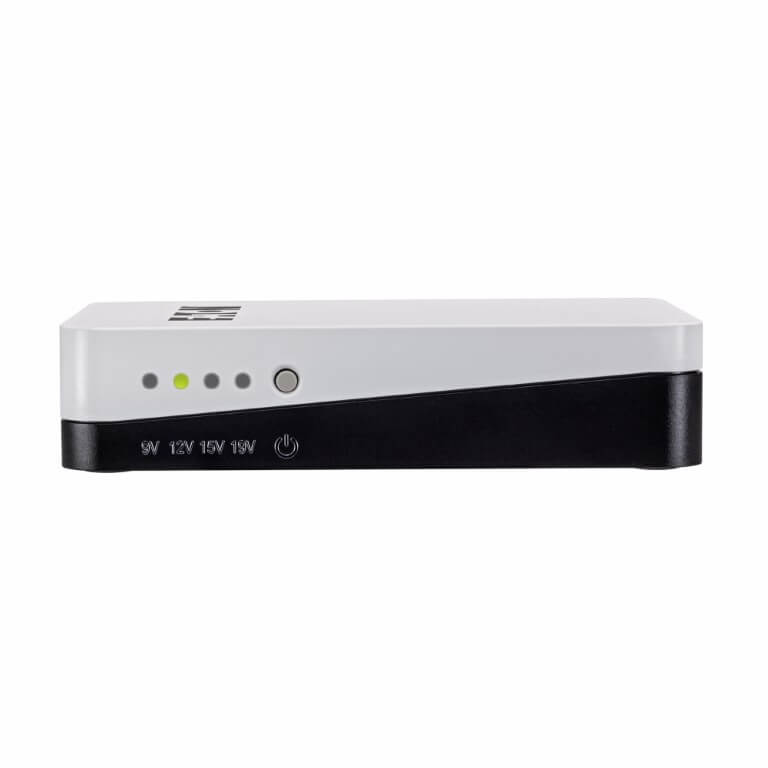

• USER INTERFACE: LEDs

ENVIRONMENTAL

• ALTITUDE: 2000 m
• NOISE LEVEL: <25 dB at 1 meter
• RELATIVE HUMIDITY: 0-85% non-condensing
• ADDITIONAL SPECIFICATIONS
• PACKAGE CONTENTS: UPS, Input cable, (4) Barrel adaptators, Quickstart guide
