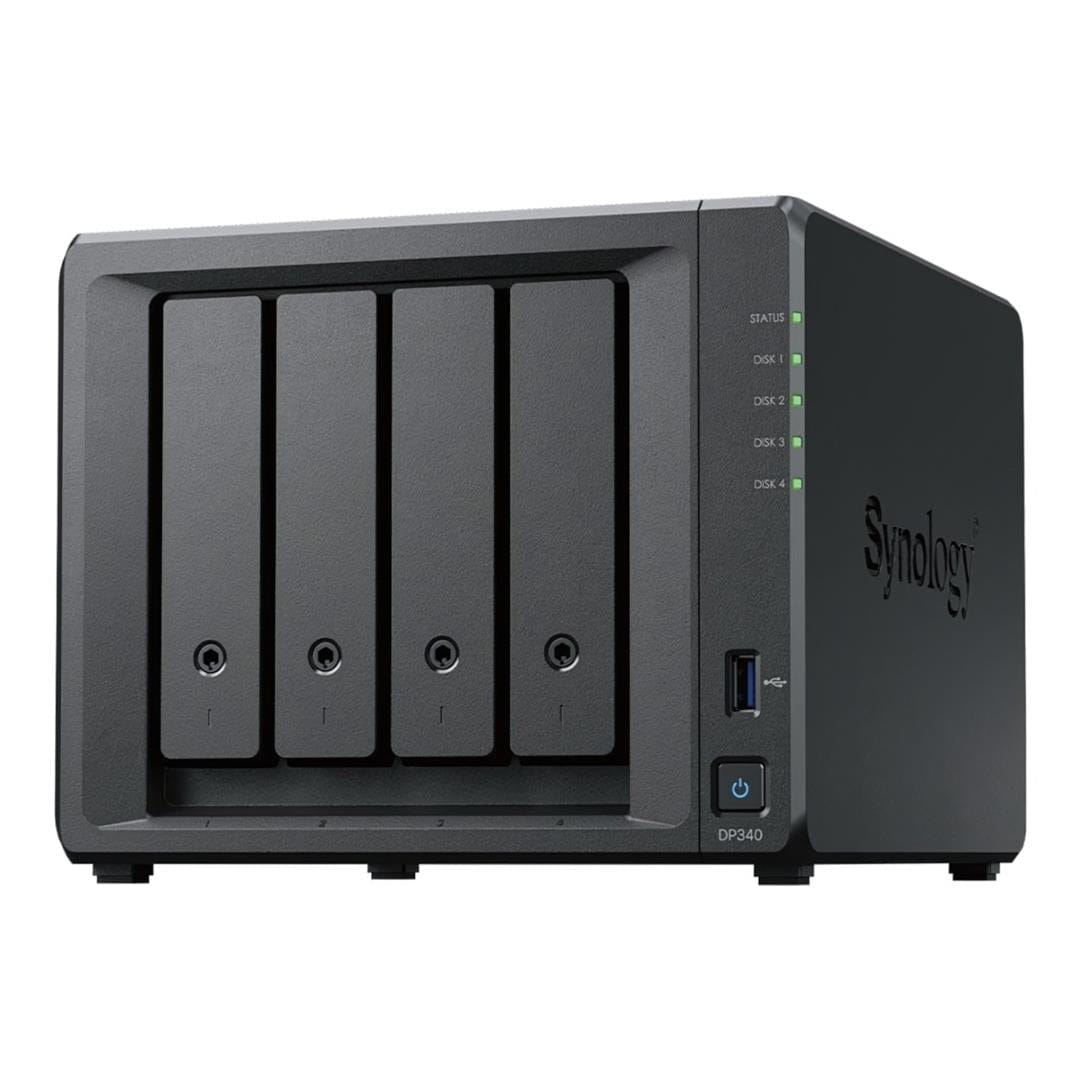

Synology DP340 4-Bay Gigabit Ethernet NAS Server

Synology DP340 4-Bay Gigabit Ethernet NAS Server

Cyber-resilient Data Protection

Solution for Endpoints

The Synology ActiveProtect appliance DP340 is a data protection solution that comes preconfigured with hardware that runs ActiveProtect Manager, an operating system designed specifically for backup purposes. With its ability to perform backups, restore, deduplicate, replicate, and manage while ensuring security, the DP340 is an ideal backup server for your small and medium endpoints. It seamlessly integrates all current and future workloads across multiple sites into clusters, enabling centralized management through a single platform. With immutability, air-gapped backups, and access control, the DP340 protects against ransomware attacks, and secures all your data.

Features:

• Synology Active Protect Technology
• 4-Bay Pre-Configured NAS Server
• AMD Ryzen R1600 3.1GHz 2-Core Processor
• 16GB (On-Board) DDR4 Memory
• Embedded ROM Storage
• 4x Synology 8TB SATA 3.0 Hard Drives (RAID 5)
• 2x Synology 400GB NVMe Solid State Drives (Cache)
• 1x USB 5Gbps Type-A Ports
• 1x Gigabit Ethernet RJ-45 LAN Port (Management)
• 1x 10 Gigabit Ethernet RJ-45 LAN Port
• RJ-45 Management Port for Remote Control
• Immutable Backup Protection
• Write-Once-Read-Many (WORM) Protections
• Synology DSM Operating System
• Colour: Black
• 3 Year Limited Warranty

Quick and seamless deployment

Essential configuration such as disk partitioning and raid array setup will be automatically completed, making deployment fast and effortless so that you can start protecting your data immediately.

Protect workloads with specified policies

Safeguard all your workloads, including VMware vSphere, Microsoft Hyper-V, Windows, macOS, Linux, NetApp ONTAP, Nutanix Files, Microsoft 365 services, Oracle Database, and Microsoft SQL server. Establish policies for companies to meet SLA requirements, and automate data protection by detecting existing and future workloads, ensuring that the workloads are secured under the appropriate policies. View, modify, and manage policies with ease.

Reliable backup and flexible recovery

The DP340 supports self-healing functionality with continuous detection of silent data corruption through Btrfs checksum. It ensures zero errors by repairing corrupt data via RAID technology. To verify the recoverability of backup data, disaster recovery drills can be regularly performed in a sandboxed environment without affecting your primary production site. Backup verification is also available, automatically generating recovery drill videos for auditing purposes. In the event of a disaster, data can be flexibly restored based on your Recovery Time Objectives (RTO) via entire machine restoration, file-level recovery, physical-to-virtual (P2V), or virtual-to-virtual (V2V) methods to restore data to the designated location.

Uncompromised ransomware protection

To prevent ransomware attacks, the DP340 protects data backups and backup copies with immutability and write-once-read-many (WORM) storage to ensure that no one can modify data that has been backed up during the specified retention period. Additionally, it integrates encryption capabilities, enabling data to be encrypted locally before being backed up to remote destinations. To further enhance security, you can also isolate the remote environment using the air-gap feature.

Optimized backup efficiency

The DP340 optimizes storage space allocation via hardware and software integration. By leveraging SSD cache to store backup-related metadata, optimizing data organization, and consolidating multiple files into a single image, it accelerates data processing. Both backups and backup copies utilize global source-side deduplication, as it compares data at the source and only transmits non-duplicate data to save bandwidth and storage space.

Data security at its core

The DP340's security mechanism is based on the principle of least-privilege authentication and network protection architecture. This mechanism only allows authorized personnel to access data, restricts access to specific devices, and limits access to the backup infrastructure during designated times to ensure data security.

• For authorized personnel: Active Directory, LDAP, and SAML 2.0 integration enables enterprises to use existing SSO with MFA and granular permissions to enhance access control.
• For devices: Firewall settings can be configured to only allow access from devices within specified IP ranges and subnets. The built-in management port is an isolated interface dedicated for management purposes. It is separate from data flow to reduce security risks.
• Enhanced isolation: Secure your remote backup infrastructure via air-gapped solutions to achieve network or physical isolation. Limit network access to specified times or turn your devices on or off.

Technical Specifications:

Overview
Brand: Synology
Product Line: Synology
Model: DP340
Manufacturer: Synology

Processor
Cache Level 2 Size (for systems with L3 only): 1 MB
Clock Speed: 2.6 GHz
Cores: Dual-core
Max Turbo Speed: 3.1 GHz
Processor Brand: AMD
Processor Number: R1600
Processor Type: Ryzen Embedded
Processors Installed: 1
Server Scalability: 1-way
Total Processor Supported: 1

Memory
Cache Memory: L3 cache
Cache Memory Installed: 4 MB
Memory Technology: DDR4 SDRAM
RAM Installed: 16 GB

Storage
Drive Type: No optical drive
Hard Drive Capacity: 8 TB
Installed Quantity: 4
Interface Class: Serial ATA
Optical Drive Type: None
RAID Levels: RAID 1, RAID 5
Removable Hard Drive: Hot-swap
Storage Controller Type: RAID
Hard Drive Interface Type: HDD

Network & Communication
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports: 1 x 10 Gigabit Ethernet, 1 x Gigabit Ethernet

Expansion Slots
Expansion Bays: 4 (total) / 0 (free) x hot-swap 3.5"

Connectivity
Interface Provided: 1 x 10 Gigabit Ethernet - RJ-45 (rear), 1 x management (Gigabit Ethernet) - RJ-45 (rear), 1 x USB 3.2 Gen 1 - Type A (front)

Display & Graphics
Display Technology: None

Audio
Audio Input Type: None

Power
Frequency: 50/60 Hz
Power Device Type: Power adapter
Required Voltage: AC 100-240 V

Technical Information
Built-in Devices: Status LED
Form Factor: Tower
Max Operating Temperature: 113 °F
Min Operating Temperature: 32 °F
Operating Humidity: 8 - 80% RH

Product Information
Printer Product Type: None
Hot-Swap Bays: 4
Manufacturer Form Factor: Desktop
Packaged Quantity: 1
Product Type: Server
Security Slot Type: Kensington security slot
Server Storage Bays: Hot-swap
Server Swappable Drive Form Factor: 3.5"
Server Swappable Drive Form Factor (metric): 8.9 cm
Server Swappable Drive Interface: SATA
Service Activation: No
Theft Protection: Security lock slot (cable lock sold separately)

Included Items
Included Accessories: Power cable

Dimensions & Weight
Height: 6.5 in
Weight: 11.46 lbs
Width: 7.8 in
Depth: 8.8 in

Physical Characteristics
Color Category: Black

Certifications & Listings
Compliant Standards: BSMI, FCC, KC, NCC, RCM, RoHS, UKCA, VCCI

Service & Support
Service & Support Details: Limited warranty - 3 years
Limited Warranty: 3 Year
