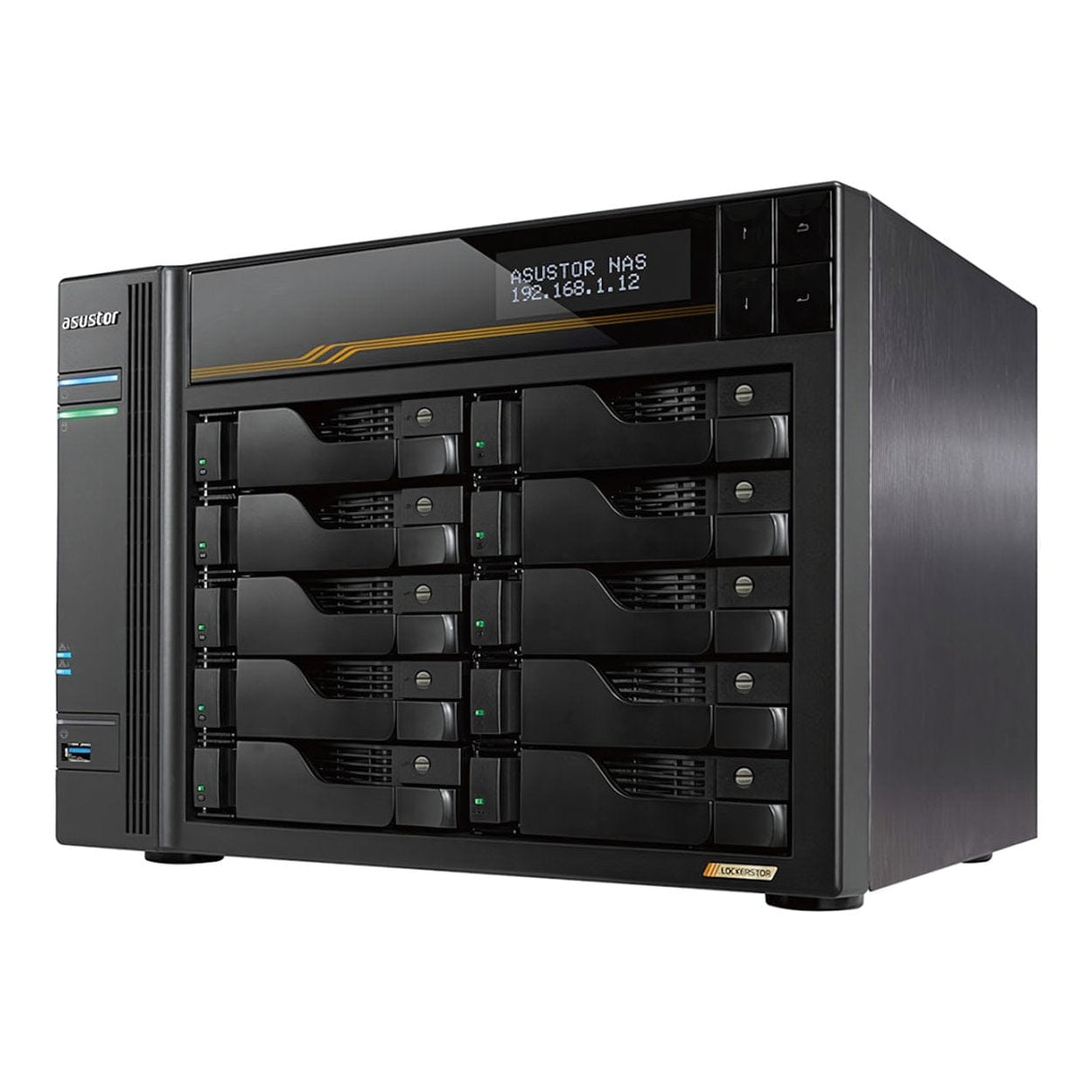

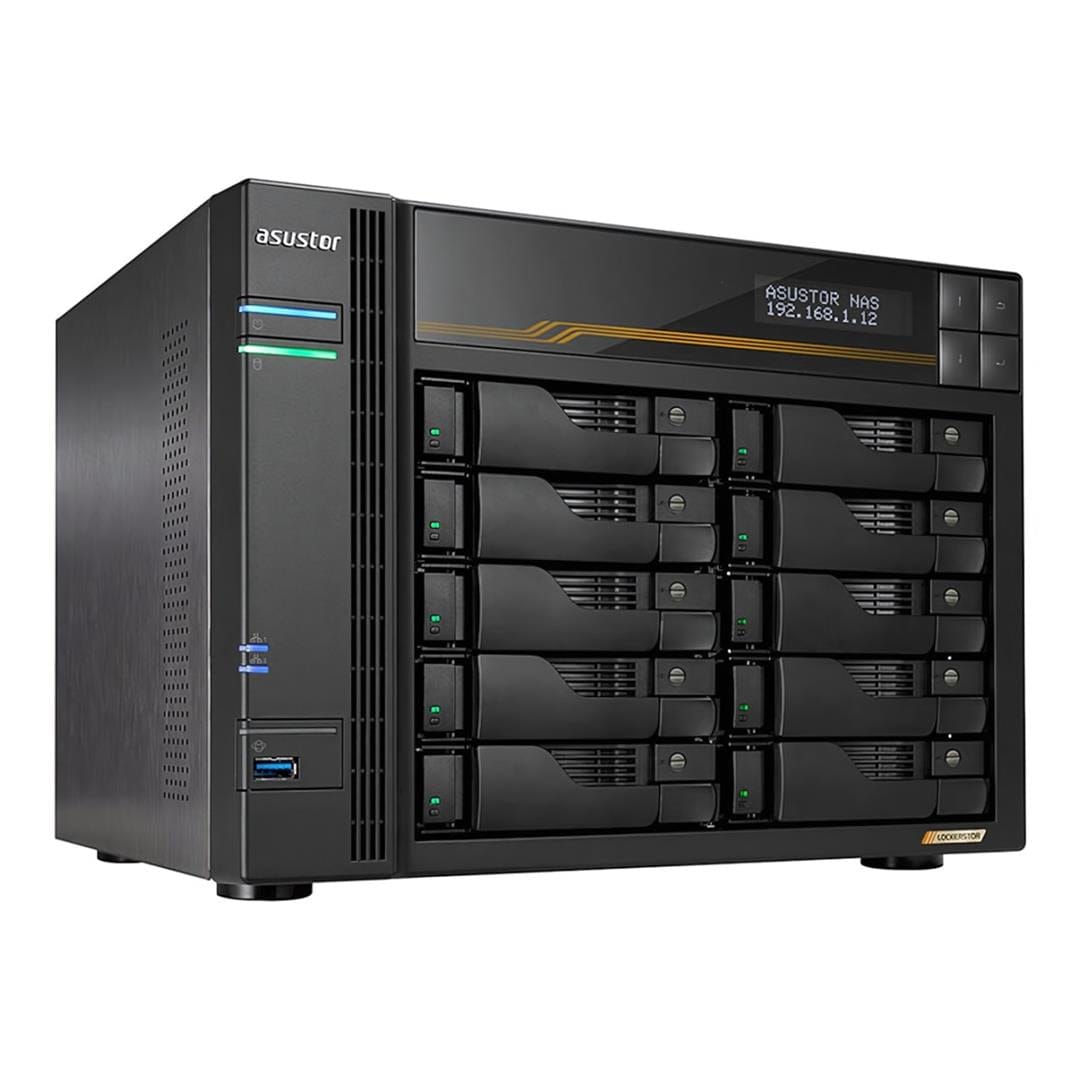

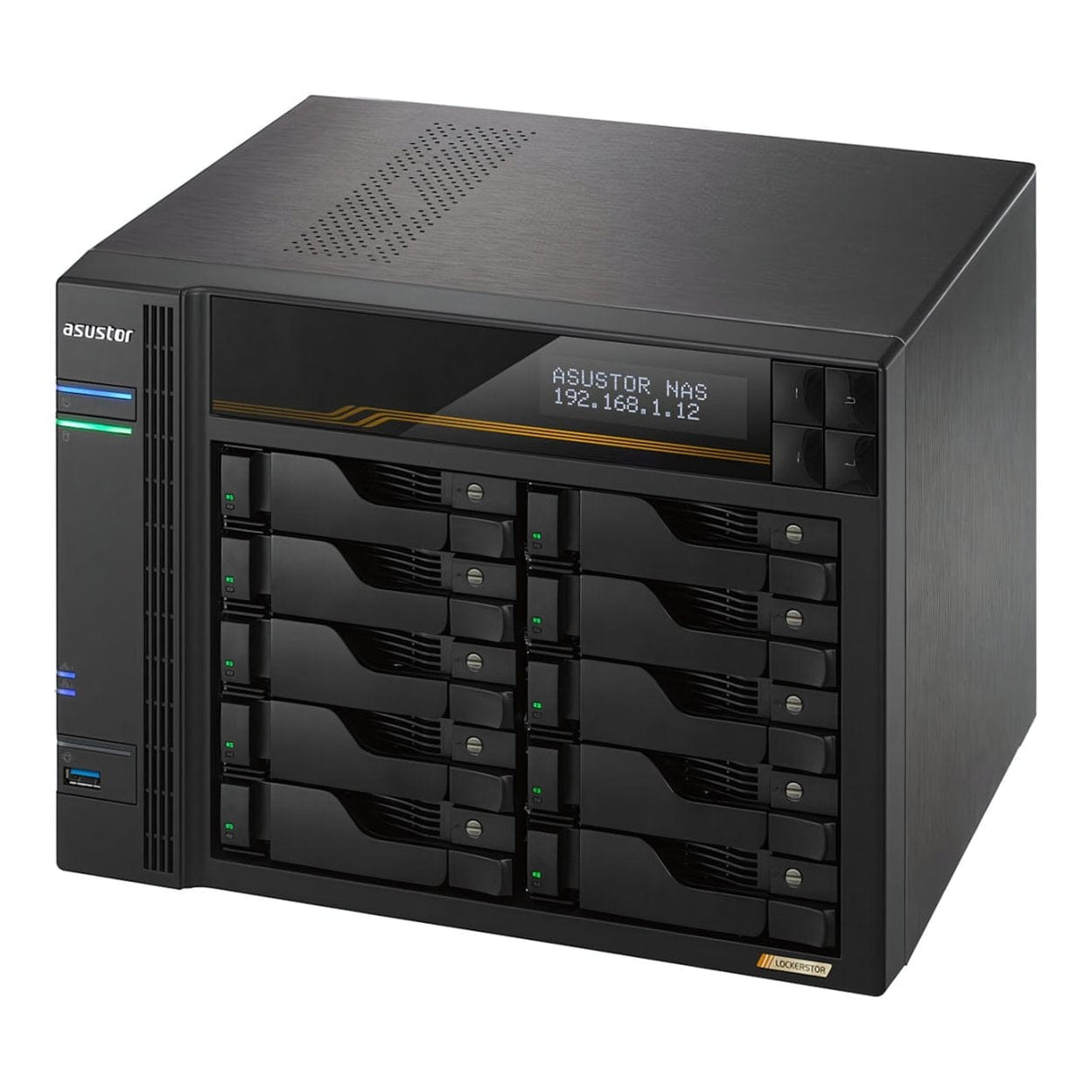

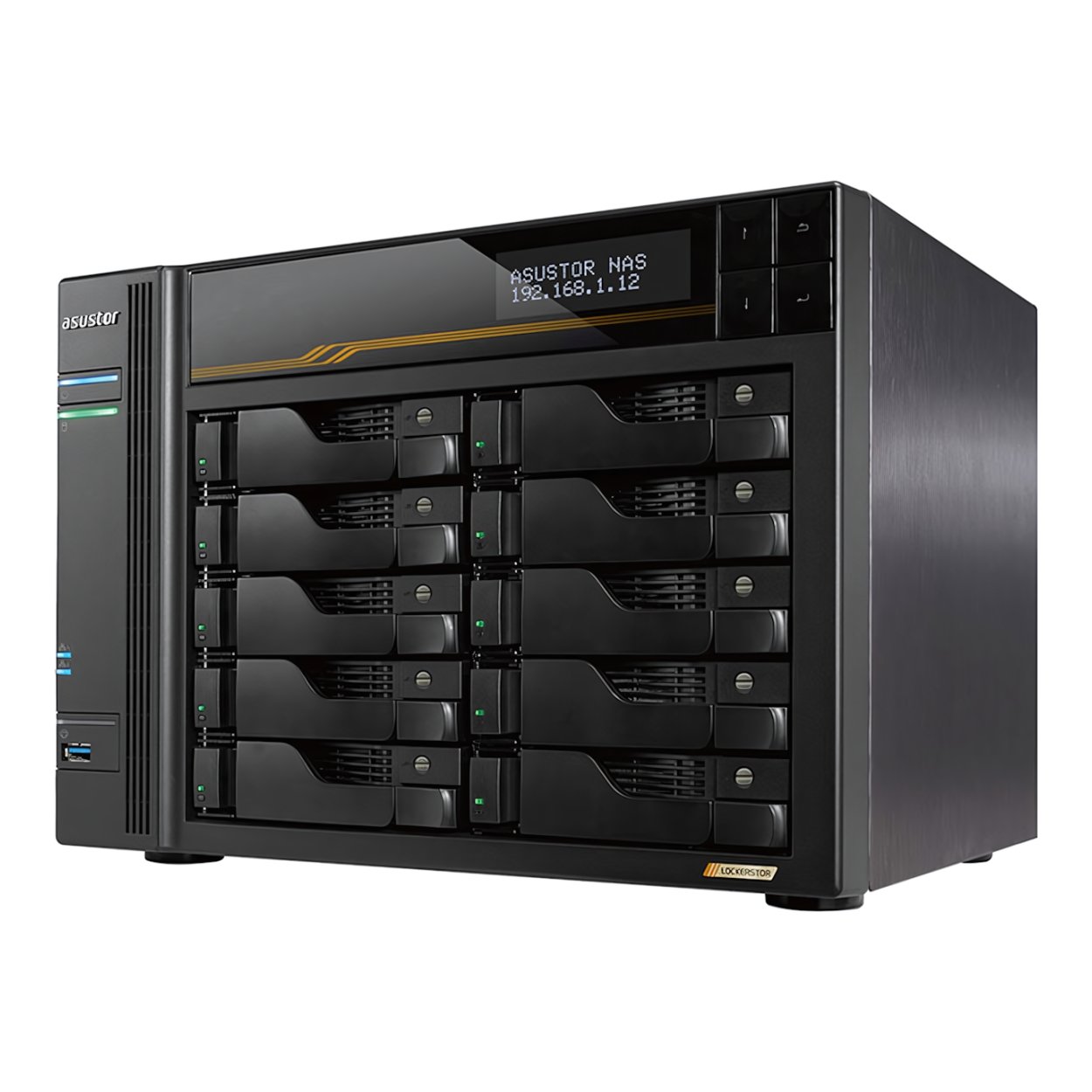

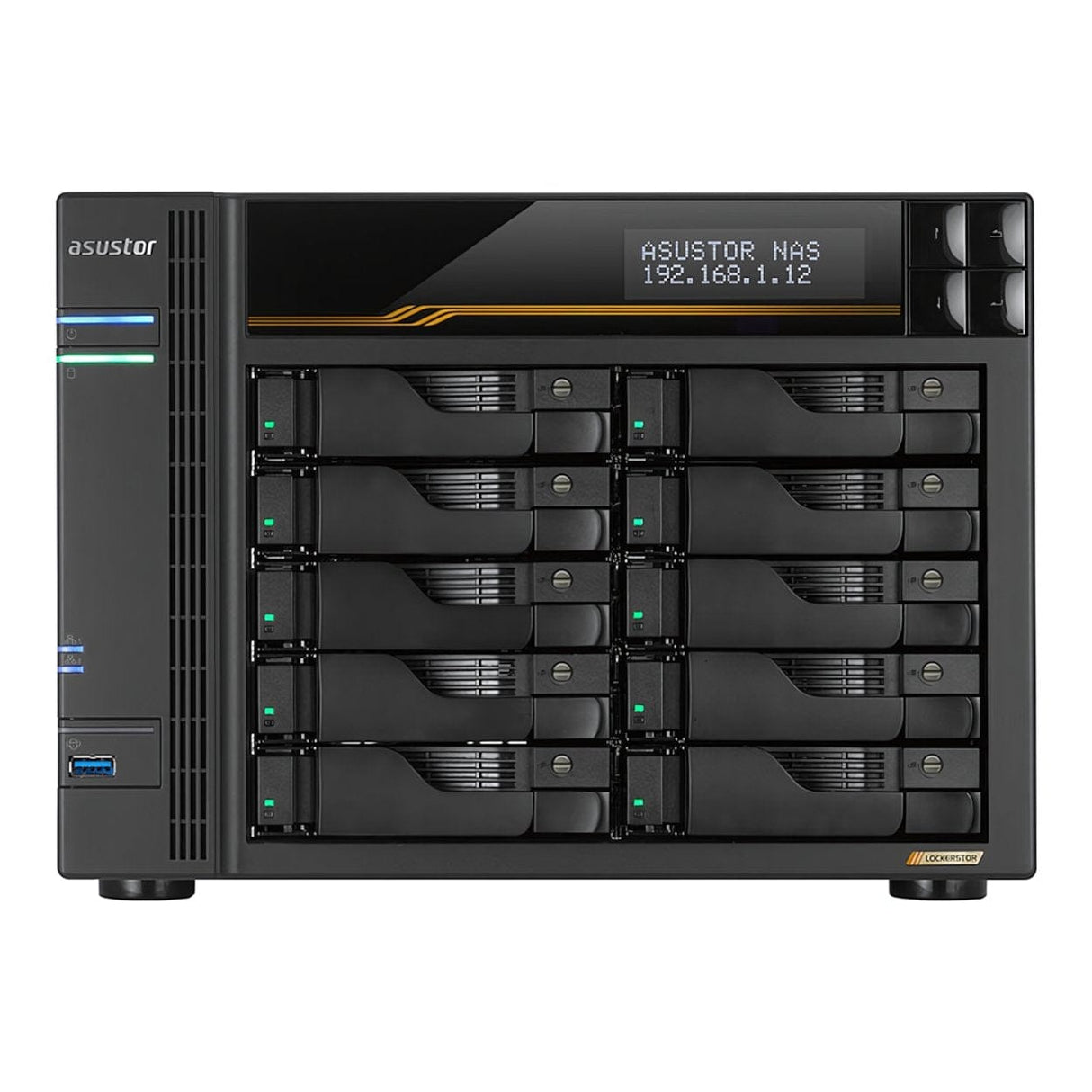

Asustor Lockerstor AS6810T 10 Gen 3 10-Bay NAS Enclosure

Asustor Lockerstor AS6810T 10 Gen 3 10-Bay NAS Enclosure

Quickly share massive data files between your teammates and workstations with the Asustor Lockerstor 10 Gen 3 10-Bay NAS Enclosure. In addition to supporting up to ten 3.5 / 2.5" SATA III drives, you can install up to four M.2 2280 PCIe 4.0 SSDs for high-speed storage or as cache drives to enhance the performance of the main storage drives.

The ADM 5.0 operating system supports a variety of apps to optimize performance and customize the NAS fit your backup, media server, or surveillance system needs.

Features:

• 10 x 3.5/2.5" SATA III | 4 x PCIe 4.0
• 2.3 GHz AMD Ryzen V3C14 Quad-Core
• 16GB DDR5 ECC RAM
• 2 x 10 GbE & 2 x 5 GbE Ports
• 3 x USB-A 3.2 Gen 2 | 2 x USB4
• RAID 0, 1, 5, 6, 10, JBOD & Single Disk
• Up to 1860 & 1047 MB/s Read & Writes
• AES 256-Bit Encryption
• 2 x 120mm Cooling Fans
• ADM 5.0 Operating System

Fast Performance

Powered by an AMD Ryzen V3C14 Quad-Core processor that can reach 3.8 GHz boost speeds and 16GB of DDR5-4800 ECC memory, this NAS can achieve up to 1860 MB/s read and 1047 MB/s write speeds using a RAID 5 configuration.

Server-Grade ECC Memory

ECC memory automatically detects and corrects most common kinds of data corruption. This can help prevent data loss due to electromagnetic interference or crashes.

Dual 10GbE

Maximize performance by integrating this NAS into your network using the two 10 Gb/s ports. Dual 5 Gb/s Ethernet ports are also available.

High-Speed USB

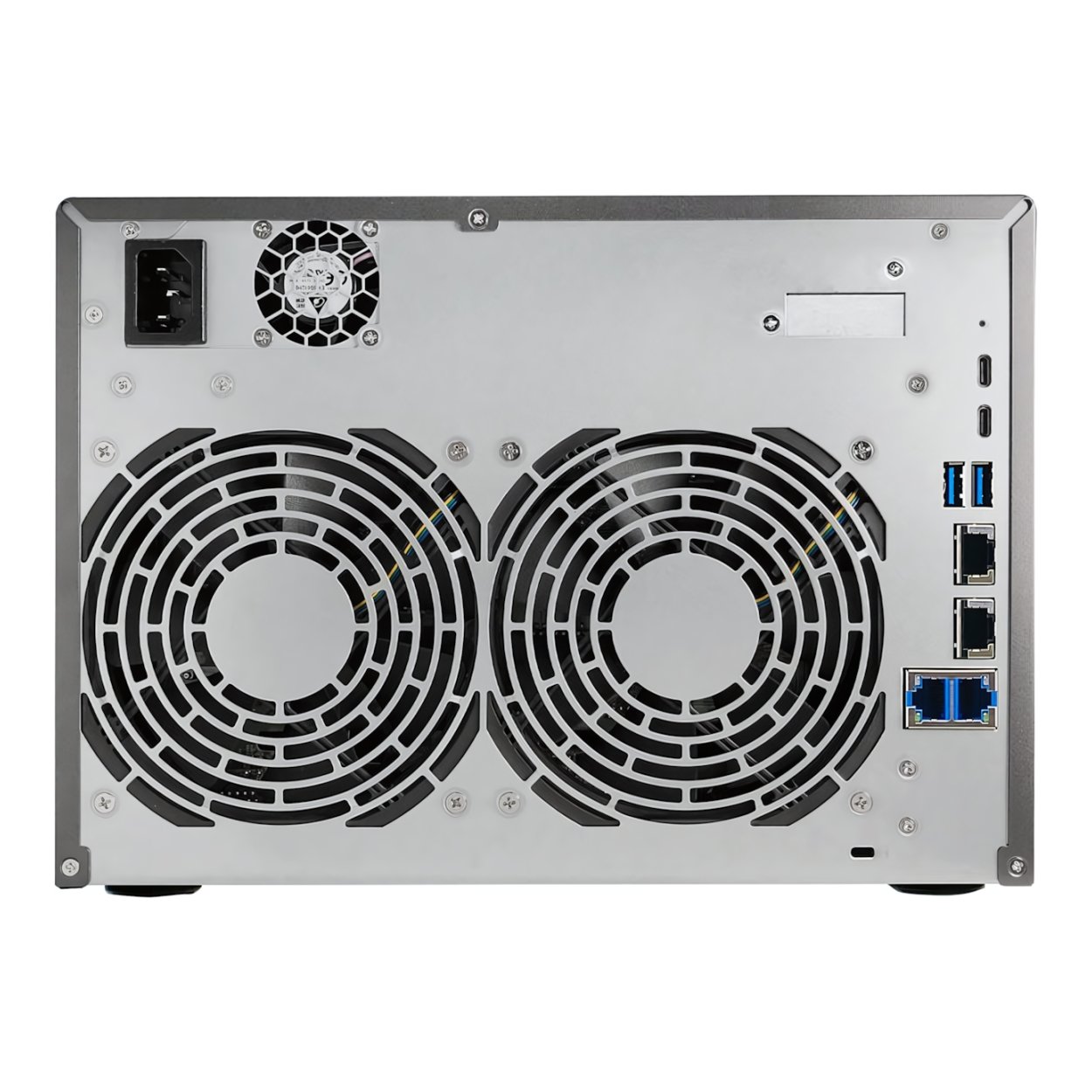

The rear panel also includes two 40 Gb/s compatible USB4 ports alongside two USB-A 3.2 Gen 2 ports that can transfer up to 10 Gb/s with compatible devices.

Staying Cool

Built-in heatpipes and fins work with the dual 120mm fans to efficiently dissipate heat from the CPU.

MyArchive Cold Backup Technology

MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup, and share content.

Asustor Data Master (ADM)

Protect against data loss with ADM features such as a built-in firewall, AES-256 folder encryption, antivirus, MyArchive snapshot backups, and more.

Technical Specifications:

Hardware Specifications
CPU
CPU Model: AMD Ryzen V3C14
CPU Architecture: x64 64-bit
CPU Frequency: Quad-Core 2.3 GHz (burst up to 3.8 GHz)

Memory
Memory: 16GB ECC DDR5-4800 SO-DIMM
Memory Module Pre-installed: 16GB (1x 16GB)
Total Memory Slots: 2
Memory Expandable up to: 64GB
Supports mixed capacity: Yes
Supports ECC memory: Yes; ECC functionality will be disabled if non-ECC memory is installed or mixed with ECC memory

Flash Memory: 8GB eMMC

Storage
Drive Bays: 10
M.2 Drive Slots: 4
Compatible Drive Types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD, M.2 2280 NVMe
M.2 PCIe Interface: PCIe 4.0 x1
Maximum Drive Bays with Expansion Unit: 22
Supports Hot Swappable Drives: Yes

External Ports / Expansion
3 × USB 3.2 Gen 2 (10Gbps) Type-A
2 × USB4 ports (20Gbps per channel, 40Gbps per port)
Backwards compatible with USB 3.2 Gen 1
Host-to-Host connectivity is not supported

Network
2 × 5 Gigabit Ethernet (5G/2.5G/1G/100M)
2 × 10 Gigabit Ethernet (10G/2.5G/1G/100M)
PCIe Expansion Slots: 1 × optional 10 GbE card (removal of M.2 card necessary for expansion)

Cooling / Power
System Fan: 2 × 120mm
Power Supply Unit / Adapter: 250W ×1
Input Power Voltage: 100V to 240V AC

Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Warranty: 3 Years

Operation
Power Consumption: 68 W (Operation), 2.4 W (Sleep Mode)
Noise Level: 22 dB (HDD idle)
Operation Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature: -20°C ~ 70°C (-4°F ~ 158°F)
Humidity: 5% to 95% RH

Size and Weight
Dimensions: 215.5 × 293 × 230 mm
Weight: 6.55 kg / 14.44 lb

Software & Features
Supported OS: Windows 10, 11; Server 2016, 2019, 2022; macOS; UNIX; Linux; BSD
Supported Languages: Deutsch, English, Français, Italiano, Nederlands, Русский, 日本語, 한글, 简体中文, 繁體中文, ÄŒeská, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar, ภาษาไทย
Supported Browsers: Firefox, Chrome, Safari, Microsoft Edge

Network Protocols & Features
CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
TCP/IP (IPv4 & IPv6)
Link Aggregation: Supports 802.3ad and six other modes for load balancing/network failover
Jumbo Frame (MTU), VLAN, EZ Connect, Wireless Network, DDNS, EZ-Router
Supports Wake-on-LAN (WOL) and Wake-on-WAN (WOW)

File Management & Sharing
File System: Internal Disk EXT4, Btrfs; External Disk FAT32, NTFS, EXT3, EXT4, HFS+, exFAT, Btrfs
Web-based File Explorer, ISO File Mounting, Share Links, Task Monitor, Thumbnail Previews, Video Playback Support
Network Recycle Bin: share folder-based, maintains directory structure, supports scheduled emptying

RAID Support
Supported Levels: Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
RAID Migration Methods: Single → RAID 1/5/6/10; RAID 1 → RAID 5/6/10; RAID 5 → RAID 6
Storage Expansion: RAID 1/5/6/10 by drive replacement; RAID 5/6/10 by drive addition
RAID Spare Drive Support: RAID 1/5/6/10

M.2 Volume & MyArchive
Hot-swappable design for high data transfer
Supports EXT4, NTFS, HFS+, Btrfs, exFAT
AES 256-bit encryption for EXT4/Btrfs
Btrfs snapshots, USB key decryption

iSCSI/IP-SAN
Max Targets: 256
Max LUNs: 256
Max Snapshot Versions per LUN: 256
Supports Target Masking, LUN Mapping, ISO File Mounting, MPIO, Persistent (SCSI-3) Reservations

Disk Management
Scheduled Bad Block Scans, S.M.A.R.T Scans

Access & Security
Max Users: 4096; Max Groups: 512; Max Shared Folders: 512; Max Concurrent Connections: 512
Supports Windows Active Directory / LDAP, Windows ACL and Linux ACL
SSD Cache: read-only and read-write cache modes
System Administration: System Log, Connection Log, File Access Log, Real-time Online User & System Monitor, User Quota, Virtual Drive (ISO Mounting, max 16), UPS Support

Encryption & Firewall
AES 256-Bit Encryption
Firewall prevents unauthorized access
Alert Notifications via Email/SMS
Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
RAID Scrubbing: ensures integrity of RAID 5/6 drives
Network Defender: auto blacklist, trusted list, black/white list, IP/IP range/geolocation support

Backup
Rsync, Cloud, FTP, External, One-Touch Backup, EZ Sync, SMB Backup
Snapshots: Btrfs Snapshots, 256 snapshots, iSCSI LUNs

ASUSTOR Highlights
System Migration, EZ Connect, Dr. ASUSTOR, 2-way Backup, Task Monitor
Eco-Friendly Design: auto sleep mode (schedule S3), auto standby for disks, auto fan control, LED Night Mode, power schedule, energy control, disk hibernation, auto sleep activation
