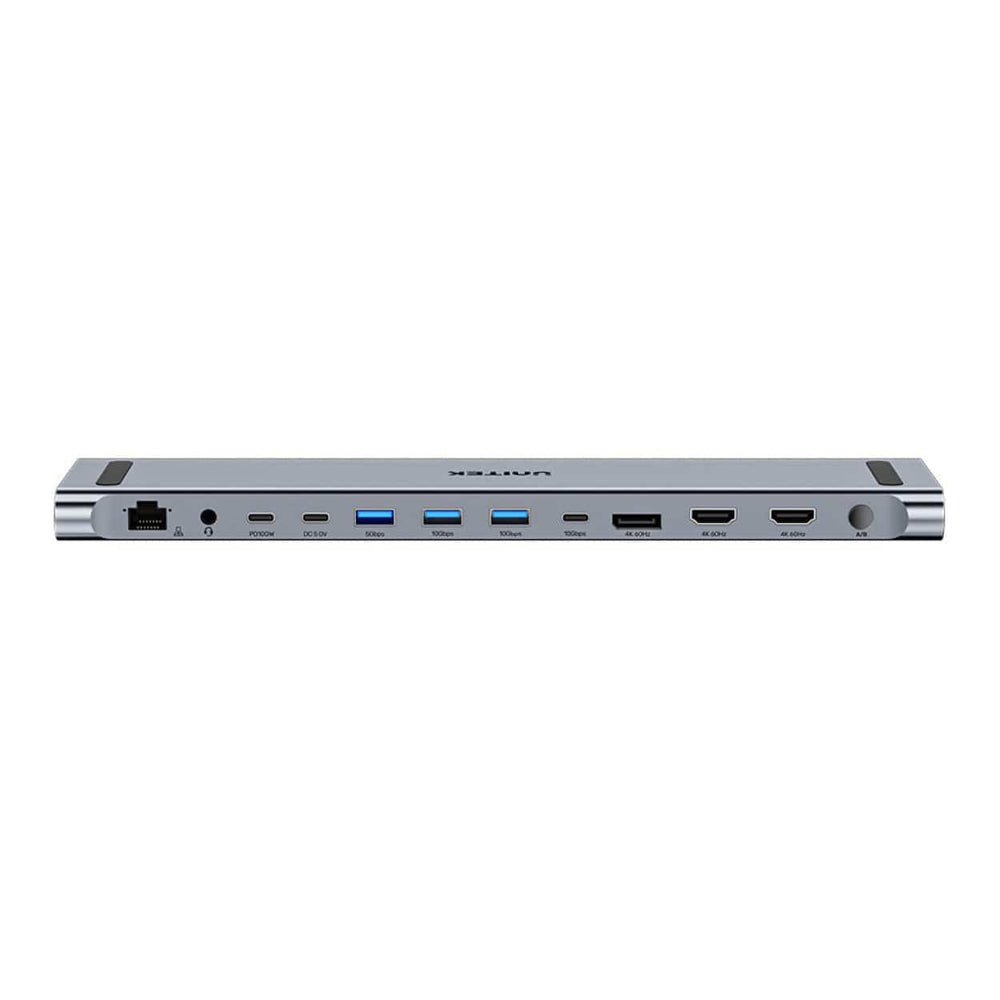

Unitek uHUB15+ USB-C Triple 4K KVM Docking Station D1106AGY01

Unitek uHUB15+ USB-C Triple 4K KVM Docking Station D1106AGY01

Connect two USB-C laptops to three 4K monitors (2x HDMI, 1x DP) and enjoy seamless switching. With 100W power delivery and multiple ports, it enhances connectivity and productivity.

• Dual Hosts Control
• Triple 4K Display Output
• 100W Power Delivery Charging
• High-Speed Data Transfer

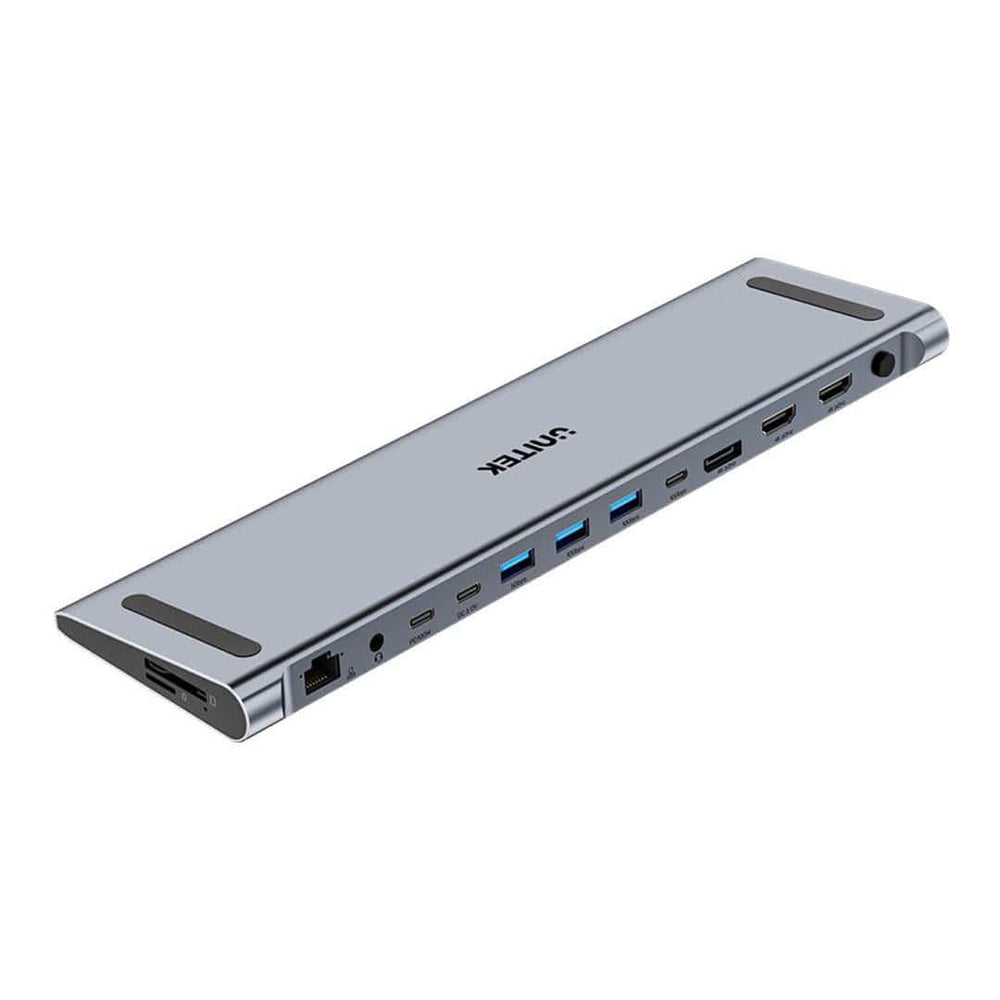

• Comprehensive Port Selection
• Supports MST/ SST Mode (Windows only)
• System Compatibility

Boost Your Workspace with the UNITEK USB-C Triple 4K KV Docking Station. Connect two USBC laptops to triple 4K monitors (HDMI x2, DP x1) for stunning visuals. With one USB-C and two USB-A ports, plus 100W power delivery (PD), it ensures efficient charging and connectivity. Easily switch between laptops to enhance your workflow and maximize productivity.

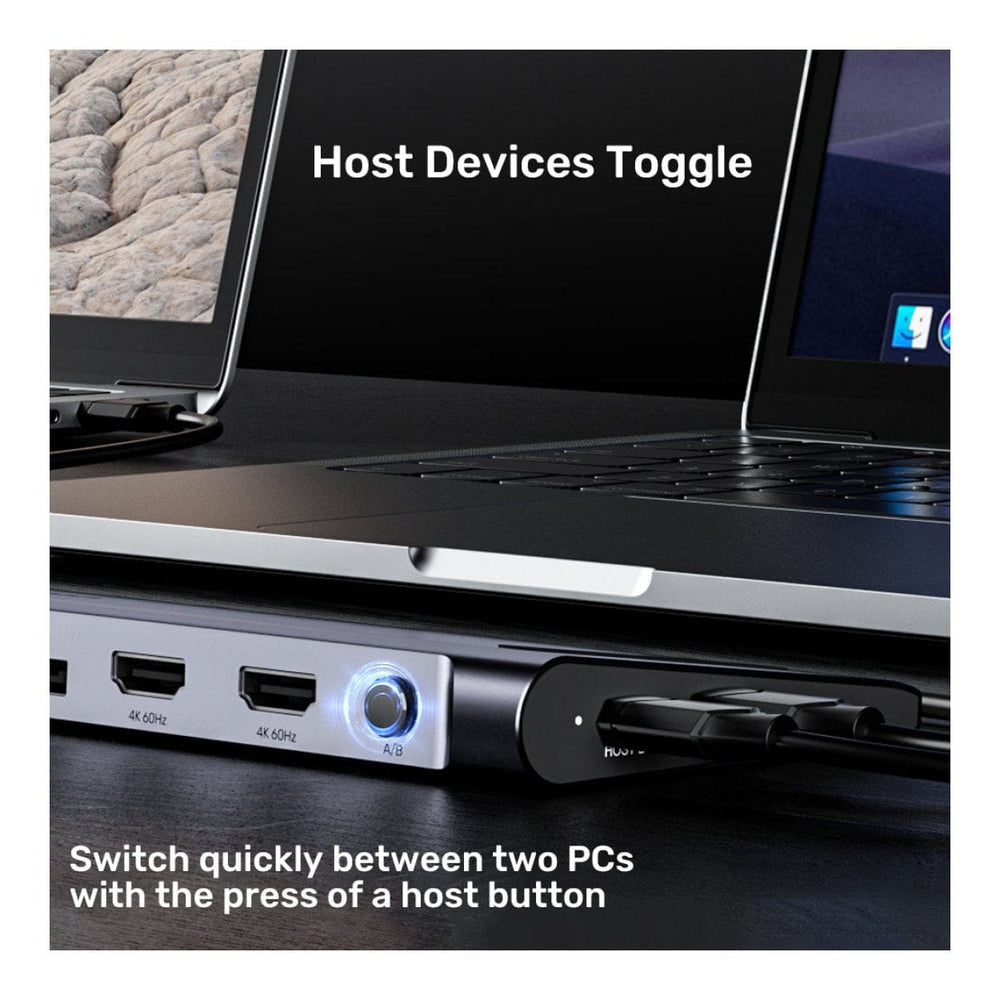

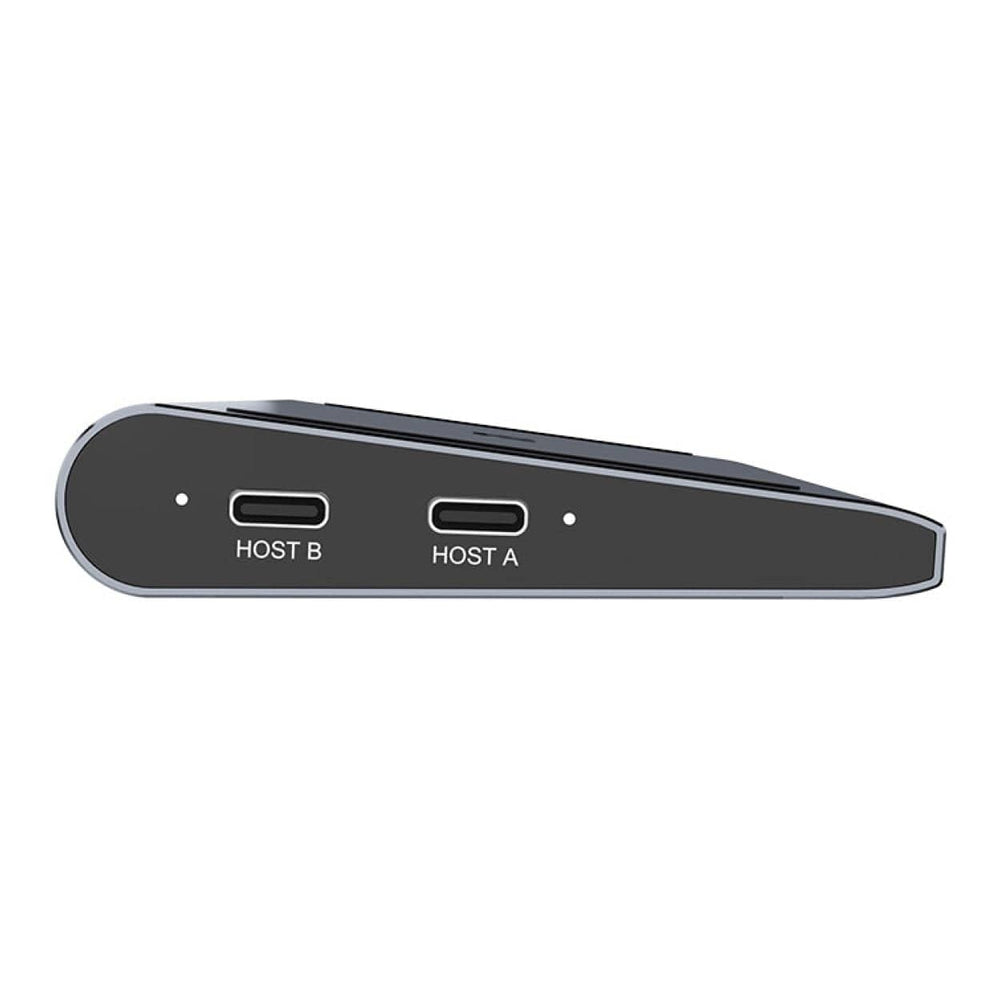

Dual Hosts Control

Effortlessly control two laptops or PCs using a single mouse, keyboard, and monitor(s). Switch quickly between two PCs with the press of a host button.

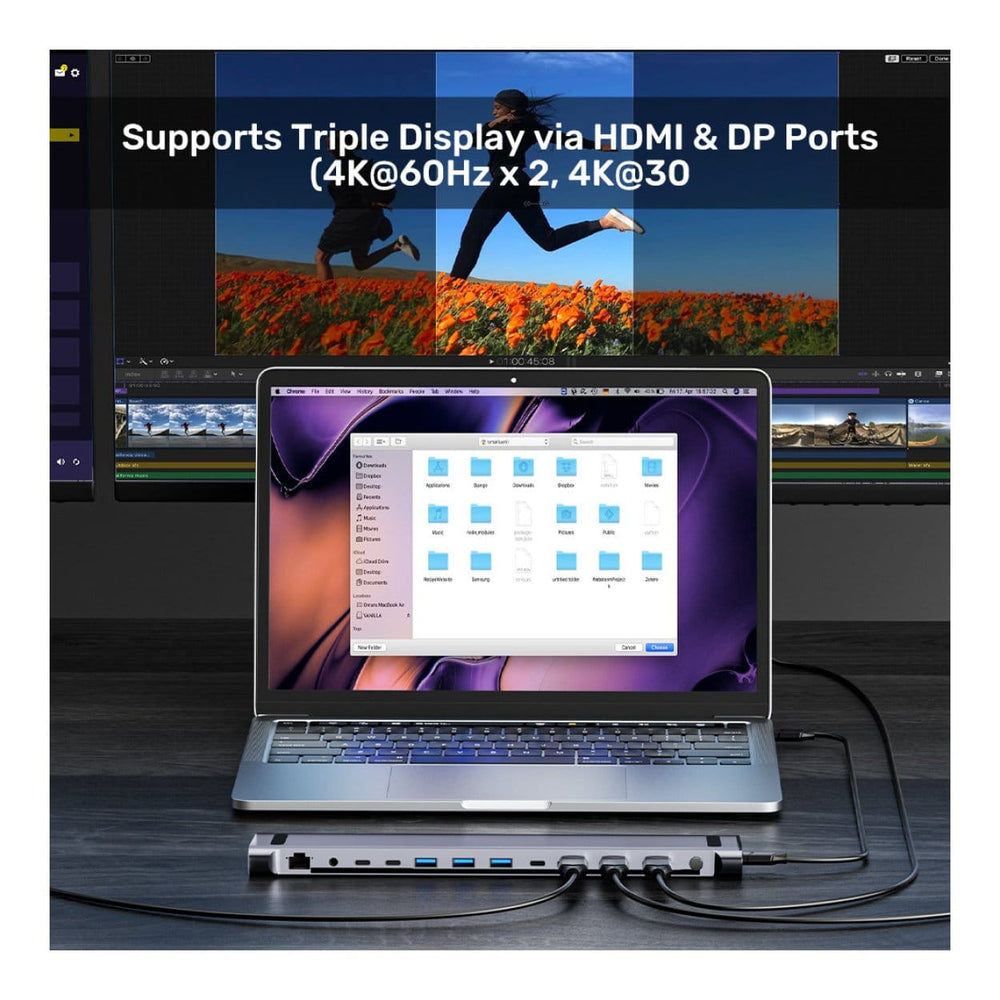

Triple 4K Display Output

A single/dual display output (2x HDMI/HDMI + DP) accommodates resolutions at 4K@60Hz (backward compatible). When connected to three monitors, it supports two paths at 4K@60Hz and one path at 4K@30Hz.

Supports Triple 4K Display

The UNITEK USB-C Triple 4K KV Docking Station supports up to three video output interfaces. It features MST/SST* and HDCP v2.2/DP++ support, and the included HDMI to VGA video adapter allows for easy connection to a VGA monitor.

*Please note that MST capability is available for Windows users only.

100W Power Delivery Charging

Enjoy up to 100W Power Delivery pass-through, allowing you to power and charge your USB-C laptop or host.

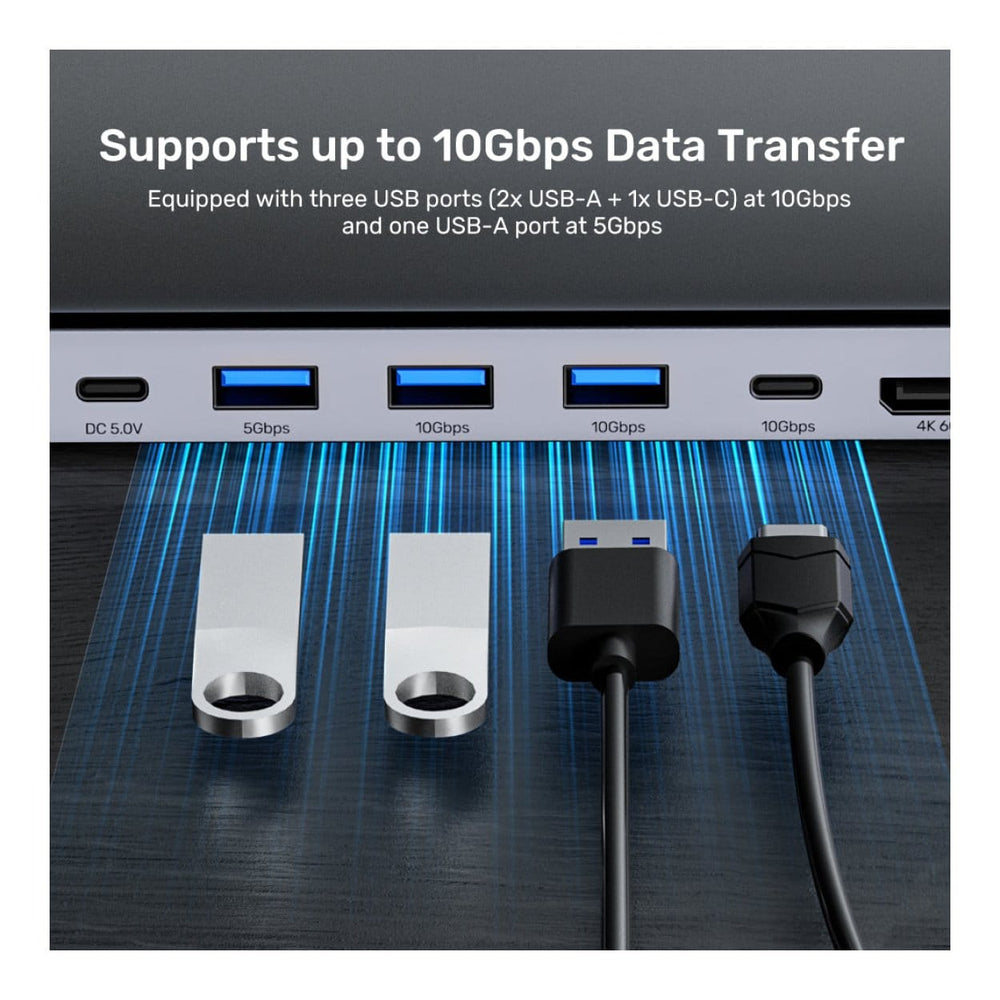

High-Speed Data Transfer

Equipped with three USB ports (2x USB-A + 1x USB-C) at 10Gbps and one USB-A port at 5Gbps for fast data transfer.

Comprehensive Port Selection

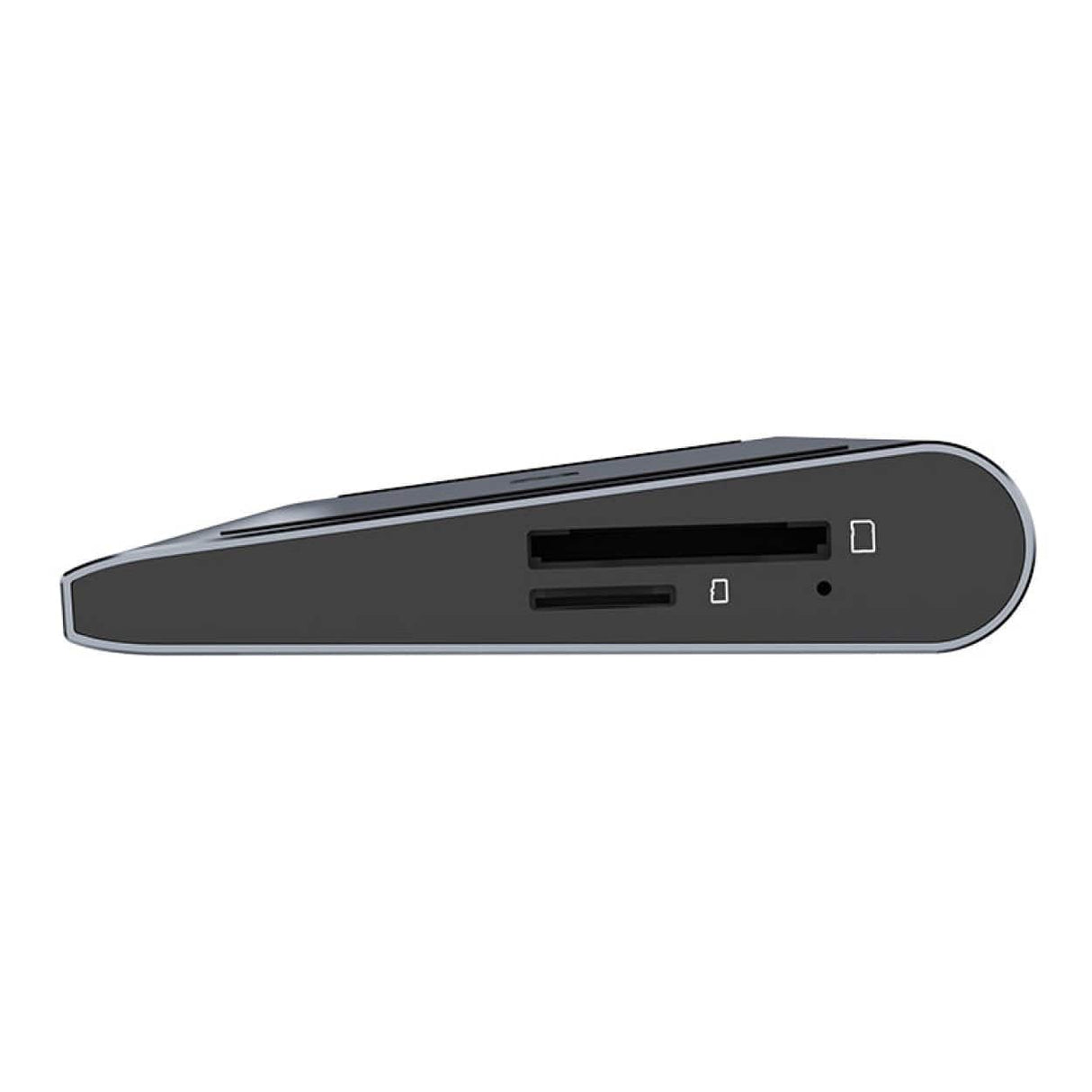

The docking station includes an RJ-45 Gigabit Ethernet port. The 3.5mm mic/audio jack provides high-quality audio output with microphone capabilities. Built-in SD and Micro-SD 3.0 card slots allow easy access to files from universal SD and MicroSD memory cards, supporting simultaneous reading from two cards.

System Compatibility

Compatible with Windows 10/11 (32/64-bit) and macOS 10.6 or above.

Multi-Monitor Setup

Experience seamless multi-monitor productivity with UNITEK docking stations. On Windows, enjoy MST (Multi-Stream Transport) mode supporting up to 4 extended displays (AB, ABC, ABCD) or mirrored setups (AA, AAA, AAAA). On macOS, use Daisy Chain for mirrored (AA, AAA, AAAA) and extended configurations (AB, ABB, ABBB).

Specifications:

Works With: Windows 7/8/10/11 (32/64bit), Linux kernel 3.x, Mac OS 10.6 or above

Host Power (PD): USB-C PD 100W

Max Output Resolution: Single/ Dual Display up to 4K@60Hz, Triple Display (4K@60Hz x 2, 4K@30Hz x 1)

HDMI: 2

DisplayPort: 1

USB-A: 2 x 5Gbps, 1 x 10Gbps

USB-C: 3 x 10Gbps (2 x Host), 1 x PD 100W, 1 x DC5V

SD card slot: 1

Micro SD card slot: 1

3.5mm Aux jack: 1 (Audio In/ Out)

Ethernet RJ45 Jack: 1000Mbps

KVM: Yes

Cable Length: 1M, 60CM

Cable Type: USB-C to USB-C Cable

Power Supply: 5V3A

Power Source: USB-C

Dimensions: 290.0mm x 80.0mm x 17.6mm

Material: Aluminum Alloy

Colour: Space Grey
