Delock 87587 USB 2.0 Adapter to 4 x Serial RS-422/485

Delock 87587 USB 2.0 Adapter to 4 x Serial RS-422/485

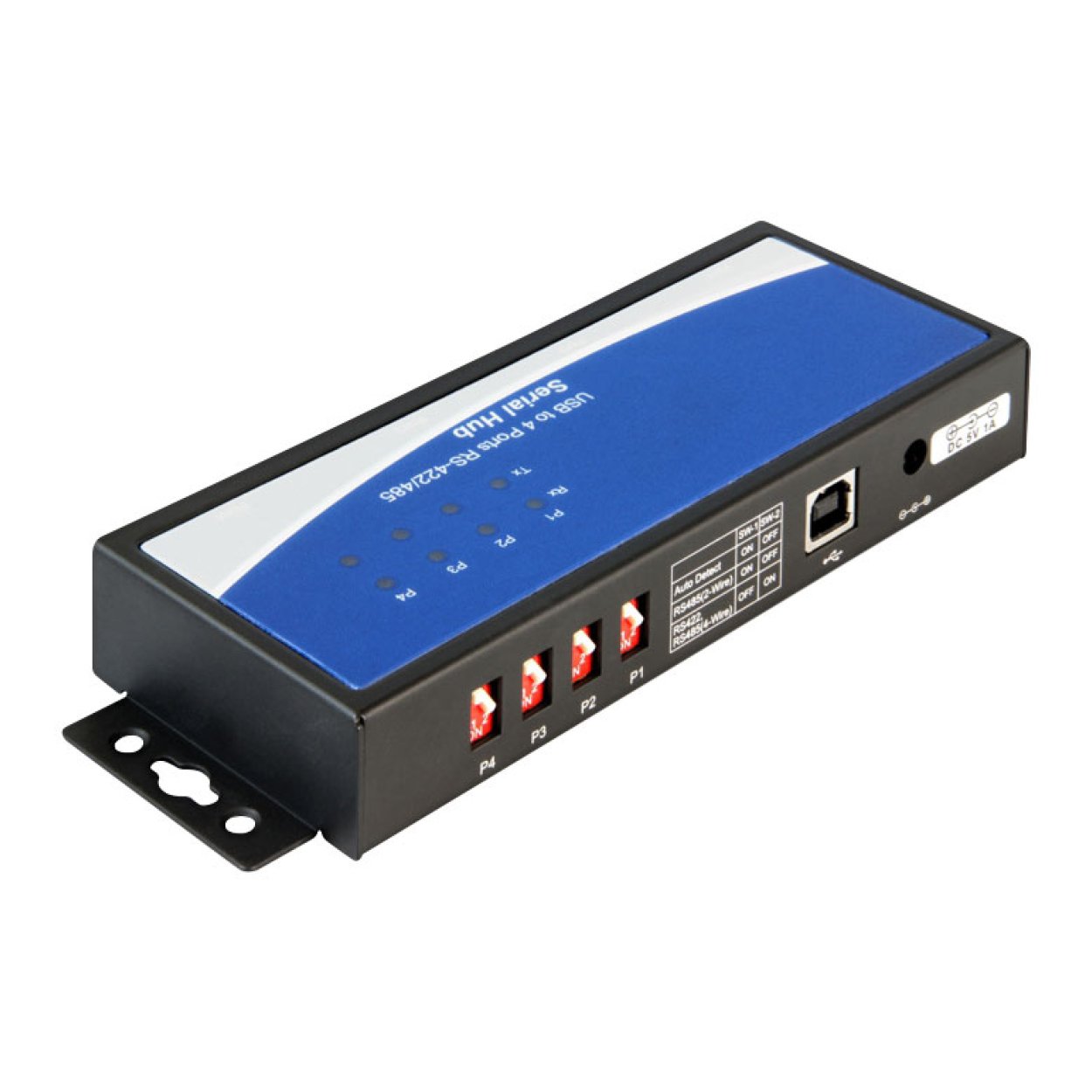

This adapter by Delock enables the connection of up to four serial devices via a USB Type-A port.

Technical Specifications:

Connectors
1 x USB 2.0 Type-B female
4 x Serial RS-422/485 DB9 male
1 x 5 V DC jack

Chipset & Components
FT4232HL, SP3078EE
4 x DIP switch for RS-422/485 operation setting
Internal pin header with jumper switch terminator on/off
Serial connectors with nuts

Data & Indicators
Data transfer rate up to 1 Mbps
LED for TxD / RxD activity indication
Automatic recognition and switching between RS-422 and RS-485
±15 kV ESD protection on all signal pins

Mounting & Installation
Wall mounting integrated in the housing
Additional I/O and IRQ not required

Power Consumption
Operation: ≤ 143 mA / 715 mW
Standby: ~92 mA / 460 mW
DC jack for optional power supply

Operating Conditions
Temperature: 0 °C to 70 °C

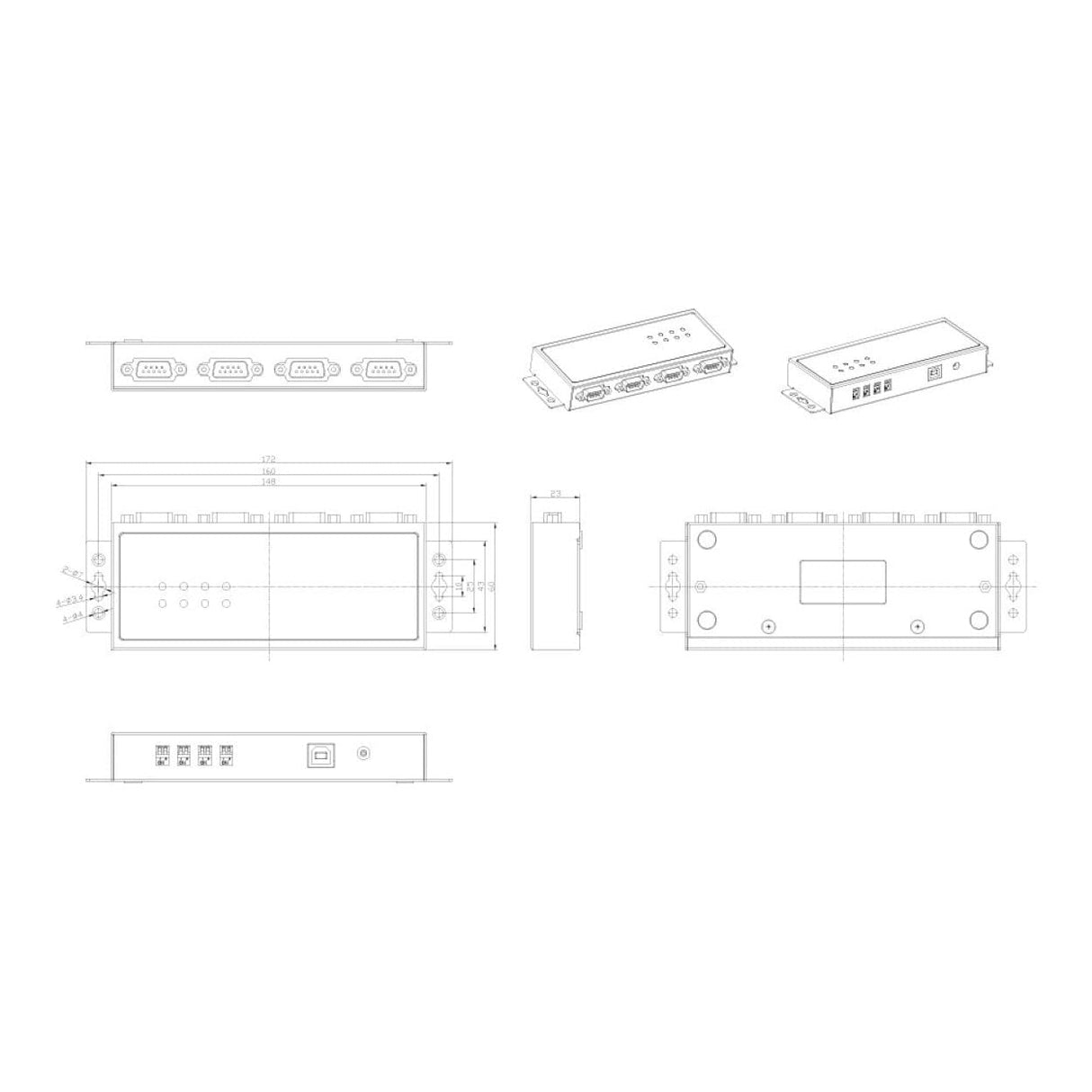

Dimensions
172 x 65 x 23 mm (L x W x H)

Specification of Power Connector:

5 V, ground outside, plus inside

Dimensions:
Inside: ø ca. 2.1 mm
Outside: ø ca. 5.5 mm
Length: ca. 9.5 mm

System Requirements:

Linux Kernel 2.6 or above

Windows Server 2012/Server 2012 R2/Server 2016

Windows Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11

PC or laptop with a free USB Type-A port

What's in the Box:

• USB 2.0 to 4 x serial RS-422/485 adapter

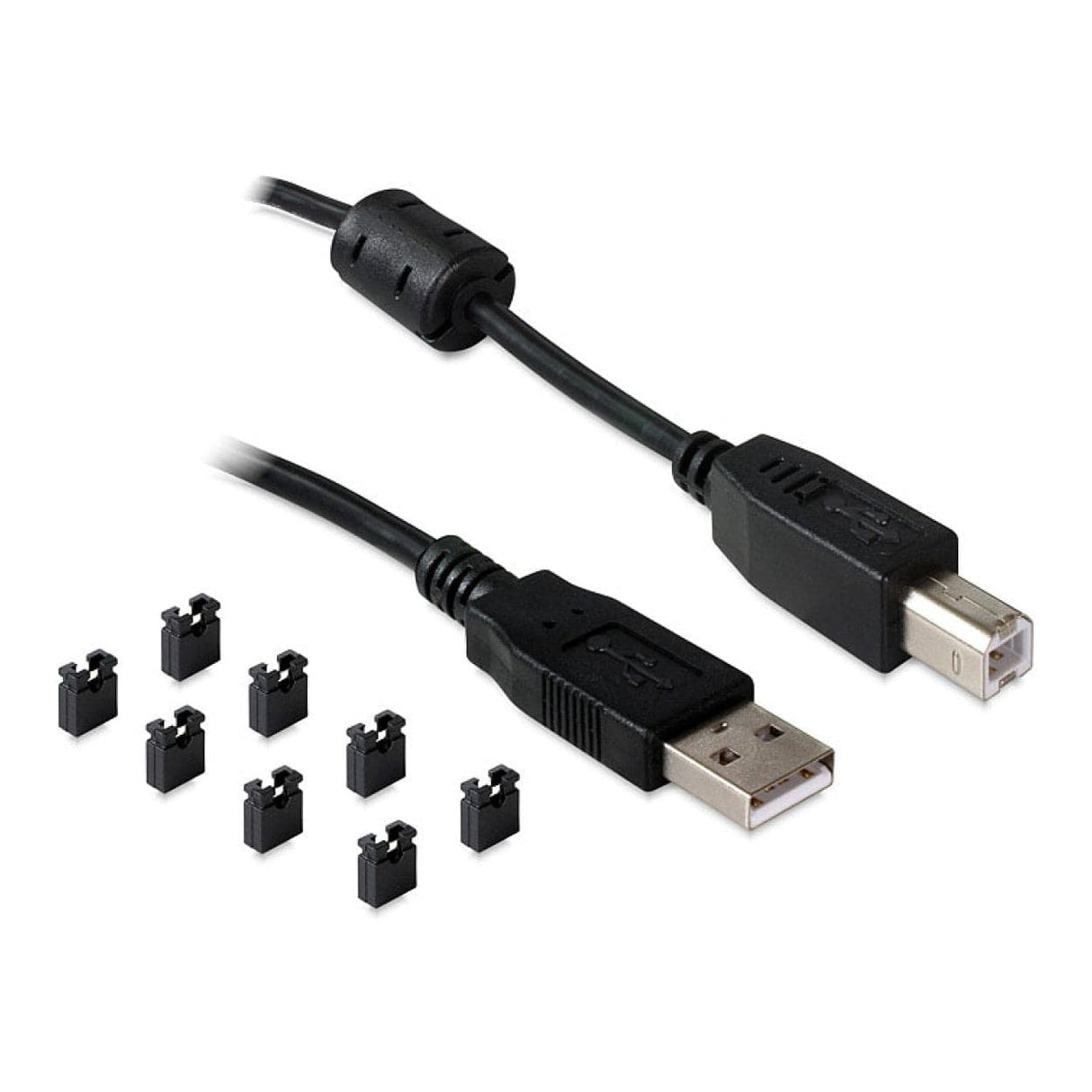

• USB 2.0 cable
• 8 x jumper
• Driver CD
• User manual
