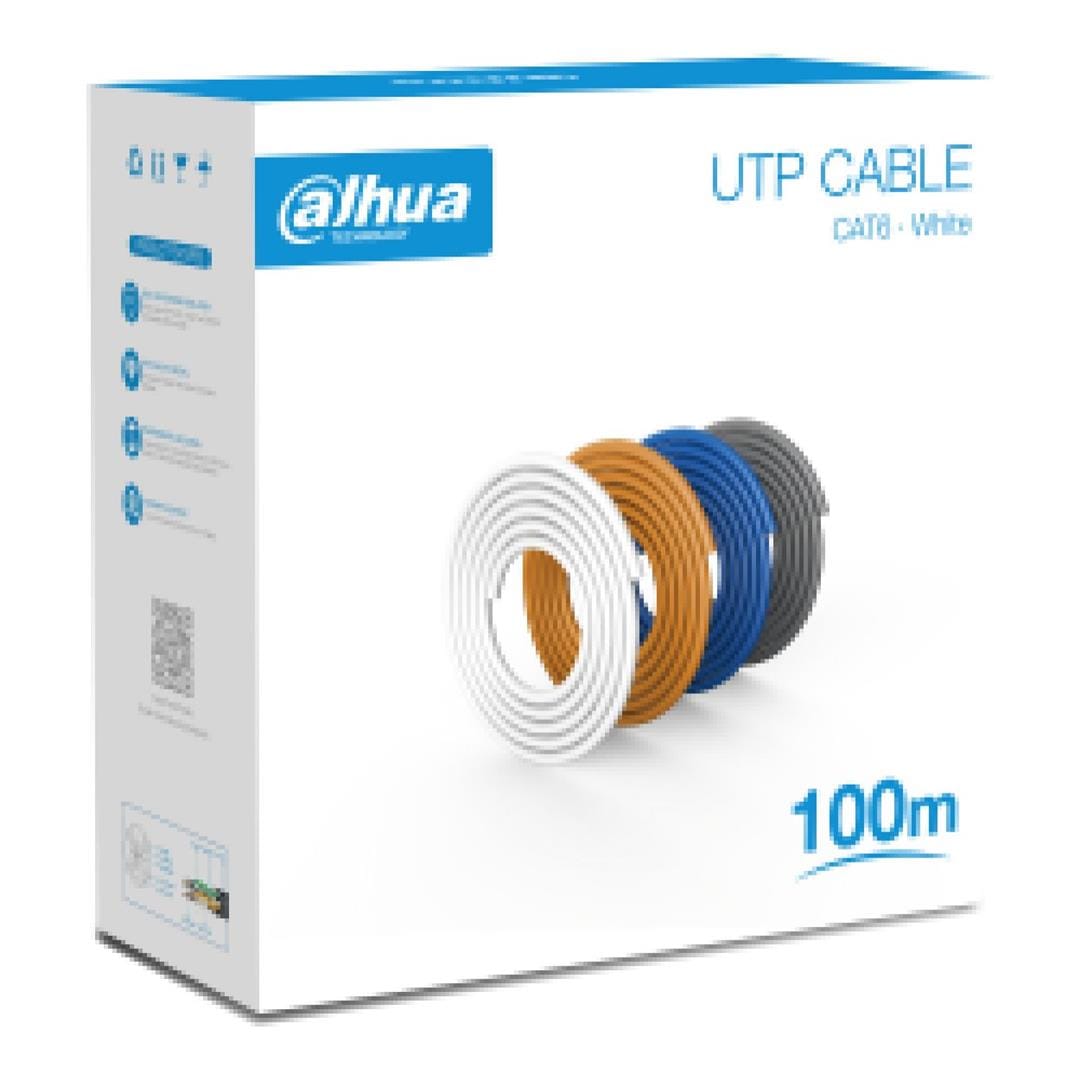

Dahua PFM920I-6UN-C-100 UTP CAT6 Cable 100m Grey

Dahua PFM920I-6UN-C-100 UTP CAT6 Cable 100m Grey

UTP CAT6 Cable

• 100m (328ft)/carton UTP CAT6, power over Ethernet, compatible with one cable
• High-purity oxygen-free copper conductor material
• Customized PVC outer sheath; CE CPR Eca flame retardant class certified
• Top-notch Quality Commitment for 10 Years

Specifications:

Material: Oxygen free copper (99.97% purity)

Diameter: 0.53 mm ± 0.01 mm (0.0207"±0.0004")

Material: HDPE

Min. Average Thickness: 0.21 mm (0.0083")

Diameter: 0.95 mm±0.1 mm (0.0374"±0.004")

Colour (4 Pairs): Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown

Material: ON

Specification: Translucent 4.5 mm × 0.4 mm (0.1772" ± 0.0157")

Material: Polyester

Specification: 500D

Material: PVC

Min. Average Thickness: 0.5 mm (0.0197")

Diameter: 6.0 mm ± 0.3 mm (0.2362"±0.0118")

Colour: White

Max. DC Resistance of a Single Conductor: 8.7 Ω/100 m

Min. Insulation Resistance: 5000MΩ·km

Max. DC Resistance Unbalance: 2% (pair intra), 4% (pairs inter)

Dielectric Strength: No breakdown with 1KV DC for 1 min

Characteristic Impedance: 100Ω ± 15Ω

Near End Cross Talk: ≥39.30 dB/100 m @250 MHz

Max. Attenuation: 34.8 dB/100 m @250 MHz

Return Loss: ≥17.3 dB/100 m @250 MHz
