Dahua DH-IPC-HDBW2241E-S WizSense 2MP 2.8mm IR Fixed-focal Dome Network Camera

Dahua DH-IPC-HDBW2241E-S WizSense 2MP 2.8mm IR Fixed-focal Dome Network Camera

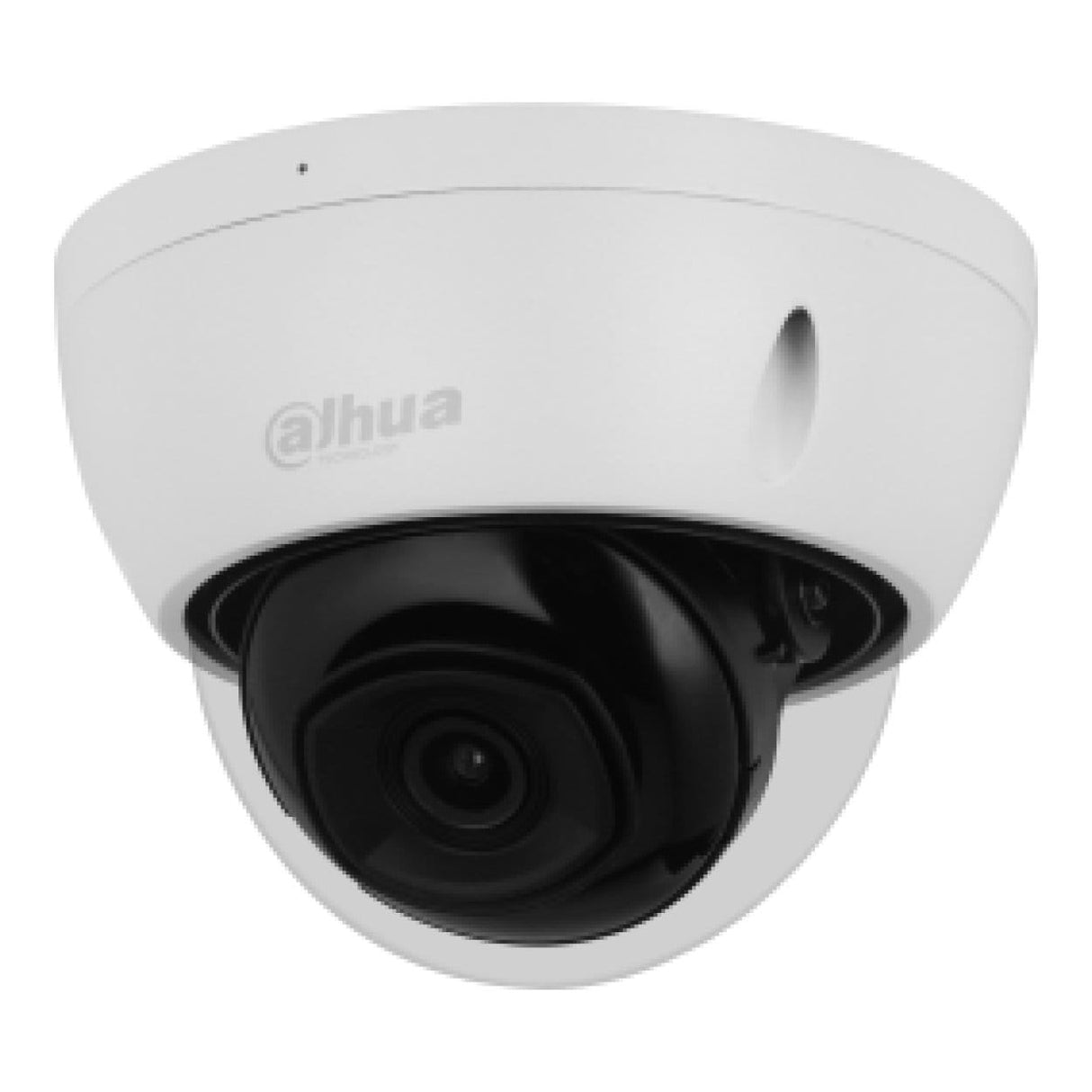

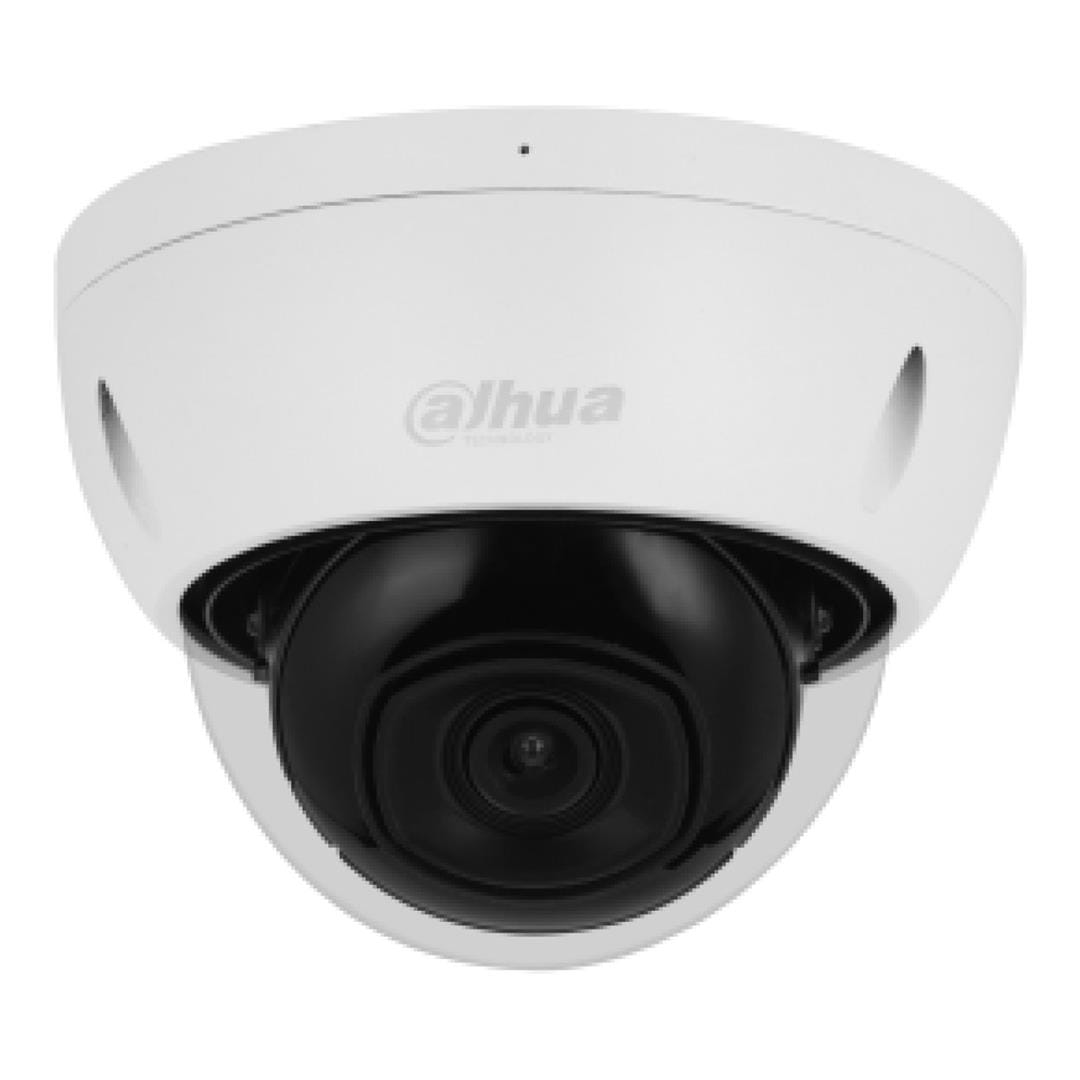

The Dahua DH-IPC-HDBW2241E-S is a 2MP WizSense fixed-focal dome network camera designed to deliver intelligent video surveillance with advanced AI-powered human and vehicle detection. Featuring a 1/2.8" CMOS sensor, Full HD 1080p resolution, and a 2.8mm fixed lens, it provides clear, detailed video and a wide field of view for monitoring indoor and outdoor environments.

As part of Dahua's WizSense range, the camera incorporates deep-learning algorithms to enhance perimeter protection and reduce false alarms caused by non-threatening objects. Its rugged IP67 and IK10-rated housing, built-in microphone, and support for H.265 compression make it ideal for commercial, retail, residential, and industrial security applications.

Features:

• 2MP (1920 × 1080) Full HD resolution
• 2.8mm fixed-focal lens with wide viewing angle
• WizSense AI-powered human and vehicle classification
• Smart Motion Detection (SMD Plus)
• Intelligent perimeter protection with intrusion and tripwire detection
• Built-in microphone for audio recording
• IR night vision up to 30m
• H.265/H.265+ video compression
• Wide Dynamic Range (WDR) for challenging lighting conditions
• MicroSD card support up to 256GB
• IP67 weatherproof and IK10 vandal-resistant housing
• PoE (Power over Ethernet) support for simplified installation

Specifications:

Image Sensor: 1/2.8" Progressive Scan CMOS

Maximum Resolution: 1920 × 1080 (2MP)

Frame Rate: Up to 25/30fps

Lens Type: Fixed-Focal

Lens Focal Length: 2.8mm

Aperture: F1.6

Horizontal Field of View: Approximately 106°

Video Compression: H.265, H.265+, H.264, H.264+

AI Functions: Human & Vehicle Classification, SMD Plus

Perimeter Protection: Intrusion Detection, Tripwire

Night Vision Range: Up to 30m IR

Audio: Built-in Microphone

Local Storage: MicroSD Card up to 256GB

Network Interface: RJ45 10/100Mbps Ethernet

Power Supply: 12V DC or PoE (IEEE 802.3af)

Maximum Power Consumption: 5.6W (PoE)

Weather Rating: IP67

Impact Rating: IK10

Operating Temperature: -40°C to +60°C

Housing Material: Metal

Dimensions: Ø109.9 × 81mm

Weight: Approximately 340g
