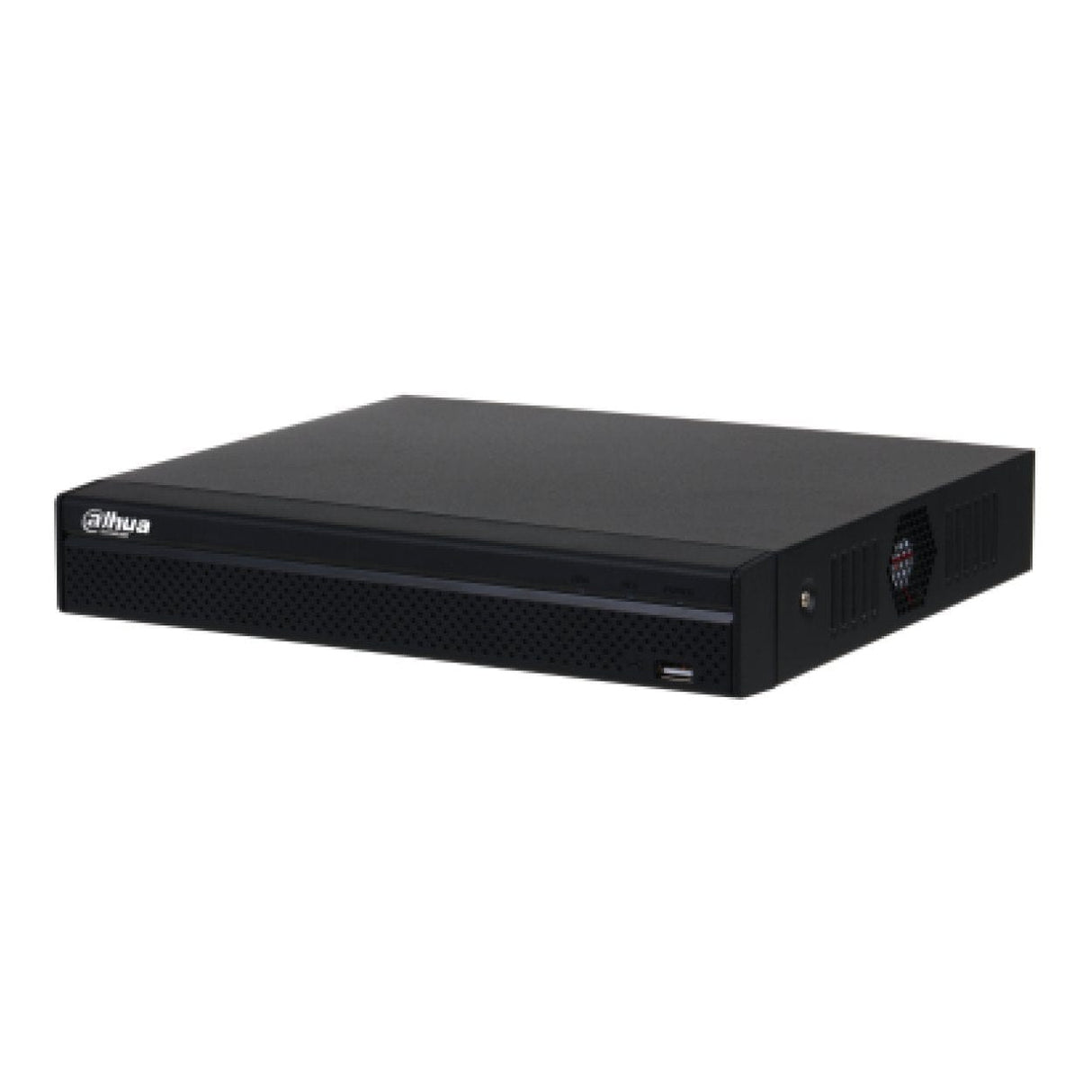

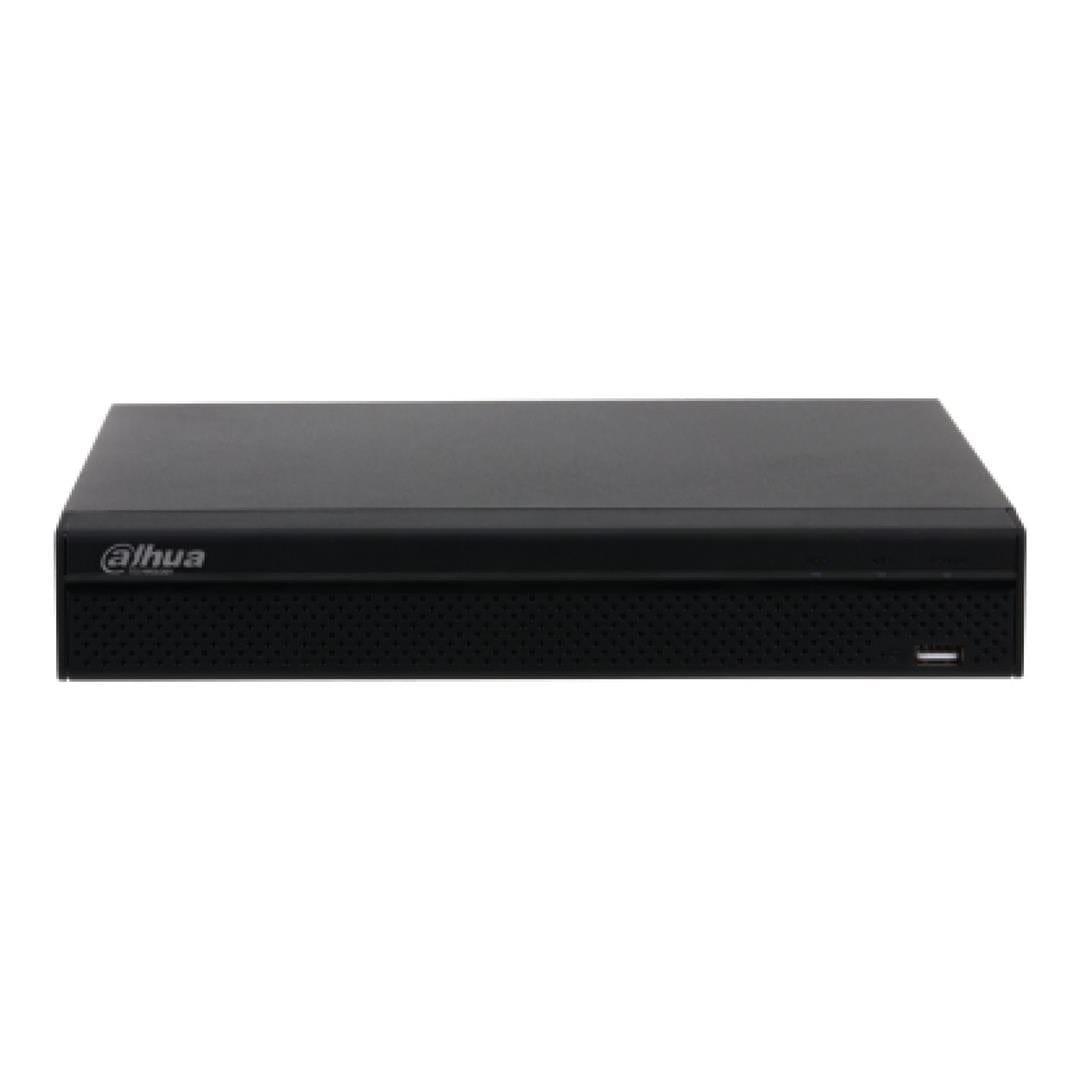

Dahua 16-channel Compact 1U 8PoE 1HDD Lite NVR NVR4116HS-8P-4KS3

Dahua 16-channel Compact 1U 8PoE 1HDD Lite NVR NVR4116HS-8P-4KS3

The NVR4000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. When an IPC is connected to the NVR, a variety of AI functions become available such as face detection, perimeter protection, and people counting. This NVR is both cost-effective and easy-to-install, making it ideal for a wide range of applications such as for cities, transportation, education and finance.

Features:

•  Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
• Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
• Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth.
• Supports IP cameras with a resolution up to 12 MP.
• AI by Recorder supports 4-channel SMD Plus.
• AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
• Supports EPTZ, and one-click arming and disarming.

Technical Specifications:

System: Industrial-grade processor
Operating System: Embedded Linux
Interface: Web, Local GUI
AI: Recorder (SMD Plus), Camera (Face detection, Face recognition, Perimeter protection, SMD Plus, People counting, Stereo analysis, Heat map)

Perimeter Protection Channels: 6
Face Detection Channels: 6 (Attributes: Gender, Age Group, Glasses, Expressions, Face Mask, Beard)
Face Recognition Channels: 6
SMD Plus Channels: Recorder: 4, Camera: 6

Audio/Video Access Channels: 16
Network Bandwidth: AI disabled: 160 Mbps incoming/recording, 80 Mbps outgoing; AI enabled: 80 Mbps incoming/recording, 60 Mbps outgoing
Resolution: 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF
Decoding Capability: AI disabled: 1×12MP@30fps, 2×8MP@30fps, 3×5MP@30fps, 4×4MP@30fps, 8×1080p@30fps; AI enabled: 1×12MP@30fps, 1×8MP@30fps, 2×5MP@30fps, 3×4MP@30fps, 7×1080p@30fps

Video Output: 1×HDMI, 1×VGA (Simultaneous: HDMI 3840×2160, VGA 1920×1080)
Multi-screen Display: Main: 1/4/8/9/16; Sub: 1/4/8/9/16
Third-party Camera Access: ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Hanwha
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264
Audio Compression: G.711a, G.711u, PCM, G726

Network Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search
Mobile Access: iOS, Android
Browser Support: Chrome, IE, Safari, Edge, Firefox

Recording/Playback: Multi-channel up to 16; Record Mode: General, Motion, Intelligent, Alarm; Backup: USB & Network; Playback: Instant, Event, Tag, Smart

Alarm: Motion detection, Privacy masking, Video loss, Scene change, PIR alarm, IPC external alarm, Camera disconnection, Storage error, Disk full, IP/MAC conflict, Login lock, Cybersecurity exception, Face/Perimeter/SMD Plus/People counting/Heat map
Alarm Linkage: Record, Snapshot, IPC output, Audio, Buzzer, Log, Preset, Email

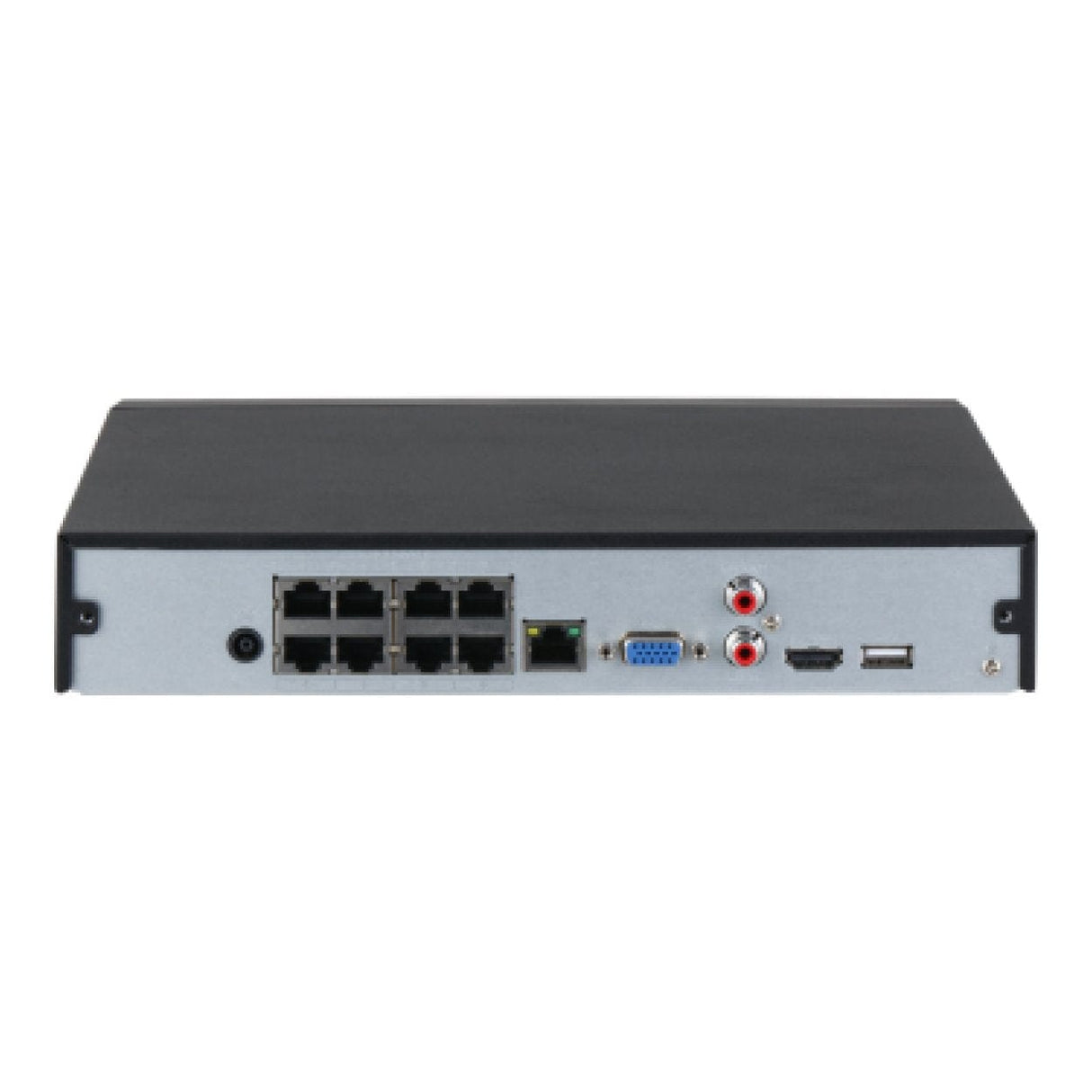

Ports: Audio In 1×RCA, Audio Out 1×RCA, Disk Interface 1×SATA (up to 20 TB), USB 2×2.0, HDMI 1, VGA 1, Network 1×RJ-45 (10/100/1000 Mbps), PoE 8×10/100 Mbps

Power Supply: 53 VDC, 1.81 A
Power Consumption: NVR <10 W (without HDD), PoE total 72 W, max per port 25.5 W
Weight: Net 0.92 kg, Gross 2.05 kg
Dimensions: 260×232.5×47.6 mm (W×D×H), Packaging: 374×119×311 mm
Operating Temp: –10°C to +55°C; Storage Temp: –20°C to +60°C; Humidity: 10–93% RH
Installation: Rack or desktop
Certifications: CE-EMC (EN 55032, EN 61000 series, EN 55035, EN 50130-4), CE-LVD (EN 62368-1)
