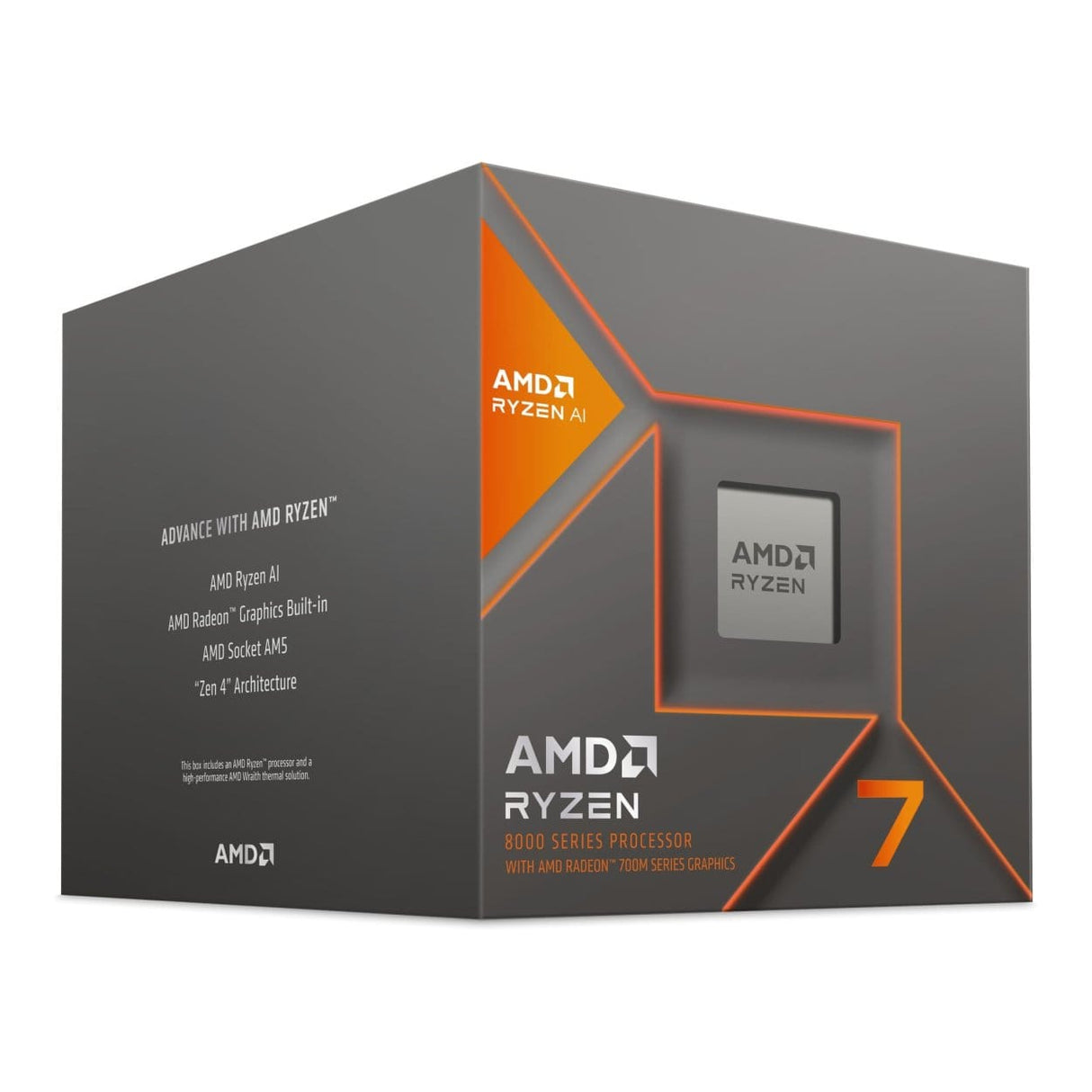

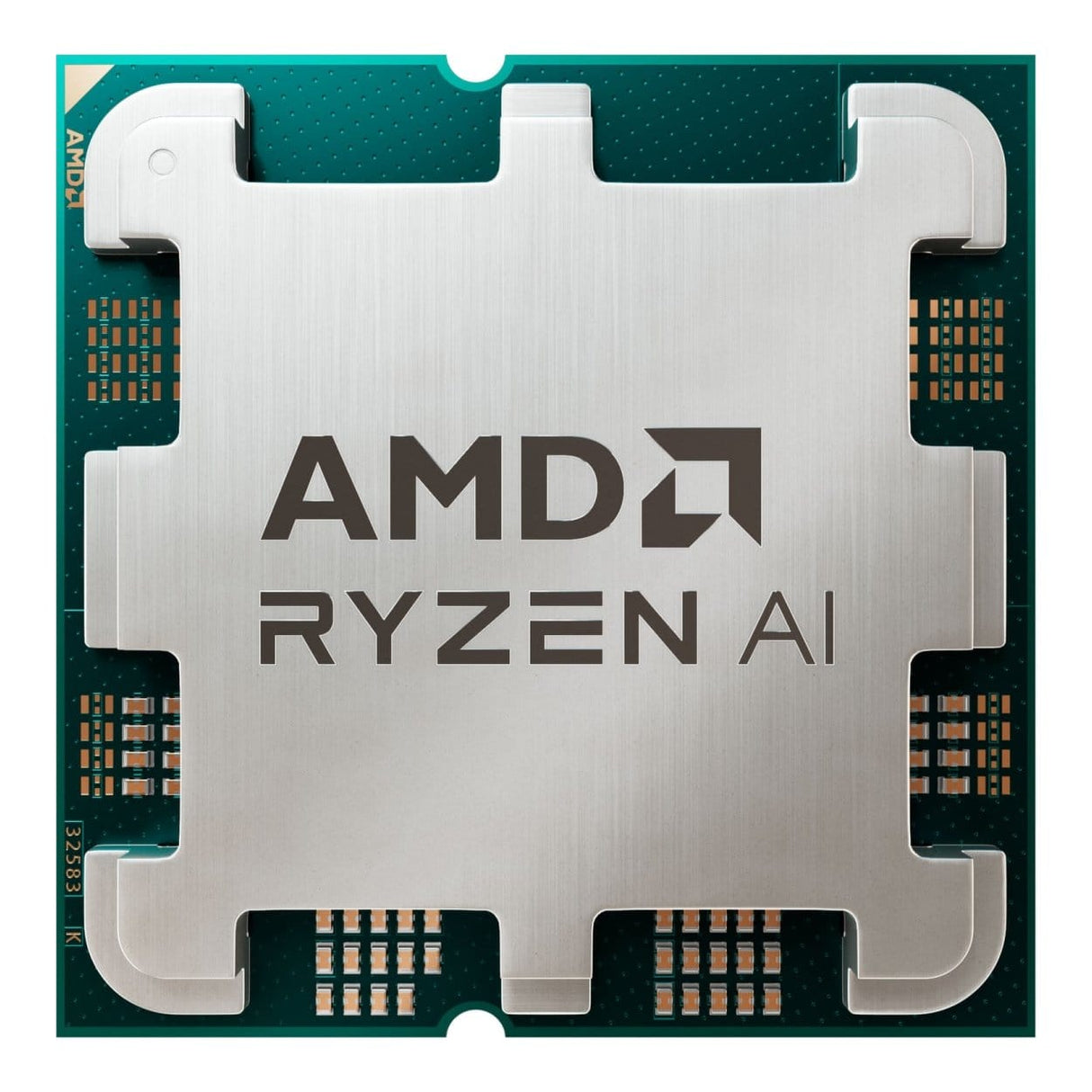

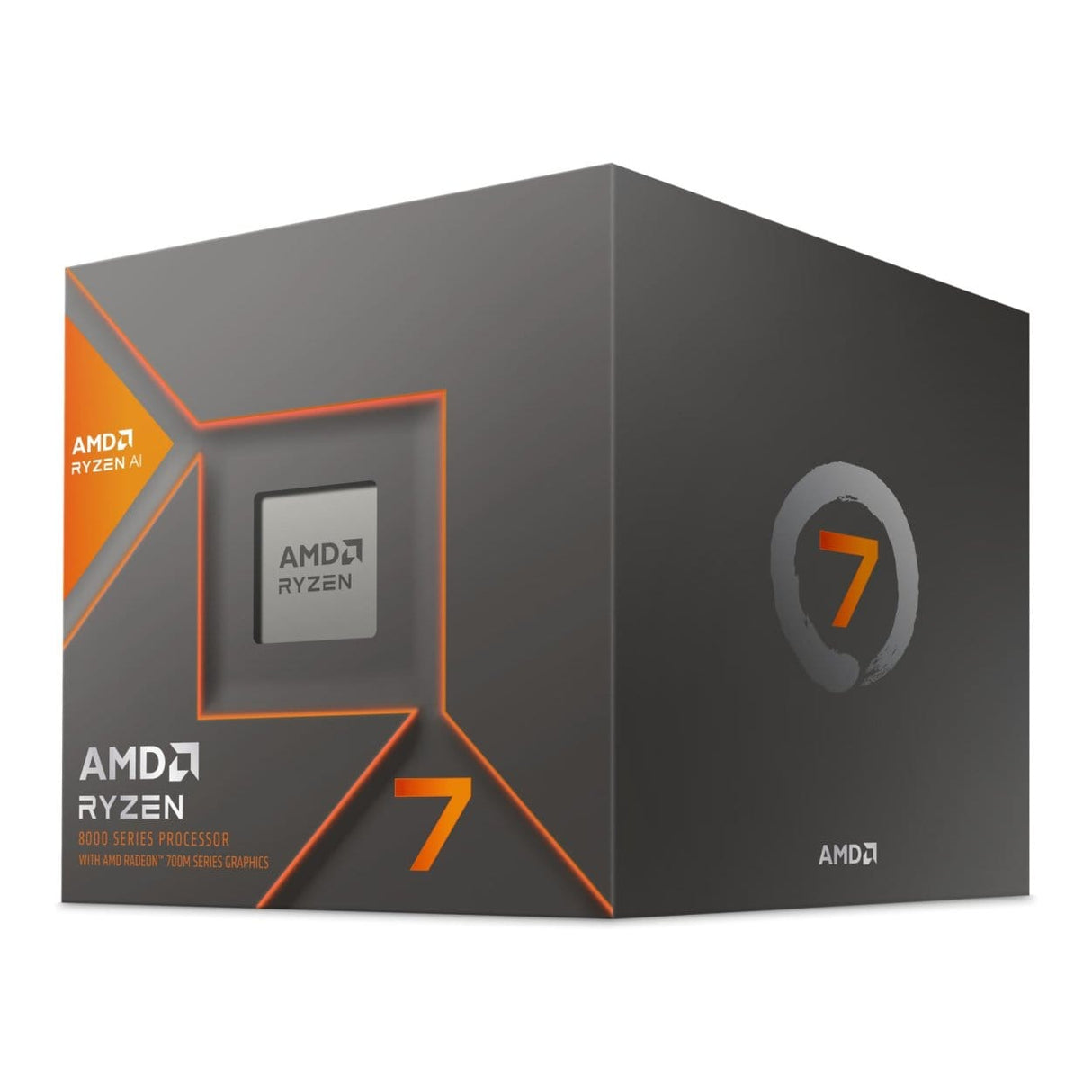

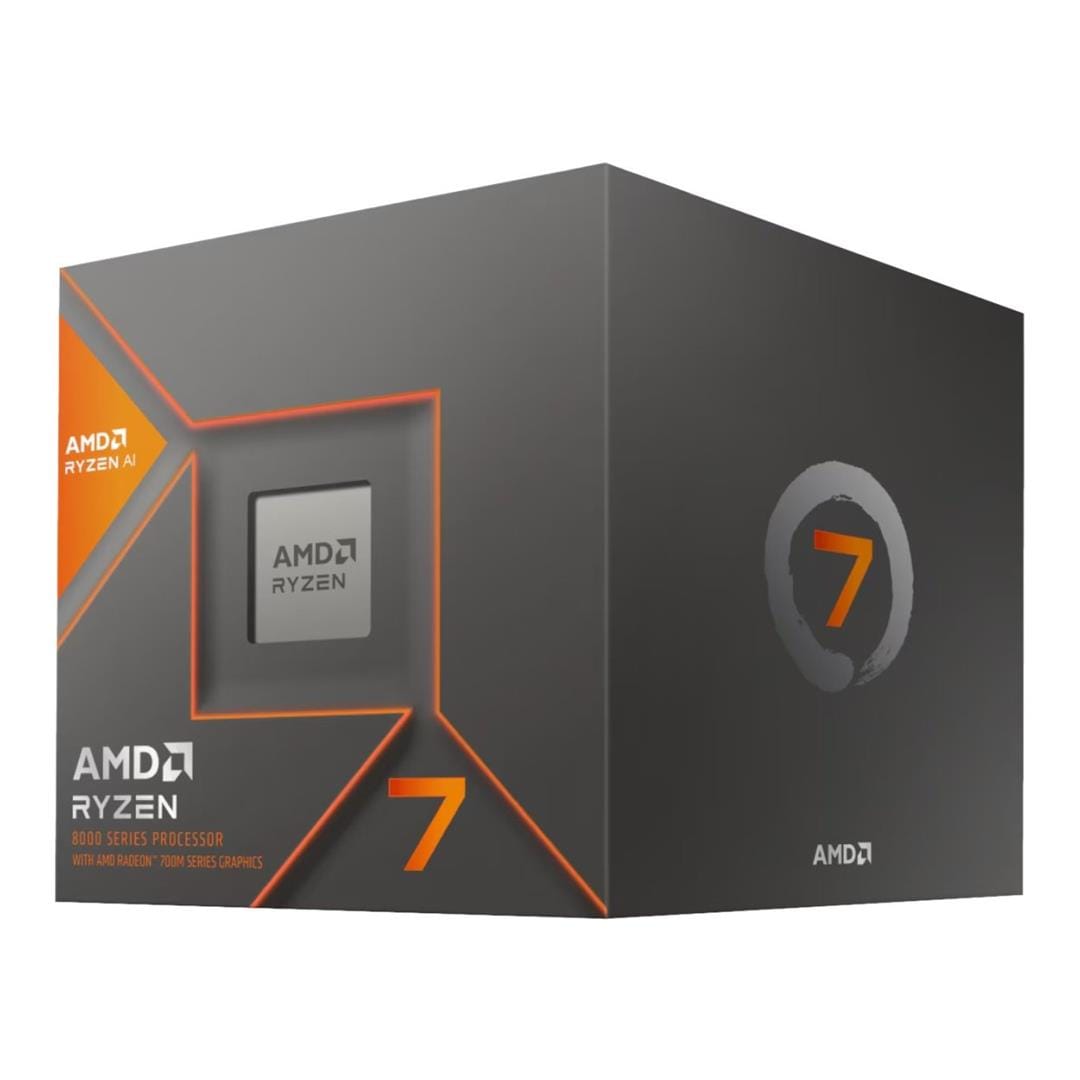

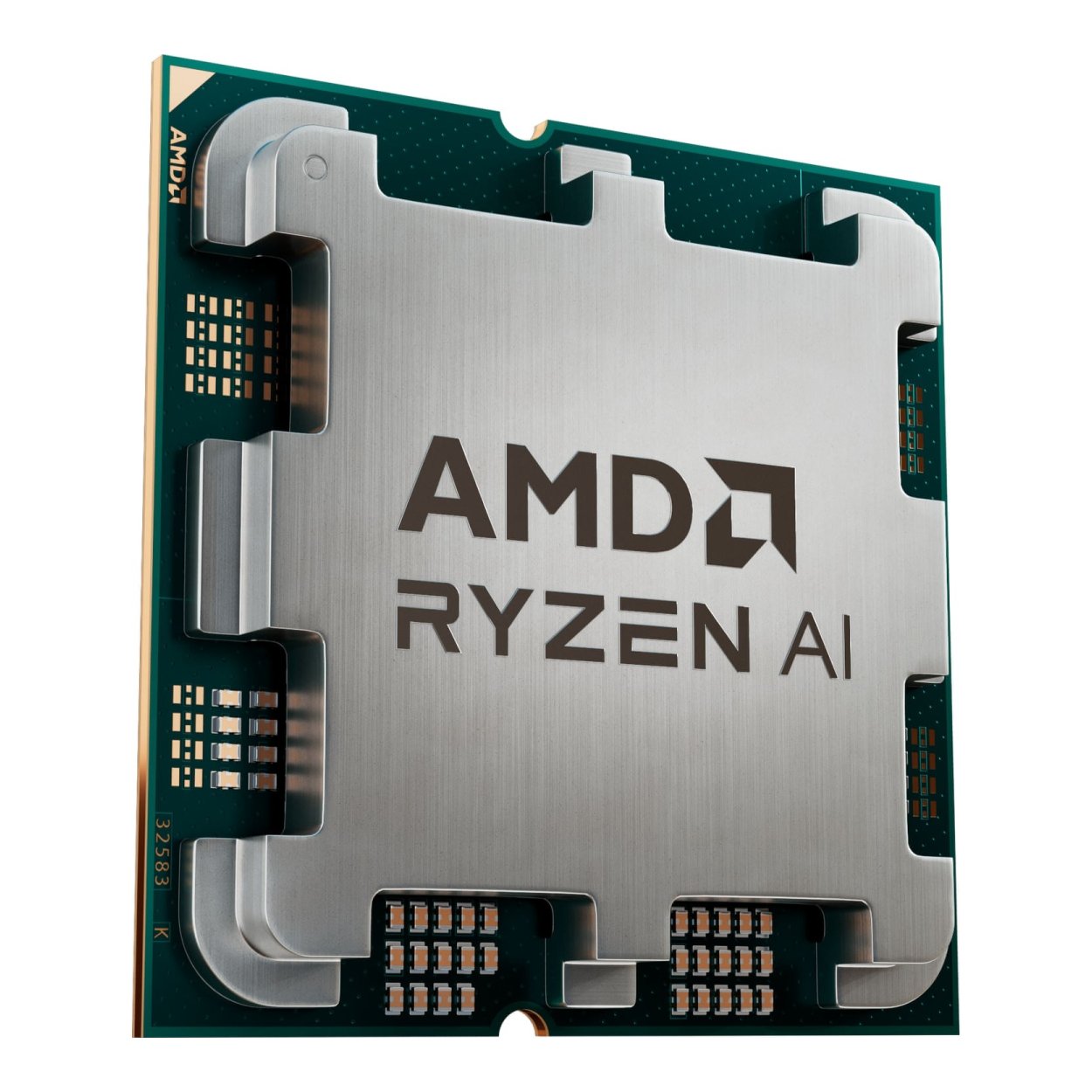

AMD Ryzen 7 8700G CPU - 8-core Socket AM5 5.1GHz Processor 100-100001236SBX

AMD Ryzen 7 8700G CPU - 8-core Socket AM5 5.1GHz Processor 100-100001236SBX

Unlocking performance with built-in intelligence

The inclusion of the dedicated AMD Ryzen AI engine means this AM5 CPU is prepared for the next generation of software that leverages machine learning and acceleration directly on the chip. This is not merely about frame rates; it is about future-proofing your investment in intelligent applications, from video editing suites to operating system efficiency enhancements. The raw clock speeds, boosted up to 5.1 GHz, ensure snappy responsiveness across all operational demands, from intense compiling to heavy data crunching.

Features:

• Up to 5.1GHz
• 8 Cores / 16 Threads
• AM5 Socket
• AMD Radeon™ 780M Graphics
• AMD Ryzen AI  available up to 16 TOPS
• Windows, RHEL, and Ubuntu Support

Graphics performance that defies integration standards

The integrated AMD Radeon 780M graphics, featuring 12 Compute Units running at up to 2900MHz, fundamentally shifts expectations for APUs. This solution supports modern display standards including DisplayPort 2.1 and outputs across up to four displays simultaneously. For the user, this means enjoying demanding applications and popular esports titles at respectable resolutions and frame rates, all while utilising power efficiency, confirmed by a 65W default TDP that can be configured down to 45W for ultra-small form factor builds. Durability is assured through AMD’s commitment to platform longevity and the inherent quality of the TSMC 4nm manufacturing process.

No illusions: Understand the core components provided

This AM5 processor unit is delivered as the central processing element only, meaning you secure the maximum flexibility for cooling, memory, and motherboard choice. We present only the truth of what is contained within the shipping material, ensuring you can plan your build with absolute certainty regarding what you are acquiring for your system’s foundation. This is the starting point for your custom configuration, not a constrained bundle.

Control over every aspect of the clock and power

For those who understand that performance is a negotiation, the 8700G offers extensive control. It is unlocked for manual overclocking, supported by Precision Boost Overdrive, and features fine-tuning options like Curve Optimizer Voltage Offsets. When paired with fast DDR5 memory, the system memory controller supports speeds up to 5200 MHz (2x1R or 2x2R configurations), allowing enthusiasts to extract every possible cycle from the architecture, supported by platform features like AMD EXPO technology for validated memory profiles. This specific AM5 CPU offers a complete path forward.

Technical Specifications:

AMD PRO Technologies: No

Regional Availability: Global

Former Codename: Phoenix

Processor Architecture: Zen 4

# of CPU Cores: 8

Multithreading (SMT): Yes

# of Threads: 16

Max. Boost Clock: Up to 5.1 GHz

Base Clock: 4.2 GHz

L2 Cache: 8 MB

L3 Cache: 16 MB

Default TDP: 65W

AMD Configurable TDP (cTDP): 45-65W

Processor Technology for CPU Cores: TSMC 4nm FinFET

CPU Compute Die (CCD) Size: 178mm²

Unlocked for Overclocking: Yes

AMD EXPO™ Memory Overclocking Technology: Yes

Precision Boost Overdrive: Yes

Curve Optimizer Voltage Offsets: Yes

AMD Ryzen™ Master Support: Yes

CPU Socket: AM5

Supporting Chipsets: A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology: Precision Boost 2

Instruction Set: x86-64

Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Max. Operating Temperature (Tjmax): 95°C

Graphics

• Graphics Model: AMD Radeon™ 780M
• Graphics Core Count: 12
• Graphics Frequency: 2900 MHz
• DirectX® Version: 12
• DisplayPort™ Version: 2.1
• DisplayPort Extensions: Adaptive-Sync , HDR Metadata , UHBR10
• DisplayPort Max Refresh Rates (SDR): 7680×4320 @ 60Hz , 3840×2160 @ 240Hz , 3440×1440 @ 360Hz , 2560×1440 @ 480Hz , 1920×1080 @ 600Hz
• DisplayPort Max Refresh Rates (HDR): 7680×4320 @ 60Hz , 3840×2160 @ 240Hz , 3440×1440 @ 360Hz , 2560×1440 @ 480Hz , 1920×1080 @ 600Hz
• HDMI® Version: 2.1
• HDCP Version Supported: 2.3
• USB Type-C® DisplayPort™ Alternate Mode: Yes
• Multi-Monitor Support: Yes
• Max Displays: 4
• AMD FreeSync™: Yes
• Wireless Display: Miracast
• Max Video Encode Bandwidth (SDR): 1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
• Max Video Decode Bandwidth: 1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
• AMD SmartAccess Memory: Available

Connectivity:

• Native USB 4 (40Gbps): 2
• Native USB 3.2 Gen 2 (10Gbps): 2
• Native USB 2.0 (480Mbps): 1
• PCI Express® Version: PCIe® 4.0
• Native PCIe® Lanes (Total/Usable): 20 , 16
• NVMe Support: Boot , RAID0 , RAID1
• System Memory Type: DDR5
• Memory Channels: 2
• Max. Memory: 256 GB
• System Memory Subtype: UDIMM
• Max Memory Speed: 2x1R DDR5-5200 | 2x2R DDR5-5200 | 4x1R DDR5-3600 | 4x2R DDR5-3600
• ECC Support: Yes (Requires platform support)

AI Engine Capabilities

• Brand Name: AMD Ryzen™ AI
• AMD Ryzen™ AI: Available
• Performance: Up to 16 TOPS

Security:

• AMD Enhanced Virus Protection (NX bit): Yes

What's in the Box:

• AMD Ryzen 7 8700G AM5 8-Core 4.1GHz CPU with Ryzen AI – Grey x1
