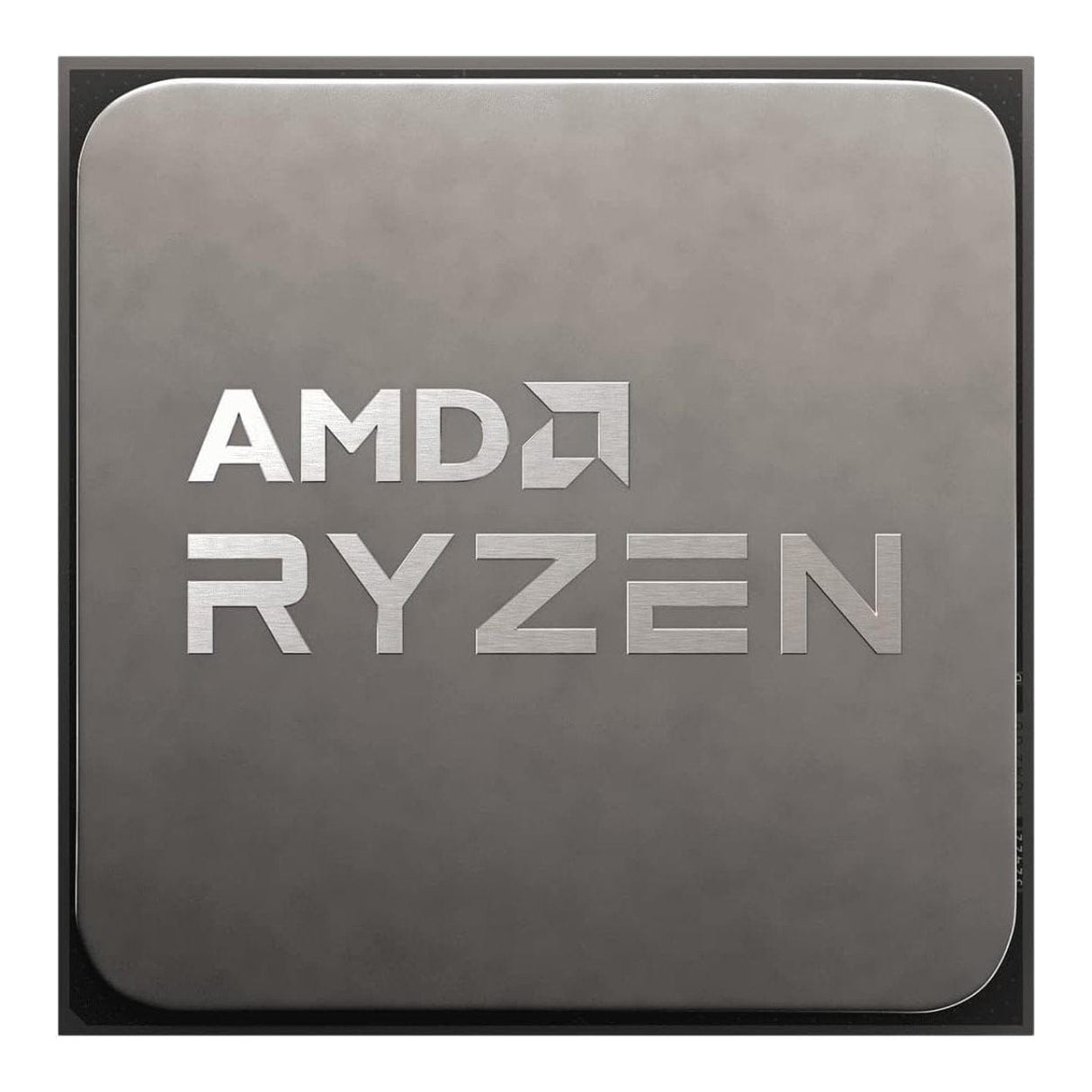

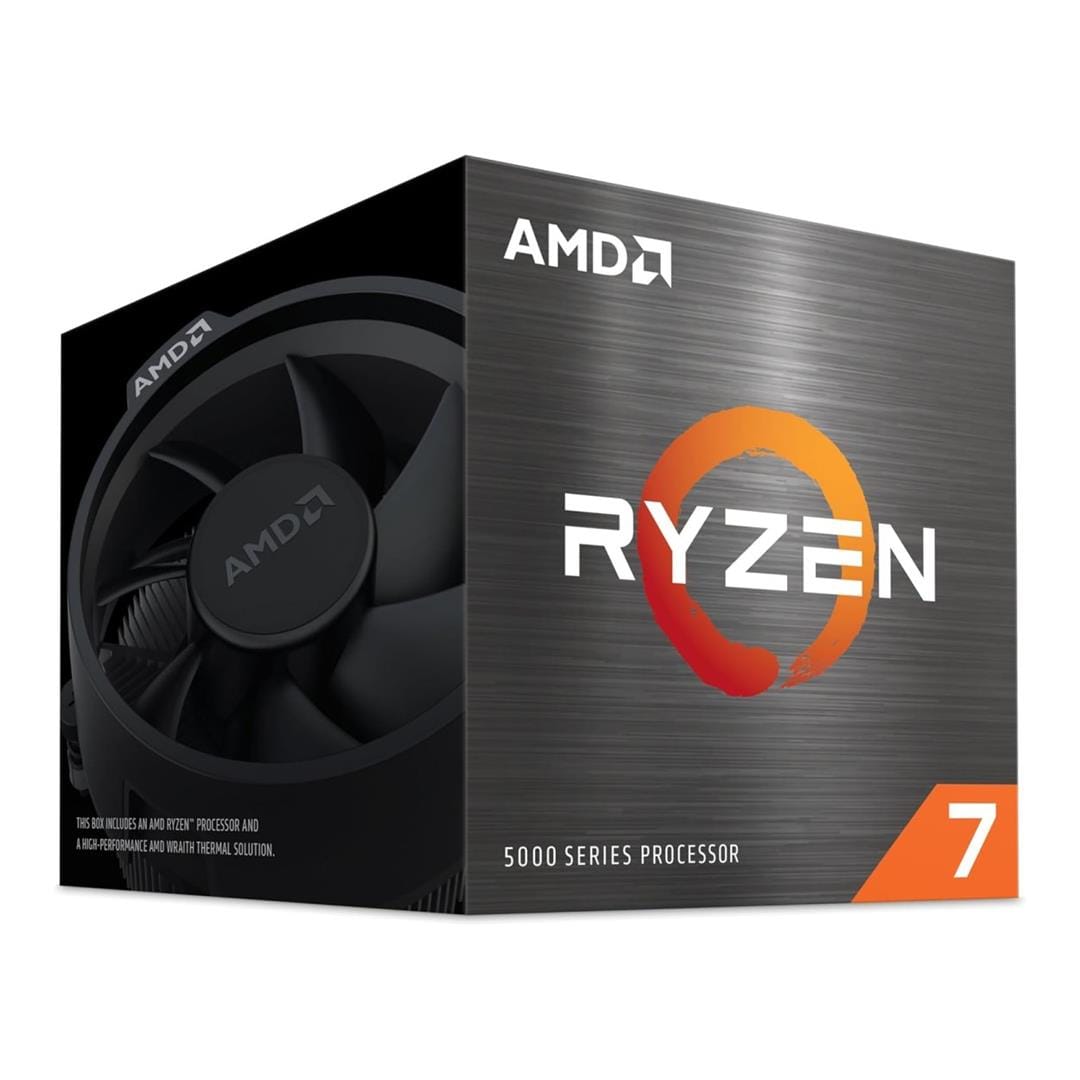

AMD Ryzen 7 5700 CPU - 8-core Socket AM4 4.6GHz Processor 100-100000743SBX

AMD Ryzen 7 5700 CPU - 8-core Socket AM4 4.6GHz Processor 100-100000743SBX

Power up your computing experience with the AMD Ryzen 7 5700 3.7/4.6 GHz Eight-Core AM4 Processor, which features eight cores and 16 threads to help quickly load and multitask demanding applications. Designed for socket AM4 motherboards using the powerful Zen 3 architecture, this 7nm 5th generation Ryzen processor offers significantly improved performance compared to the previous generation.

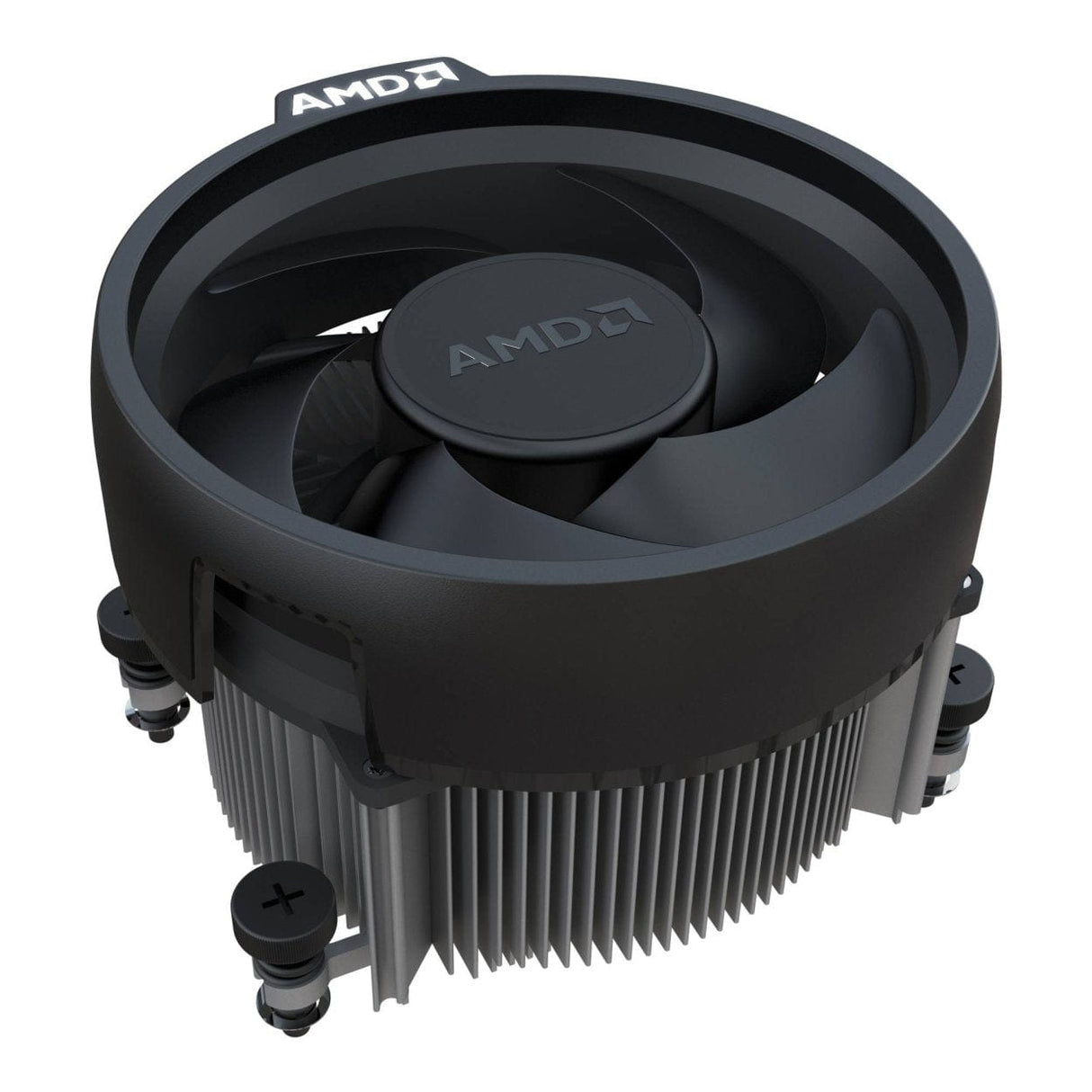

With a base clock speed of 3.7 GHz and a max boost clock speed of 4.6 GHz in addition to 16MB of L3 Cache, the Ryzen 7 5700 is built to provide the power needed to smoothly handle tasks ranging from content creation to immersive gaming experiences. You can boost its performance further by overclocking this unlocked processor. Other features include support for PCIe Gen 3 technology and 3200 MHz DDR4 RAM with compatible motherboards. This processor has a 65W TDP (Thermal Design Power) and includes a Wraith Stealth cooling solution. Please note that it does not have an integrated GPU, so a dedicated graphics card is required.

Precision Boost 2

AMD Ryzen processors monitor the system's energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.

Precision Boost Overdrive

Precision Boost Overdrive technology takes advantage of your compatible motherboard's design to boost clock speeds higher and for longer periods of time. It also allows you to overclock the processor at the touch of a button.

AMD StoreMI Technology

AMD StoreMI technology helps to improve load times and overall system performance by combining solid-state drives and mechanical hard drives into a single hybrid storage drive. Frequently used files and programs are cached onto the fast SSD while other files are stored on the high-capacity HDD.

AMD Ryzen VR Ready Premium

Ryzen VR Ready Premium processors are designed to meet or exceed the recommended specifications from the top HMD manufacturers, including Oculus Rift, HTC Vive, and Windows Mixed Reality for smooth performance.

AMD Ryzen Master Utility

Personalized Performance

The AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU, GPU, and DDR4 memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine tune your favorite applications.

System Monitoring

Monitor your system in real-time using the AMD Ryzen Master Utility, which features a histogram of per-core clock rates and temperature, including average and peak readings.

Technical Specification

Name: AMD Ryzen 7 5700

Family: Ryzen

Series: Ryzen 5000 Series

Graphics Model: Discrete Graphics Card Required

Form Factor: Desktops, Boxed Processor

Market Segment: Mainstream Desktop

Processor Architecture: Zen 3

# of CPU Cores: 8

# of Threads: 16

Max. Boost Clock: Up to 4.6 GHz

Base Clock: 3.7 GHz

L1 Cache: 512 KB

L2 Cache: 4 MB

L3 Cache: 16 MB

Default TDP: 65W

AMD Configurable TDP (cTDP): 45-65W

Processor Technology for CPU Cores: TSMC 7nm FinFET

CPU Compute Die (CCD) Size: 180mm²

Package Die Count: 1

Unlocked for Overclocking: Yes

CPU Socket: AM4

Supporting Chipsets: X570 , X470 , X370 , B550 , B450 , B350 , A520

CPU Boost Technology: Precision Boost 2

Instruction Set: x86-64

Supported Extensions: AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB): AMD Wraith Stealth

Max. Operating Temperature (Tjmax): 95°C

*OS Support: Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 11 - 64-Bit Edition

System Memory Type: DDR4

Memory Channels: 2

System Memory Subtype: UDIMM

System Memory Specification: Up to 3200 MT/s

Max Memory Speed

• 2x1R DDR4-3200
• 2x2R DDR4-3200
• 4x1R DDR4-2933
• 4x2R DDR4-2667
