Antec Luna 360 AIO ARGB Liquid CPU Cooler Black

Antec Luna 360 AIO ARGB Liquid CPU Cooler Black

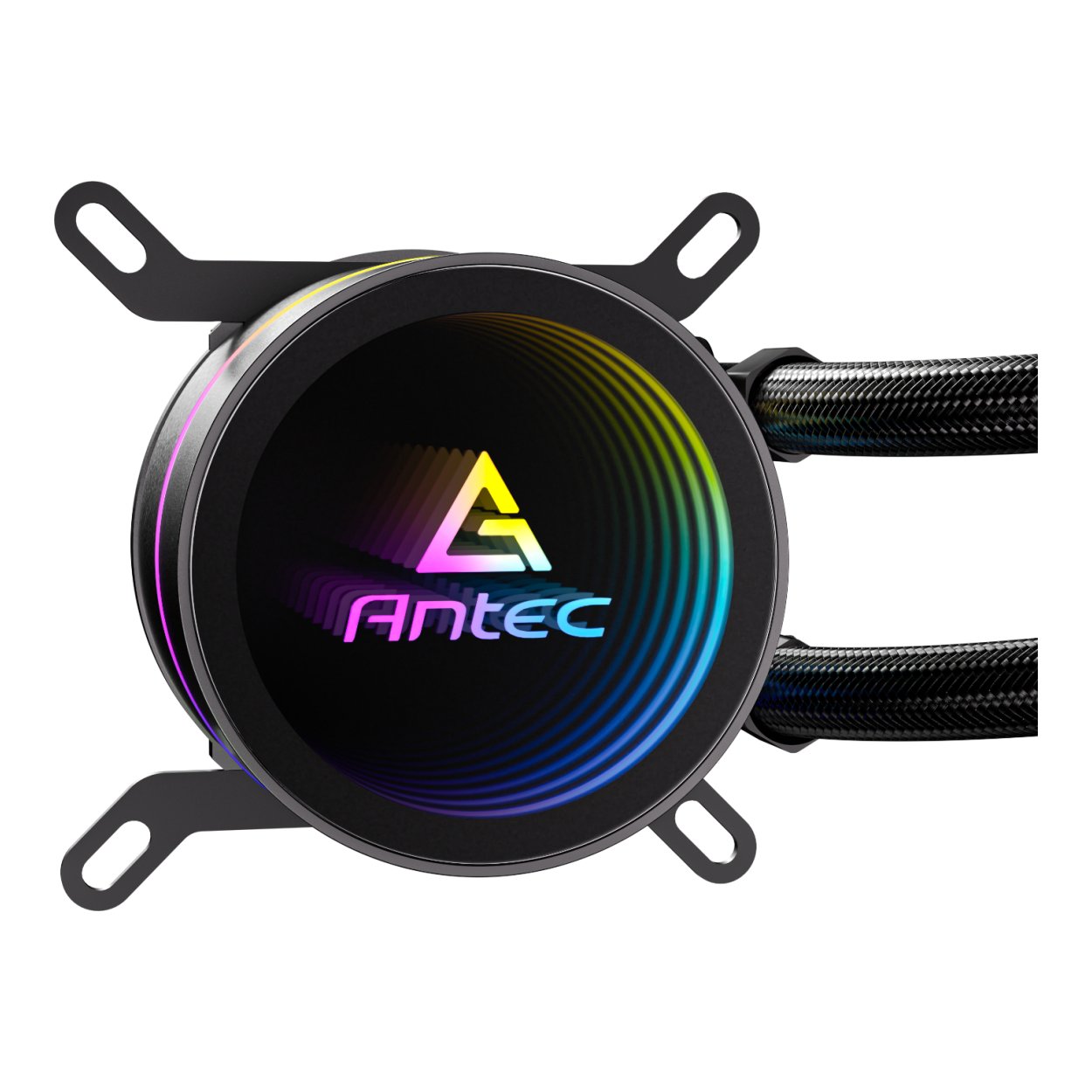

Infinity Mirror

Pump Head Design

The infinity mirror pump head design delivers outstanding cooling performance while creating layered, multi-angle lighting effects that add a chic touch to your build.

Features:

• Striking multi-layer ARGB lighting creates dynamic visual depth, enhancing the aesthetics of your gaming PC.
• Includes 3 x 120mm PWM fans with speeds ranging from 800±200 to 1800±10% RPM, delivering up to 67.62 CFM airflow.
• Superior fin density improves heat dissipation, ensuring optimal cooling performance during demanding workloads.
• Provides enhanced thermal conductivity and efficient heat transfer from the CPU to the coolant.
• Operates at 2600±10% RPM, delivering a flow rate of ≥2000 mL/min and 2M water pressure for consistent cooling efficiency.
• Elastic and reinforced tubing improves durability and reduces coolant evaporation over time.
• Supports Intel LGA 115X / 1200 / 1366 / 1700 / 20XX and AMD AM3 / AM4 / AM5, making it ideal for modern and legacy systems.
• Both pump and fans feature up to 40,000 hours lifespan, ensuring reliable long-term operation.

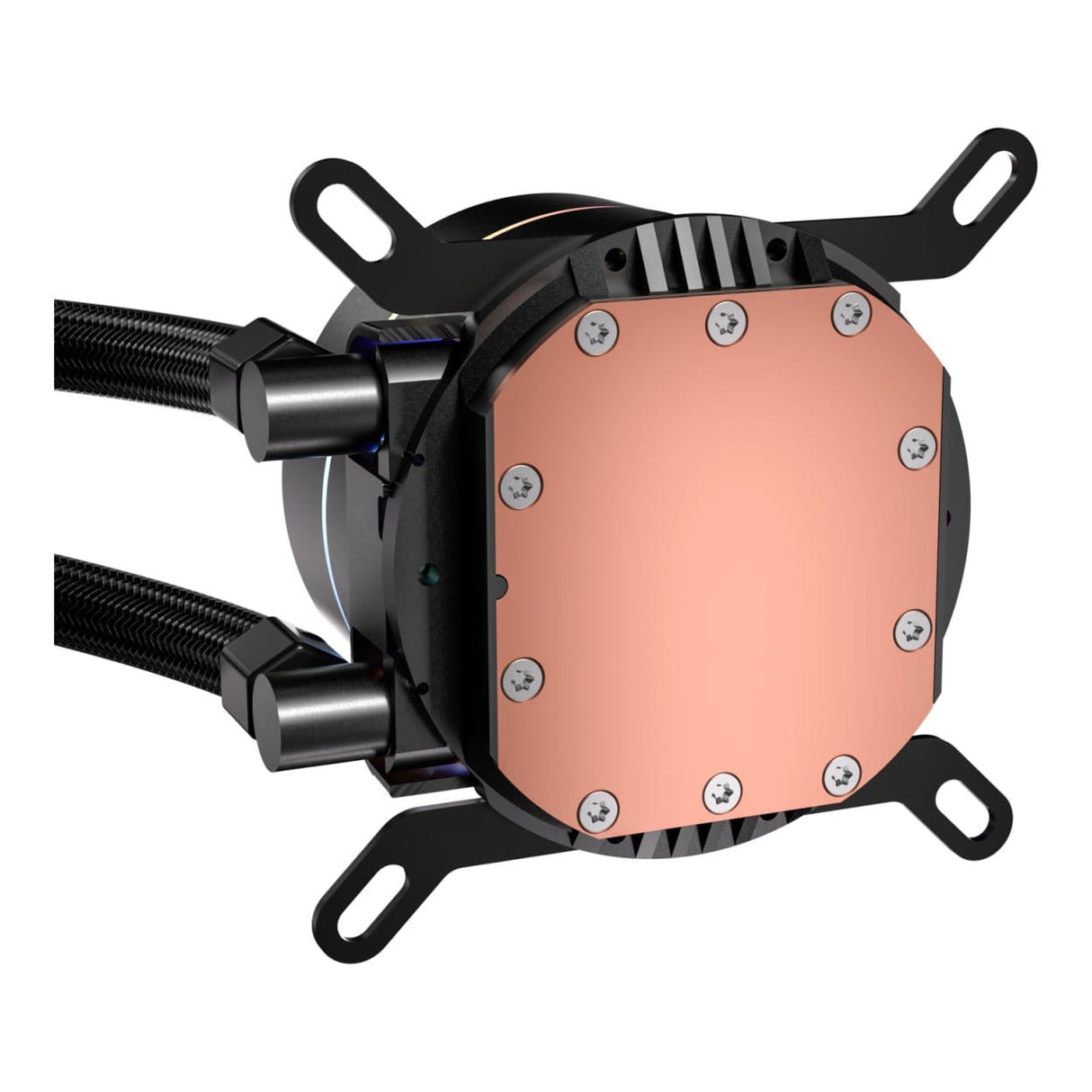

Massive Copper

Base Plate

Provides highly efficient cooling at all loads.

Elastic and Durable High-Density Tubing

Durable tubing protection against external damage.

Superior Fin Density

Massive 13 fins dissipate heat rapidly.

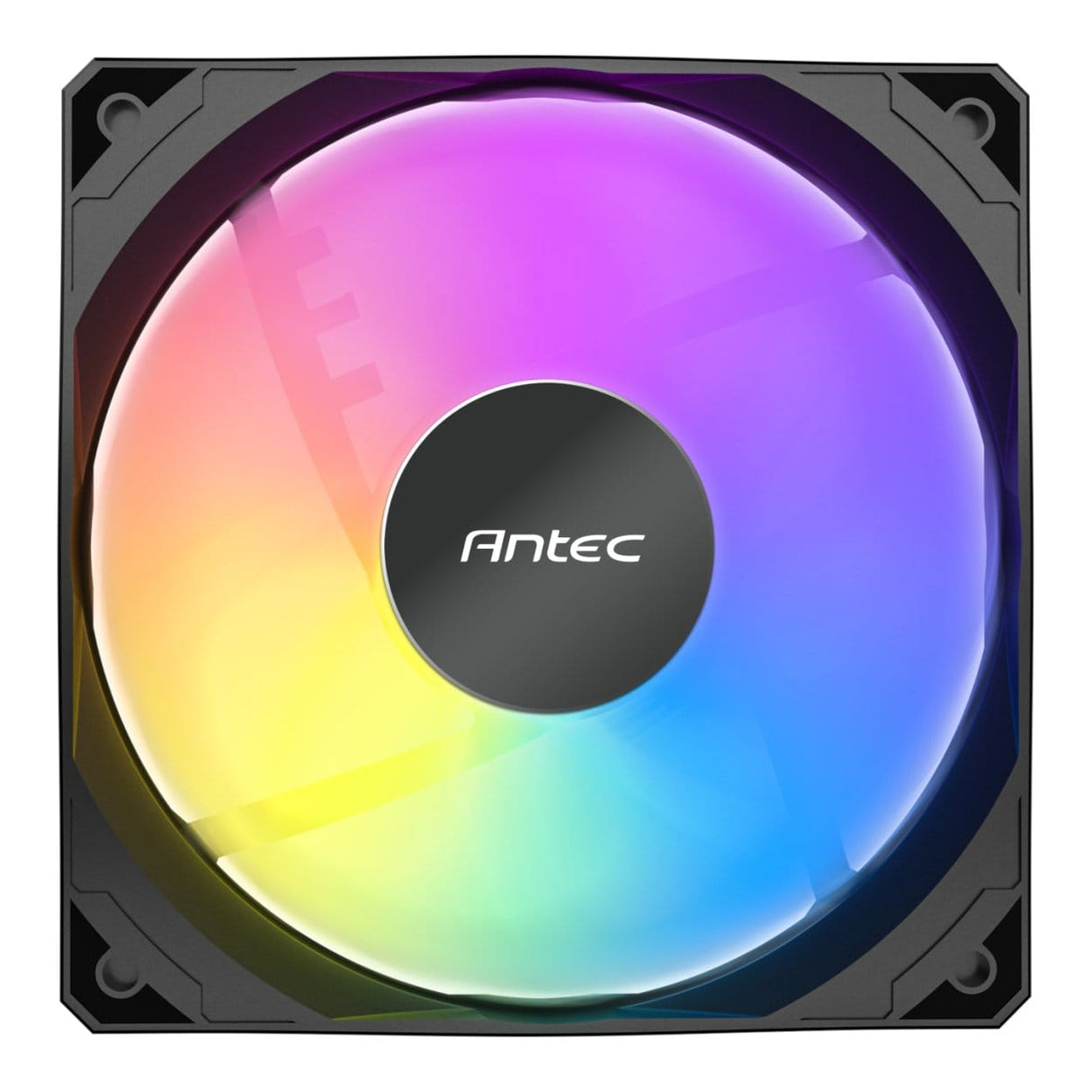

PWM ARGB Fan

Comes with powerful 120mm ARGB PWM radiator fans, providing practical functionality and strong cooling performance.

Extreme Cooling Performance

800±200~1800±10% RPM

Technical Specifications:

Radiator
Dimensions: 397 X 120 X 27 Mm
Material: Aluminum

Pump
Dimensions: Ø74.5 X 53.5 Mm
Rated Voltage: DC 12 V
Minimum Startup Voltage: ≥6.5 V
Fan Speed: 2600 ±10% RPM
Rated Current: 0.35 A
Power Consumption: 4.2 W
Flow Rate: ≥2000 ML/min
Water Pressure: 2 M
Operating Temperature: -10°C To +60°C
Noise Level: ≤23 DBA
Lifespan: 40,000 Hours
Connector:

• Pump: 3-Pin
• LED: 3-Pin

Fan
Fan Type: PWM Fan
Fan Dimensions: 120 X 120 X 25 Mm
Bearing Type: Hydraulic Bearing
LED Type: Addressable RGB
Fan Speed: 800 ±200 ~ 1800 ±10% RPM
Maximum Airflow: 67.62 CFM
Maximum Air Pressure: 2.09 MmHâ‚‚O
Fan Noise Level: 33.05 DBA
Lifespan: 40,000 Hours
Connector: PH2.0 7-Pin (PWM + ARGB)
Rated Voltage:

• Fan: DC 12 V
• LED: DC 5 V
  Operating Voltage:
• Fan: DC 7 - 13.2 V
• LED: DC 4.5 - 5.5 V
  Rated Current:
• Fan: 0.35 A
• LED: 0.18 A

CPU Socket Compatibility
Intel:

• LGA 115X
• LGA 1200
• LGA 1366
• LGA 1700
• LGA 1851
• LGA 20XX

AMD:

• AM3
• AM4
• AM5

Physical Specifications
Net Weight: 1.3 Kg
Gross Weight: 2.0 Kg

Warranty
Warranty: 2 Years
