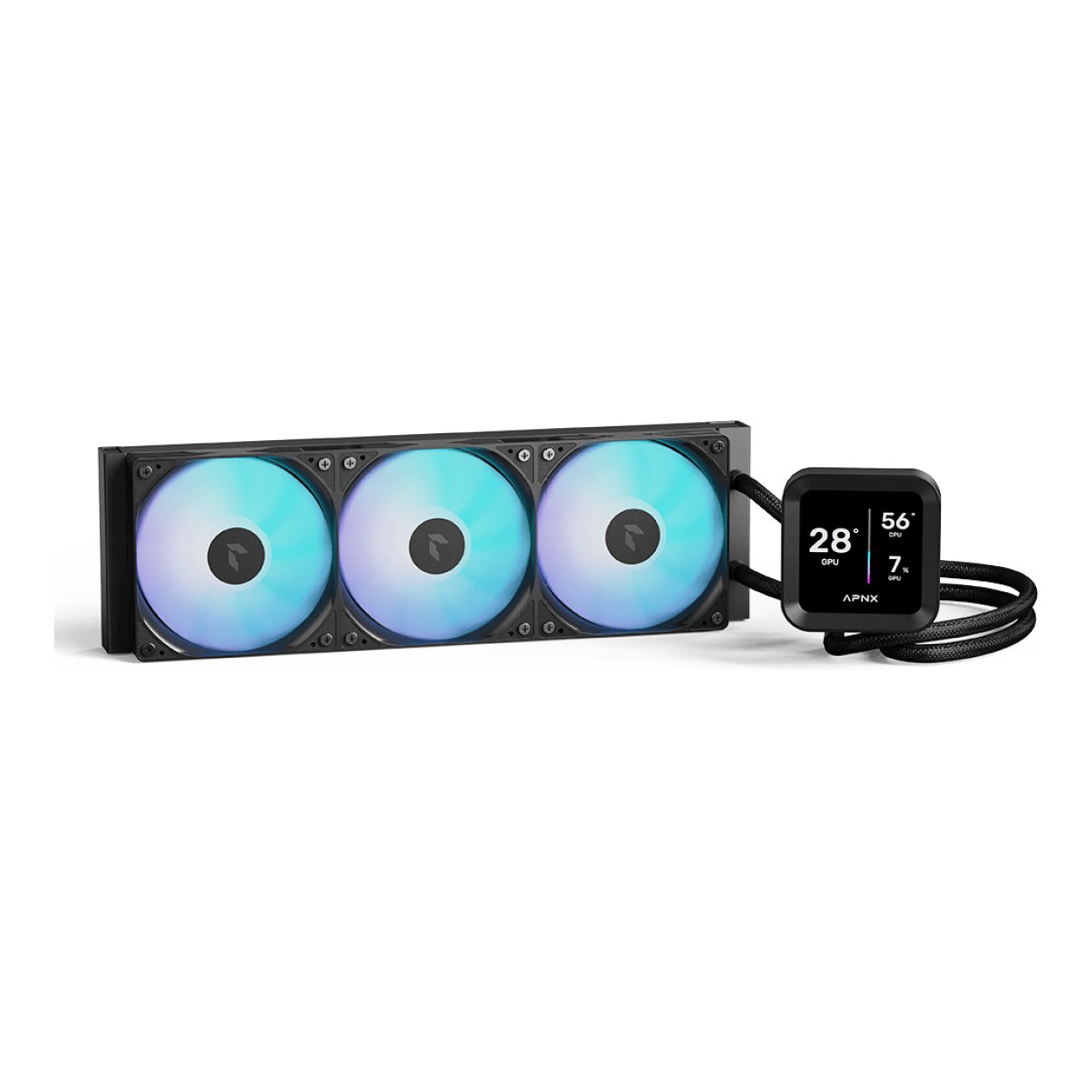

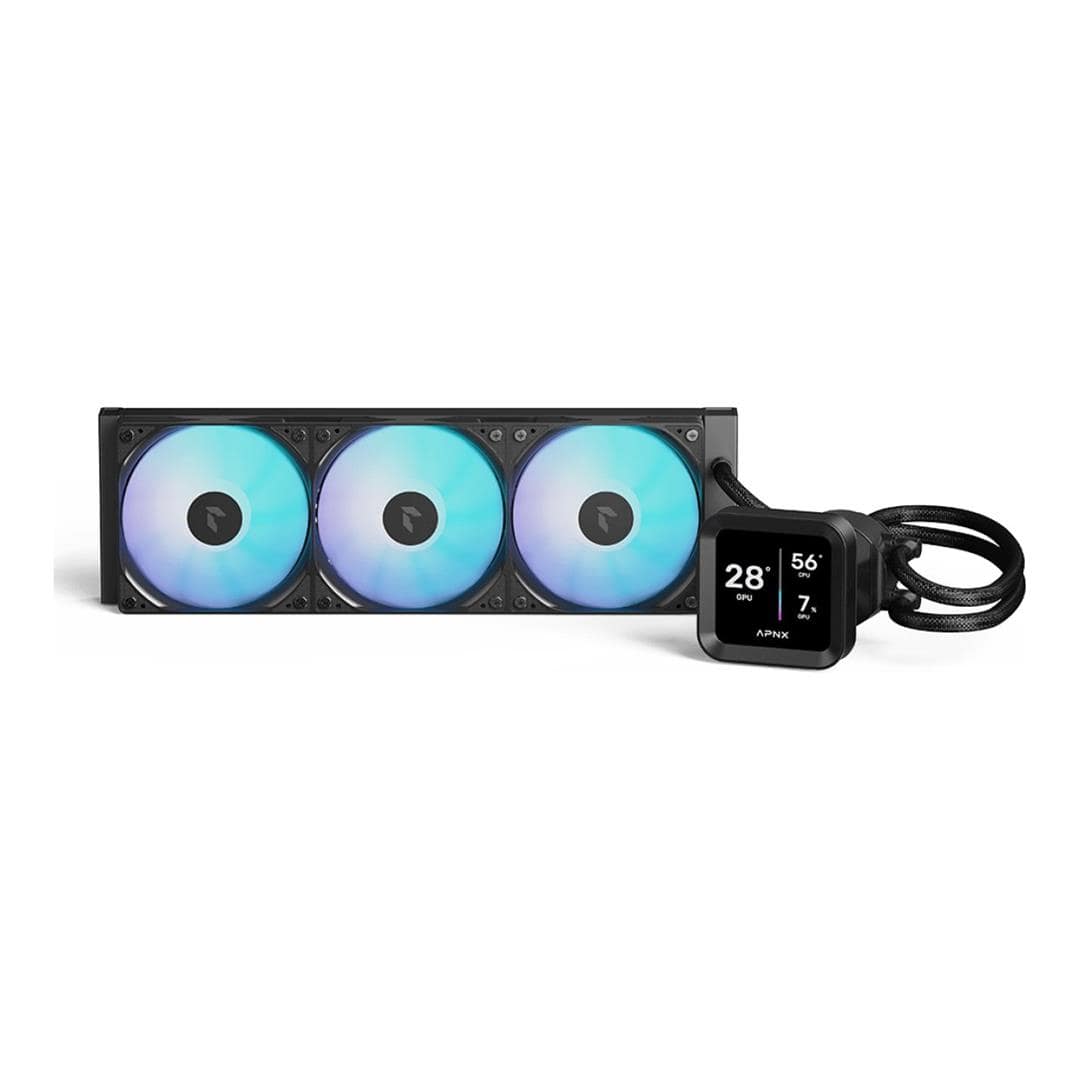

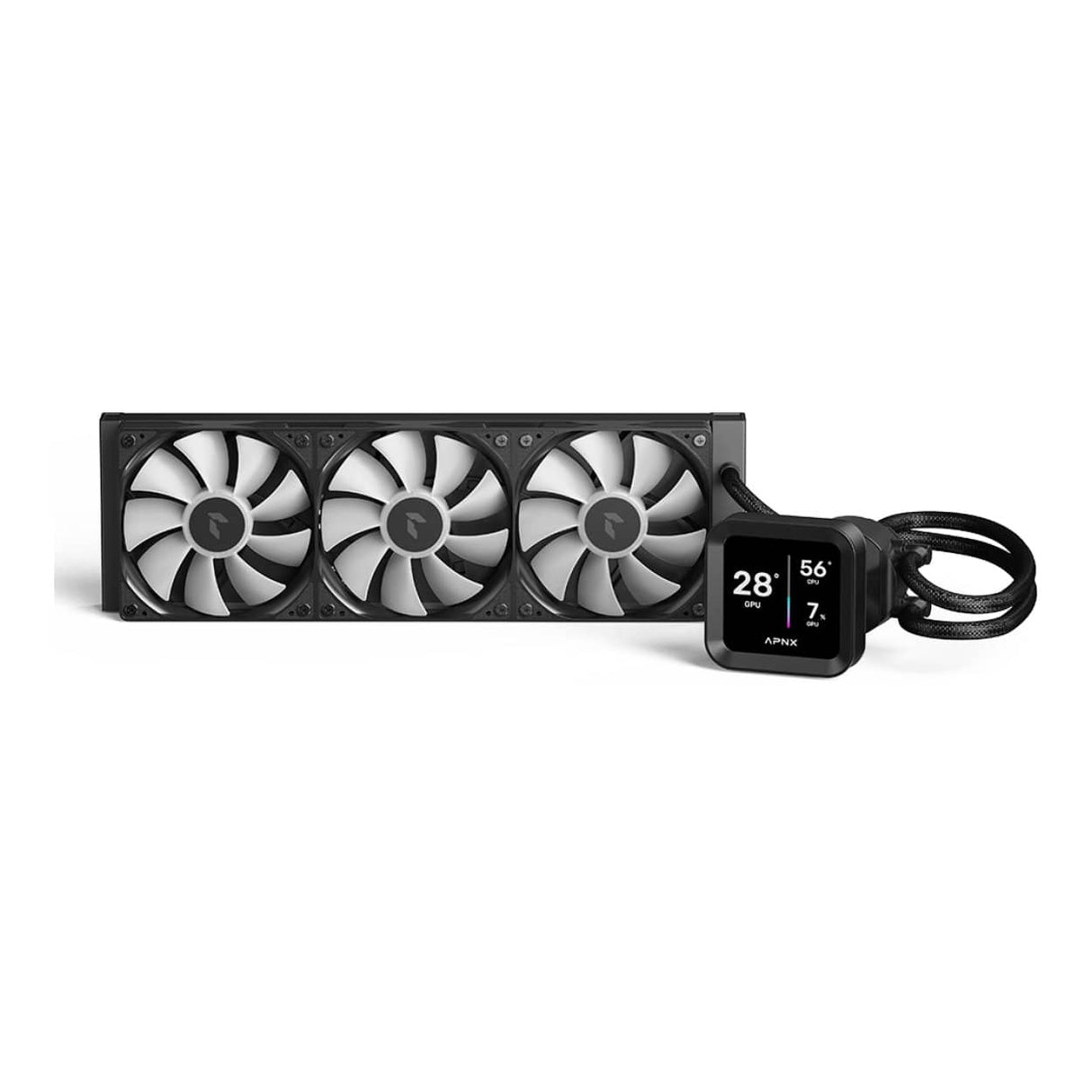

AeroCool APNX LC1-D 360 ARGB 360mm AiO Liquid Cooler Black APLA-SV36117.11

AeroCool APNX LC1-D 360 ARGB 360mm AiO Liquid Cooler Black APLA-SV36117.11

The APNX LC1-D is a high-performance liquid CPU cooler thatcombines sleek aesthetics with smart functionality. Its 3.95” IPS LCDscreen with customizable media support and app-based monitoringkeeps users informed and in control, while the expanded radiator andprecision-engineered copper block ensure exceptional thermalefficiency. Enhanced by powerful ARGB fans and tool-free installation,the LC1-D delivers both style and substance for serious PC builders.

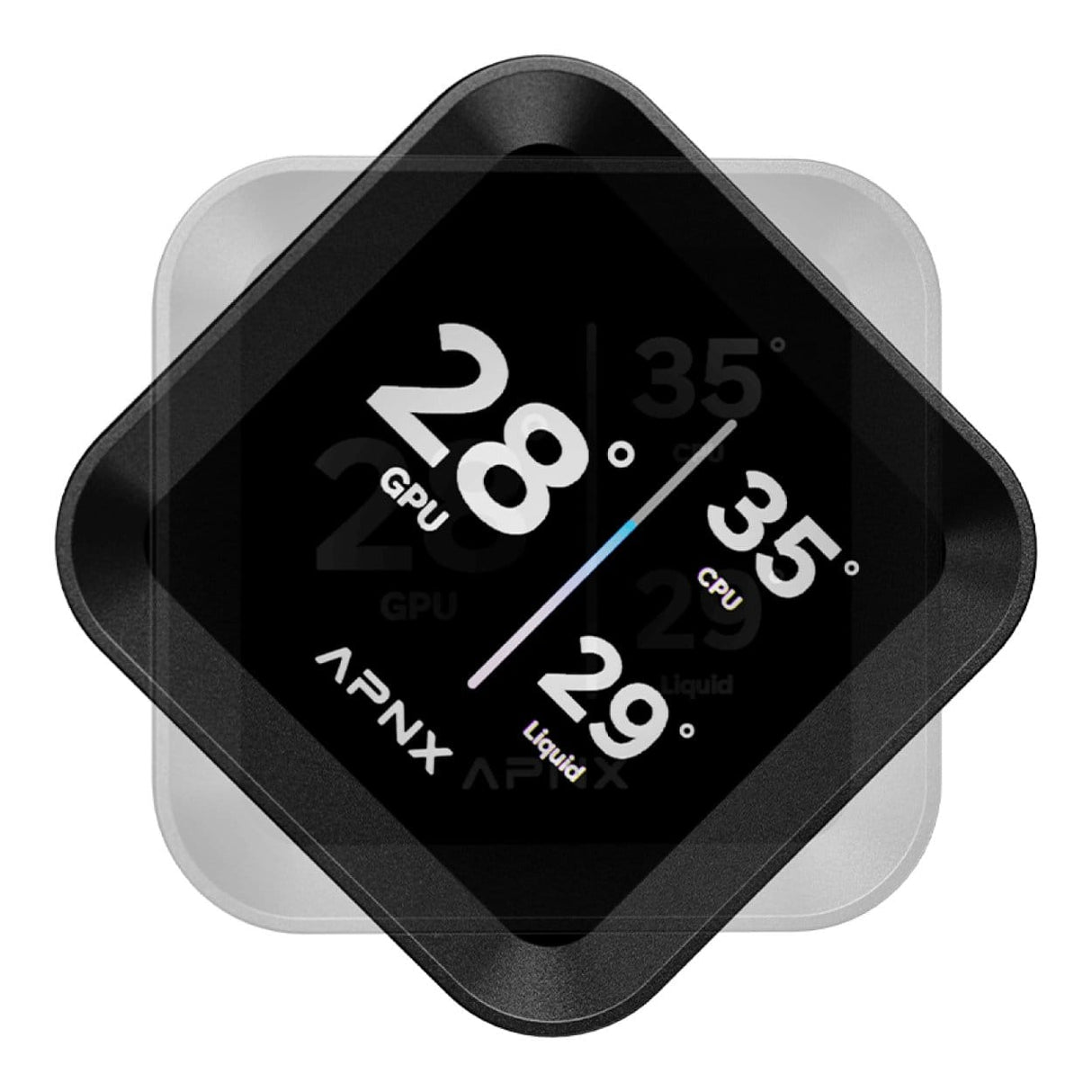

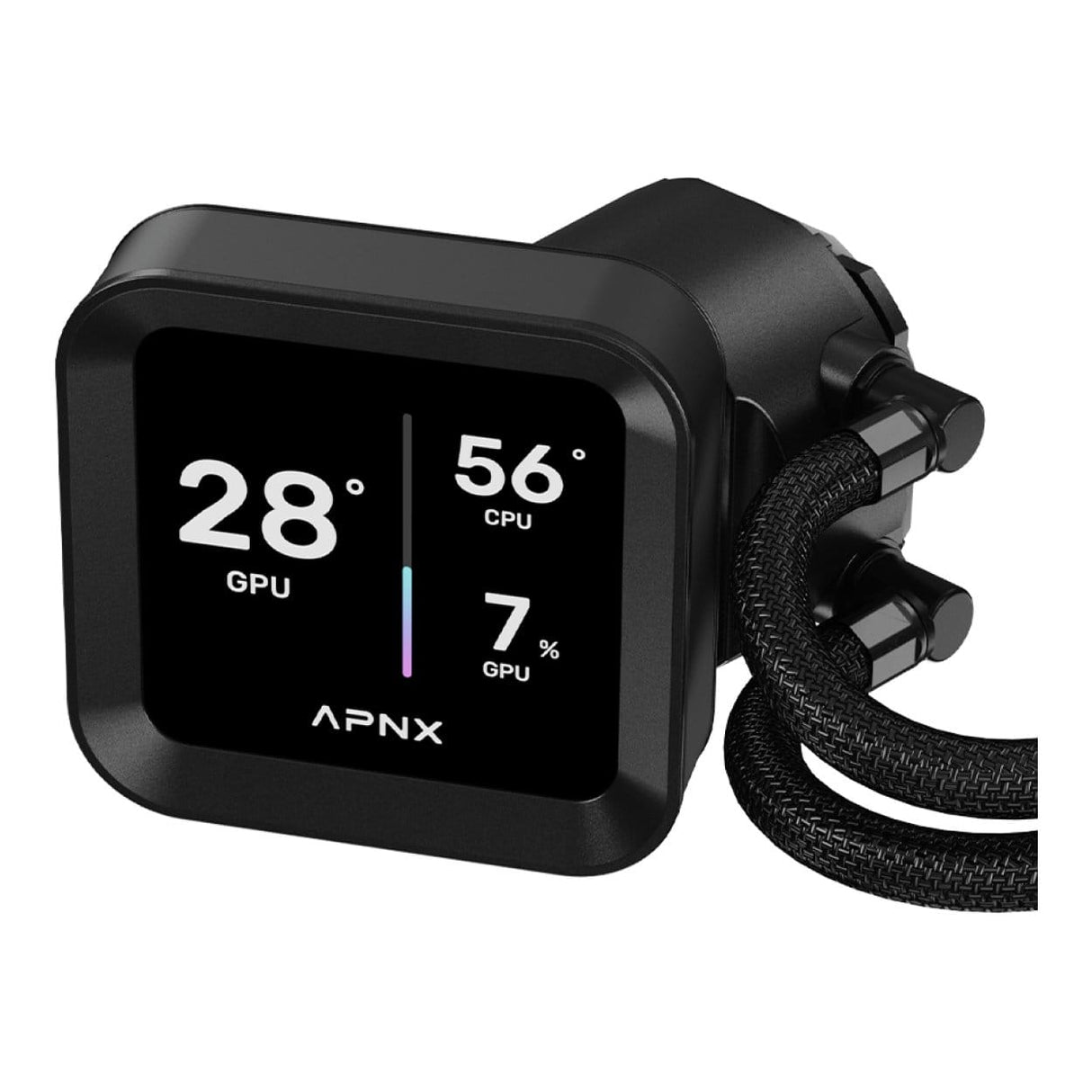

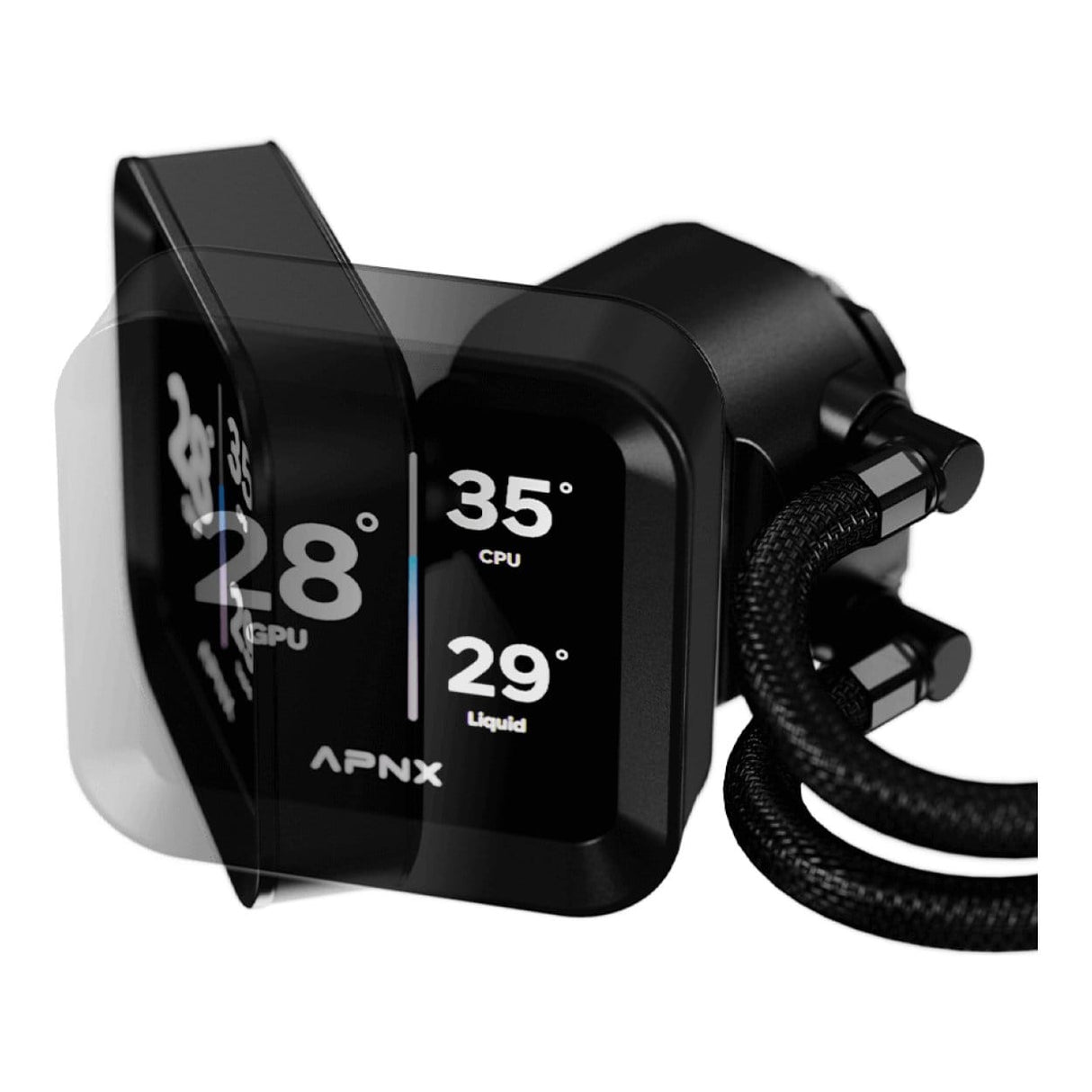

Customizable IPS LCD Screen

A vibrant 3.95”IPS LCD screen with an adjustablepump head angle gives you the perfect view of real-time system stats and custom visuals.​

Smart Control Software

The APNX Control Center makes it easy to display CPU temperature, load, fan speed,and more—or upload custom media like MP4, JPEG, PNG, BMP, and GIF files for a fullypersonalized experience.

Superior HeatConductivity

The water block is crafted from pure copper, ensuring excellent heatconductivity. Its micro-channel design accelerates heat dissipation,allowing your system to stay cool and efficient even during intensegaming or heavy workloads.
TDP rating of 320W, it delivers reliable thermal performance for high-
demand setups.

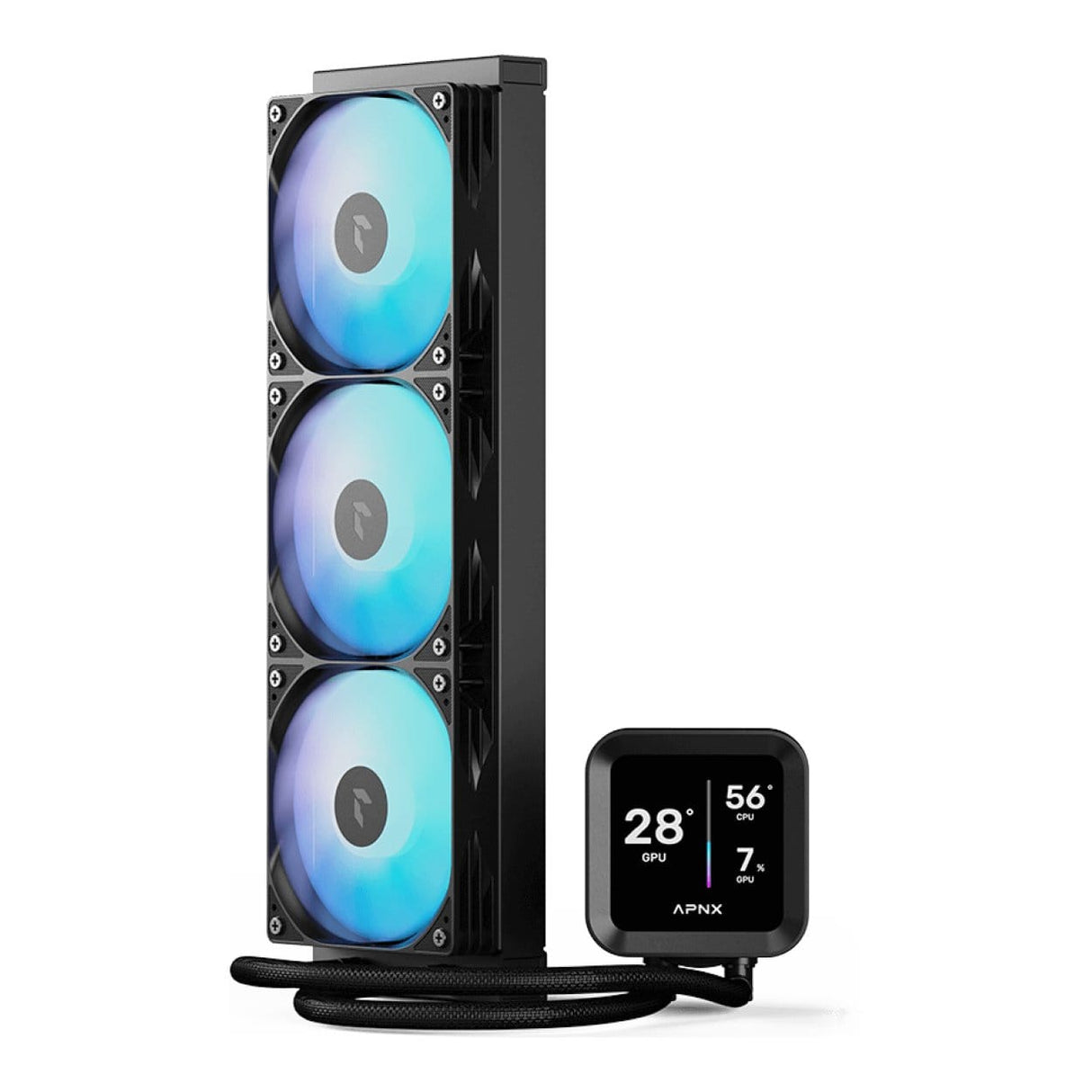

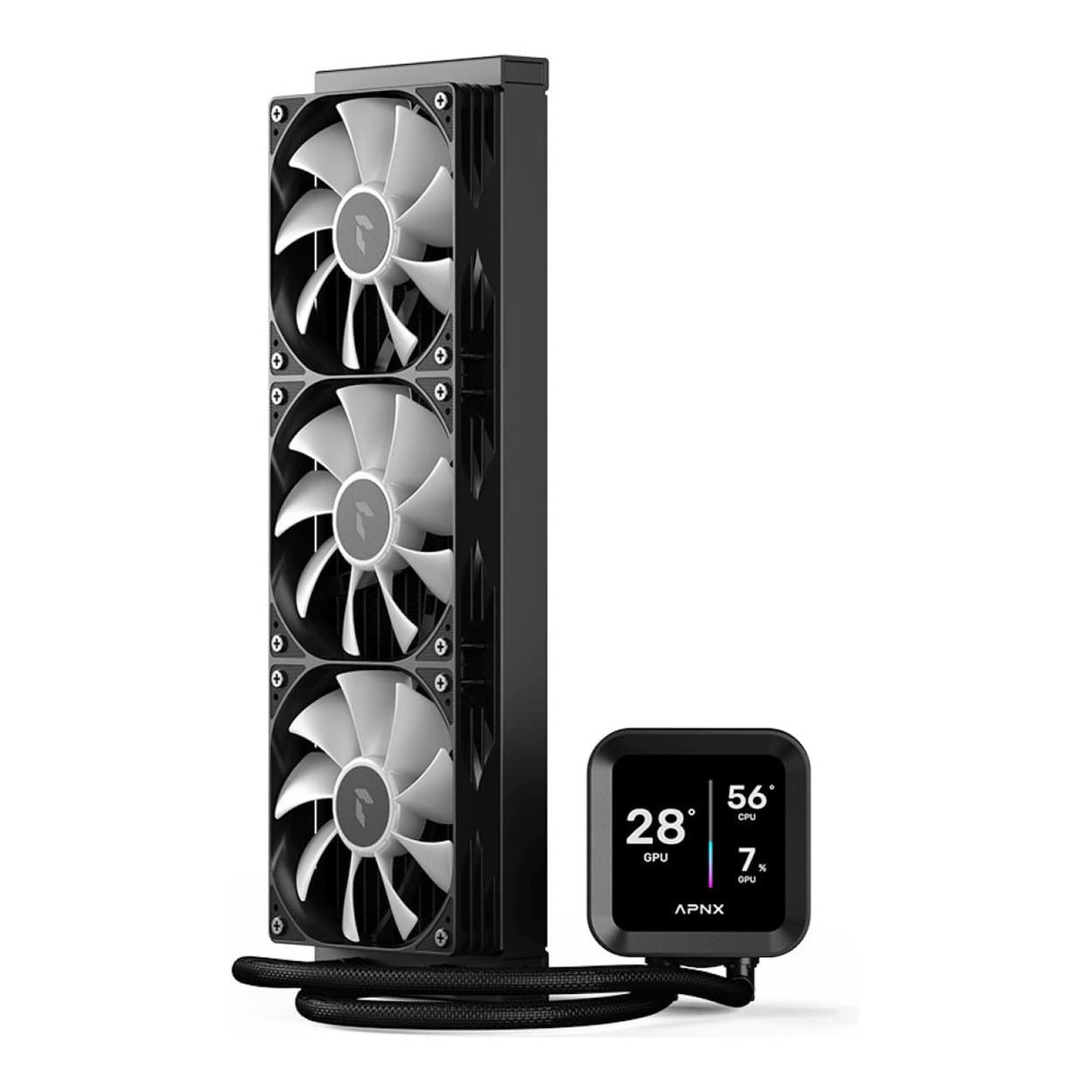

High Performance ARGB Fans

Single-frame ARGB fans provide strong airflow (81.5 CFM) and static pressure while adding vibrant, customizable lighting effects.

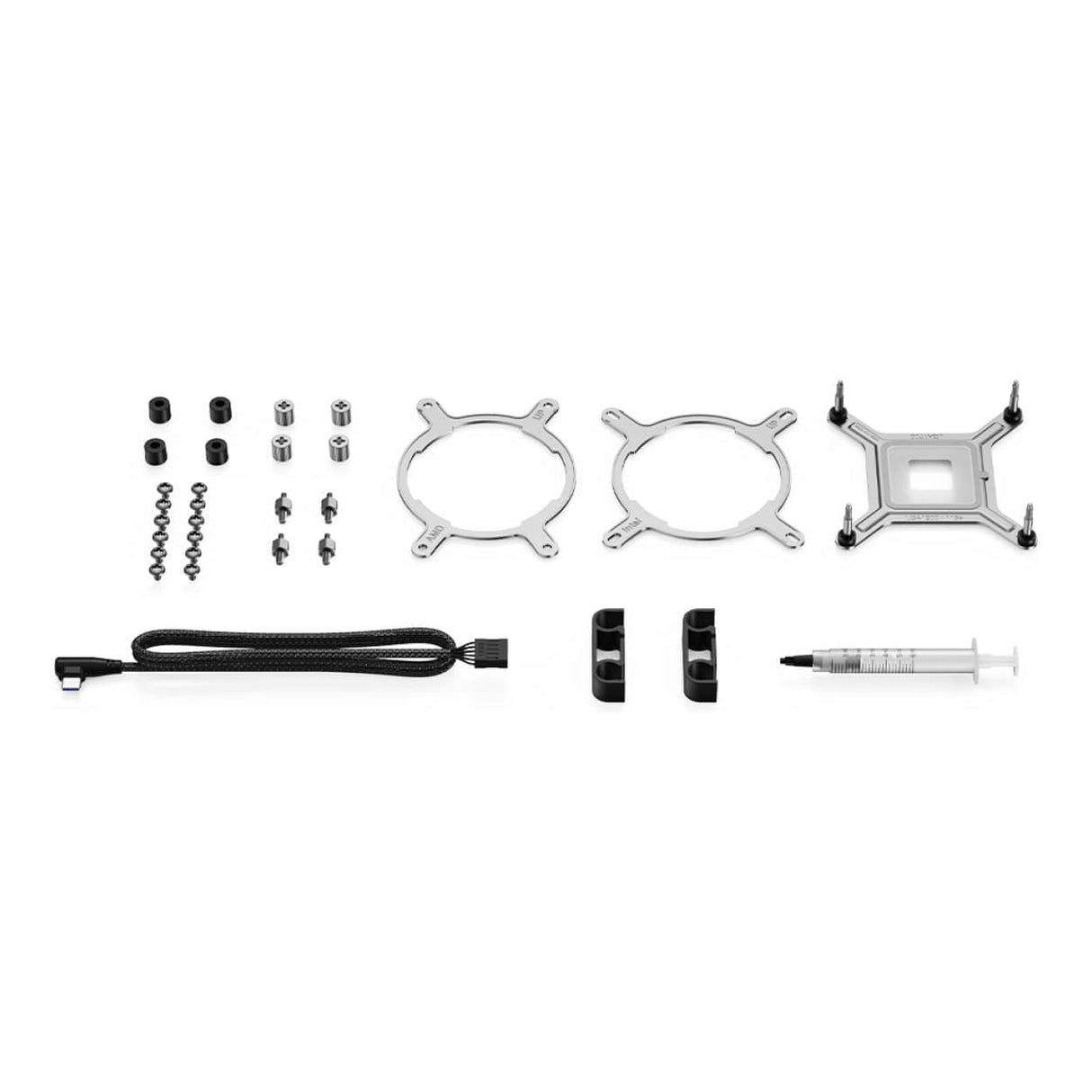

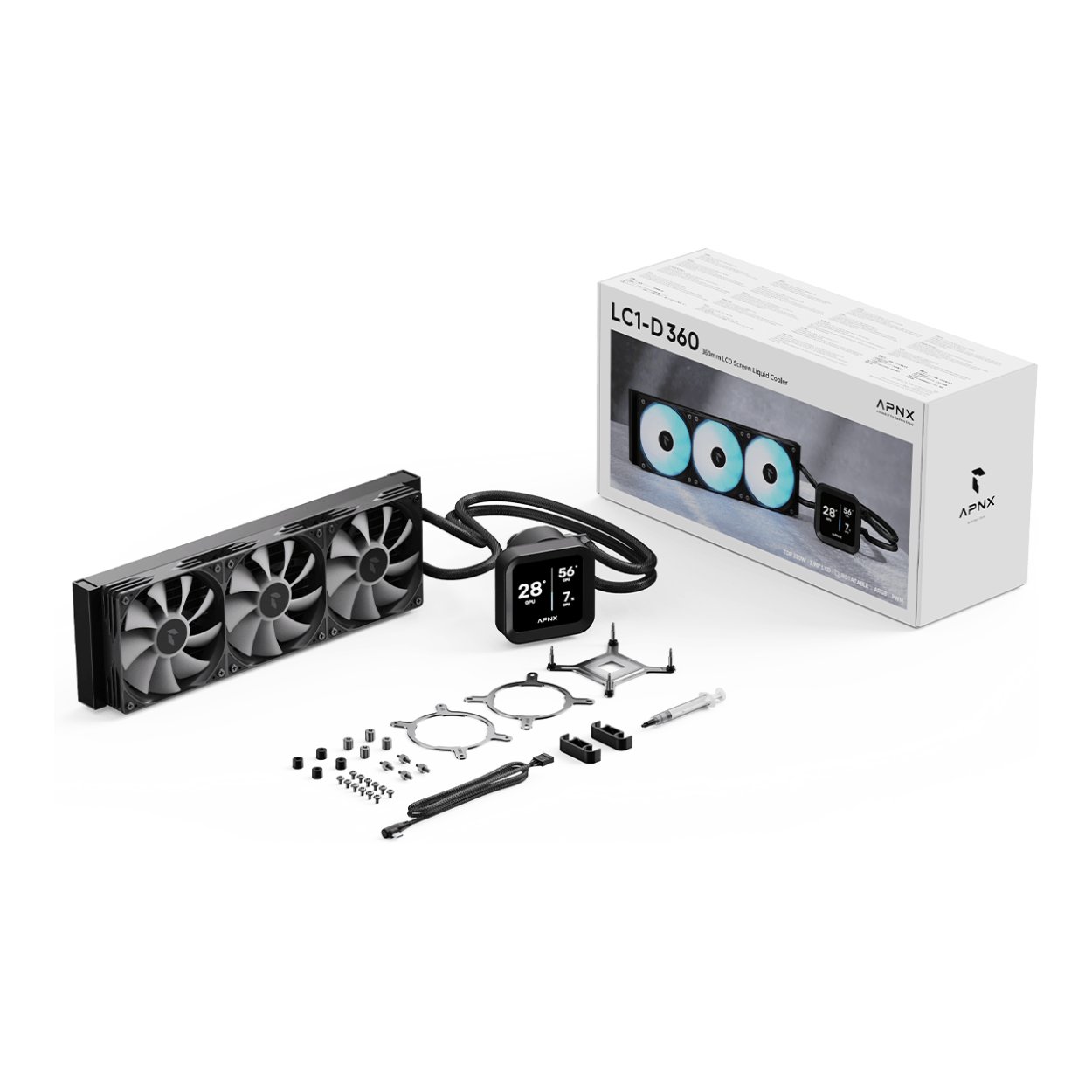

Streamlined Installation

The integrated fan frame keeps cables neat and setup simple, available in both blackand white to match any build.

Technical Specifications:

General

Product Name
LC1-D

Model Names

• LC1-D 360 BK
• LC1-D 360 WH

Mean Time Before Failure (MTBF)
30,000 Hours

Supported Operating System
Windows 7 64-Bit Or Higher

Compatibility

Intel Socket Support

• LGA1851
• LGA1700
• LGA1200
• LGA115X

AMD Socket Support

• AM5
• AM4

LCD Display

LCD Size
3.95 Inches

LCD Resolution
480 × 480 px

LCD Brightness
350 cd/m²

LCD Panel Type
IPS

LCD Refresh Rate
20 Hz

LCD Orientation
Software Adjustable

Radiator And Pump

Block Material
Copper

Radiator Material
Corrosion Resistant Aluminum Alloy

Radiator Dimensions (L × W × H)
394 × 120 × 27 mm

Thermal Design Power (TDP)
320 W

Pump Speed
600–3000 RPM ± 10%

Pump Rated Voltage
DC 12 V

Pump Rated Power
4.2 W

Pump Noise Level
18 dB(A)

Pump Bearing Type
Ceramic Bearing

Fan Performance

Fan Speed
600–1800 RPM ± 10%

Fan Connector Type
PWM 4-Pin

Fan Dimensions (L × W × H)
360 × 120 × 25.4 mm

Fan Starting Voltage
DC 6 V

Fan Rated Voltage
DC 12 V

Fan Rated Current
1 A

Fan Rated Power
12 W

Fan Air Pressure (Maximum, Per Fan)
2.3 mmHâ‚‚O

Fan Air Flow (Maximum, Per Fan)
81.5 CFM

Fan Noise Level (Maximum)
38.0 dB(A)

Fan Bearing Type
Hydro Bearing

Lighting

LED Type
Addressable RGB LED

LED Rated Voltage
DC 5 V

LED Rated Power
1.44 W × 3 (Fan × 3)

LED Connector
3-Pin (+5V-D-G)
