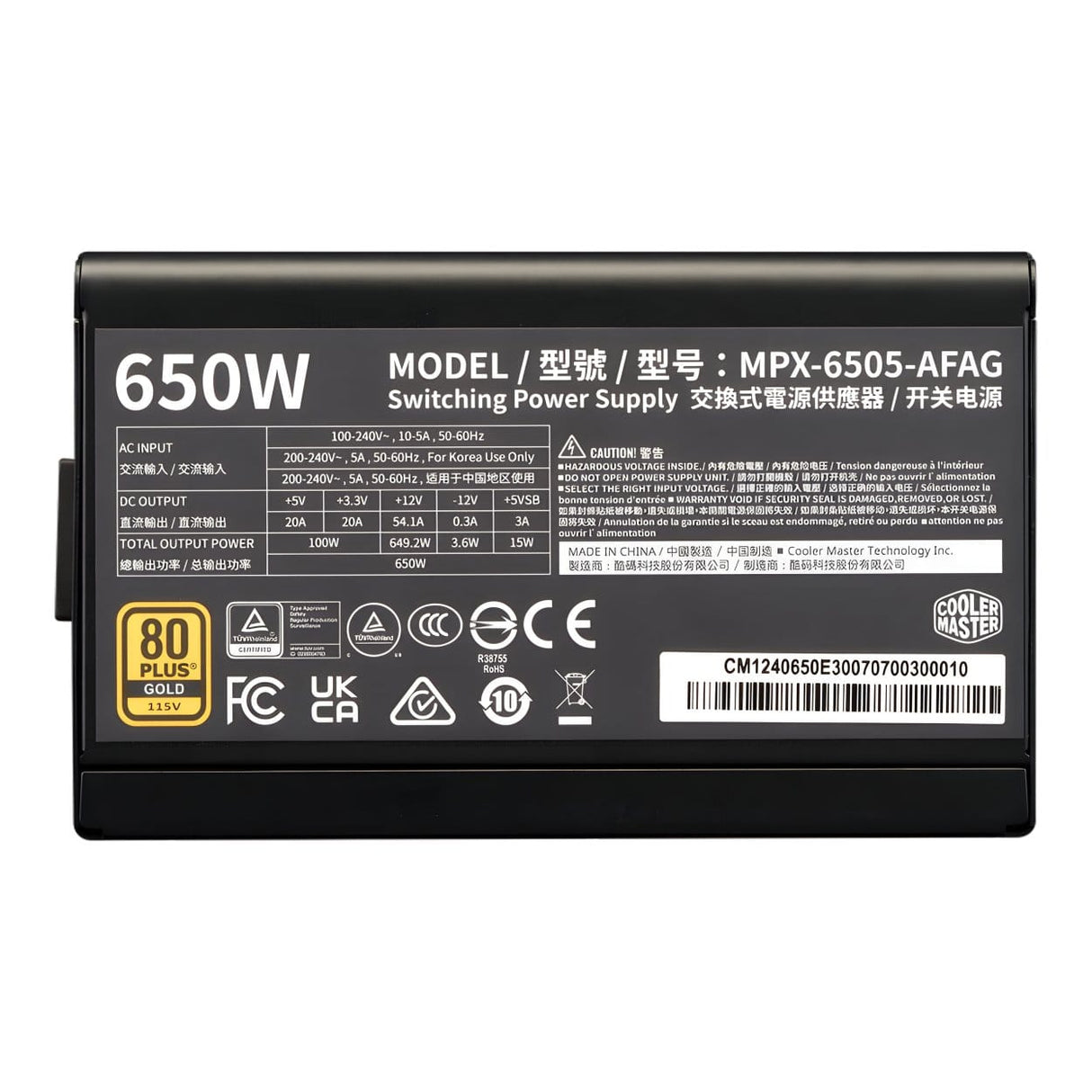

Cooler Master Elite Gold 650W 80 PLUS Gold Modular ATX 3.1 Power Supply MPX-6505-AFAG-BEU

Cooler Master Elite Gold 650W 80 PLUS Gold Modular ATX 3.1 Power Supply MPX-6505-AFAG-BEU

Strength In Elegance

Cooler Master presents the GX III Gold featuring exceptional efficiency, low noise output, and superb reliability.

Features:

• Innovative, streamlined design
• ATX 3.0 support & a 90-degree 12VHPWR cable
• Optimized and silent thermal performance
• Titanium efficiency at light loads
• Fully modular cabling
• 10-year warranty

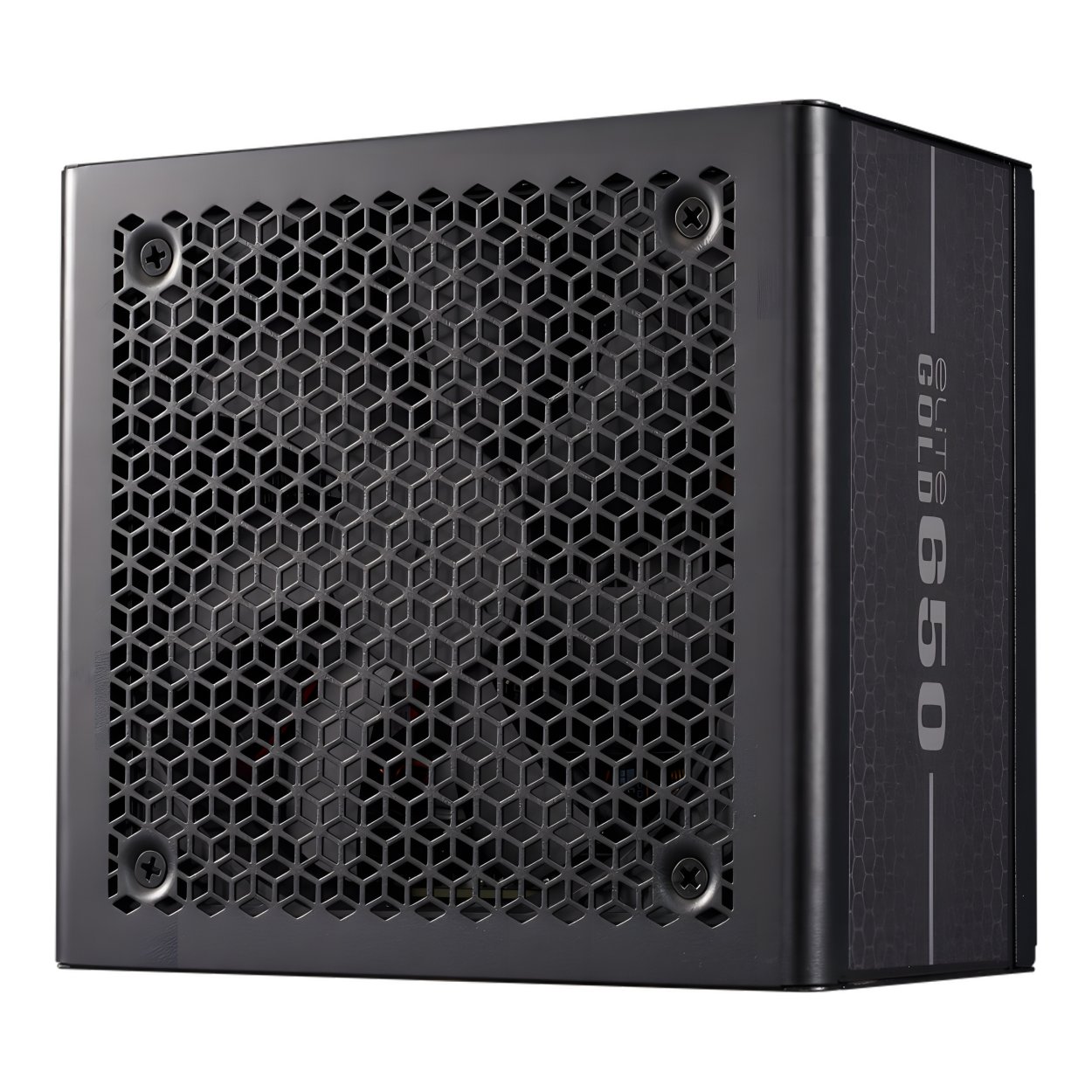

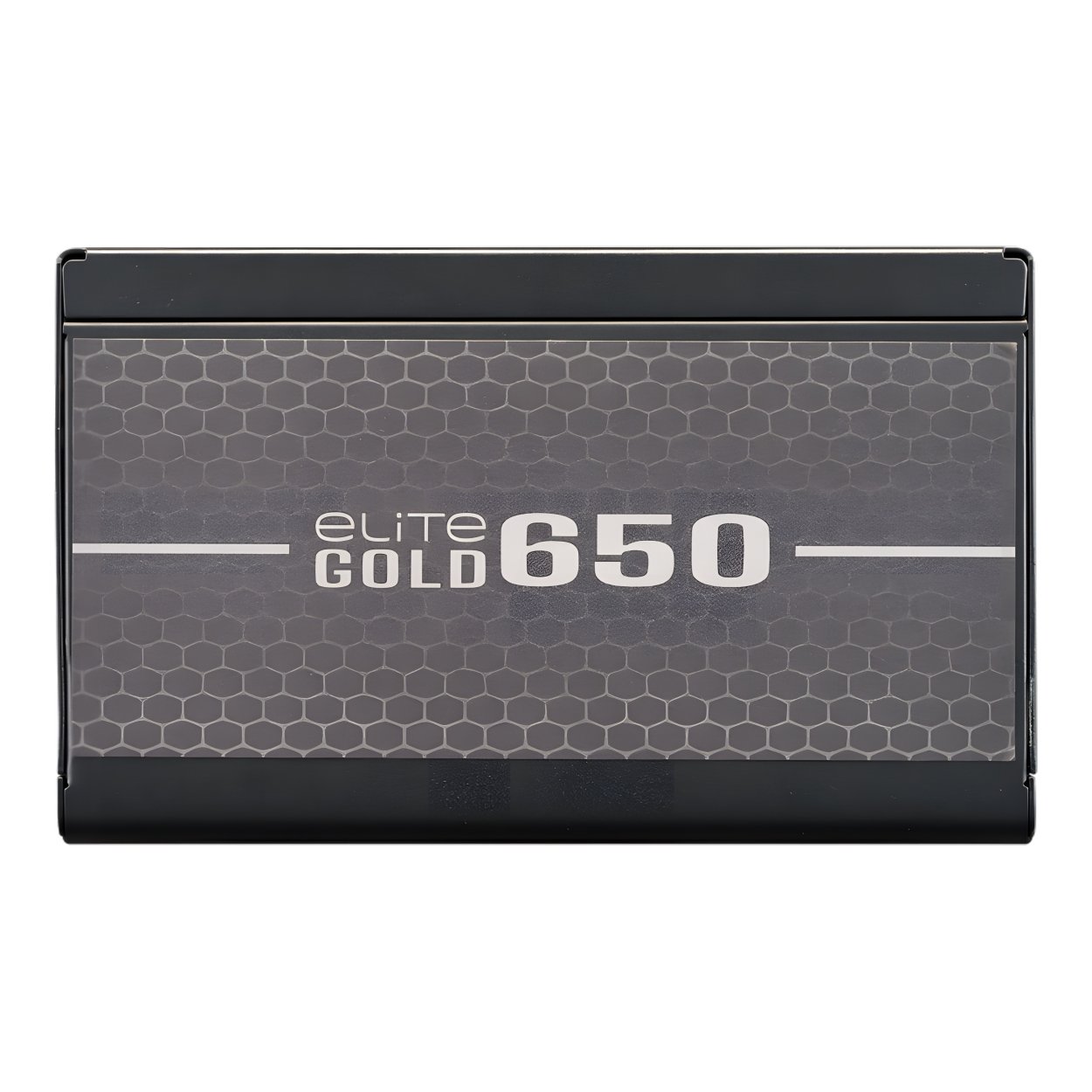

Innovative, streamlined design

The innovative design streamlines the overall aesthetic of the unit and greatly improves airflow.

ATX 3.0 & 12VHPWR cable

Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, improved safety, and capable of bringing up to 450W to your GPU.

80 Plus Gold & Cybenetics Platinum certified efficiency

80 Plus Gold and Cybenetics Platinum certifications indicate achievement of more than 90% efficiency at typical loads. This Gold certified unit can also achieve Titanium level efficiency under general light load usage in a 115V test.

Silent fan performance with a zero-RPM mode

This unit has received a Cybenetics A- noise level certification and includes a smart thermal control mode that defaults to zero spin.

Technical Specifications:

General

Model: MPX-8503-AFAG
Series: GX Series
Category: Above 750 W
Form Factor: ATX
ATX Version: ATX 12V Ver. 3.0
Modular: Fully Modular
Rated Power: 850 W

Power Input

Input Voltage: 100–240 V
Input Current: 10–5 A
Input Frequency: 50–60 Hz
PFC: Active PFC

Performance

Efficiency: ≥90% @ Typical Load
80 PLUS Rating: 80 PLUS Gold
ErP 2014 Lot 3: Yes
Power Good Signal: 100–150 ms
Hold-Up Time: >16 ms
MTBF: >100,000 Hours

Cooling

Fan Size: 135 mm
Fan Bearing: HDB
Fan Speed: 1900 RPM

Protection Features

Protections

• OPP
• OVP
• OTP
• OCP
• SCP
• UVP
• Surge Protection
• Inrush Protection

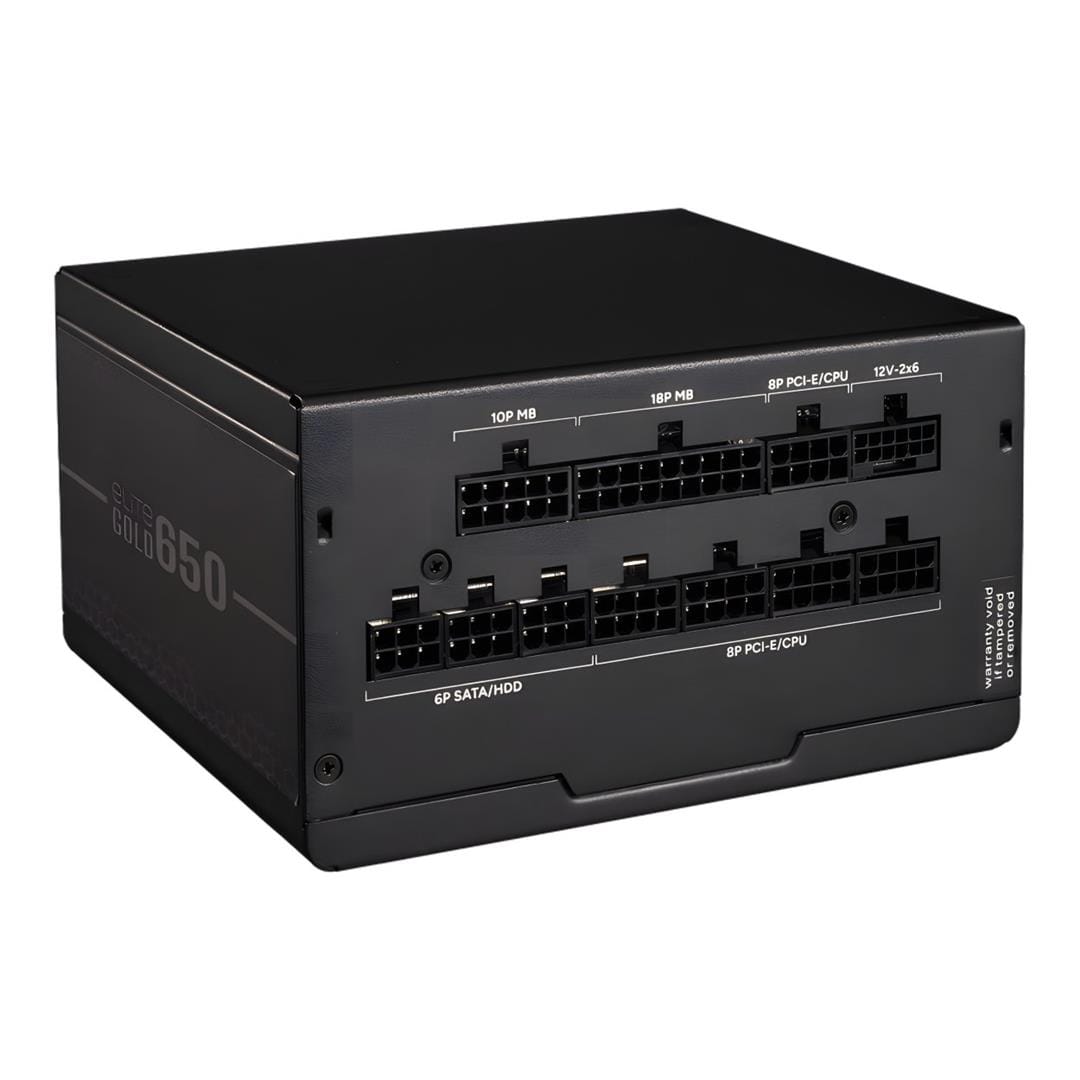

Connectors

• 1 × ATX 24-Pin Connector
• 1 × EPS 4+4-Pin Connector
• 1 × EPS 8-Pin Connector
• 3 × PCIe 6+2-Pin Connectors
• 1 × 12VHPWR Connector
• 8 × SATA Connectors
• 4 × Peripheral 4-Pin Connectors

Environmental

Operating Temperature: 0 °C to 50 °C

Compliance and Certification

Regulatory Certifications

• cTUVus
• TUV
• CE
• FCC
• BSMI
• CCC
• EAC
• RCM
• UKCA
• RoHS 2.0
• BIS
• KC

Physical

Dimensions (L × W × H): 160 × 150 × 86 mm
