AeroCool H66F RGB Control HUB ACFC-XX56910.01

AeroCool H66F RGB Control HUB ACFC-XX56910.01

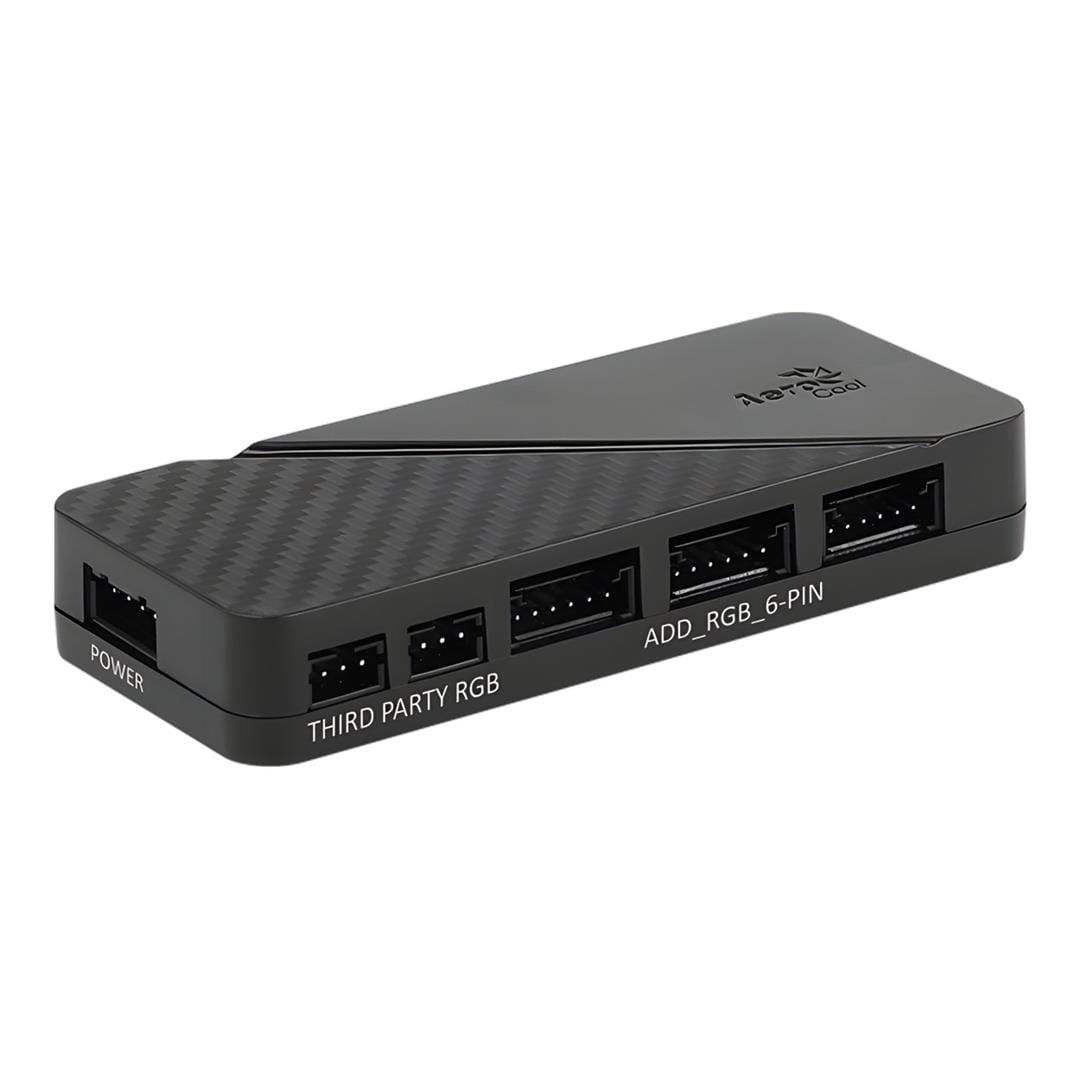

6-Port hub with PWM control functions that allows you to connect up to six 6-Pin Addressable RGB fans and up to two Addressable RGB accessories with 5V ARGB connector. Motherboard connector supports Addressable RGB motherboards (Asus Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion).

Features:

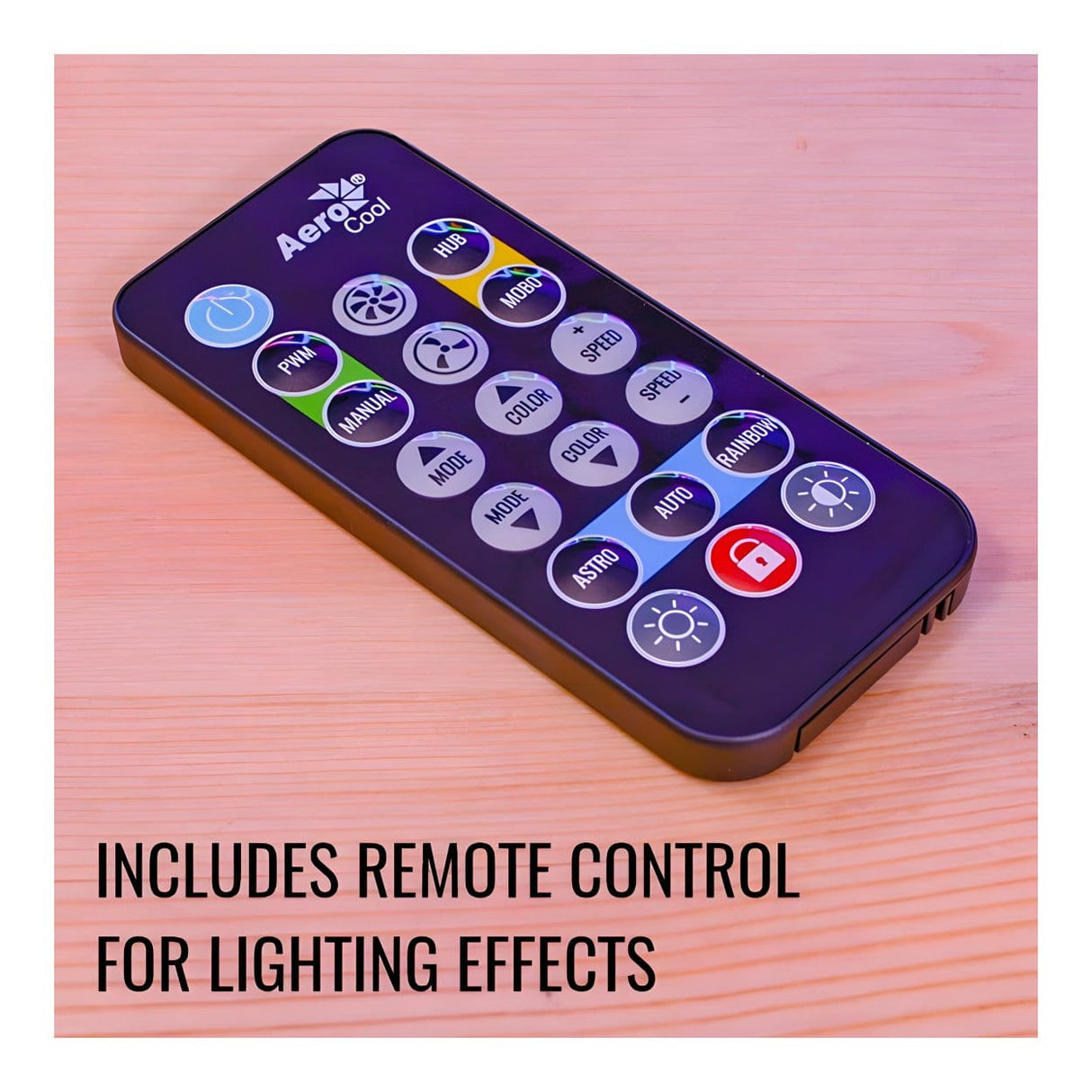

• Control lighting effects using remote control or by connecting the hub to any button on your case
• Access 16.8 million colors and more lighting effects using compatible Addressable RGB motherboard
• Allows you to connect up to six 6-Pin Addressable RGB fans
• Allows you to connect up to two 3-Pin Addressable RGB accessories with 5V ARGB connector
• PWM control functions allow you to automatically or manually control fan speed using compatible motherboards

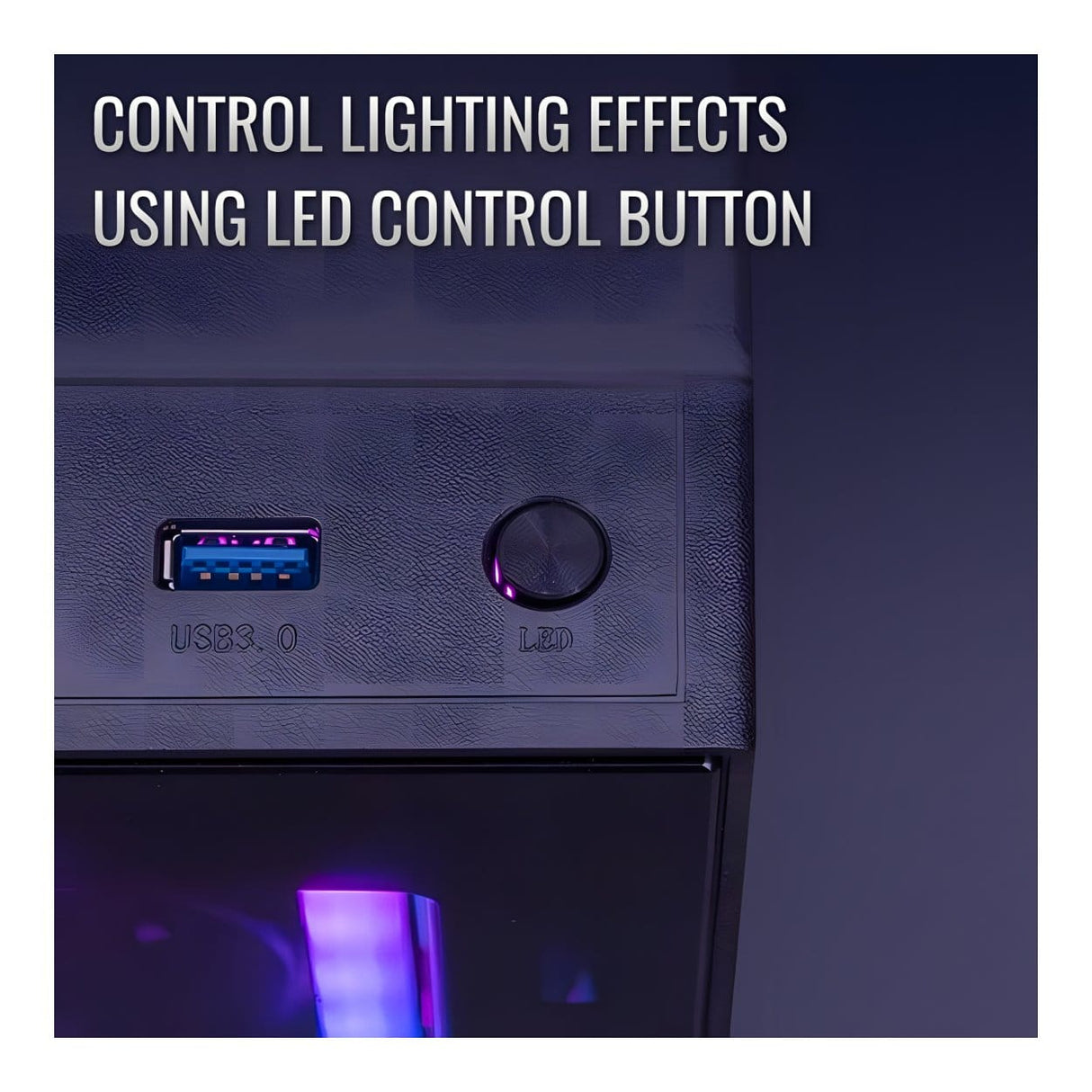

TAKE CONTROL OF YOUR LIGHTING EFFECTS

Control lighting effects using remote control or by connecting the hub to your case’s reset or LED control button.

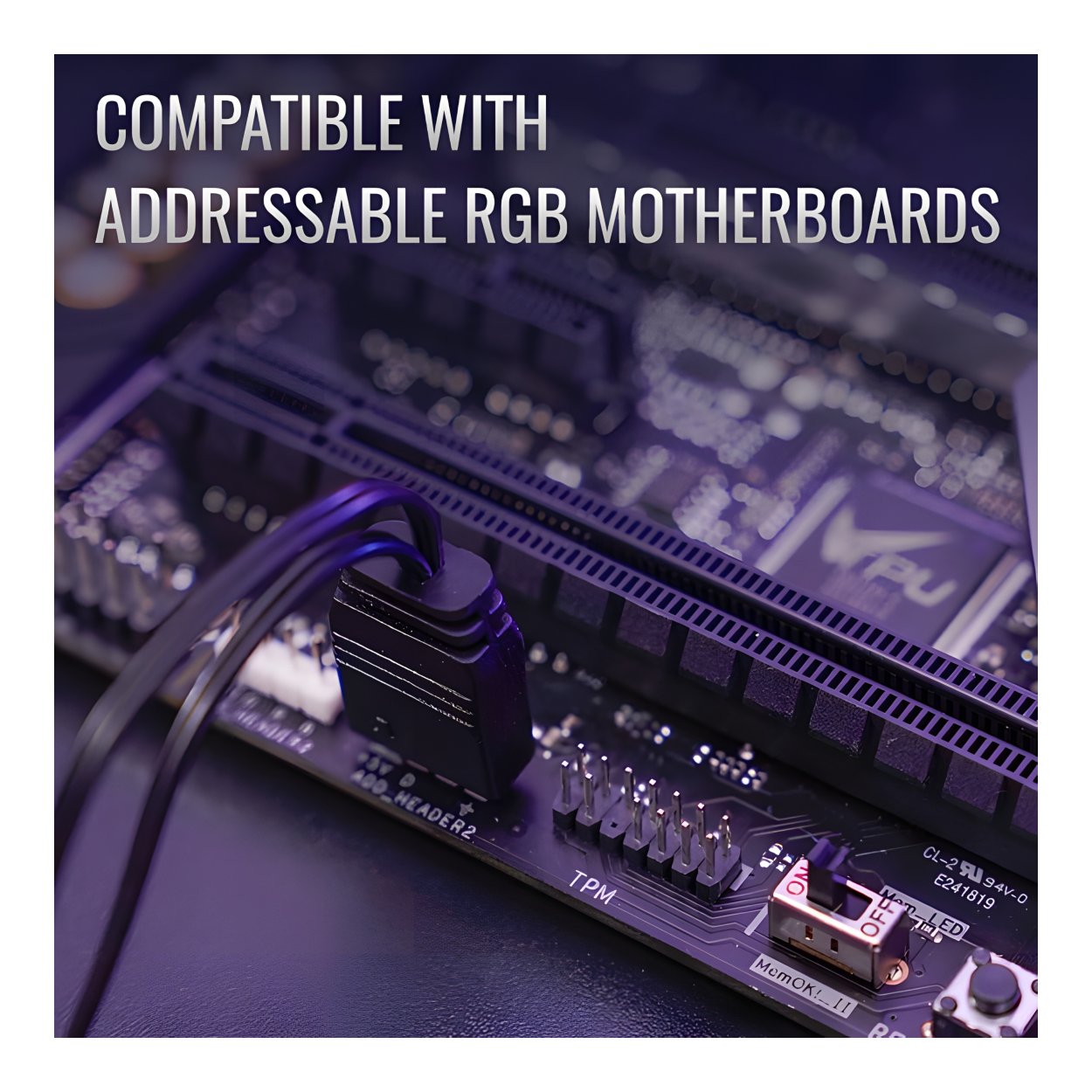

COMPATIBLE WITH ADDRESSABLE RGB MOTHERBOARDS

Access 16.8 million colors and more lighting effects using compatible Addressable RGB motherboards including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion.

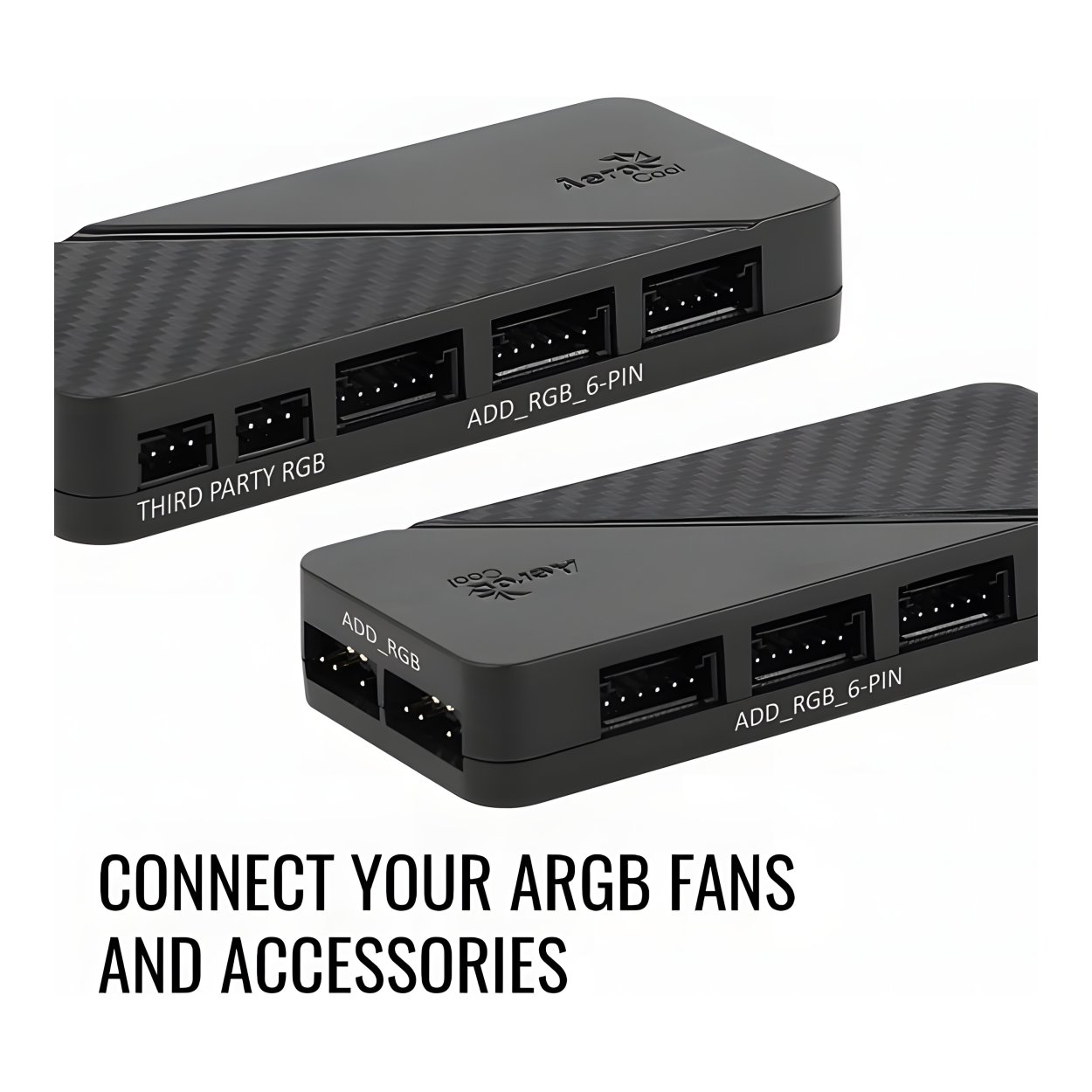

CONNECT YOUR ARGB FANS AND ACCESSORIES

Allows you to connect up to six 6-Pin Addressable RGB fans.

Allows you to connect up to two 3-Pin Addressable RGB accessories with 5V ARGB connector.

PWM CONTROL FUNCTIONS FOR OPTIMIZED FAN SPEED

H66F hub comes with PWM control functions for optimized fan speed to maximize cooling efficiency and minimize noise.

Please check that the 4-Pin fan header on your motherboard is PWM compatible. Check your motherboard manual for more details.
Note that there are two main types of 4-Pin connectors:

PWM based – PWM compatible

Voltage based – not PWM compatible

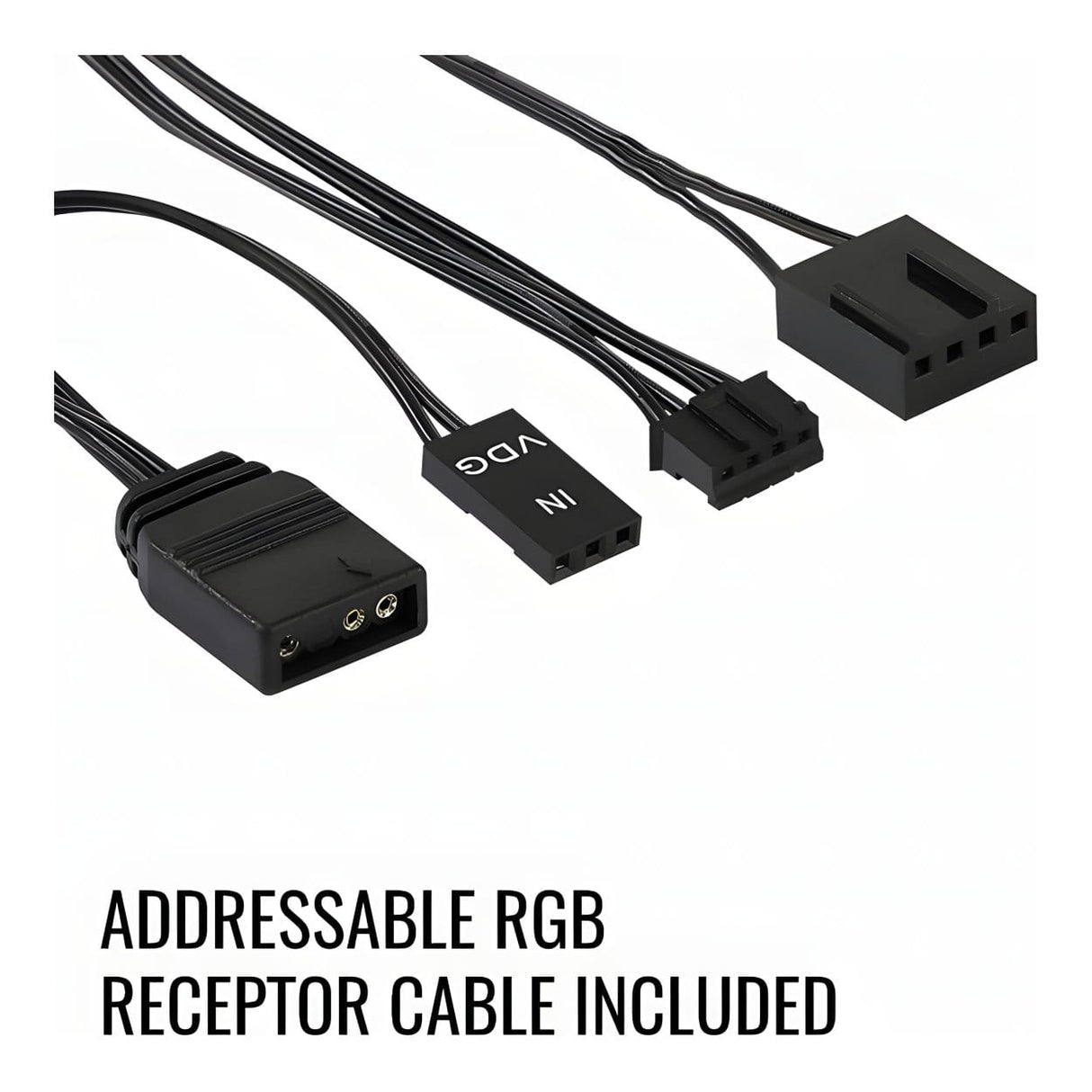

ADDRESSABLE RGB RECEPTOR CABLE INCLUDED

Comes with a receptor cable to connect your hub with compatible Addressable RGB motherboards.

• ARGB MB Connector (For all other ARGB MBs such as ASUS, MSI, etc.)
• ARGB MB Connector (Gigabyte RGB Fusion)
• 4-Pin Hub Connector
• PWM 4-Pin Connector

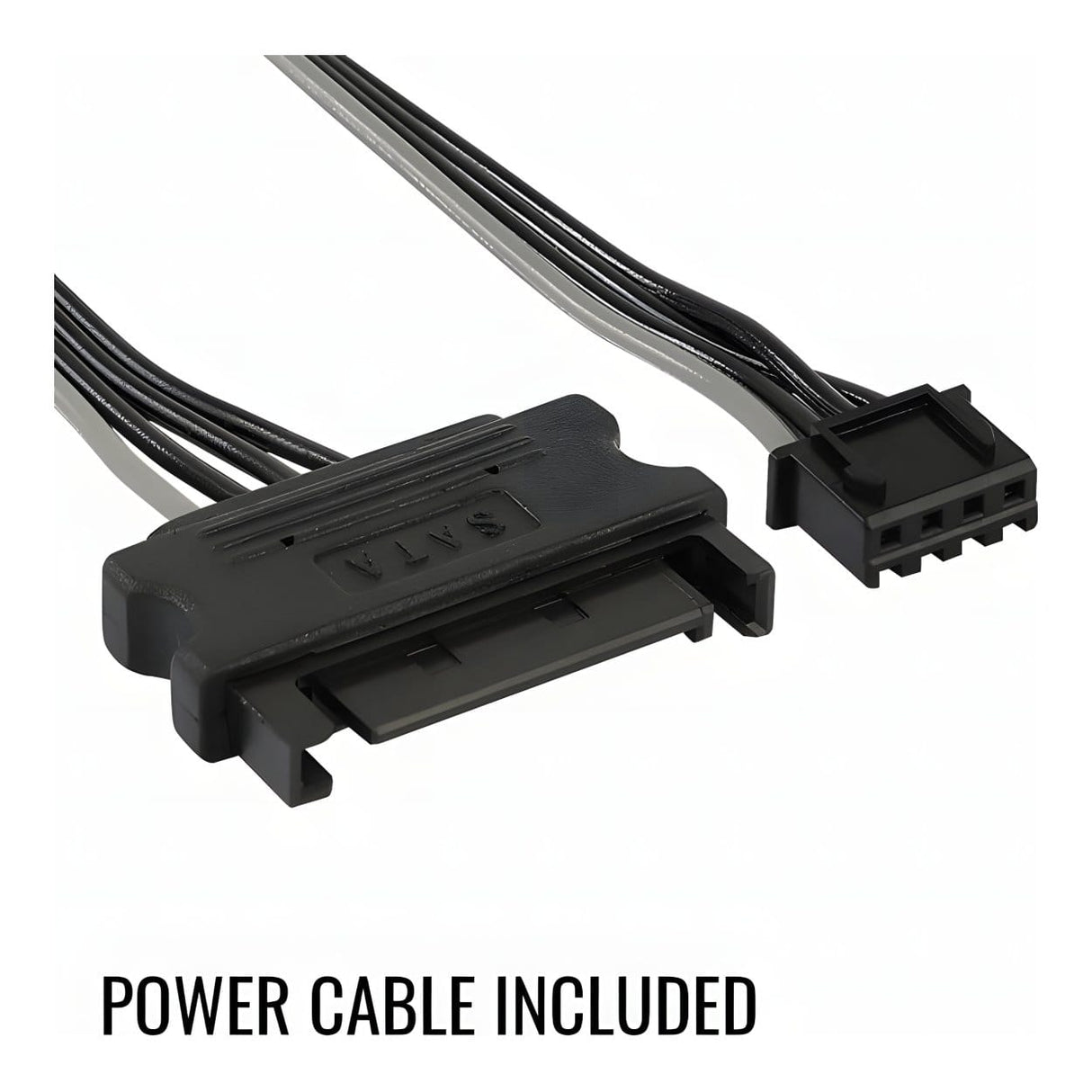

Power Cable Included

Comes with a cable to power the hub.

• SATA Power Connector
• 4-Pin Hub Power Connector
