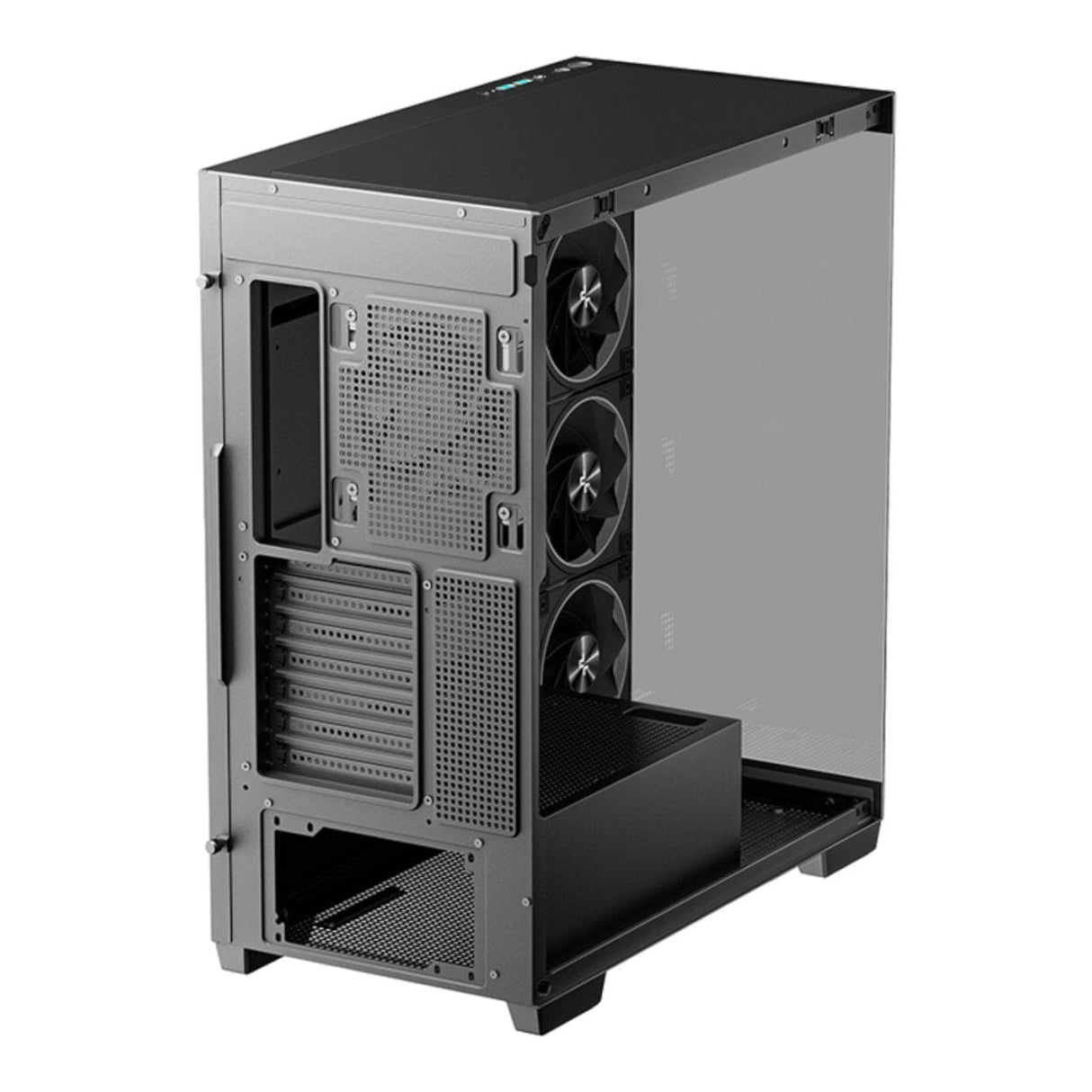

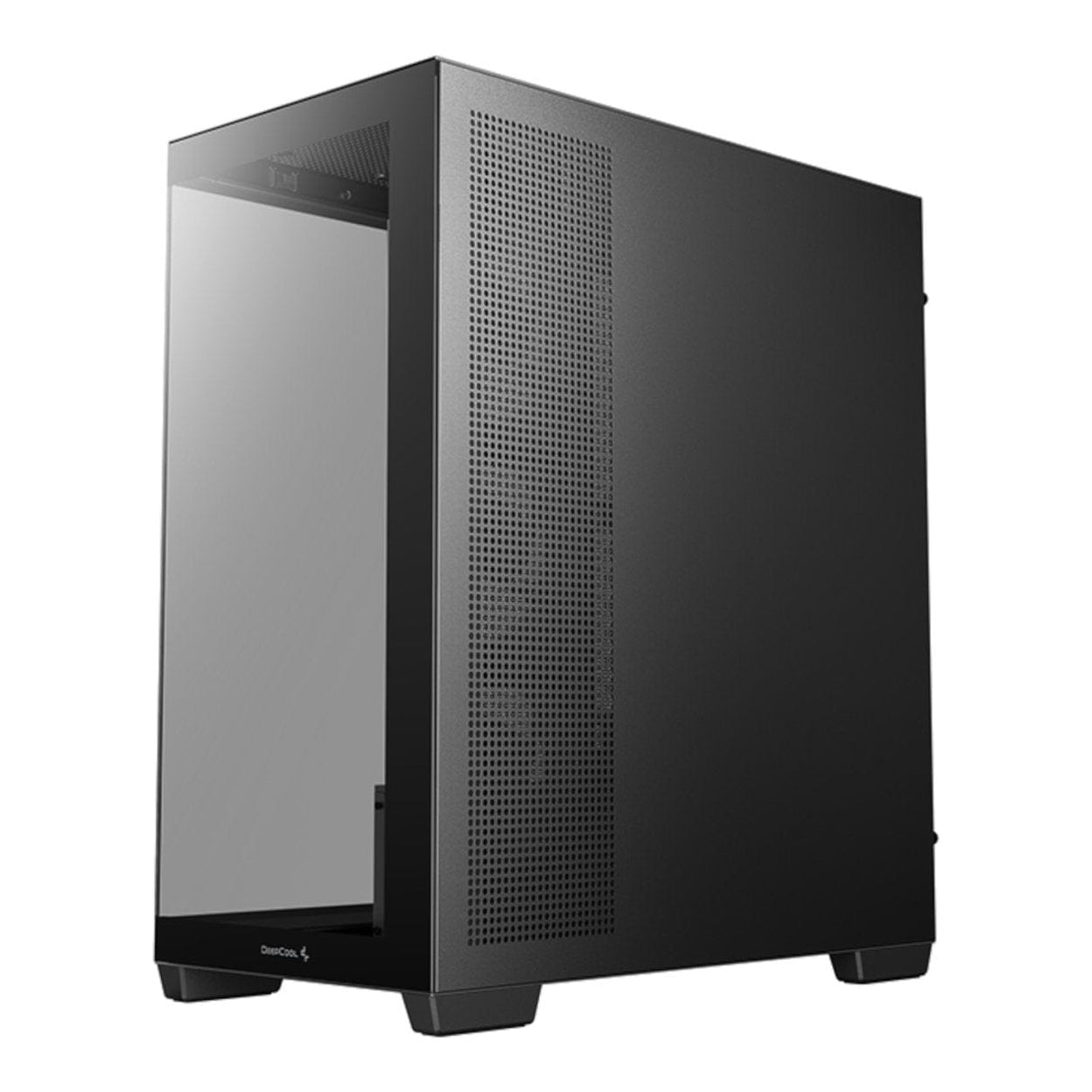

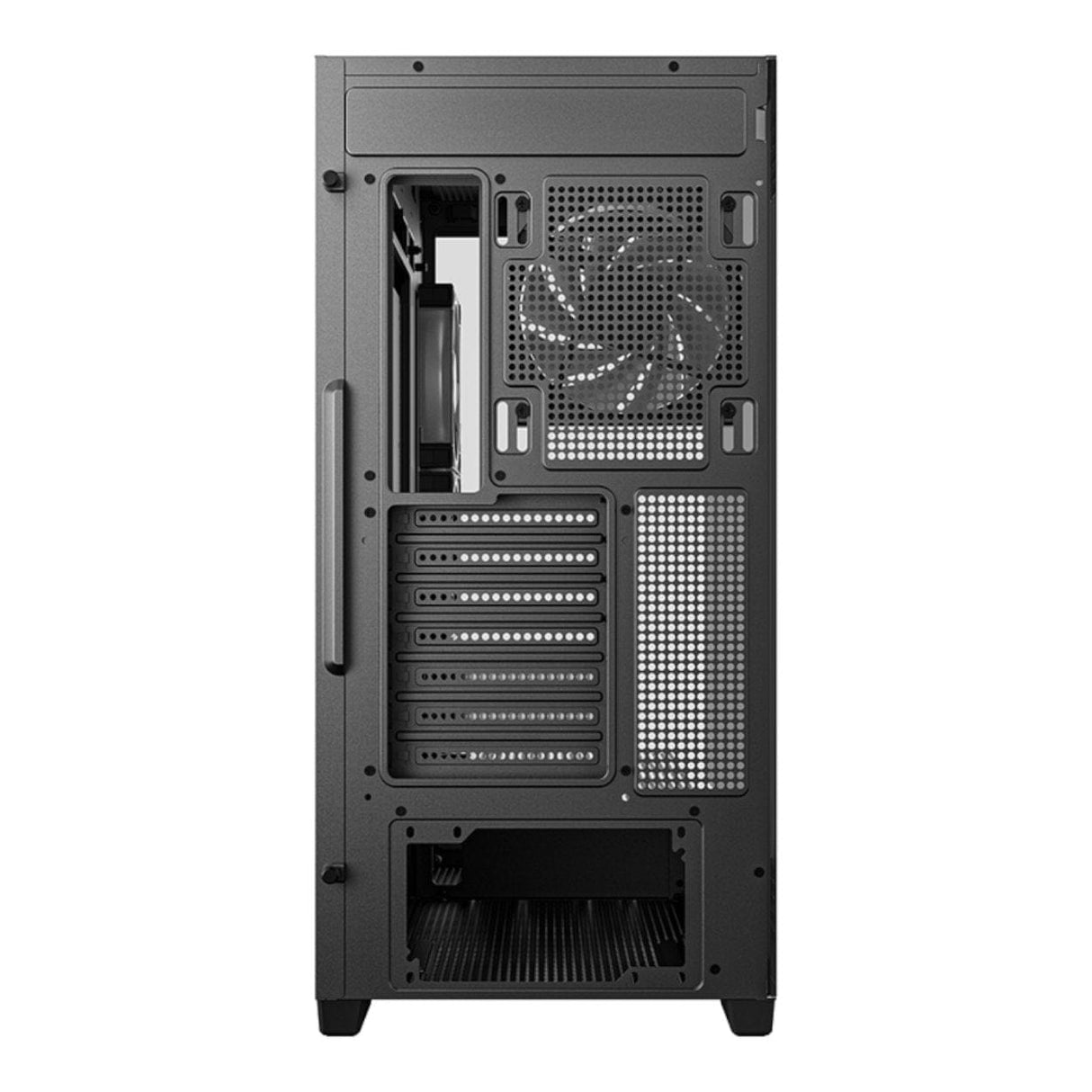

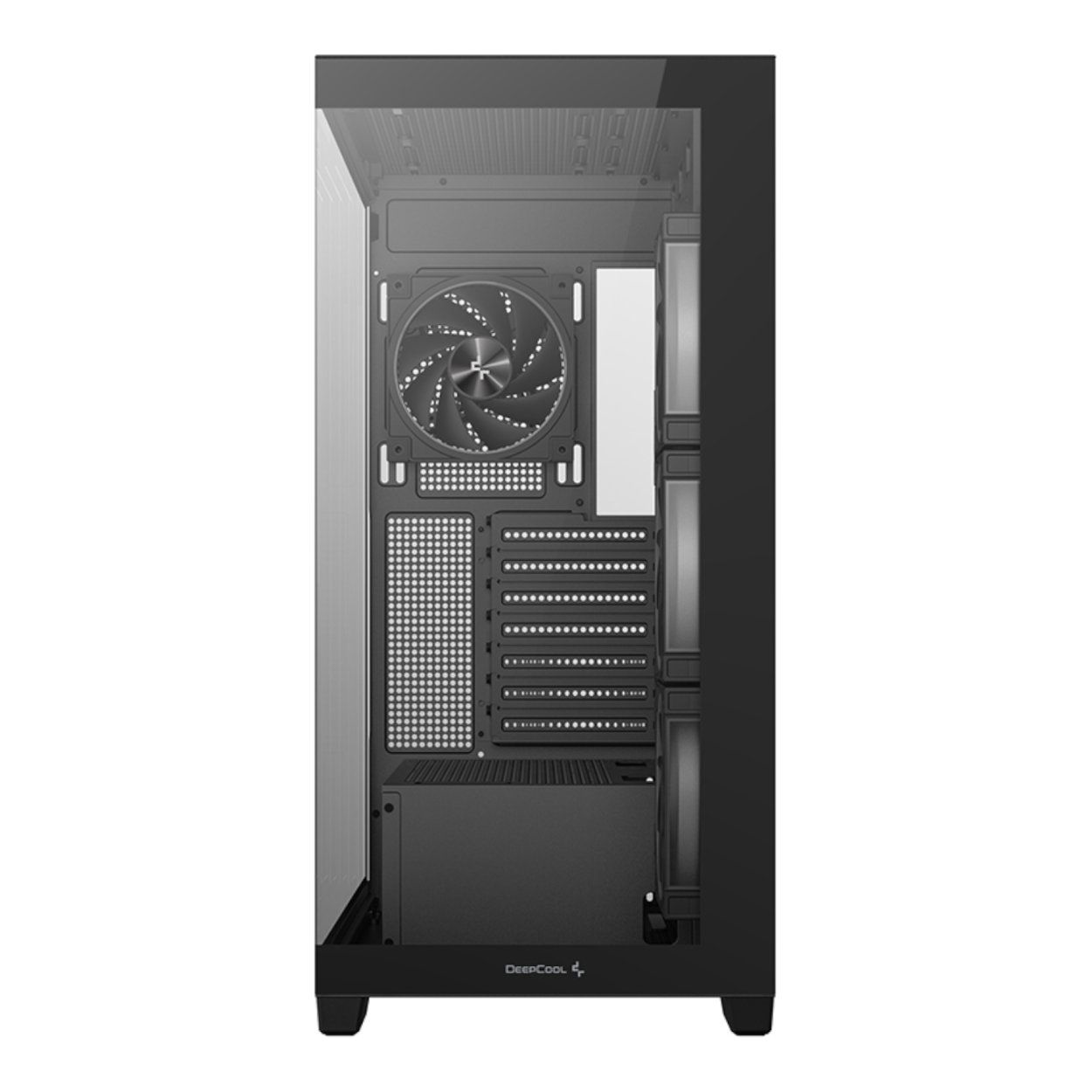

DeepCool CG580 4F V2 TCG580 4F V2 ARGB Midi Tower ATX Black Gaming PC Case R-CG580-BKADA4-G-2

DeepCool CG580 4F V2 TCG580 4F V2 ARGB Midi Tower ATX Black Gaming PC Case R-CG580-BKADA4-G-2

The CG580 4F V2 is a picturesque single-chamber case crafted to elegantly display the most commonly used components. Equipped with 4 ARGB fans, support for 360mm radiators, and multiple fan configurations, it combines style with exceptional functionality. The design features a no A-pillar construction, along with glass side and front panels offering a 270°view, allowing builders to fully appreciate their hardware.

Features:

• Manage airflow paths effectively through the dedicated dual-chamber layout, isolating heat sources for superior temperature stability.
• Install the latest, most powerful graphics cards, knowing the 410mm clearance range supports lengthy, high-end GPUs essential for top-tier performance.
• Control your thermal environment precisely by supporting up to three 120mm or two 140mm fans on the top panel alone, alongside the included rear exhaust.
• Integrate modern high-speed peripherals using the front input/output panel, featuring two USB 3.0 ports and a high-bandwidth Type-C connection.
• Build with confidence knowing the structure supports CPU coolers up to 176mm in height, accommodating large tower coolers essential for high-TDP processors.

SCENIC VIEW

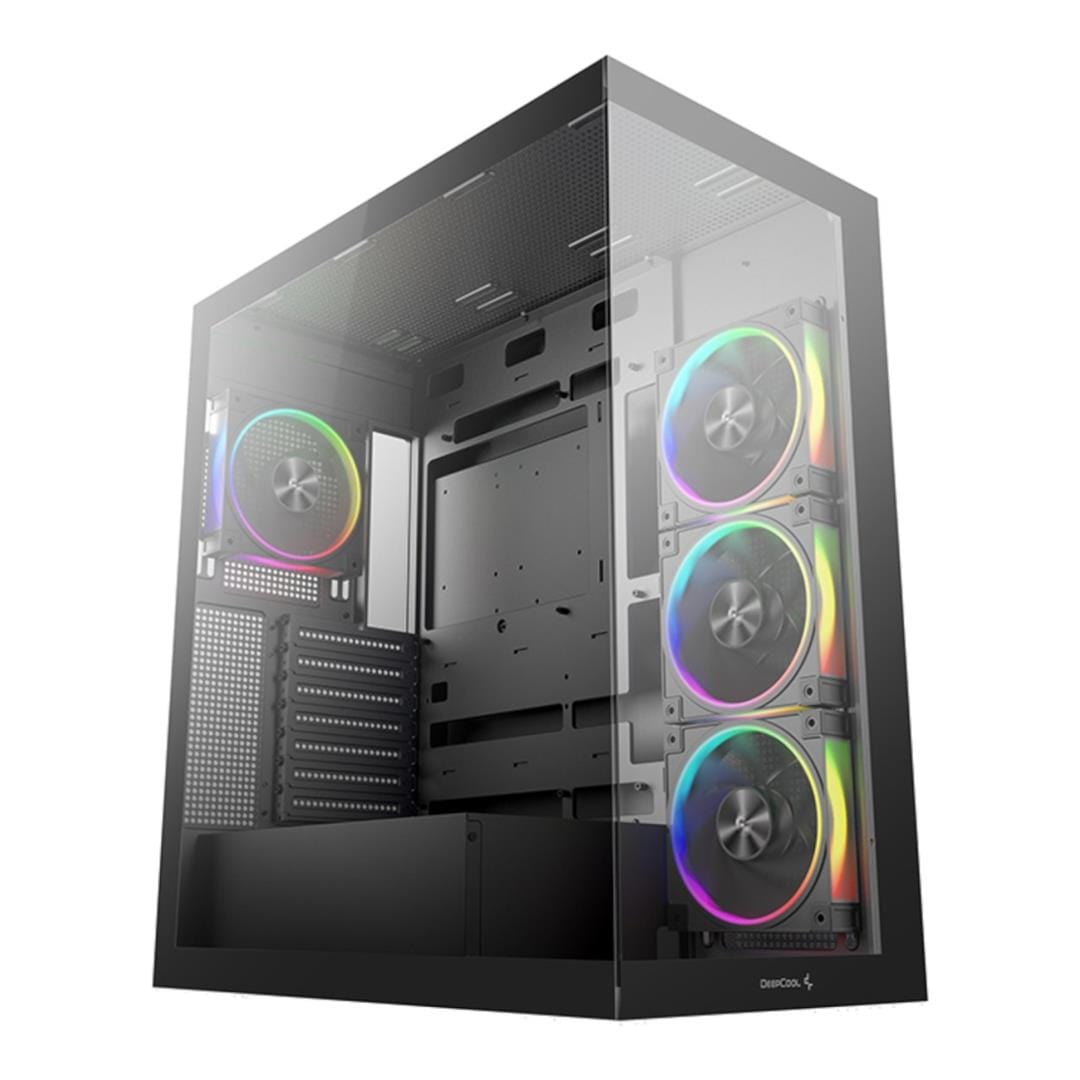

The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build. Your system will look more streamlined and cleaner thanks to the motherboard tray that can support mainstream motherboards models with back connectors from ASUS and MSI.

INNOVATIVE COOLING PLUS VISUAL EXPERIENCE

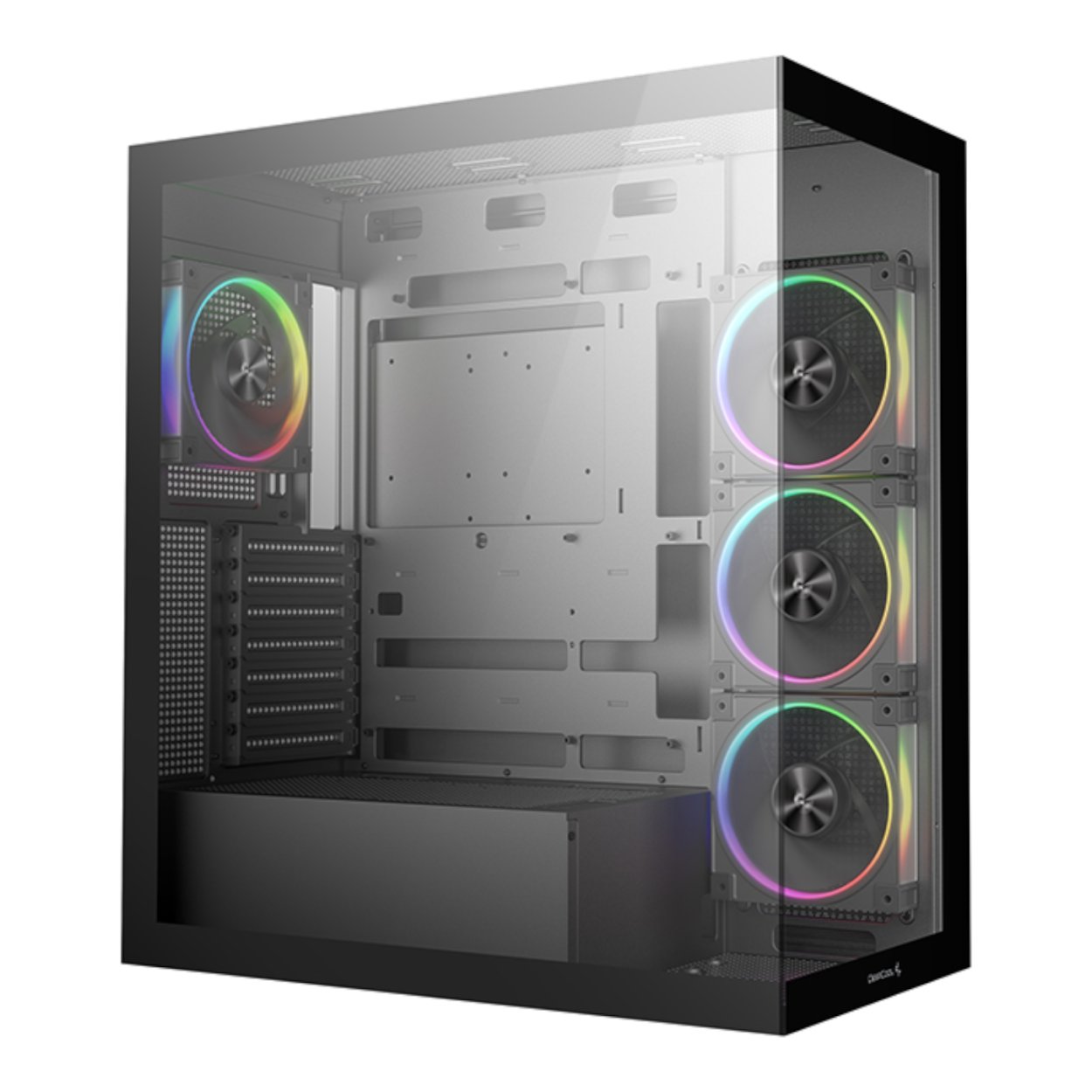

The CG580 4F V2 stands out with a pre-installed cooling setup, featuring three PWM ARGB reverse flow fans on the side and one standard PWM ARGB fan at the rear. This configuration creates a streamlined airflow path that enhances thermal efficiency. Coordinated ARGB lighting across the fan frames and rings supports motherboard sync for a unified and dynamic visual effect.

LED BUTTON OPERATION INSTRUCTIONS

Switching Lighting Effect

Short press the LED button to cycle through 16 pre-set lighting effects.

When Connected to Motherboard Sync Cable

Long press the LED button (about 2-3 seconds) until a white flash: Enter motherboard synchronization mode. The lighting effects will now be controlled by the motherboard.

During Motherboard Sync Mode

Long press the LED button for 2 seconds: Exit the motherboard sync mode and return to lighting control by the case lighting control board.

THE SUPPORT YOU NEED

The CG580 4F V2 is designed to support a wide range of components, ensuring flexibility for any build. It supports a 210mm PSU and a 410mm GPU, with the option to fit a 262mm GPU when a radiator is vertically installed on the side of the motherboard. The case is compatible with ATX motherboards and features 7 expansion slots, along with 2 x 3.5” drive bays and 2 x 2.5” drive bays, providing ample space for storage and expansion.

EXCEPTIONAL COOLING CAPACITY

The CG580 4F V2 is designed for maximum cooling efficiency, supporting a variety of radiator configurations, including up to 360mm on the top, 360mm on the side, and 140mm at the rear. It accommodates multiple fan setups, with options for 3×120mm or 2×140mm on the top, 3×120mm on the side, and 1×120mm or 1×140mm at the rear. The bottom offers a choice between a 3.5” HDD or a 120mm fan, while the PSU shroud can house 2×120mm fans. Additionally, the case supports CPU coolers up to 176mm, ensuring your system stays cool under the most demanding conditions.

QUALITY OF LIFE FEATURES

With two USB 3.0 ports, one TYPE-C port and a hybrid audio port that can be accessed from the top I/O panel, connecting temporary devices is a breeze. Wire management is also facilitated with a 33mm backplane. The magnetic filters on the top, bottom and side keep dust out and makes cleaning a little easier.

Technical Specifications:

Materials ABS + SGCC + Tempered Glass

Motherboard Support

• ITX/Micro-ATX/ATX

ATX(Rear Connector)

Micro-ATX(Rear Connector)

Front I/O Ports: USB3.0×2/Gen2 Type-C×1/Audio&Mic×1

3.5″ Drive Bays: 2

2.5″ Drive Bays: 2

Expansion Slots: 7 Slots

Pre-Installed Fans Side:

• 3×120mm(PWM+ARGB Reverse Blade)
• Rear: 1×120mm(PWM+ARGB)

Fan Support:

• Front: NA
• Top: 3×120mm/2x140mm
• Side: 3x120mm
• Rear: 1×120mm/1x140mm
• Bottom: 1×120mm(3.5 HDD/120FAN :Choose one of two)

PSU Shrouded: 2×120mm

Radiator Support

• Front: NA
• Top: 120/140/240/280/360mm
• Side: 120/240/360mm
• Rear: 120/140mm

CPU Cooler Height Limit: 176mm

GPU Length Limit: 410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side)

Power Supply Type: ATX PS2(maximum length: 210mm)

Colour: Black

Product Dimensions: 43.7 x 23.5 x 50.1 cm

Product Weight: 8800g

What's in the Box:

• DeepCool CG580 4F V2 ARGB ATX Gaming Chassis – Black x1
