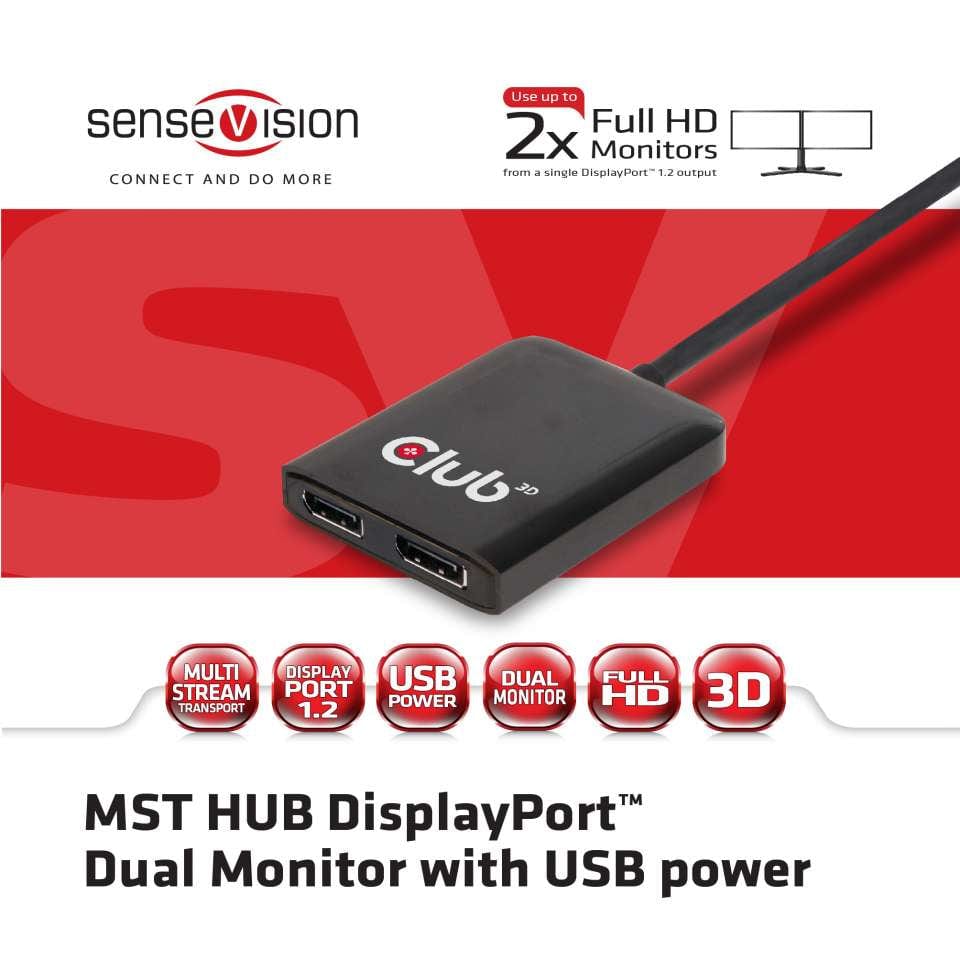

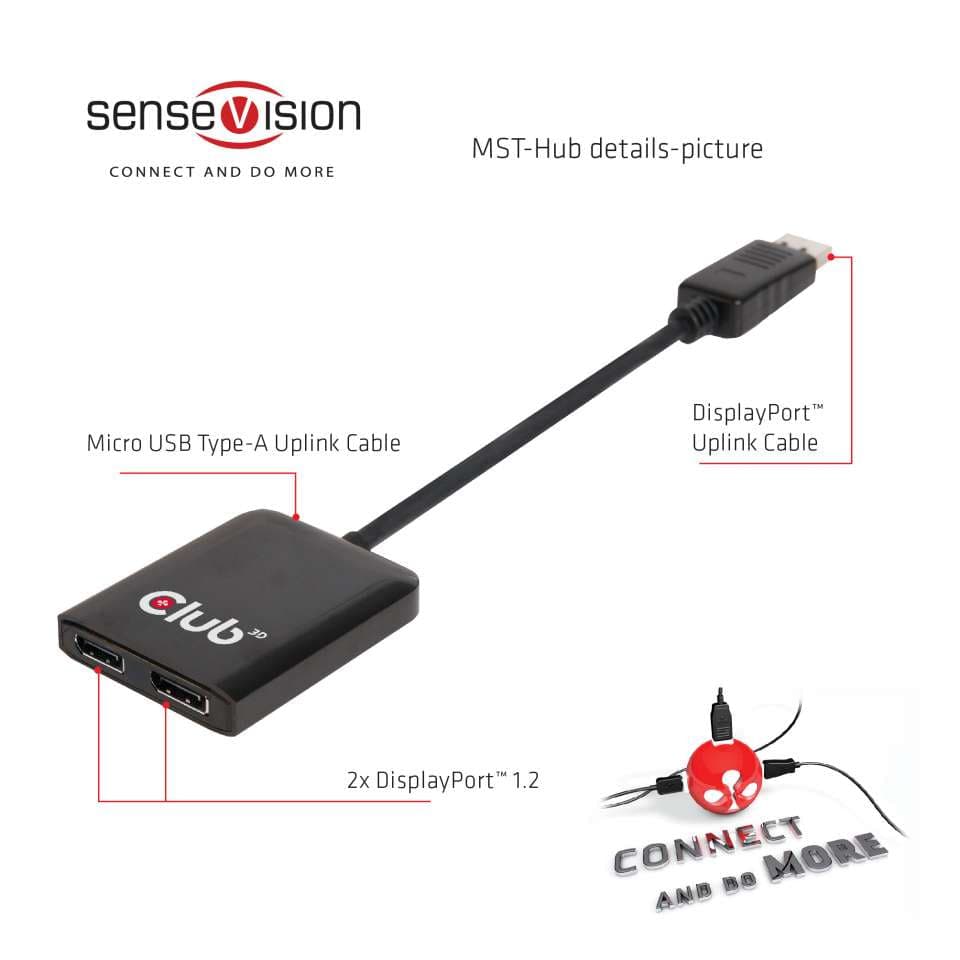

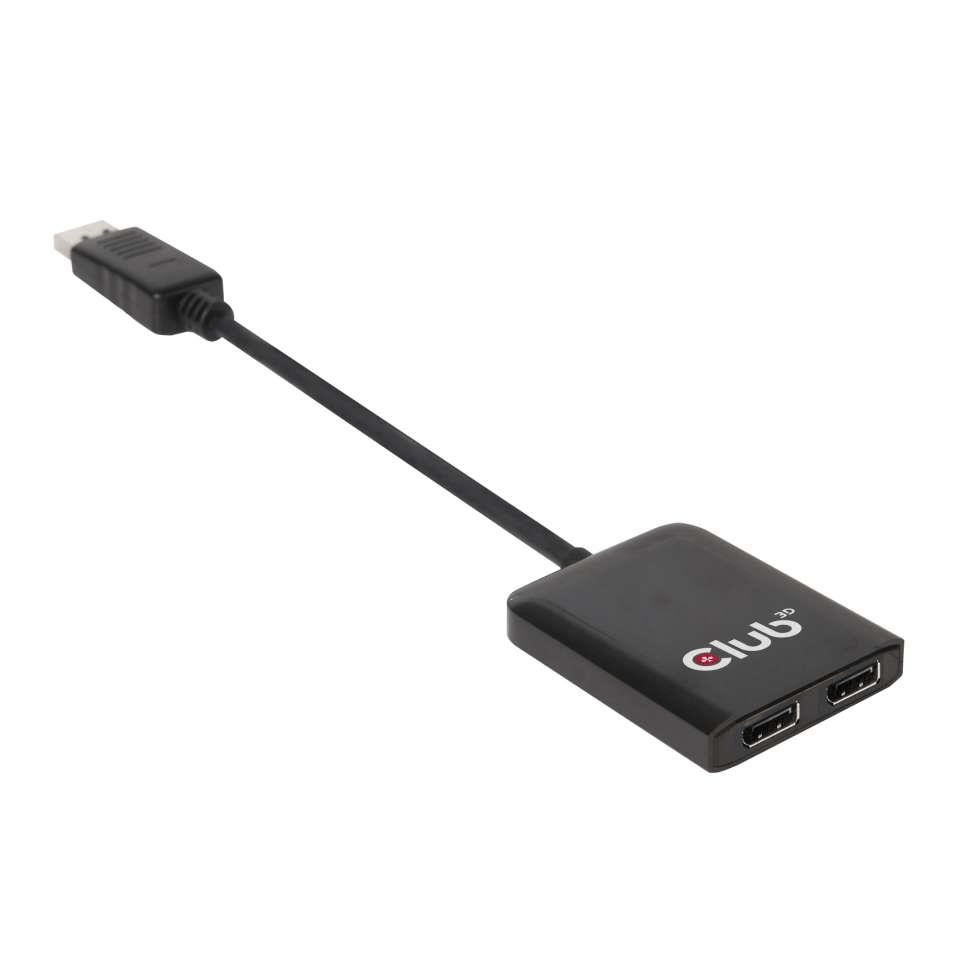

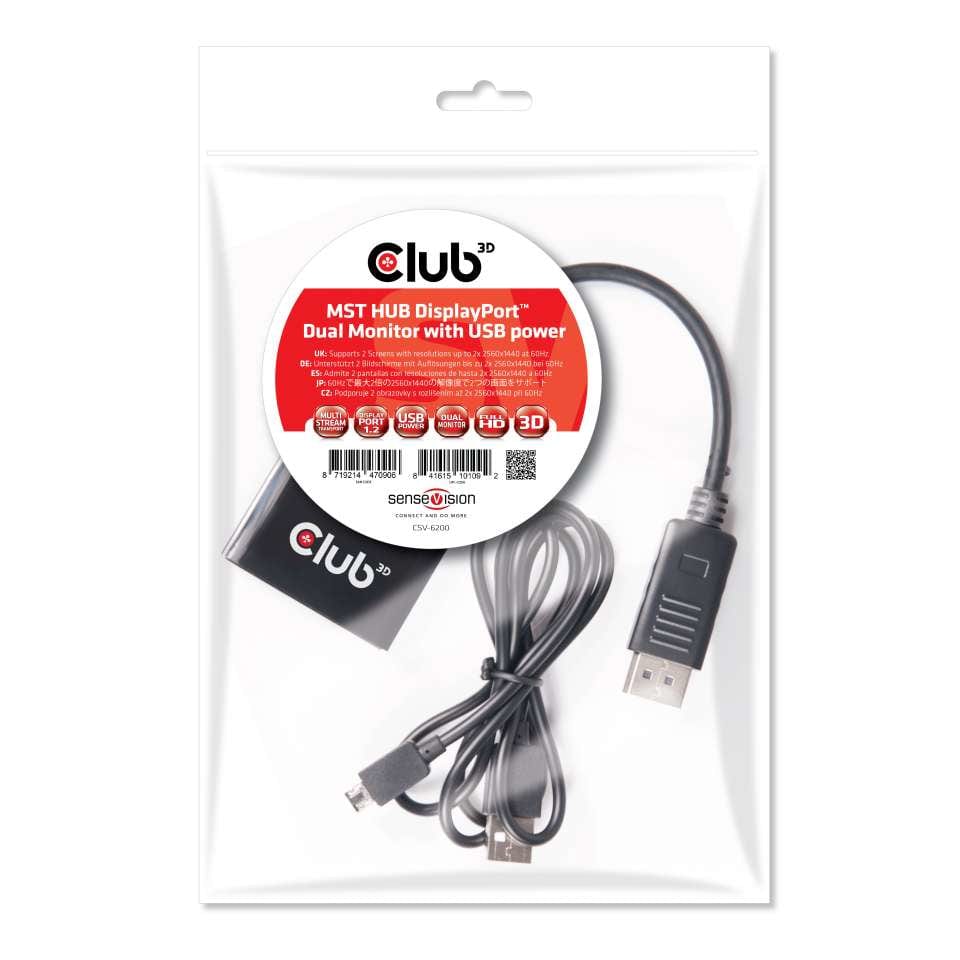

Club 3D CSV-6200 Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor

Club 3D CSV-6200 Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor

CSV-6200 - The Club3D SenseVision MST Hubs utilise Multi Stream Transport, a unique DisplayPort™ 1.2 feature that creates the ability to transport multiple independent uncompressed display (and audio) streams over a single cable, supporting protected content and high performance applications such as 3D gaming. This enables the use of multiple monitors connected by MST hub configuration. The Club3D MST Hubs is able to distribute those video streams to the connected screens. The CSV-6200 is Plug & Play and does not require any driver installation. The Club3D MST Hubs do not increase the bandwidth of the DisplayPort™ 1.2 output of the source system, but it enables the optimal use of it. Note: When using a DisplayPort™ 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.

Specifications:

• Video port type: DisplayPort
• Video out: 2x Displayport
• Video in: Displayport 1.2
• Maximum resolution: 3840 x 2160 pixels
• Product colour: Black
• Maximum refresh rate: 60 Hz
• AC input voltage: 5 V
• Input current: 2 A
• Dimensions (WxDxH): 244 x 49 x 11 mm
• Weight: 54 g
• Quantity per pack: 1 pc(s)
