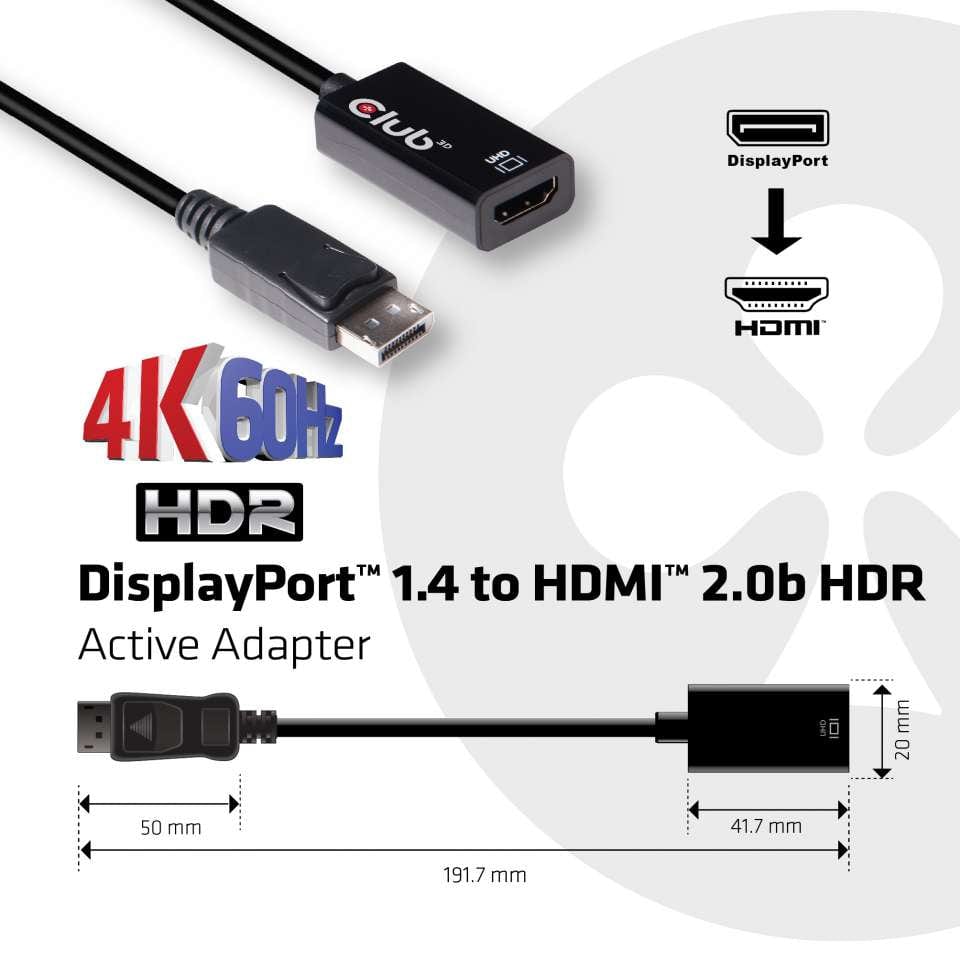

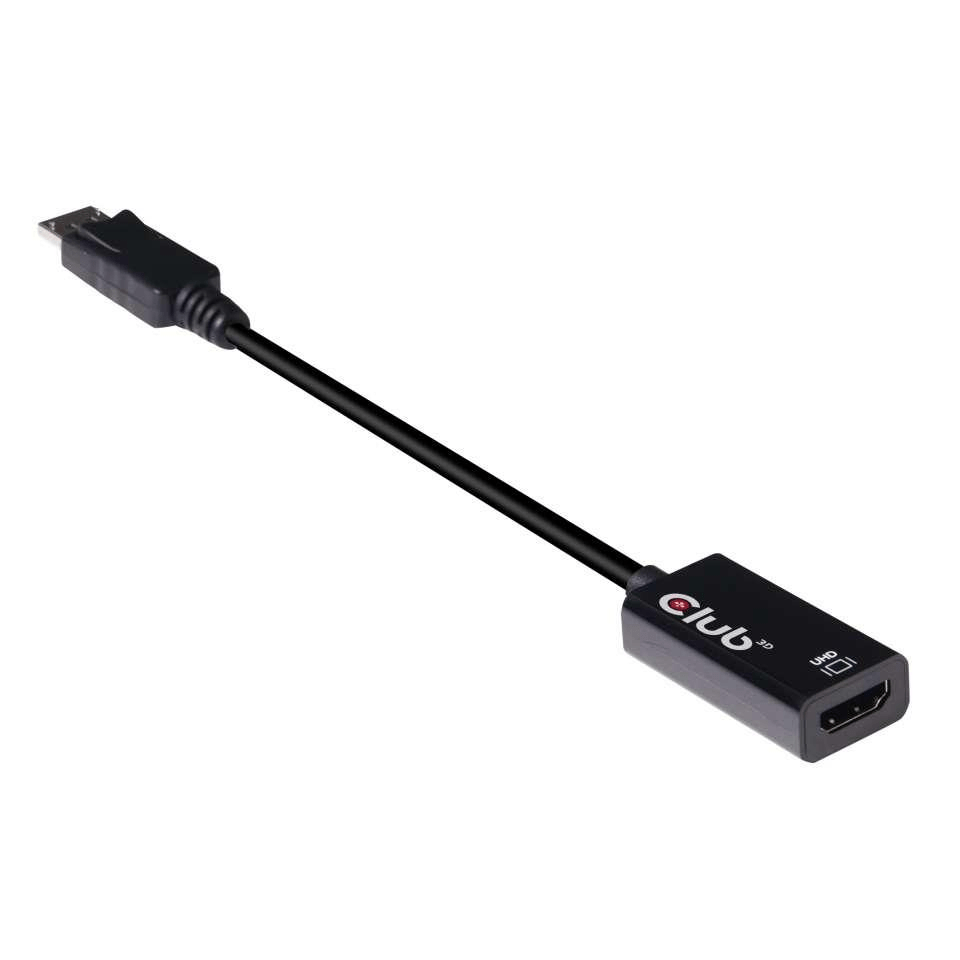

Club 3D CAC-1080 DisplayPort 1.4 to HDMI 2.0b HDR Active Adapter

Club 3D CAC-1080 DisplayPort 1.4 to HDMI 2.0b HDR Active Adapter

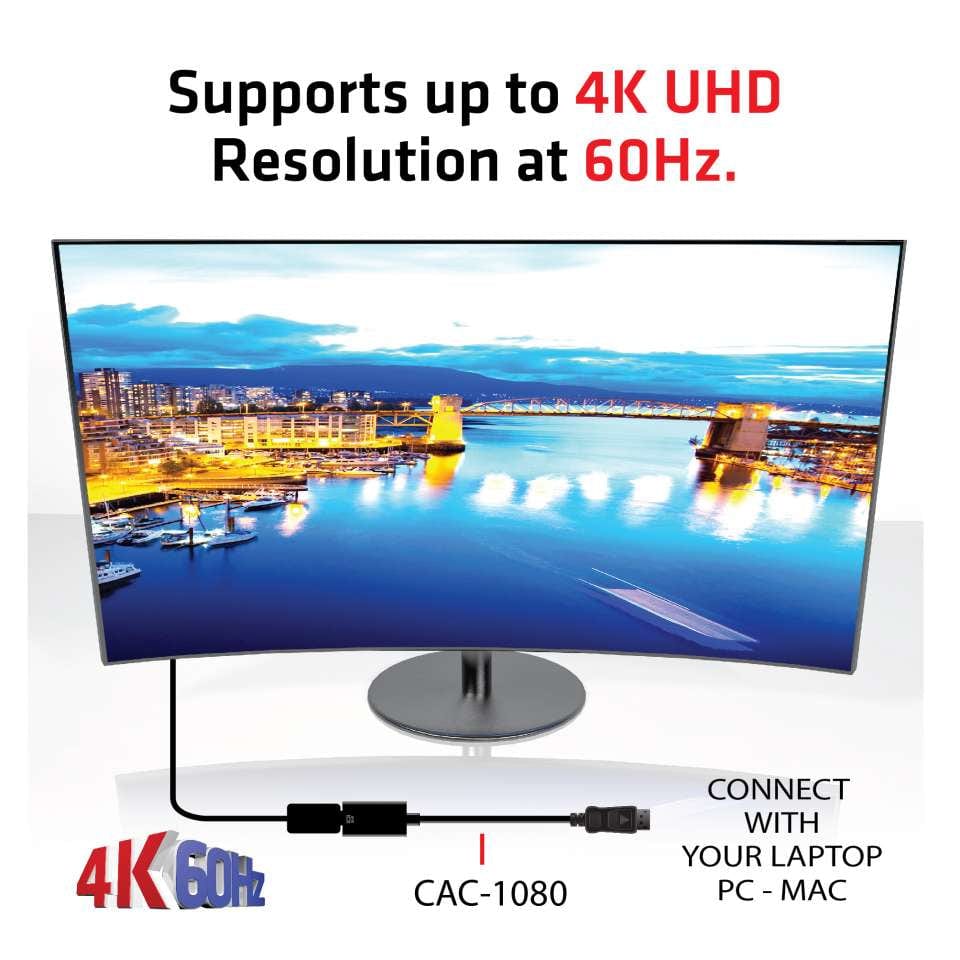

CAC-1080 - The Club3D DisplayPort™ 1.4 to HDMI™ 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0b. Resolution Support The CAC-1080 supports UHD resolutions up to 4096 x 2160p at 60Hz. Color Formats It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPort™ and HDMI™ link bandwidth. The CAC-1080 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings. Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and/or HDMI™ 2.0 a or b.

Specifications:

• Connector 1: DisplayPort 1.4
• Connector 2: HDMI 2.0b
• Connector contacts plating: Copper
• Product colour: Black
