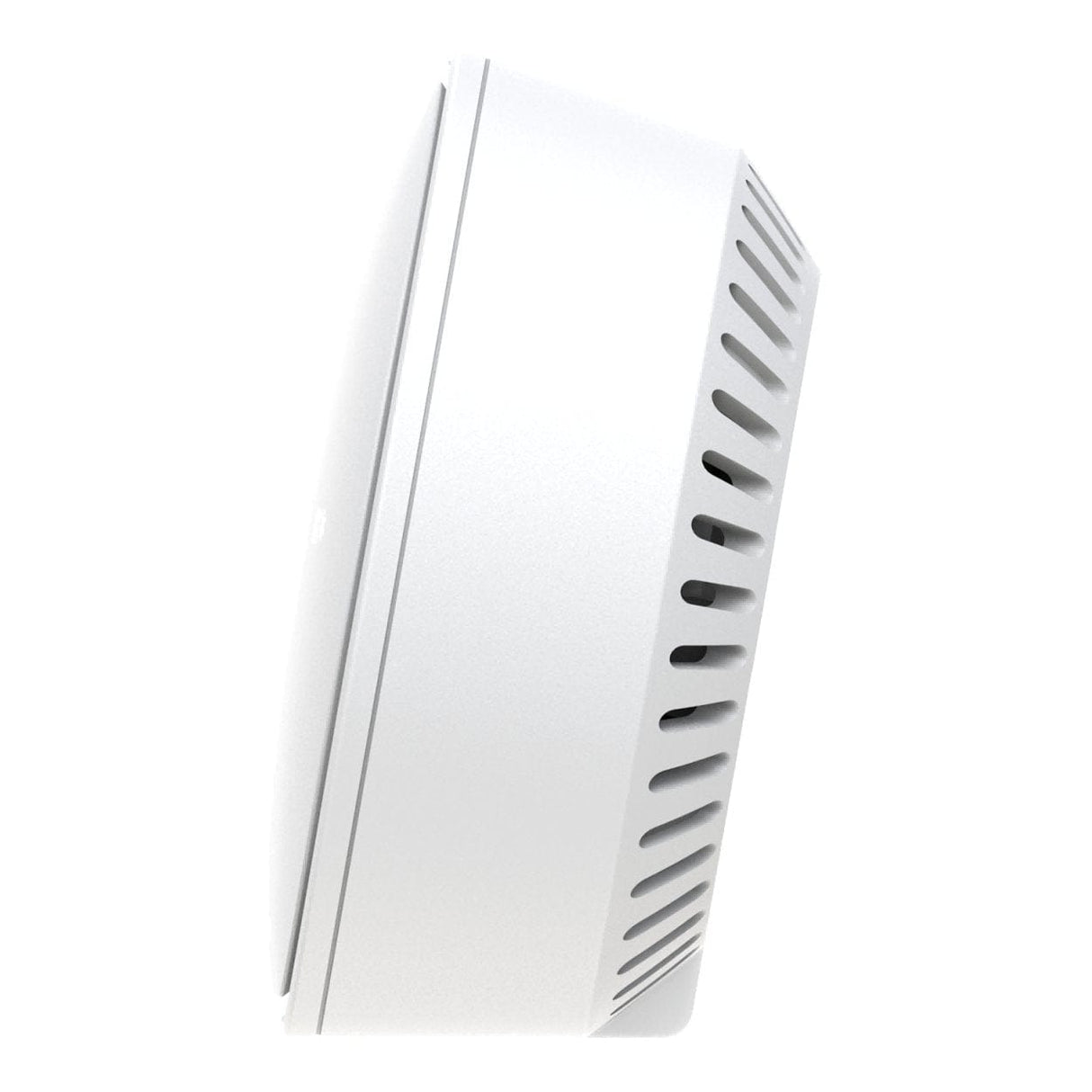

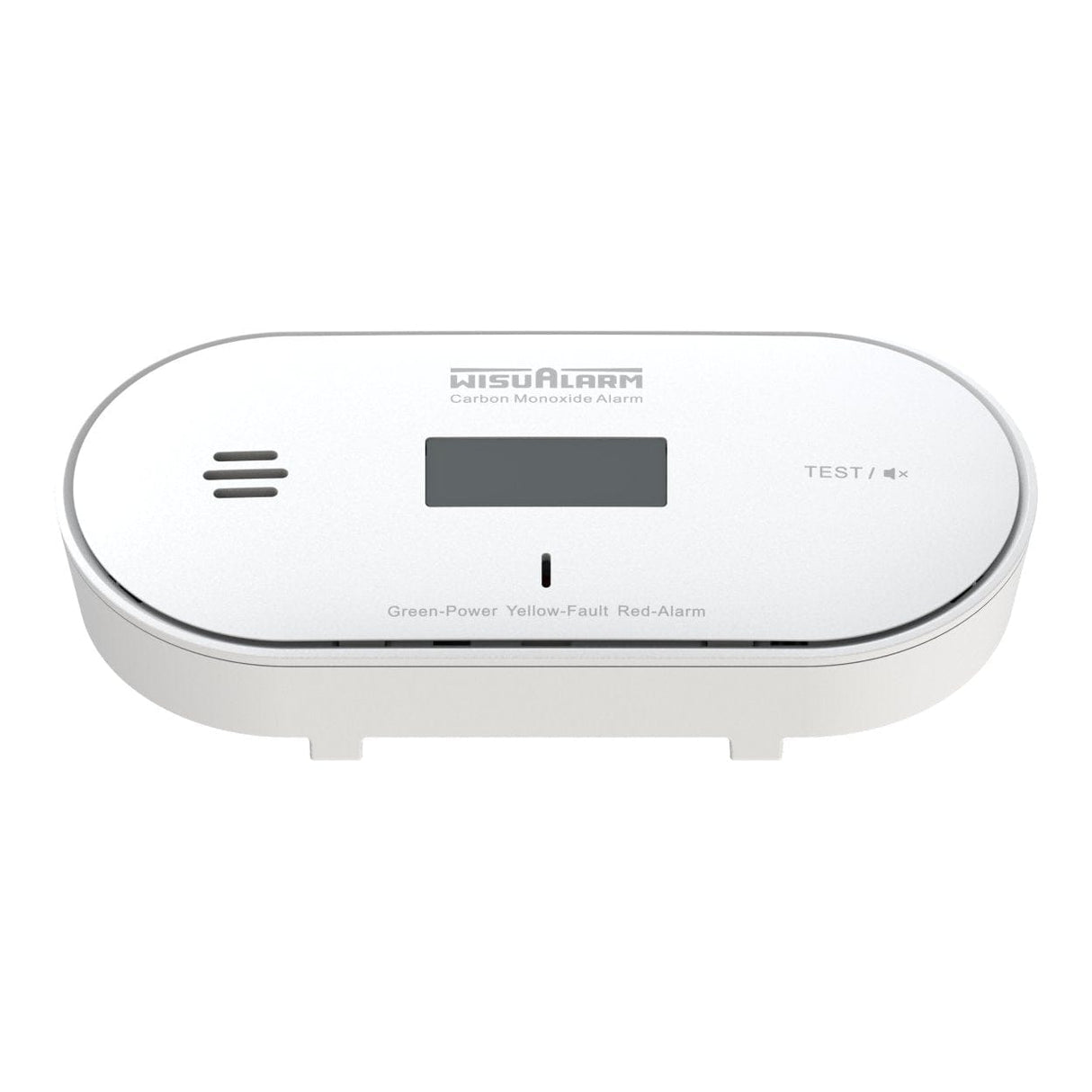

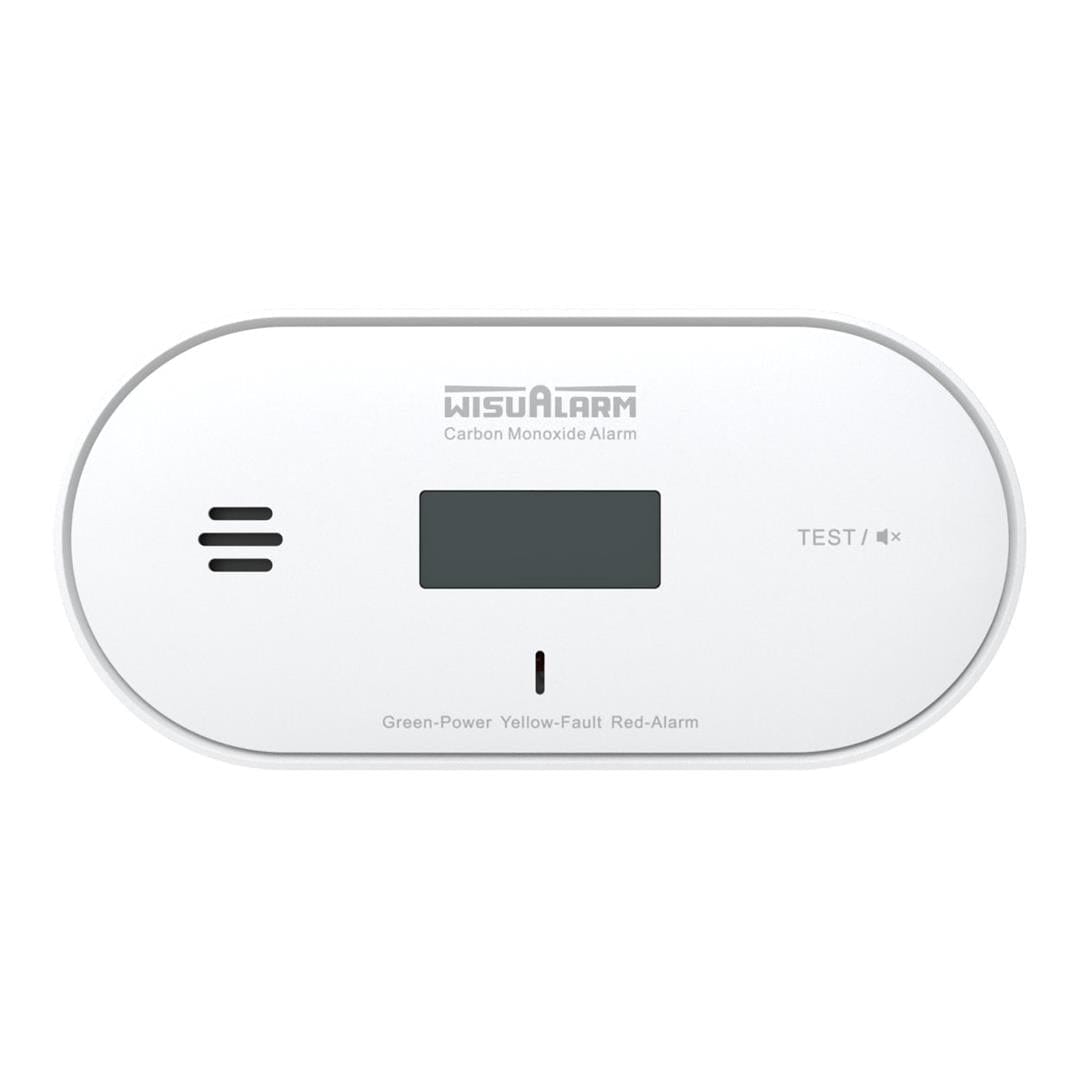

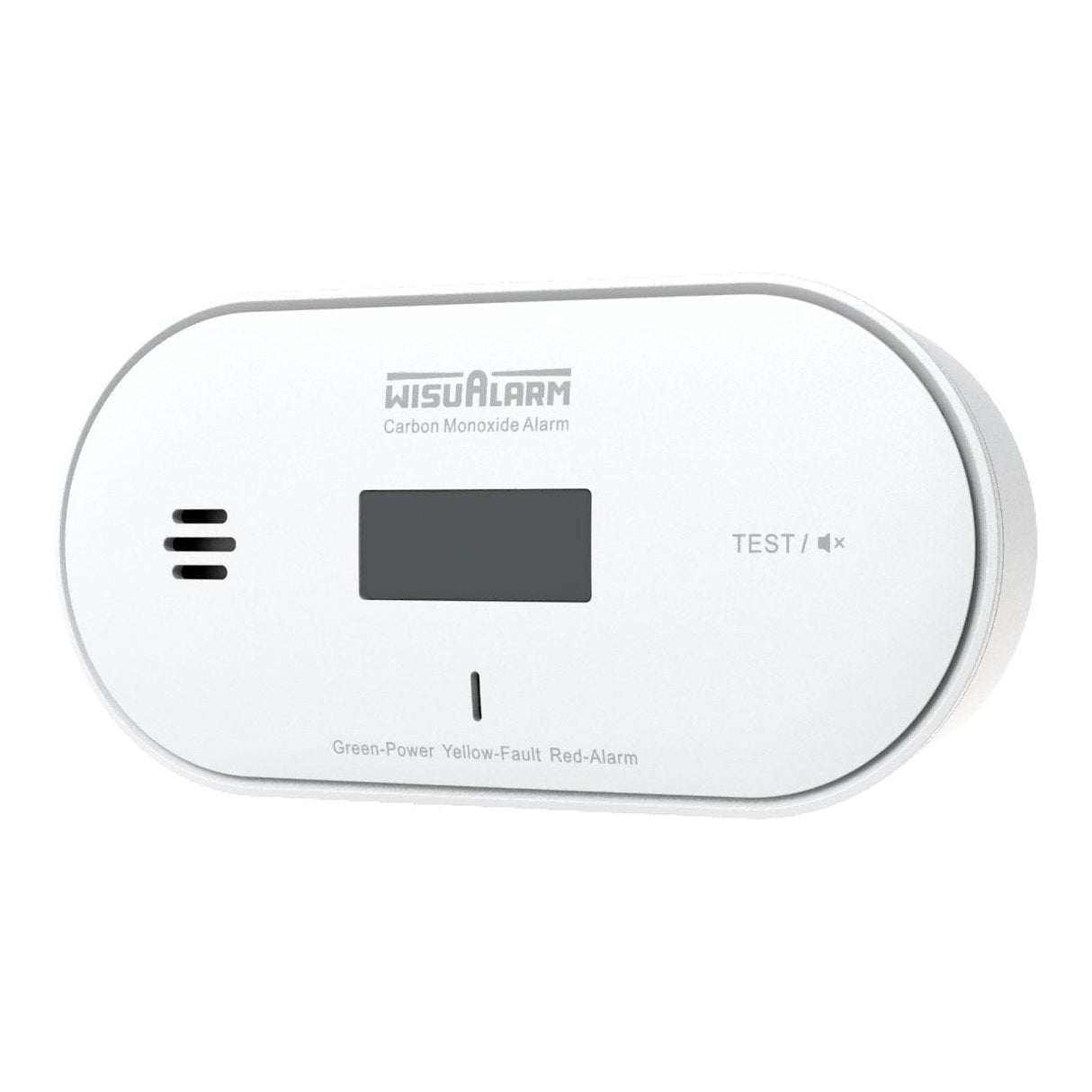

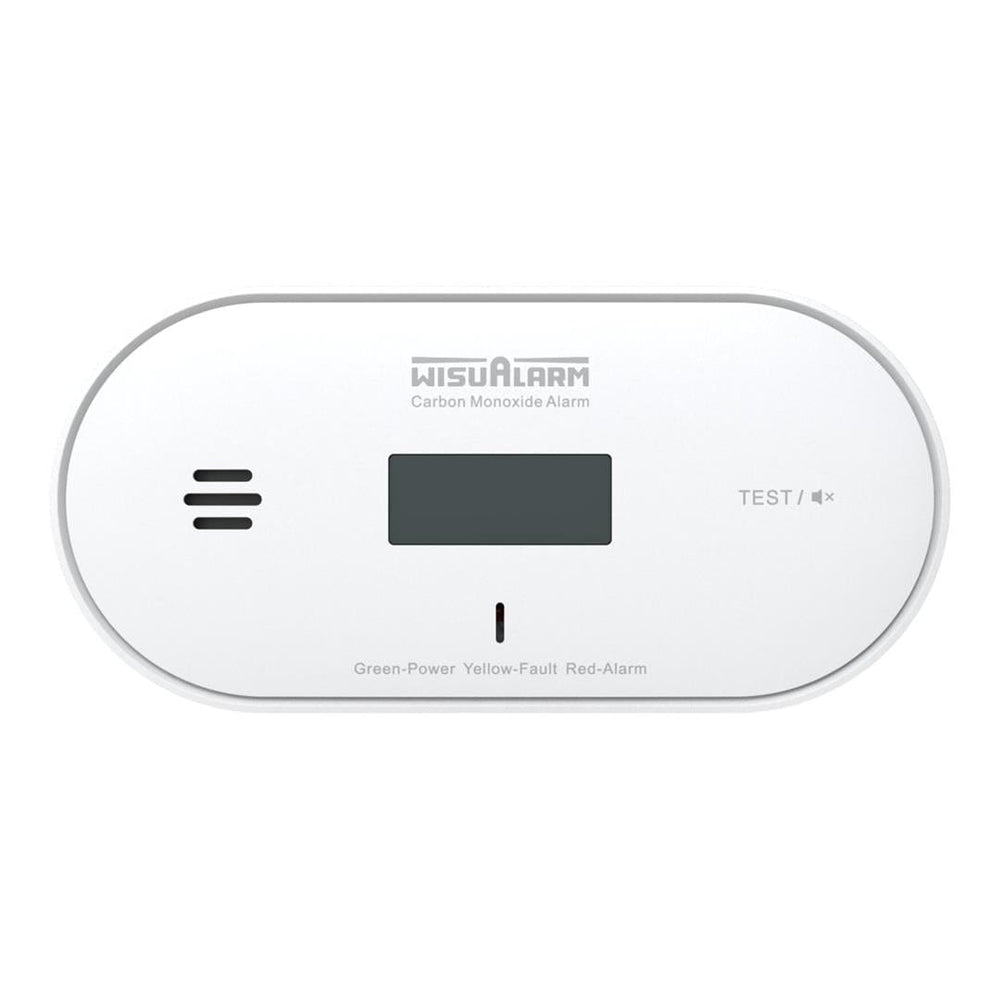

WisuAlarm Y-GC30A-R8 Fire Wireless Interconnected Carbon Monoxide Alarm

WisuAlarm Y-GC30A-R8 Fire Wireless Interconnected Carbon Monoxide Alarm

Real 10-Year Lifespan

24/7 continuous protection for yourhome

Visual and Audible Alarm

Three LED lights & alarm sound over 85dB

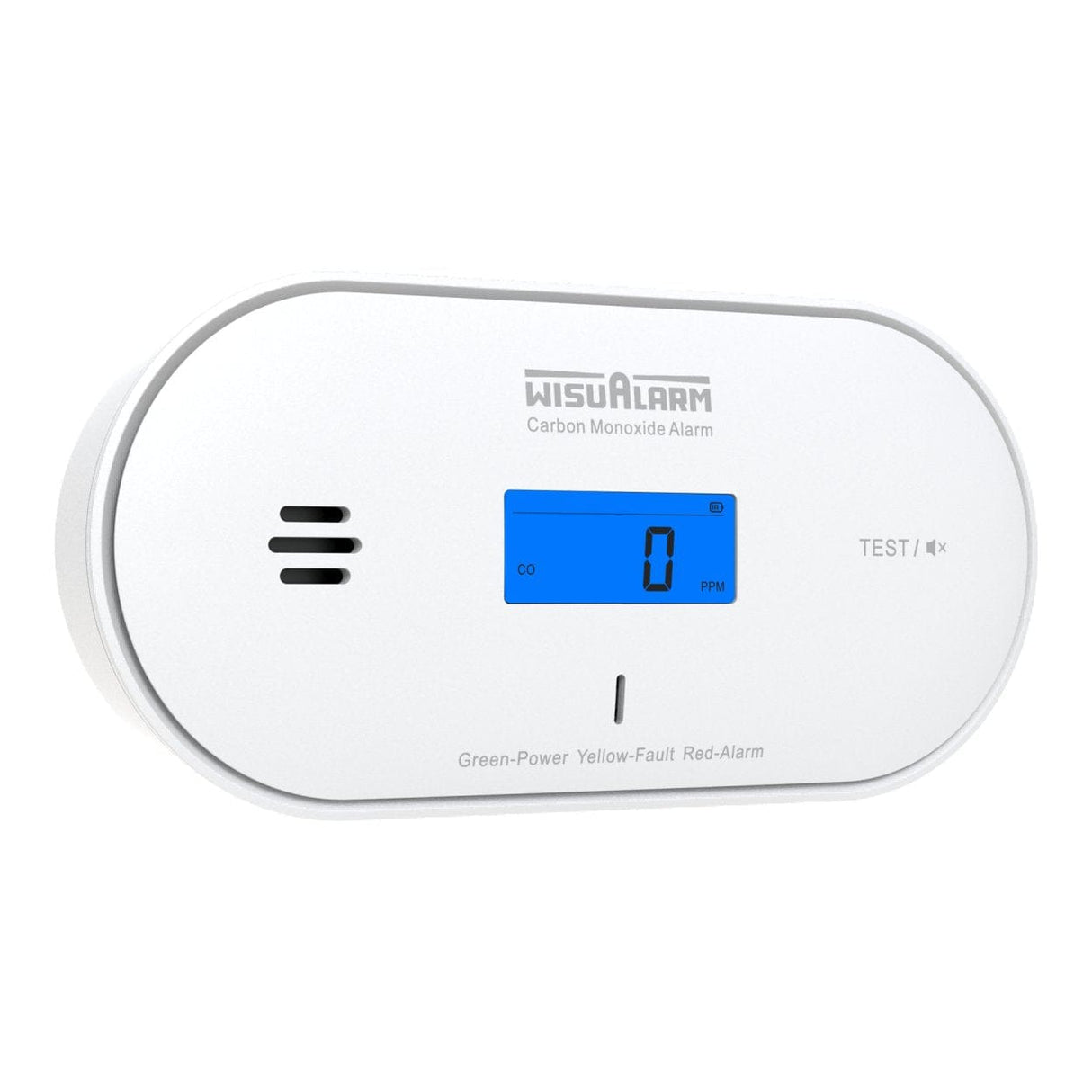

• Informative carbon monoxide concentration display in screen
• Power Source: 3V CR17450A lithium battery (nonreplaceable)
• Temperature and humidity measurement
• Long standby time, blue backlight function
• Battery Life: 10 Years

Specifications:

Collection Type: Carbon Monoxide (CO)

Sensor Type: Electrochemical

Alarm Type: CO alarm, fault warning, low battery warning

Alarm Volume: Over 85 dB (A) at 3 m (9.84 ft)

Alarm Mode: Visual and audible alarm

Silencing Function: Support

Silence Duration: About 9 minutes

Alarm Type:

• 50 ppm: 60 min–90 min
• 100 ppm: 10 min–40 min
• 300 ppm: < 3 min

Display: LCD

Indicator Light: LED (red/yellow/green)

LED Instructions

• Alarm: Red indicator
• Fault: Yellow indicator
• Power: Green indicator

Operating Frequency: 868MHZ

Radio Signal Range: Up to 1000 m (3280.84 ft) in open air

Maximum Number of Interconnected Units: 24pcs

Battery Life: 10 years

Power Source: 3V CR123A lithium battery (non-replaceable)

Operating Current:

• Monitoring current: ≤ 20uA
• Alarm current: ≤ 20mA

Operating Environment: Indoor use only

Operating Temperature: -10°C to +55°C

Operating Humidity: ≤ 95% RH (non condensing)

Temperature Accuracy: ±0.1°C typical

Humidity Accuracy: ±1.5%RH typical

Colour: White

Casing: PC+ABS

Dimensions: 133.5 mm × 63.5 mm × 28.9mm

Weight: 123 g

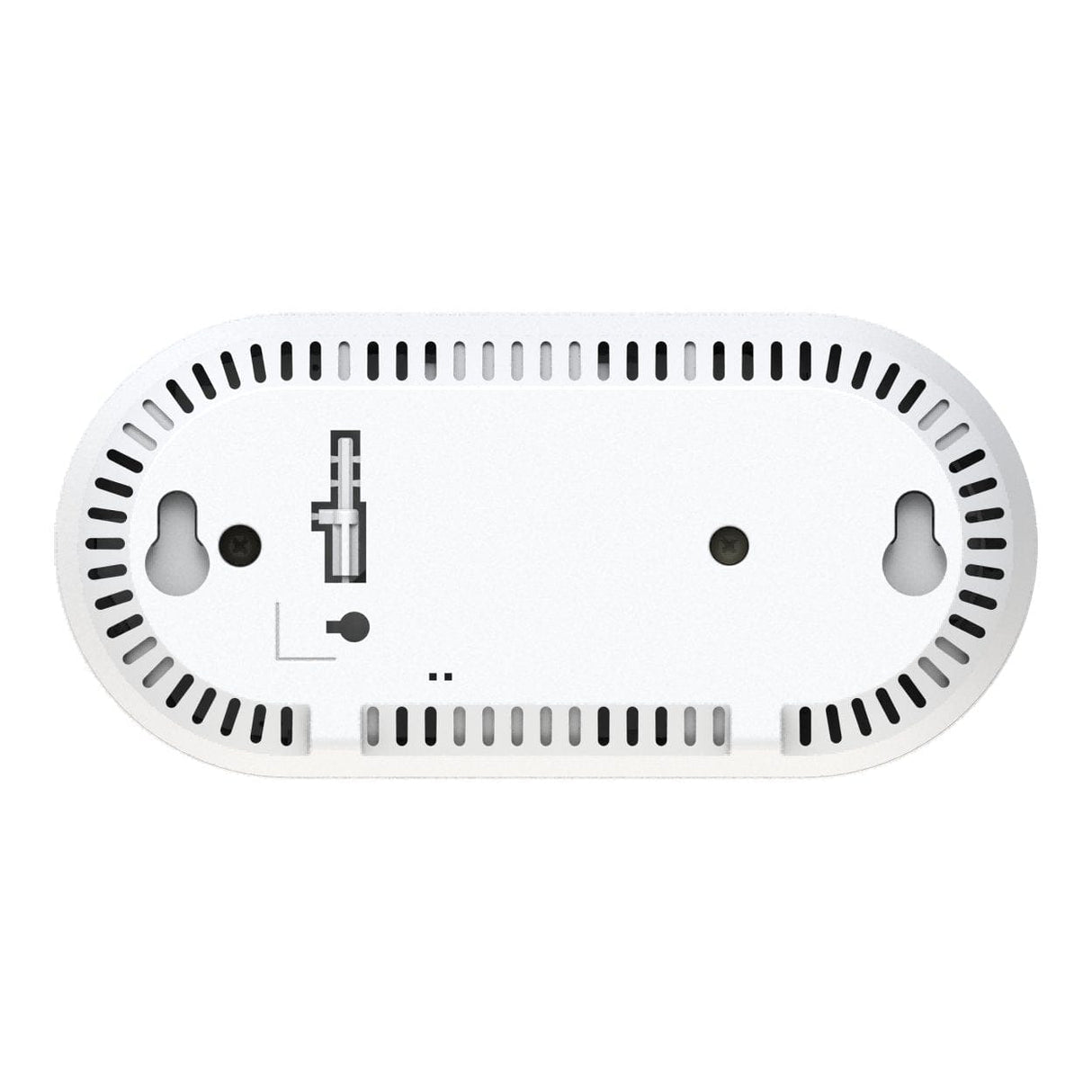

Installation: Wall mount/Free standing

Certifications: TUV, CE and UKCA listed

Compliance Standard

• EN 50291-1:2018
• BS EN 50291-1:2018
• EN 62479:2010
• EN 301 489-1 V2.2.3
• EN 301 489-3 V2.1.1
• EN 300 220-2 V3.1.1
• EN 50270:2015
