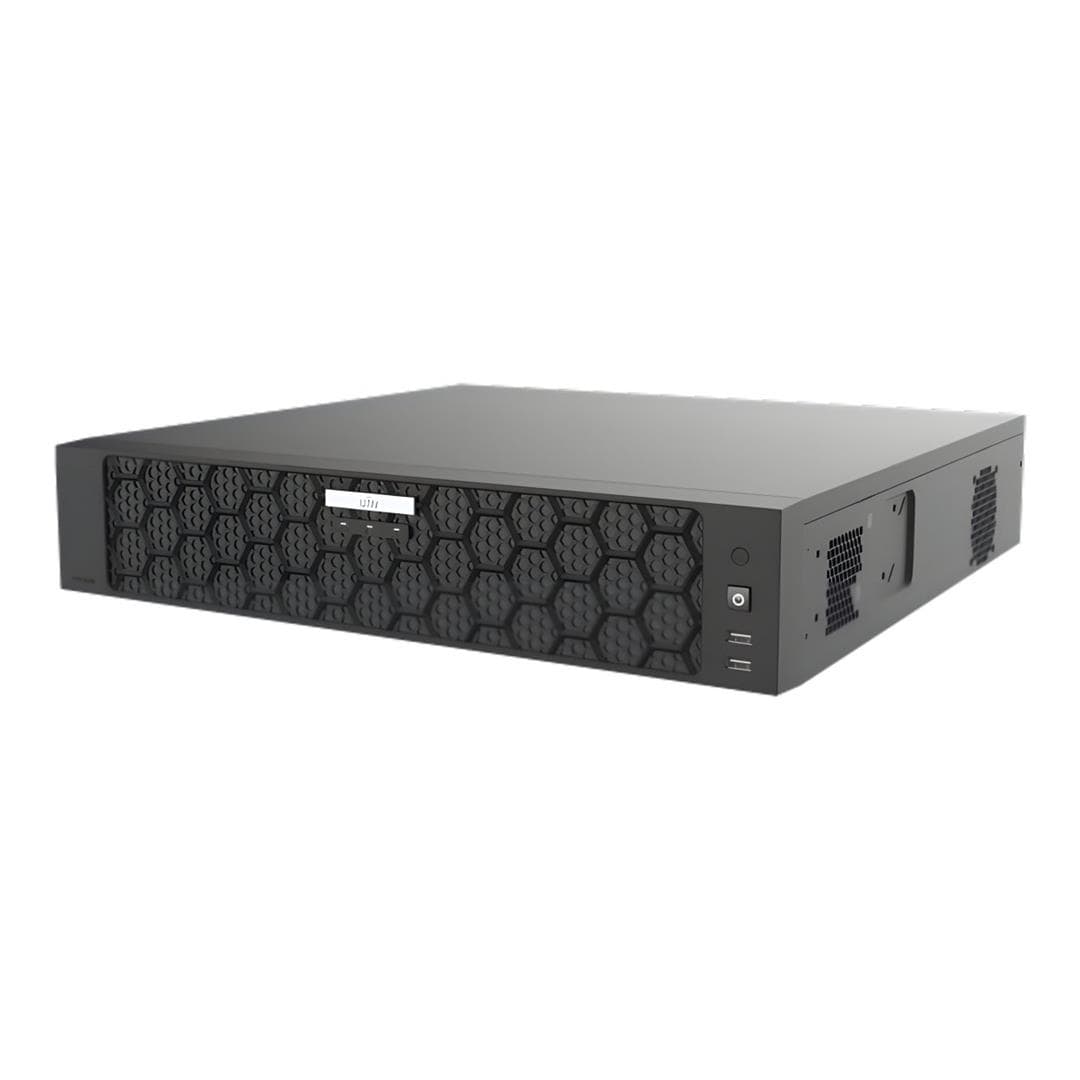

Uniview UNV IX Series 4 Hard Disks 64-Channel Network Video Recorder NVR804-64-IX-G

Uniview UNV IX Series 4 Hard Disks 64-Channel Network Video Recorder NVR804-64-IX-G

Features:

• Support Ultra H.265/H.265/H.264 video formats
• Support 64-channel input
• Support 3-ch HDMI, 1-ch VGA, HDMI1 and VGA simultaneous output, HDMI1 /VGA and HDMI2 and HDMI3 independent output.
• Support up to 4K resolution recording
• Support ANR technology to enhance the storage reliability when the network is disconnected
• Support SeekFree: up to 16-ch with 3rd party and UNV normal IPC, up to all channels with UNV SIP/UMD/etc. Smart IPC
• Support external USB keyboards
• Support SIP, UMD, Video Metadata, , Plate Comparison, People Counting, Face Detection and by NVR
• Support cloud upgrade

Technical Specifications:

Decoding
Decoding Format: Ultra 265, H.265, H.264
Decoding Capability:

• Smart Off (H.265):
  • 6 × 4K @ 30 fps
  • 8 × 6 MP @ 30 fps
  • 10 × 5 MP @ 30 fps
  • 12 × 4 MP @ 30 fps
  • 16 × 3 MP @ 30 fps
  • 25 × 1080p @ 30 fps
  • 32 × 720p @ 30 fps
  • 64 × D1 @ 30 fps
• Smart Off (H.264):
  • 6 × 4K @ 30 fps
  • 8 × 6 MP @ 30 fps
  • 10 × 5 MP @ 30 fps
  • 12 × 4 MP @ 30 fps
  • 16 × 3 MP @ 30 fps
  • 25 × 1080p @ 30 fps
  • 32 × 720p @ 30 fps
  • 64 × D1 @ 30 fps
• Smart On: Decoding capacity is the same as Smart Off

Decoding Capability Description: The resolution of each channel cannot exceed 8192 pixels in length or width
Audio Compression: G.711A, G.711U

Network
Incoming Bandwidth: 384 Mbps
Outgoing Bandwidth: 384 Mbps
Maximum Users Added: 32
Remote Users: 128
Protocols: TCP/IP, P2P, SMTP, RTSP, UPnP, NTP, DHCP, PPPoE, HTTP, DNS, DDNS, IPv4, IPv6, HTTPS, SNMP
Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Browser (Plugin-Free): Chrome 57+, Edge 16+, Firefox 58+, Safari 11+

Video and Audio Input
IP Video Input: 64 Channels
RCA Audio Input: 1 Channel

Peripheral Input
IP Speaker: 16 Channels
POS: All Channels

Video and Audio Output
Video Output: 3 × HDMI, 1 × VGA; HDMI1 and VGA simultaneous output; HDMI1/VGA, HDMI2, and HDMI3 independent output
HDMI Output:

• 3840 × 2160 @ 60 Hz
• 3840 × 2160 @ 30 Hz
• 1920 × 1080 @ 60 Hz
• 1280 × 720 @ 60 Hz

VGA Output:

• 1920 × 1080 @ 60 Hz
• 1280 × 720 @ 60 Hz

HDMI Standard: HDMI 1.4
RCA Audio Output: 3 Channels

Live View Display:

• HDMI1 and VGA: 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36 / 64
• HDMI2: 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36
• HDMI3: 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36

Default Number of Live Screens: HDMI1 and VGA: 64; HDMI2: 36; HDMI3: 36
Corridor Mode Screen: 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32
Playback Screen: 1 / 4 / 9 / 16
Corridor Mode Playback Screen: 1 / 3

Two-Way Audio
Two-Way Audio: 1 Channel, RCA (Using the Audio Input and Output)

Recording
Recording Resolution:

• 32 MP
• 16 MP
• 12 MP
• 8 MP
• 6 MP
• 5 MP
• 4 MP
• 3 MP
• 1080p
• 960p
• 720p
• D1
• 2CIF
• CIF

Concurrent Playback: 32 Channels
Synchronous Local Playback: 16 Channels

Smart Functions

Smart by IPC
Smart by IPC: All Channels (Up to 16 Images/s Total)

• Face Detection
• Vehicle Detection (LPR)
• Temperature Detection
• SIP
• UMD
• Video Metadata
• Traffic Monitoring
• People Counting

Smart by NVR
Smart by NVR:

• Face Detection
• Smart Intrusion Prevention (SIP)
• Video Metadata
• Plate Comparison
• Illegally Parked Motor Vehicle Detection
• Ultra Motion Detection (UMD)
• People Counting
• Crowd Density Monitoring
• Elevator Entrance Detection
• Evacuation Route Obstruction Detection

Smart by NVR Analyzer Mode:

• Mixed Mode (SIP + People Counting)
• Mixed Mode (Traffic Detection + AcuSearch/AcuTrack)
• Only one mode can be active at a time

VCA Search

• AcuSearch
• AcuTrack
• Motor Vehicle Search
• Non-Motor Vehicle Search
• Human Body Search
• General Search
• People Counting Report
• Behavior Search
• SmartSearch+
• Heat Map

AcuSearch
AcuSearch Performance:

• All Channels with UNV SIP/UMD Cameras
• Up to 16 Channels with Standard Cameras (16 × 2 MP, 8 × 4 MP, 4 × 4K)

AcuTrack
AcuTrack Performance:

• All Channels with UNV SIP/UMD Cameras
• Up to 16 Channels with Standard Cameras (16 × 2 MP, 8 × 4 MP, 4 × 4K)

SeekFree
SeekFree Performance:

• All Channels with UNV SIP/UMD Cameras
• Up to 16 Channels with Standard Cameras (16 × 2 MP, 8 × 4 MP, 4 × 4K)

SeekFree Language: English

Face Detection
Face Detection by NVR:

• Up to 32 Channels with UNV Face Detection Cameras
• Up to 16 Channels with Standard Cameras (16 × 2 MP, 8 × 4 MP, 4 × 4K)

Search by Image: Supported

SIP
SIP by NVR with Standard Cameras: Up to 16 Channels

UMD
UMD by NVR with Standard Cameras: Up to 16 Channels

Detection Types:

• No Helmet Detection
• No Chef Hat Detection
• No Work Clothes Detection
• Smoking Detection
• Smoke and Fire Detection
• Calling Detection
• No Mask Detection
• Rat Detection
• Long Stay Detection
• Fall Detection
• Fight Detection
• Absence Detection
• Quick Moving Detection
• People Dispersion Detection
• Mobile Phone Usage Detection
• No Reflective Clothing Detection
• Sleep on Duty Detection
• Climbing Detection
• Knife/Stick in Hand Detection

Video Metadata
Video Metadata by NVR with Standard Cameras: Up to 16 Channels

Video Metadata Types:

• Motor Vehicle: Vehicle Type, Vehicle Colour, Vehicle Brand, Direction, Plate Type, Plate Colour
• Human Body: Gender, Age, Mask, Bag Style, Direction, Upper Garment Length, Lower Garment Length, Upper Garment Colour, Lower Garment Colour
• Non-Motor Vehicle: Vehicle Type, Direction, Gender, Age, Upper Garment Length, Upper Garment Colour

Plate Comparison
Vehicle Number Library: Up to 5 Vehicle Picture Libraries with Up to 25,000 Vehicle Pictures Total

Snapshot Capacity

• 2 Million SIP Records
• 2 Million Vehicle Snapshot Records
• 3 Million Face Snapshot Records

Alarm

General Alarm

• Defocus Detection
• Scene Change Detection
• Object Left Behind
• Object Removed
• Auto Tracking
• Motion Detection
• Tampering
• Human Body Detection
• Video Loss
• Audio Detection
• Alarm Input

Alert Alarm

• IP Conflict
• Network Disconnected
• Disk Offline
• Disk Abnormal
• Illegal Access
• Low Hard Disk Space
• Hard Disk Full
• Recording/Snapshot Abnormal
• High CPU Temperature
• High Motherboard Temperature
• Array Damaged
• Array Degraded

Storage
SATA Interfaces: 4
Maximum HDD Capacity: Up to 24 TB per HDD
Disk Group: Supported
Redundant Storage: Supported

External Interfaces
Network Interface: 2 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet Ports
Network Working Mode: Multi-Access, Load Balancing, Network Fault Tolerance
USB Ports:

• Front Panel: 2 × USB 2.0
• Rear Panel: 2 × USB 3.0

RS485: 1
RS232: 1
Alarm Inputs: 16 Channels
Alarm Outputs: 10 Channels
eSATA: 1
Power Output: 12 V
Extension Board: 1
Buzzer: Supported

Power
Power Supply: AC 220 V
Power Switch: Supported

Operating Conditions
Working Temperature: -10°C to 55°C
Working Humidity: ≤ 90% RH (Non-Condensing)
Power Consumption (Without HDD): ≤ 50 W
Heat Dissipation: Fan and Radiator

Certifications
Certifications: CE, FCC, UL, RoHS, WEEE
CE Standards: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130
FCC Standard: Part 15 Subpart B
NDAA Compliant: Supported

Additional Features
Cruise Lines per Camera: 4
Preset Positions: 32
Fisheye Dewarping by IPC: Supported
Dual-Lens Camera Support: Supported
Box-Dome Linkage: Supported
ANR: Supported
Downlink ONVIF: Supported (Profile S)
Video Image Database (Uplink): Supported
UCS (WebSocket): Supported
NAS: Supported
Ucode Basic Mode: Supported
Ucode Advanced Mode: Supported

Languages
GUI Languages: 38 Languages Including English, French, German, Italian, Spanish, Portuguese, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Arabic, Hebrew, Korean, Japanese, Turkish, Thai, Vietnamese, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Persian, Simplified Chinese, and Traditional Chinese.
