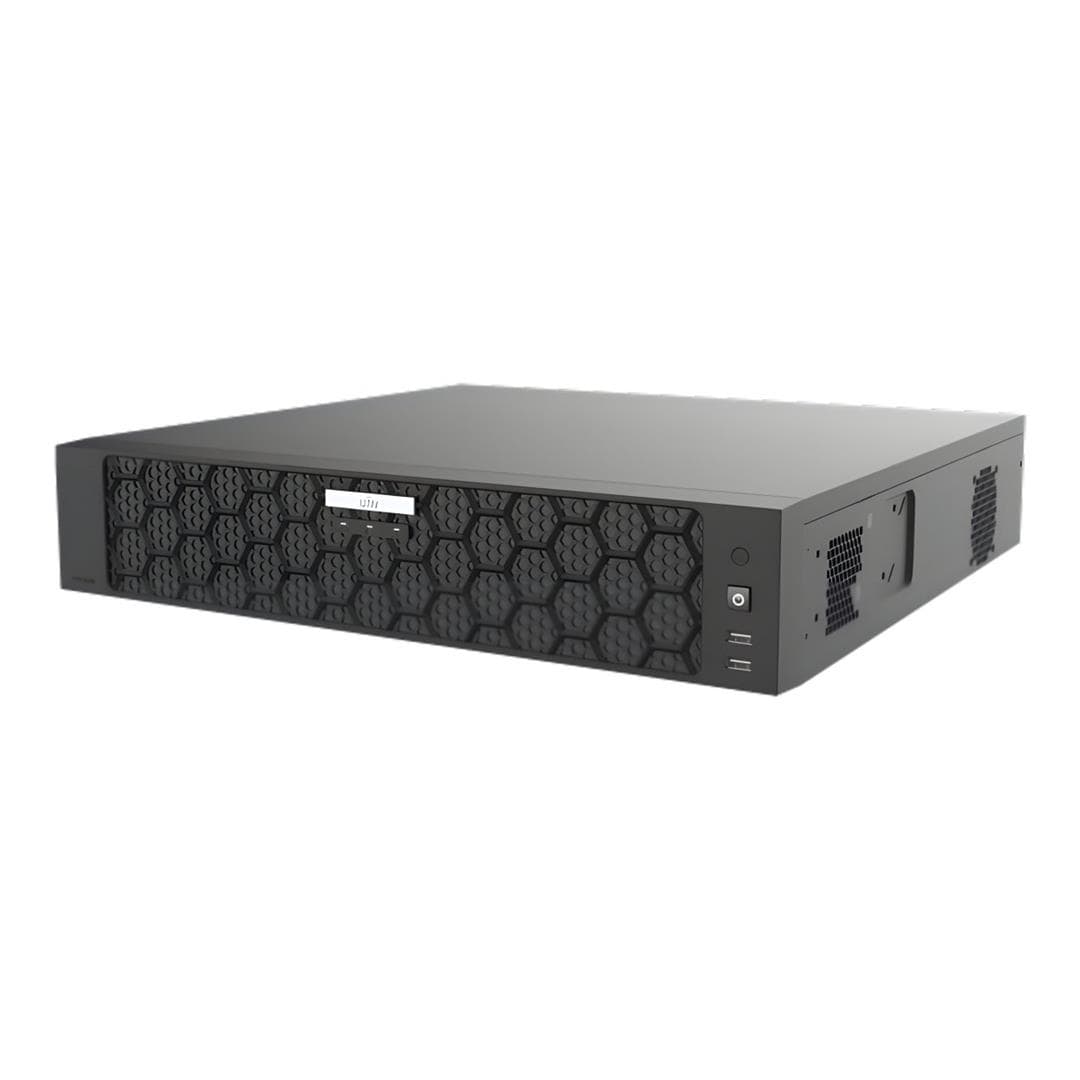

Uniview UNV IX Series 4 Hard Disks 32-Channel Network Video Recorder NVR804-32-IX-G

Uniview UNV IX Series 4 Hard Disks 32-Channel Network Video Recorder NVR804-32-IX-G

Features:

• Support Ultra H.265/H.265/H.264 video formats
• Support 32-channel input
• Support 3-ch HDMI, 1-ch VGA, HDMI1 and VGA simultaneous output, HDMI1 /VGA and HDMI2 and HDMI3 independent output.
• Support up to 4K resolution recording
• Support ANR technology to enhance the storage reliability when the network is disconnected
• Support SeekFree: up to 16-ch with 3rd party and UNV normal IPC, up to all channels with UNV SIP/UMD/etc. Smart IPC
• Support external USB keyboards
• Support SIP, UMD, Video Metadata, , Plate Comparison, People Counting, Face Detection and by NVR
• Support cloud upgrade

Technical Specifications:

Decoding
Decoding Format: Ultra 265, H.265, H.264
Decoding Capability:

• Smart Off (H.265):
  • 6 × 4K @ 30 fps
  • 8 × 6 MP @ 30 fps
  • 10 × 5 MP @ 30 fps
  • 12 × 4 MP @ 30 fps
  • 16 × 3 MP @ 30 fps
  • 25 × 1080p @ 30 fps
  • 32 × 720p @ 30 fps
  • 32 × D1 @ 60 fps
• Smart Off (H.264):
  • 6 × 4K @ 30 fps
  • 8 × 6 MP @ 30 fps
  • 10 × 5 MP @ 30 fps
  • 12 × 4 MP @ 30 fps
  • 16 × 3 MP @ 30 fps
  • 25 × 1080p @ 30 fps
  • 32 × 720p @ 30 fps
  • 32 × D1 @ 60 fps
• Smart On: Decoding capacity is the same as Smart Off

Decoding Capability Description: Resolution of each channel cannot exceed 8192 pixels in length or width
Audio Compression: G.711A, G.711U

Network
Incoming Bandwidth: 384 Mbps
Outgoing Bandwidth: 384 Mbps
Maximum Users Added: 32
Remote Users: 128
Protocols: TCP/IP, P2P, SMTP, RTSP, UPnP, NTP, DHCP, PPPoE, HTTP, DNS, DDNS, IPv6, IPv4, HTTPS, SNMP
Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Browser (Plugin-Free): Chrome 57+, Edge 16+, Firefox 58+, Safari 11+

Video and Audio Input
IP Video Input: 32 Channels
RCA Audio Input: 1 Channel

Peripheral Input
IP Speaker: 16 Channels
POS: All Channels

Video and Audio Output
Video Output: 3 × HDMI, 1 × VGA; HDMI1 and VGA simultaneous output; HDMI1/VGA, HDMI2, and HDMI3 independent output
HDMI Output:

• 3840 × 2160 @ 60 Hz
• 3840 × 2160 @ 30 Hz
• 1920 × 1080 @ 60 Hz
• 1280 × 720 @ 60 Hz

VGA Output:

• 1920 × 1080 @ 60 Hz
• 1280 × 720 @ 60 Hz

HDMI Standard: HDMI 1.4
RCA Audio Output: 3 Channels

Live View Display:

• HDMI1 and VGA/HDMI2/HDMI3: 1 / 4 / 6 / 8 / 9 / 16 / 25 / 32

Default Number of Live Screens: 32
Corridor Mode Screen: 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32
Playback Screen: 1 / 4 / 9 / 16
Corridor Mode Playback Screen: 1 / 3

Two-Way Audio: 1 Channel, RCA (Using Audio Input and Output)

Recording
Recording Resolution:

• 32 MP
• 16 MP
• 12 MP
• 8 MP
• 6 MP
• 5 MP
• 4 MP
• 3 MP
• 1080p
• 960p
• 720p
• D1
• 2CIF
• CIF

Concurrent Playback: 32 Channels
Synchronous Local Playback: 16 Channels

Smart Functions
Smart by IPC: All Channels (Up to 16 Images/s Total)

• Face Detection
• Vehicle Detection (LPR)
• Temperature Detection
• SIP
• UMD
• Video Metadata
• Traffic Monitoring
• People Counting

Smart by NVR:

• Face Detection
• Smart Intrusion Prevention (SIP)
• Video Metadata
• Plate Comparison
• Illegally Parked Motor Vehicle Detection
• Ultra Motion Detection (UMD)
• People Counting
• Crowd Density Monitoring
• Elevator Entrance Detection
• Evacuation Route Obstruction Detection

Smart by NVR Analyzer Mode:

• Mixed Mode (SIP + People Counting)
• Mixed Mode (Traffic Detection + AcuSearch/AcuTrack)
• Only one mode can be active at a time

VCA Search:

• AcuSearch
• AcuTrack
• Motor Vehicle Search
• Non-Motor Vehicle Search
• Human Body Search
• General Search
• People Counting Report
• Behavior Search
• SmartSearch+
• Heat Map

AcuSearch Performance:

• All Channels with UNV SIP/UMD Cameras
• Up to 16 Channels with Standard Cameras (16 × 2 MP, 8 × 4 MP, 4 × 4K)

AcuTrack Performance:

• All Channels with UNV SIP/UMD Cameras
• Up to 16 Channels with Standard Cameras (16 × 2 MP, 8 × 4 MP, 4 × 4K)

SeekFree Performance:

• All Channels with UNV SIP/UMD Cameras
• Up to 16 Channels with Standard Cameras (16 × 2 MP, 8 × 4 MP, 4 × 4K)

SeekFree Language: English

Face Detection by NVR:

• Up to 32 Channels with UNV Face Detection Cameras
• Up to 16 Channels with Standard Cameras (16 × 2 MP, 8 × 4 MP, 4 × 4K)

Search by Image: Supported

SIP by NVR with Standard Cameras: Up to 16 Channels

UMD by NVR with Standard Cameras: Up to 16 Channels

AI Detection Types:

• No Helmet Detection
• No Chef Hat Detection
• No Work Clothes Detection
• Smoking Detection
• Smoke and Fire Detection
• Calling Detection
• No Mask Detection
• Rat Detection
• Long Stay Detection
• Fall Detection
• Fight Detection
• Absence Detection
• Quick Moving Detection
• People Dispersion Detection
• Mobile Phone Usage Detection
• No Reflective Clothing Detection
• Sleep on Duty Detection
• Climbing Detection
• Knife/Stick in Hand Detection

Video Metadata by NVR with Standard Cameras: Up to 16 Channels

Video Metadata Types:

• Motor Vehicle: Vehicle Type, Vehicle Colour, Vehicle Brand, Direction, Plate Type, Plate Colour
• Human Body: Gender, Age, Mask, Bag Style, Direction, Upper Garment Length, Lower Garment Length, Upper Garment Colour, Lower Garment Colour
• Non-Motor Vehicle: Vehicle Type, Direction, Gender, Age, Upper Garment Length, Upper Garment Colour

Plate Comparison Vehicle Library: Up to 5 Libraries with 25,000 Vehicle Images Total

Snapshot Capacity:

• 2 Million SIP Records
• 2 Million Vehicle Snapshot Records
• 3 Million Face Snapshot Records

Alarm
General Alarm Functions:

• Defocus Detection
• Scene Change Detection
• Object Left Behind
• Object Removed
• Auto Tracking
• Motion Detection
• Tampering
• Human Body Detection
• Video Loss
• Audio Detection
• Alarm Input

Alert Alarms:

• IP Conflict
• Network Disconnected
• Disk Offline
• Disk Abnormal
• Illegal Access
• Low Hard Disk Space
• Hard Disk Full
• Recording/Snapshot Abnormal
• High CPU Temperature
• High Motherboard Temperature
• Array Damaged
• Array Degraded

Storage
SATA Interfaces: 4
Maximum HDD Capacity: Up to 24 TB per HDD
Disk Group: Supported
Redundant Storage: Supported
RAID Support: RAID 0, RAID 1, RAID 5

External Interfaces
Network Interface: 2 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet Ports
Network Working Mode: Multi-Access, Load Balancing, Network Fault Tolerance
USB Ports:

• Front: 2 × USB 2.0
• Rear: 2 × USB 3.0

RS485: 1
RS232: 1
Alarm Input: 16 Channels
Alarm Output: 10 Channels
eSATA: 1
Power Output: 12 V
Extension Board: 1
Buzzer: Supported

Power
Power Supply: AC 220 V
Power Switch: Supported
Redundant Power Supply: Not Supported

Operating Conditions
Working Temperature: -10°C to 55°C
Working Humidity: ≤ 90% RH (Non-Condensing)
Power Consumption (Without HDD): ≤ 50 W
Heat Dissipation: Fan and Radiator

Certifications
Certifications: CE, FCC, UL, RoHS, WEEE
CE Standards: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130
FCC Standard: Part 15 Subpart B
NDAA Compliant: Supported

Additional Features
Cruise Lines per Camera: 4
Preset Positions: 32
Fisheye Dewarping by IPC: Supported
Dual-Lens Camera Support: Supported
Box-Dome Linkage: Supported
ANR: Supported
Downlink ONVIF: Supported (Profile S)
Video Image Database (Uplink): Supported
UCS (WebSocket): Supported
NAS: Supported
Ucode Basic Mode: Supported
Ucode Advanced Mode: Supported

GUI Languages
Languages Supported: 38 Languages Including English, French, German, Italian, Spanish, Portuguese, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Arabic, Hebrew, Korean, Japanese, Turkish, Thai, Vietnamese, Ukrainian, and Others.
