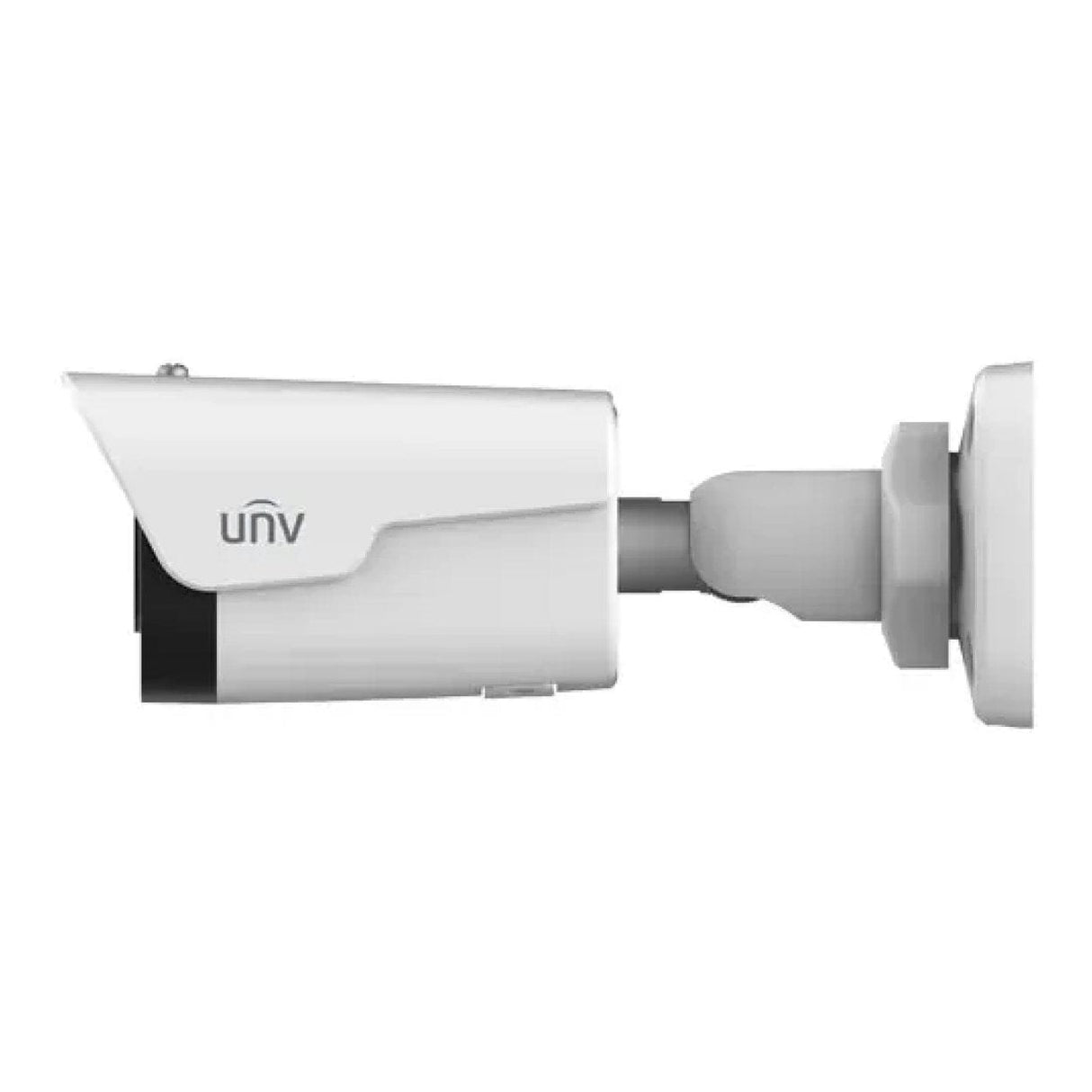

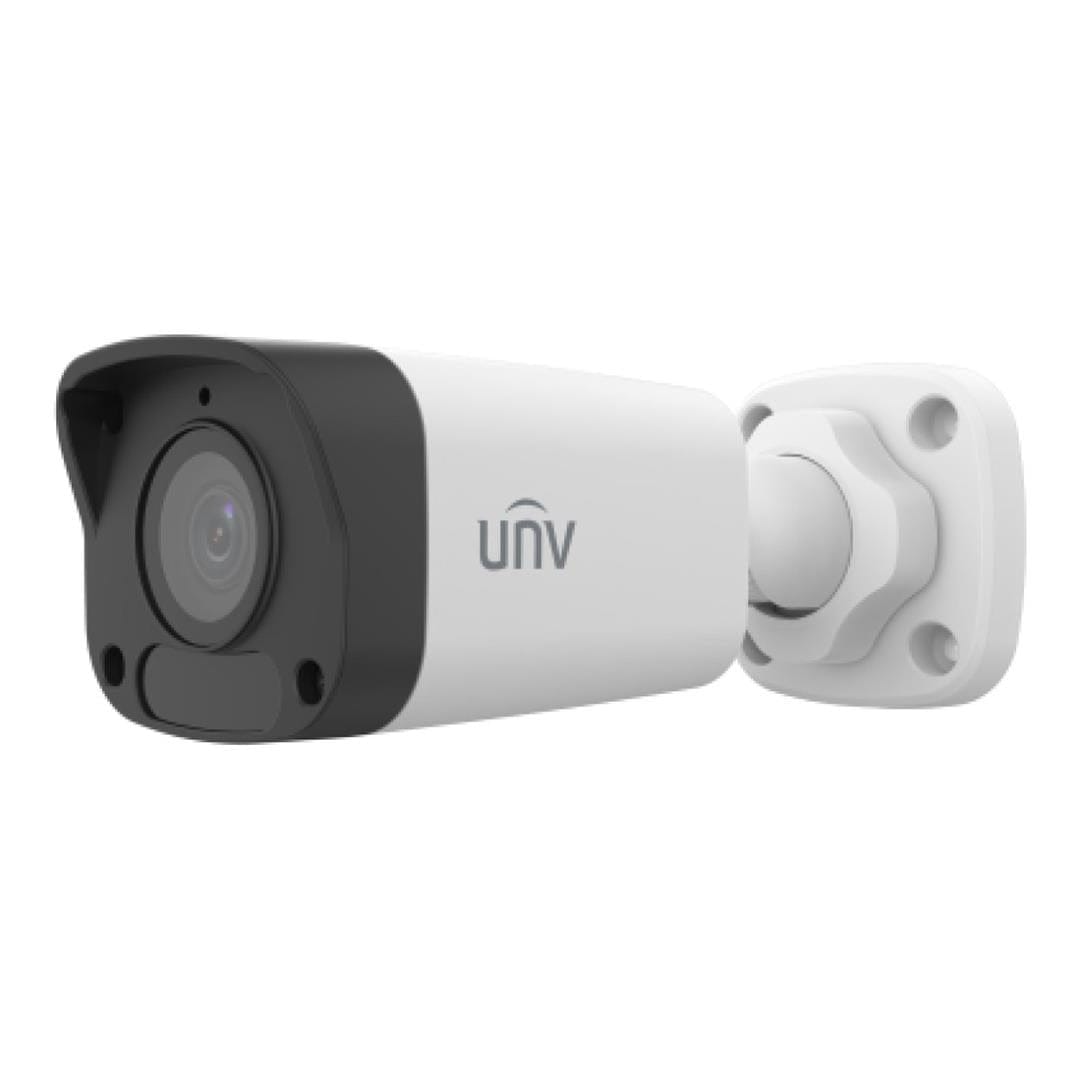

Uniview UNV 4MP Mini Fixed Bullet IP Camera IPC2124LB-AF40-A2

Uniview UNV 4MP Mini Fixed Bullet IP Camera IPC2124LB-AF40-A2

Features:

• High quality image with 4 MP, 1/3.0" CMOS sensor
• 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Supports accurate human body detection 2.0
• Ultra 265, H.265, H.264
• Built-in mic
• Smart IR, up to 30 m (98.4 ft) IR distance
• Day/night functionality
• 2D/3D DNR (digital noise reduction)
• DC 12 V, PoE (IEEE 802.3af) power supply
• IP67 protection
• 3-axis

Technical Specifications:

Camera:
Max Resolution: 4 MP
Sensor: 1/3.0" CMOS
Minimum Illumination: Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 to 1/100,000 s
Adjustment Angle: Pan 0°–360°, Tilt 0°–90°, Rotate 0°–360°
Signal-to-Noise Ratio (S/N): > 52 dB
Wide Dynamic Range (WDR): DWDR

Lens:
Focal Length: 4.0 mm
Iris Type: Fixed
Iris: F2.0
Field of View (H): 73.4°
Field of View (V): 40.4°
Field of View (D): 79.5°
Lens Type: Fixed

DORI (Detection, Observation, Recognition, Identification) Distances:
Detect: 90.0 m (295.3 ft.)
Observe: 36.0 m (118.1 ft.)
Recognize: 18.0 m (59.1 ft.)
Identify: 9.0 m (29.5 ft.)

Camera: Max Resolution 4 MP, Sensor 1/3.0" CMOS, Minimum Illumination Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on, Day/Night IR-cut filter with auto switch (ICR), Shutter Auto/Manual 1 to 1/100,000 s, Adjustment Angle Pan 0°–360°, Tilt 0°–90°, Rotate 0°–360°, Signal-to-Noise Ratio >52 dB, Wide Dynamic Range DWDR.

Lens: Focal Length 4.0 mm, Fixed Iris F2.0, Field of View Horizontal 73.4°, Vertical 40.4°, Diagonal 79.5°, Lens Type Fixed.

DORI Distances: Detect 90.0 m, Observe 36.0 m, Recognize 18.0 m, Identify 9.0 m.

Illuminator: Supplemental IR light, Illumination Distance 30 m, Wavelength 850 nm, IR Control Auto/Manual.

Video: Compression Ultra 265, H.265, H.264, H.264 Profiles Baseline/Main/High, Frame Rate Main Stream 4 MP 25 fps, 3 MP 30 fps, 1080P 30 fps; Sub Stream 640×360 30 fps, 2CIF 30 fps, CIF 30 fps. Bit Rate 128 Kbps–6144 Kbps, U-code Supported, Up to 4 OSDs, Privacy Mask 4 areas, ROI Supported, Dual Video Streams.

Image: White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2/Area White Balance, 2D/3D DNR, Smart IR Supported, Flip Normal/Vertical/Horizontal/180°, HLC and BLC Supported, Digital Defog.

Events: Basic Detection Human body detection 2.0, Motion detection, Audio detection; General Function Watermark, IP filtering, Access policy, ARP protection, RTSP/HTTP authentication, User authentication.

Audio: Compression G.711U/G.711A, Bitrate 64 Kbps, Two-way Audio N/A, Suppression Supported, Sampling Rate 8 kHz, Built-in Mic Supported.

Network: Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS. Compatible Integration ONVIF (Profile S/T), API, SDK. Up to 32 users with 3 levels (administrator, common user, operator). Client UNV-Link, UNV-Link Pro, EZStation. Web Browser Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+; Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+.

Interface: 1 × RJ45 10 M/100 M Base-TX Ethernet, Audio I/O N/A, Alarm I/O N/A, Serial Port N/A, Built-in Speaker N/A, Wi-Fi N/A, Video Output N/A.

Certification: EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC 47 CFR part 15B. Safety CE LVD EN 62368-1, UL/CUL UL 62368-1. Environment CE-RoHS 2011/65/EU; WEEE 2012/19/EU. Protection IP67.

General: Power DC 12 V ±25%, PoE (IEEE 802.3af), Max Power Consumption 3.9 W, Power Interface Ø5.5 mm coaxial, Dimensions 157.5 × 62.5 × 62.7 mm, Weight 0.19 kg, Material Graphene + Plastic. Working and Storage Environment -30 ℃ to 60 ℃, Humidity ≤95% RH non-condensing, Surge Protection 4 KV. Web Client Language 4: English, Russian, Spanish, Vietnamese.
