Uniview UNV 4MP 2.8mm Fixed IR Dome Network Camera IPC324LB-AF28-A2

Uniview UNV 4MP 2.8mm Fixed IR Dome Network Camera IPC324LB-AF28-A2

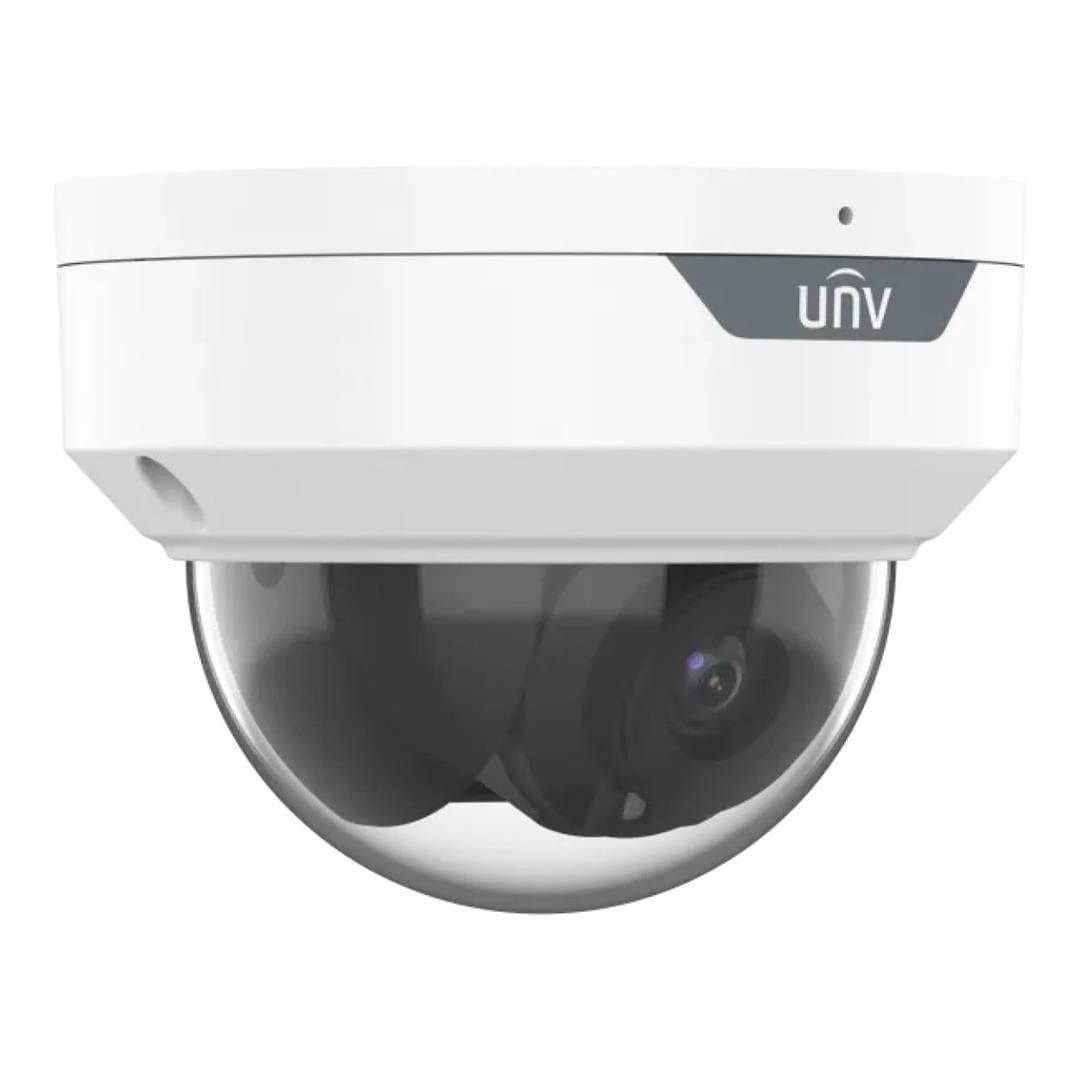

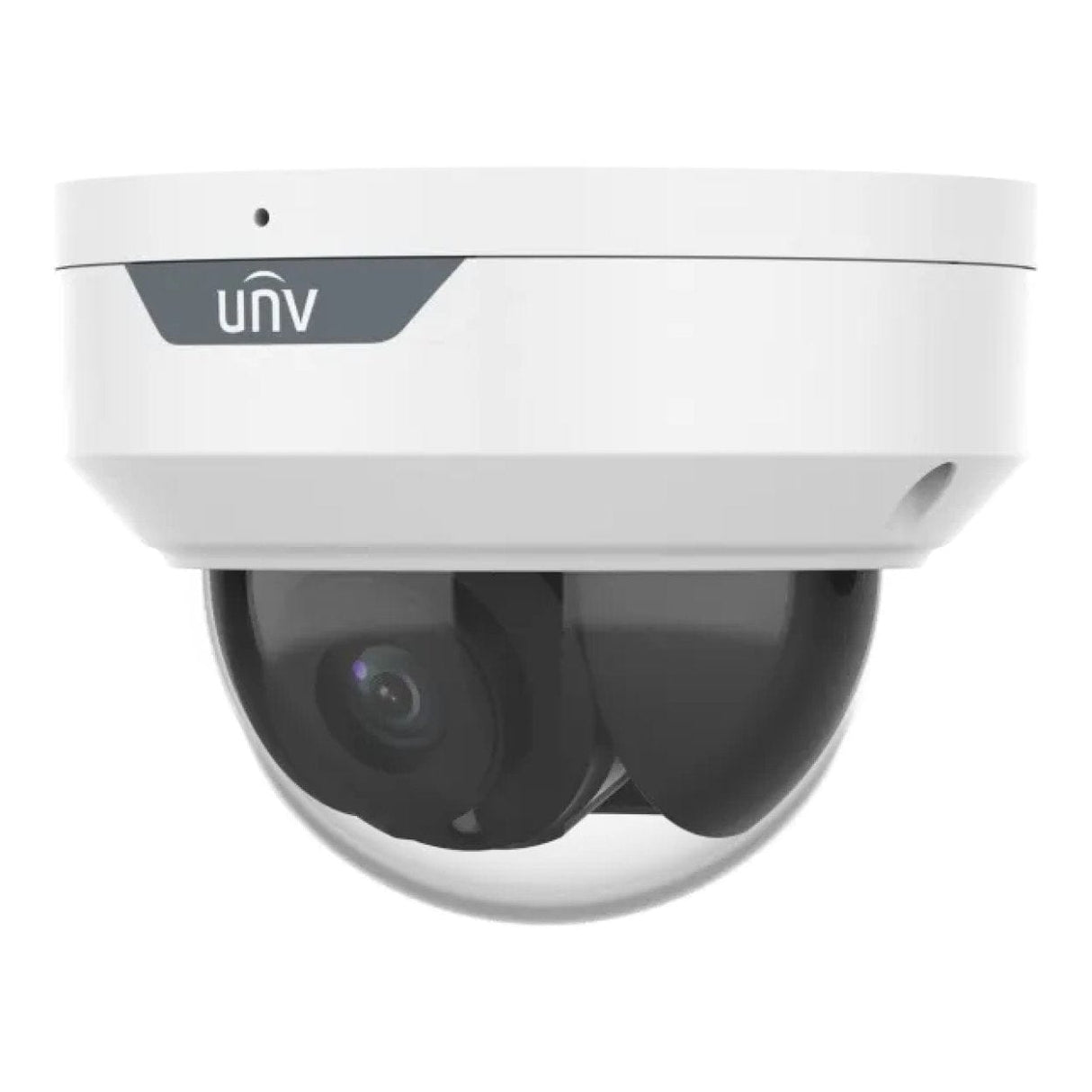

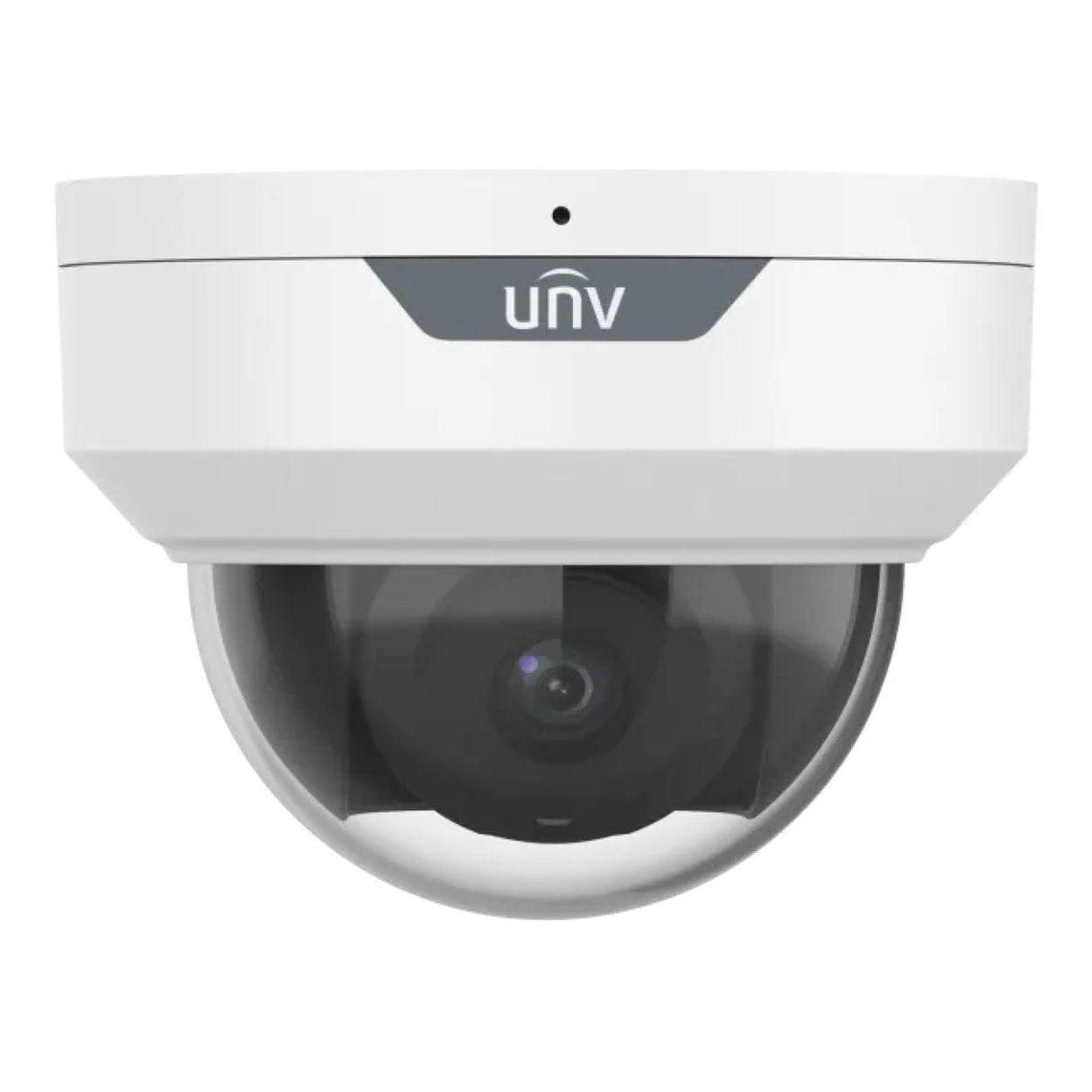

The Uniview IPC324LB-AF28(40)-A2 is a 4MP fixed dome camera with built-in Human Body Detection 2.0 for accurate motion alerts. It uses a 1/3.0" CMOS sensor to deliver 2560 × 1440 resolution at up to 25fps and includes a built-in microphone for audio recording.

Smart IR enables night vision up to 30 metres, while 2D/3D DNR and true day/night functionality maintain image clarity in changing light conditions. The camera supports Ultra H.265, H.265, and H.264 for efficient video compression. Housed in an IP67-rated and IK10 vandal-resistant enclosure, it’s suitable for outdoor and high-traffic areas. Power is provided via 12V DC or PoE.

Features:

• High quality image with 4 MP, 1/3.0" CMOS sensor
• 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Supports accurate human body detection 2.0
• Ultra 265, H.265, H.264
• Built-in mic
• Smart IR, up to 30 m (98.4 ft) IR distance
• Day/night functionality
• 2D/3D DNR (digital noise reduction)
• DC 12 V, PoE (IEEE 802.3af) power supply
• IP67 protection
• IK10 vandal resistant
• 2-axis

Technical Specifications:

Camera
Max Resolution 4 MP
Sensor 1/3.0" CMOS
Min. Illumination Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 to 1/100000 s
Adjustment Angle Pan: 3° to 360°, Tilt: 0° to 75°
S/N > 52 dB
WDR DWDR

Lens
Focal Length 2.8 mm
Iris Type Fixed
Iris F2.0
Field of View (H) 94.3°
Field of View (V) 52.2°
Field of View (D) 99.6°
Lens Type Fixed

DORI
DORI Distance (Lens) 2.8 mm
DORI Distance (Detect) 63.0 m (206.7 ft.)
DORI Distance (Observe) 25.2 m (82.7 ft.)
DORI Distance (Recognize) 12.6 m (41.3 ft.)
DORI Distance (Identify) 6.3 m (20.7 ft.)

Illuminator
Supplemental Light IR
Illumination Distance (IR) 30 m (98.4 ft)
Wavelength 850 nm
IR On/Off Control Auto/Manual

Video
Video Compression Ultra 265, H.265, H.264
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps
Sub Stream: 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate 128 Kbps to 6144 Kbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Support
Video Stream Dual streams

White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal, Flip vertical, Flip horizontal, 180°
HLC Support
BLC Support
Defog Digital defog

Events
Basic Detection Human body detection 2.0, Motion detection, Audio detection
General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8 kHz

Storage
Edge Storage N/A

Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile T), API, SDK
User/Host Up to 32 users; 3 user levels: administrator, common user and operator
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client EZStation, APP
Web Browser Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+; Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A

Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part 15 B)
Safety CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529), IK10 (IEC 62262)

General
Power DC 12 V ± 25%, PoE (IEEE 802.3af)
Power Consumption Max. 3.9 W
Power Interface Ø5.5 mm coaxial power plug
Dimensions Ø111 mm × 82.5 mm (Ø4.4" × 3.2") (Ø × H)
Weight 0.35 kg (0.77 lb)
Material Metal + Plastic
Working Environment -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% RH (non-condensing)
Storage Environment -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% RH (non-condensing)
Surge Protection 4 KV
Reset Button N/A
Web Client Language 4 Languages: English, Russian, Spanish, Vietnamese
