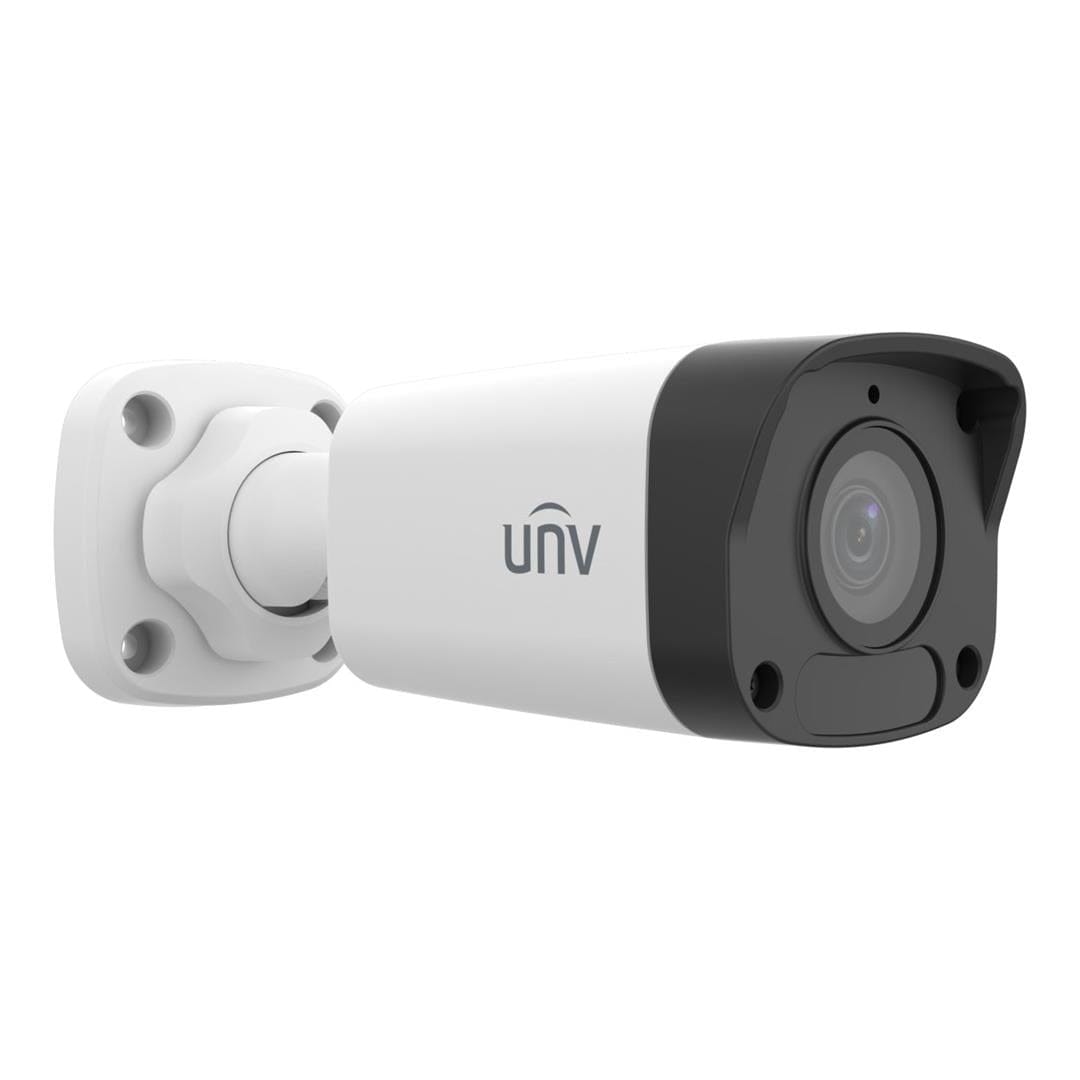

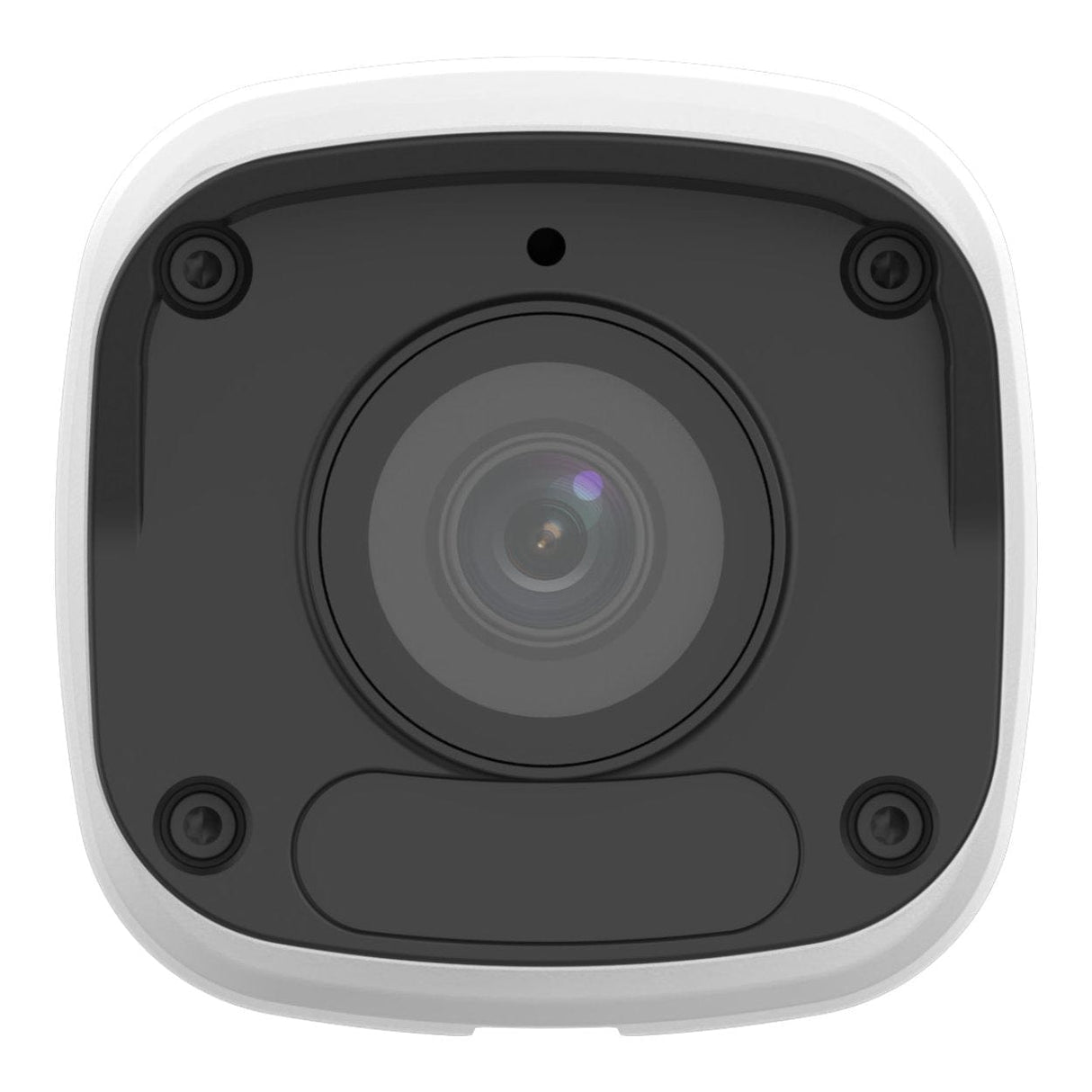

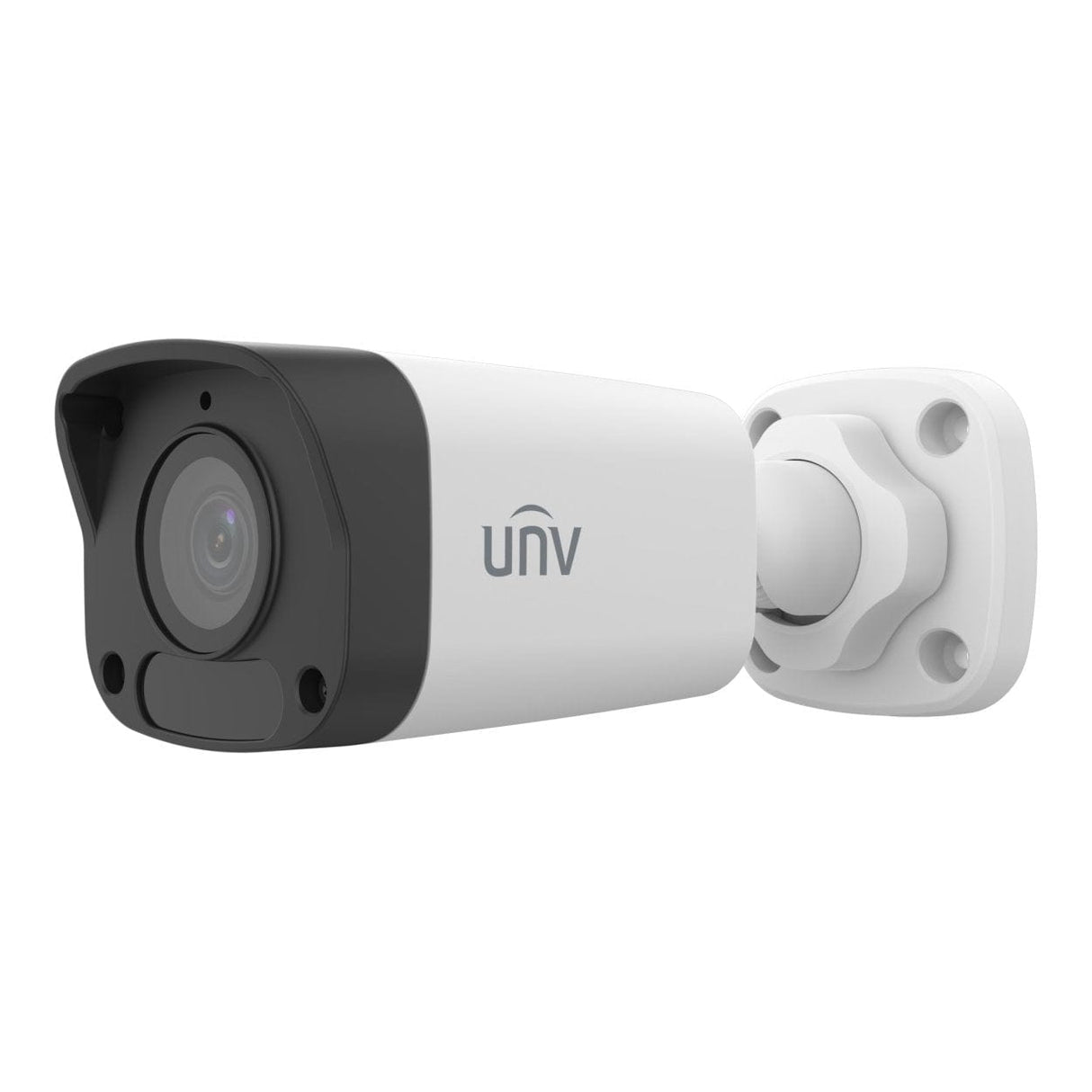

Uniview UNV 2MP Mini Fixed Bullet IP Camera 4.00mm Lens IPC2122LB-AF40-A2

Uniview UNV 2MP Mini Fixed Bullet IP Camera 4.00mm Lens IPC2122LB-AF40-A2

The UNV IPC2122LB-AF40-A2 is a powerful 2MP bullet network camera, delivering reliable surveillance for a variety of environments. Equipped with a 1/3.0" CMOS sensor, it captures Full HD video at 1920x1080 resolution and 30fps, ensuring clear, high-quality footage. Featuring Human Body Detection 2.0, the camera accurately detects movement, reducing false alarms. It supports Ultra H.265, H.265, and H.264 compression formats, optimising bandwidth and storage without compromising video quality.

Features:

•  High quality image with 2MP, 1/3.0" CMOS sensor
• 2MP (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
• Support accurate Human Body Detection 2.0
• Ultra H.265, H.265, H.264
• Built in Mic
• Smart IR, up to 30 m (98 ft) IR distance
• Day/night functionality
• 2D/3D DNR (Digital Noise Reduction)
• DC12 V or PoE (IEEE 802.3af) power supply
• IP67 protection
• 3 Axis

Technical Specifications:

Camera
Max Resolution: 2 MP
Sensor: 1/3.0" CMOS
Min. Illumination: Colour: 0.01 lux (F2.0, AGC ON), 0 lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N: >52 dB
WDR: DWDR

Lens
Focal Length: 2.8 mm, 4.0 mm
Iris Type: Fixed
Iris: F2.0
Field of View (H): 99.5°, 77.1°
Field of View (V): 56.5°, 42.8°
Field of View (D): 114.4°, 88.2°
Lens Type: Fixed

DORI
DORI Distance (Lens): 2.8 mm, 4.0 mm
DORI Distance (Detect): 46.7 m (153.1 ft), 66.7 m (218.7 ft)
DORI Distance (Observe): 18.7 m (61.2 ft), 26.7 m (87.5 ft)
DORI Distance (Recognize): 9.3 m (30.6 ft), 13.3 m (43.7 ft)
DORI Distance (Identify): 4.7 m (15.3 ft), 6.7 m (21.9 ft)

Illuminator
Supplemental Light: IR
Illumination Distance (IR): 30 m (98.4 ft)
Wavelength: 850 nm
IR On/Off Control: Auto/Manual

Video
Video Compression: Ultra 265, H.265, H.264
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 2MP (1920×1080), Max 30fps; 720P (1280×720), Max 30fps
Sub Stream: 640×360, Max 30fps; 2CIF (704×288), Max 30fps; CIF (352×288), Max 30fps
Video Bit Rate: 128 Kbps to 6144 Kbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Support
Video Stream: Dual streams

White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal, Flip vertical, Flip horizontal, 180°
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital defog
Image Stabilization: N/A

Events
Basic Detection: Human body detection 2.0, Motion detection, Audio detection
General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio
Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: N/A
Suppression: Support
Sampling Rate: 8 kHz

Storage
Edge Storage: N/A

Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, QoS
Compatible Integration: ONVIF (Profile S, Profile T), API, SDK
User/Host: Up to 32 users, 2 user levels: administrator and common user
Security: Password Protection, Strong Password, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
Client: UNV-Link, UNV-Link Pro, EZStation
Web Browser: Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface
Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: N/A
WIFI: N/A
Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output: N/A

Certification
EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
Safety: CE LVD (EN 62368-1)
Environment: CE-RoHS (2011/65/EU; (EU) 2015/863), WEEE (2012/19/EU)
Protection: IP67 (IEC 60529)

General
Power: DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption: Max 3.9 W
Power Interface: Ø5.5 mm coaxial power plug
Dimensions: 157.5 × 62.5 × 62.7 mm (6.2” × 2.5” × 2.5”) (L x W x H)
Weight: 0.19 kg (0.42 lb)
Material: Graphene + Plastic
Working Environment: –30 ℃ to 60 ℃ (–22 ℉ to 140 ℉), Humidity ≤ 95% RH (non-condensing)
Storage Environment: –30 ℃ to 60 ℃ (–22 ℉ to 140 ℉), Humidity ≤ 95% RH (non-condensing)
Surge Protection: 4 KV
Reset Button: N/A
Web Client Language: English
