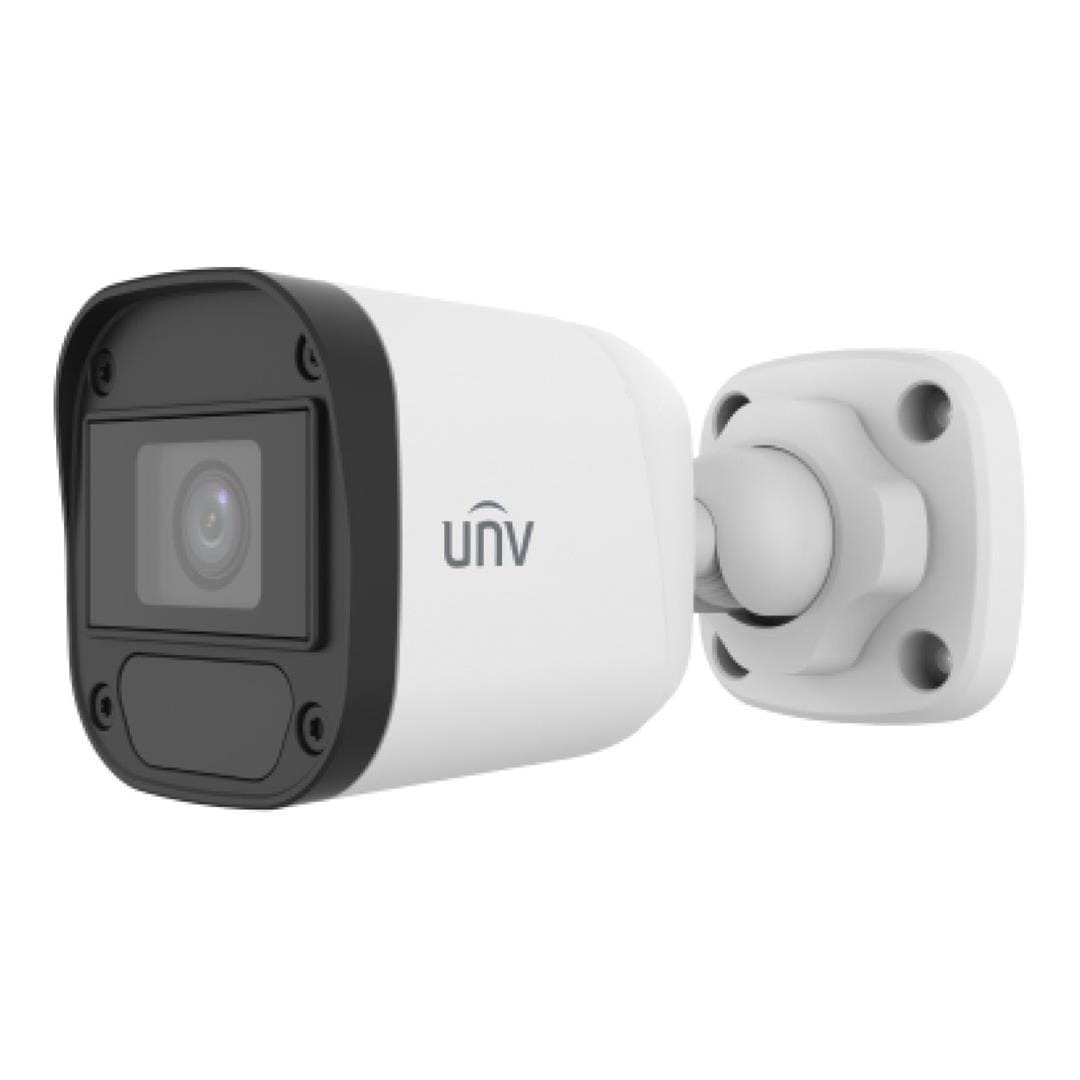

Uniview UNV 2MP Fixed IR Bullet Analog Camera UAC-B112-F28-X

Uniview UNV 2MP Fixed IR Bullet Analog Camera UAC-B112-F28-X

The UNV UAC-B112-F28(40)-X Fixed IR Bullet Analog Camera is a surveillance solution designed for high-quality outdoor monitoring. It delivers clear 2MP (1080P) resolution video, ensuring sharp image capture. Equipped with Smart IR technology, the camera provides effective night vision up to 20 meters, preventing overexposure of close-up objects. It supports multiple analog video formats (TVI/AHD/CVI/CVBS), offering broad compatibility with various existing DVR systems. Advanced imaging features such as Digital Wide Dynamic Range (DWDR) and 2D/3D Digital Noise Reduction (DNR) optimize image clarity in challenging lighting conditions. Built with an IP67 weatherproof rating, the UAC-B112-F28(40)-X is highly durable and suitable for reliable performance in diverse environmental settings.

Features:

• 2MP high quality image
• TVI/AHD/CVI/CVBS
• IR-cut filter with auto switch (ICR)
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• 3D noise reduction technology delivers clean and sharp images

Technical Specifications:

Camera
Max Resolution: 2 MP
Sensor Size: 1/3.0" CMOS
Min. Illumination: 0.02 lux (F2.0, AGC ON), 0 lux (IR on)

Lens
Focus: 2.8 mm
Lens Mount: M12
Angle of View (H): 90.5°
Angle of View (V): 49.6°
Angle of View (D): 109.5°

Illuminator
Illuminator Number: One IR illuminator
Illumination Distance: 20 m
Lifetime: ≥ 60000 hours

Video
Resolution: 1080P: 1920(H)×1080(V), 720P: 1280(H)×720(V)
Frame Rate: TVI: 1080P@25fps/30fps, 720P@25fps/30fps; AHD: 1080P@25fps/30fps, 720P@25fps/30fps; CVI: 1080P@25fps/30fps, 720P@25fps/30fps; CVBS: PAL, NTSC
Shutter Time: PAL: 1/25 s-1/50000 s, NTSC: 1/30 s-1/50000 s

Exposure Mode: Four modes: Global (default), BLC, HLC, DWDR
Day/Night: Auto (default), Day, Night
Digital Noise Reduction: 2D/3D
White Balance: Auto (default), Manual
WDR: DWDR
Smart IR: Support
Flip: Supports 180° horizontal flip, 180° vertical flip

Interface
Power Interface: 5.5 mm Power Interface
Video Output: BNC, supports TVI/AHD/CVI/CVBS

Operating Environment
Temperature: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity: ≤ 95% RH (non-condensing)
Surge Protection: 4 KV for power, 4 KV for video output interfaces

General
Power: DC 12 V ±25%
Power Consumption: MAX 2.0W
Mount: Corner Mount, Pole Mount
Dimensions: 142 mm × 63 mm × 65 mm (L×W×H)
Material: Plastic
Weight: 145 g (0.32 lb)
OSD Menu Language: 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish

Certification
EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
Safety: CE-LVD (EN 62368-1)
Environment: CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529)
