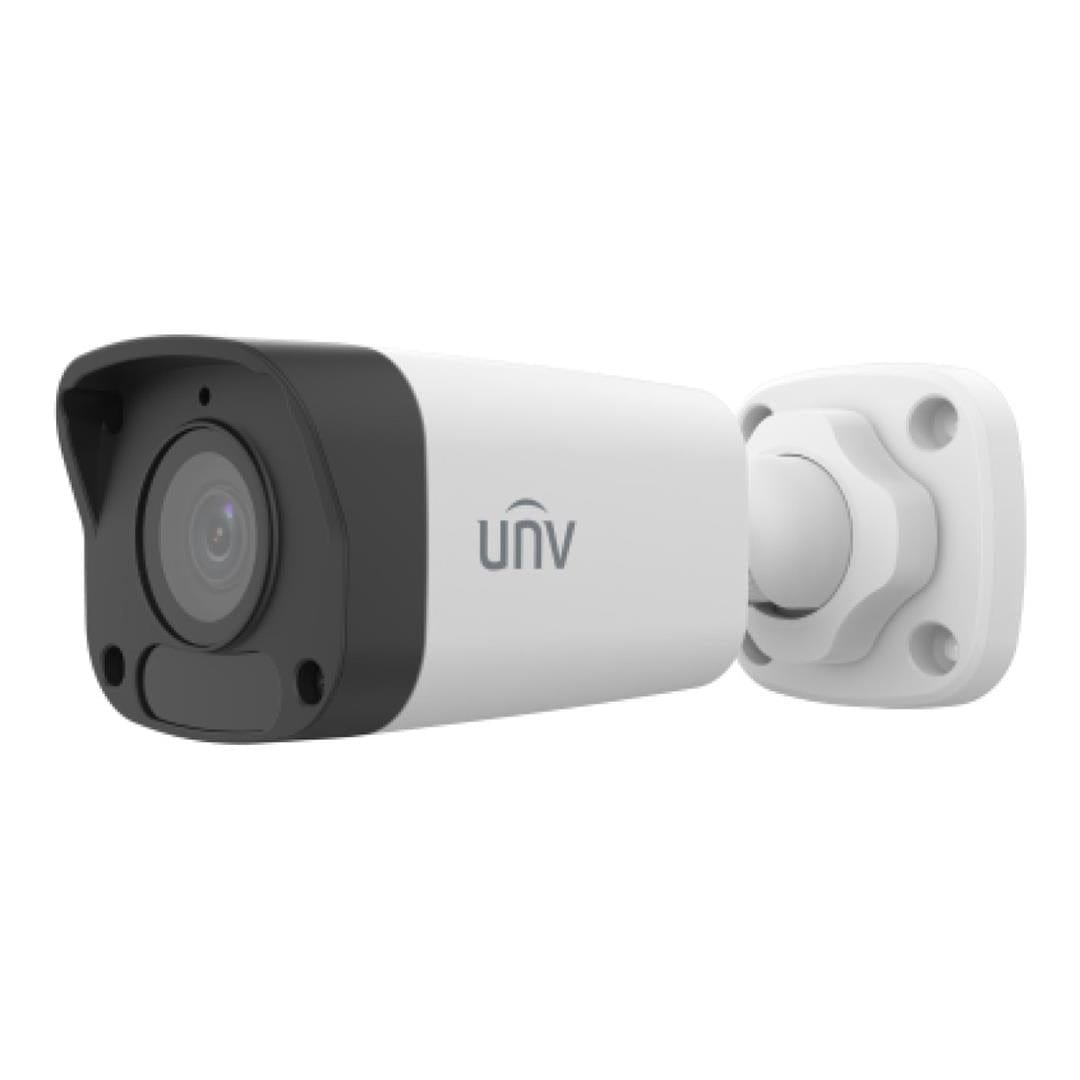

Uniview UNV 2MP 2.8mm Fixed IR Bullet Network Camera IPC2122LB-AF28-A2

Uniview UNV 2MP 2.8mm Fixed IR Bullet Network Camera IPC2122LB-AF28-A2

The Uniview IPC2122LB-AF28-A2 delivers 1080p video at 30fps using a 1/3.0" CMOS sensor. It features Human Body Detection 2.0 to reduce false alarms and includes a built-in microphone for audio recording.
Smart IR provides night vision up to 30 metres, with automatic day/night switching and 2D/3D DNR to enhance image clarity. It supports Ultra H.265, H.265, and H.264 compression to optimise storage and bandwidth.
The IP67-rated housing is weatherproof for outdoor use. Power options include 12V DC or PoE. A 3-axis mount allows precise camera positioning.

Features:

• High quality image with 1080P, 1/3.0" CMOS sensor
• 1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
• Supports accurate human body detection 2.0
• Ultra 265, H.265, H.264
• Built-in mic
• Smart IR, up to 30 m (98.4 ft) IR distance
• Day/night functionality
• 2D/3D DNR (digital noise reduction)
• DC 12 V, PoE (IEEE 802.3af) power supply
• IP67 protection
• 3-axis

Technical Specifications:

Camera
Max Resolution: 2 MP
Sensor: 1/3.0" CMOS
Min. Illumination: Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N: >52 dB
WDR: DWDR

Lens
Focal Length: 2.8 mm
Iris Type: Fixed
Iris: F2.0
Field of View (H): 99.5°
Field of View (V): 56.5°
Field of View (D): 114.4°
Lens Type: Fixed

DORI
DORI Distance (Lens): 2.8 mm
DORI Distance (Detect): 46.7 m (153.1 ft.)
DORI Distance (Observe): 18.7 m (61.4 ft.)
DORI Distance (Recognize): 9.3 m (30.6 ft.)
DORI Distance (Identify): 4.7 m (15.4 ft.)

Illuminator
Supplemental Light: IR
Illumination Distance (IR): 30 m (98.4 ft)
Wavelength: 850 nm
IR On/Off Control: Auto/Manual

Video
Video Compression: Ultra 265, H.265, H.264
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps. Sub Stream: 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate: 128 Kbps to 6144 Kbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Support
Video Stream: Dual streams

White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal, Flip vertical, Flip horizontal, 180°
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital defog
Image Stabilization: N/A

Events
Basic Detection: Human body detection 2.0, Motion detection, Audio detection
General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio
Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: N/A
Suppression: Support
Sampling Rate: 8 kHz

Storage
Edge Storage: N/A

Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, QoS
Compatible Integration: ONVIF (Profile S, Profile T), API, SDK
User/Host: Up to 32 users, 2 user levels: administrator and common user
Security: Password Protection, Strong Password, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
Client: EZStation, APP
Web Browser: Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface
Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: N/A
WIFI: N/A
Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output: N/A

Certification
EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety: CE LVD (EN 62368-1)
Environment: CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529)

General
Power: DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption: Max. 3.9 W
Power Interface: Ø5.5 mm coaxial power plug
Dimensions: 157.5 mm × 62.5 mm × 62.7 mm (6.2" × 2.5" × 2.5") (L × W × H)
Weight: 0.19 kg (0.42 lb)
Material: Graphene + Plastic
Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤95% RH (non-condensing)
Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤95% RH (non-condensing)
Surge Protection: 4 KV
Reset Button: N/A
Web Client Language: English
