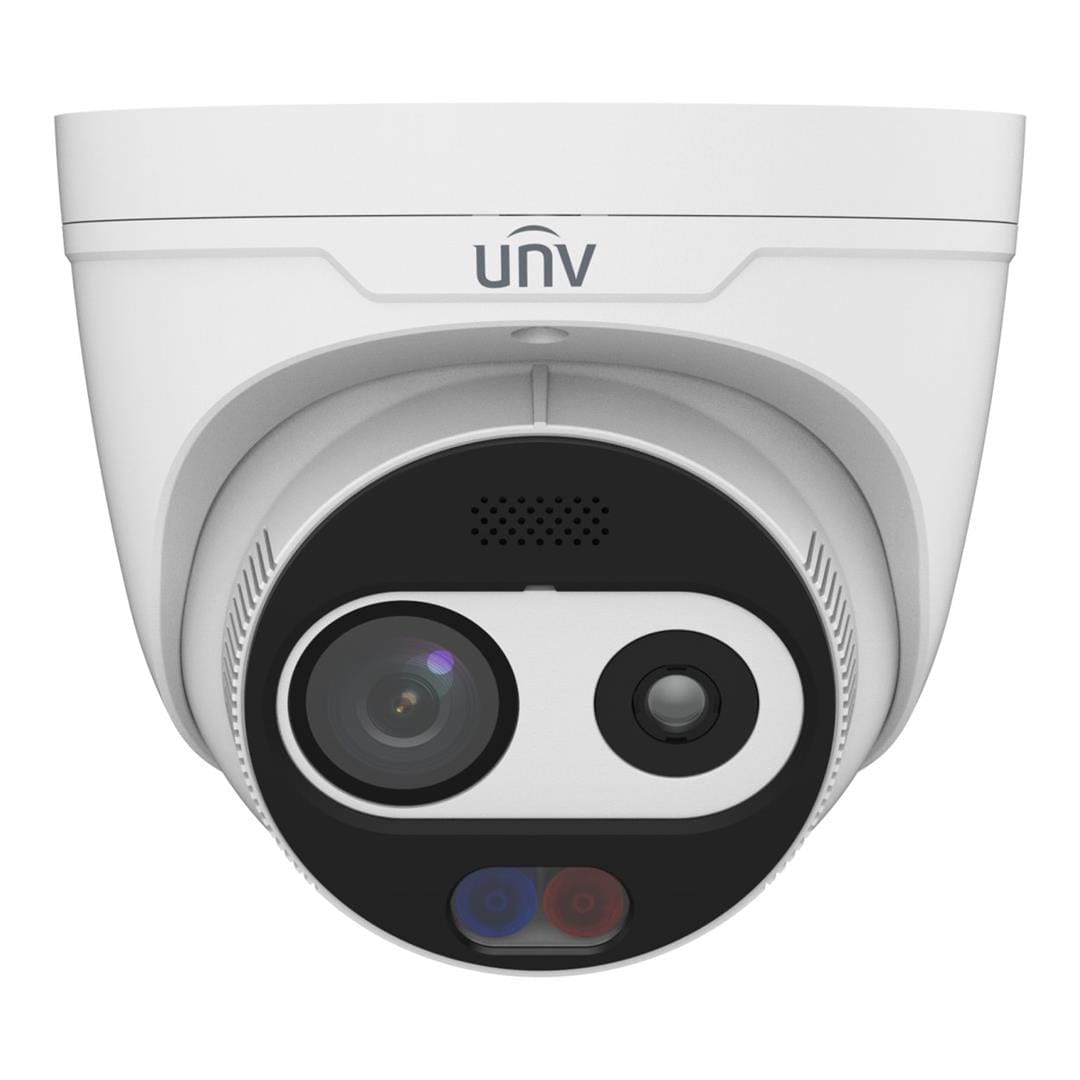

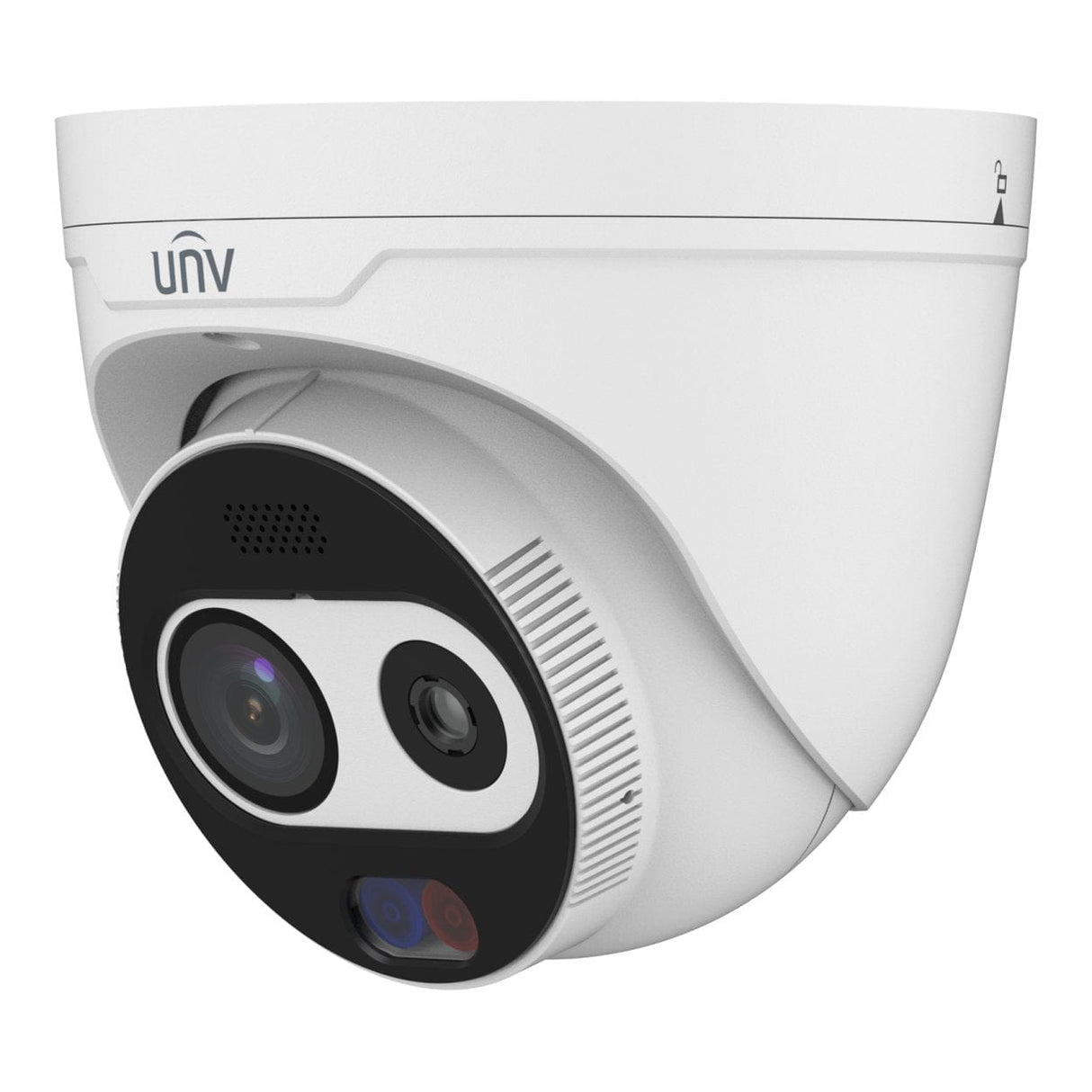

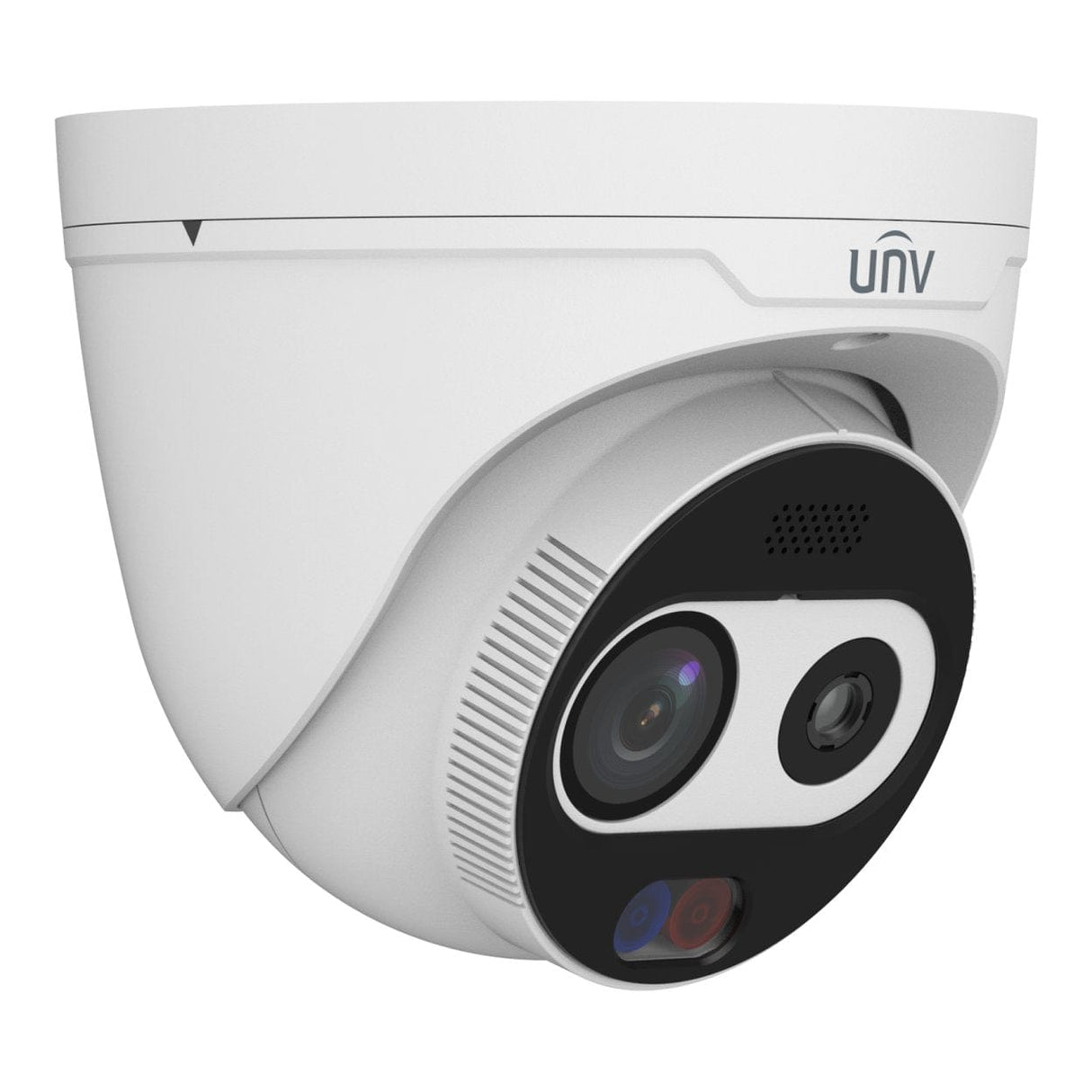

Uniview 4MP Thermal and Optical Dual-spectrum Turret Network Camera TIC3612SA-F3-4F4AC-I1

Uniview 4MP Thermal and Optical Dual-spectrum Turret Network Camera TIC3612SA-F3-4F4AC-I1

Features

• Thermal & optical dual-spectrum image, dual video with single IP address, adaptable to various scenes
• 1/2.8" target surface, high sensitivity sensor, suitable for starlight monitoring
• Thermal module supports reliable fire detection and fire shield area
• Thermal module supports temperature detection and cold & hot spot tracking, which highlights abnormal temperatures and links to alarm
• Thermal & optical dual-spectrum smart intrusion prevention can be enabled simultaneously: cross line, enter area, leave area, intrusion
• Optical module supports smog recognition, which can help with fire alarm reconfirmation
• Supports picture-in-picture mode, real-time contrast live, more convenient and clear
• Supports audio and light alarm, with red and blue warning lights built in
• Ultra 265, H.265, H.264, MJPEG
• Max 2688 × 1520@30 fps in the optical module and max 960P@30 fps in the thermal module
• DC 12 V ± 25% or PoE power supply
• Alarm 2 in and 2 out, audio 1 in and 1 out, micro SD, up to 512 GB

Technical Specification

Sensor: 1: 1/2.8" CMOS , 2: Vanadium oxide uncooled focal plane arrays

Resolution: 1: 2688 x 1520 (4MP) , 2: 256 × 192

Focal Length: 1: 4mm , 2: 3mm

Iris: 1: F1.6 , 2: F1.0

Field of View (H): 1: 72.9° , 2: 58.0°

Field of View (V): 1: 44.4° , 2: 42.5°

Field of View (D): 1: 89.8° , 2: 72°

DORI Distance (Detect): 1: 90.0m , 2: N/A

DORI Distance (Observe): 1: 36.0m , 2: N/A

DORI Distance (Recognize): 1: 18.0m , 2: N/A

DORI Distance (Identify): 1: 9.0m , 2: N/A

Illuminator Wavelength: 1: 750 nm , 2: N/A

Illumination Distance (IR): 1: 30m , 2: N/A

Mic: Built-in

Speaker: Built-in

Audio I/O: 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]

Alarm I/O: 2/2

Serial Port: 1 channel RS485 interface

Network: 1x RJ45 10 M/100 M Base-TX Ethernet

Power: DC12V(±25%) or PoE(IEEE802.3af)

Power Interface: Ø5.5 mm coaxial power plug

• Please note: Power supply is not included
