Ubiquiti UniFi Access G3 Starter Kit Pro UA-G3-SK-PRO

Ubiquiti UniFi Access G3 Starter Kit Pro UA-G3-SK-PRO

Starter kit that provides complete entry and exit control for a single door with two readers and Touch Pass support.

Technical Specifications:

Overview

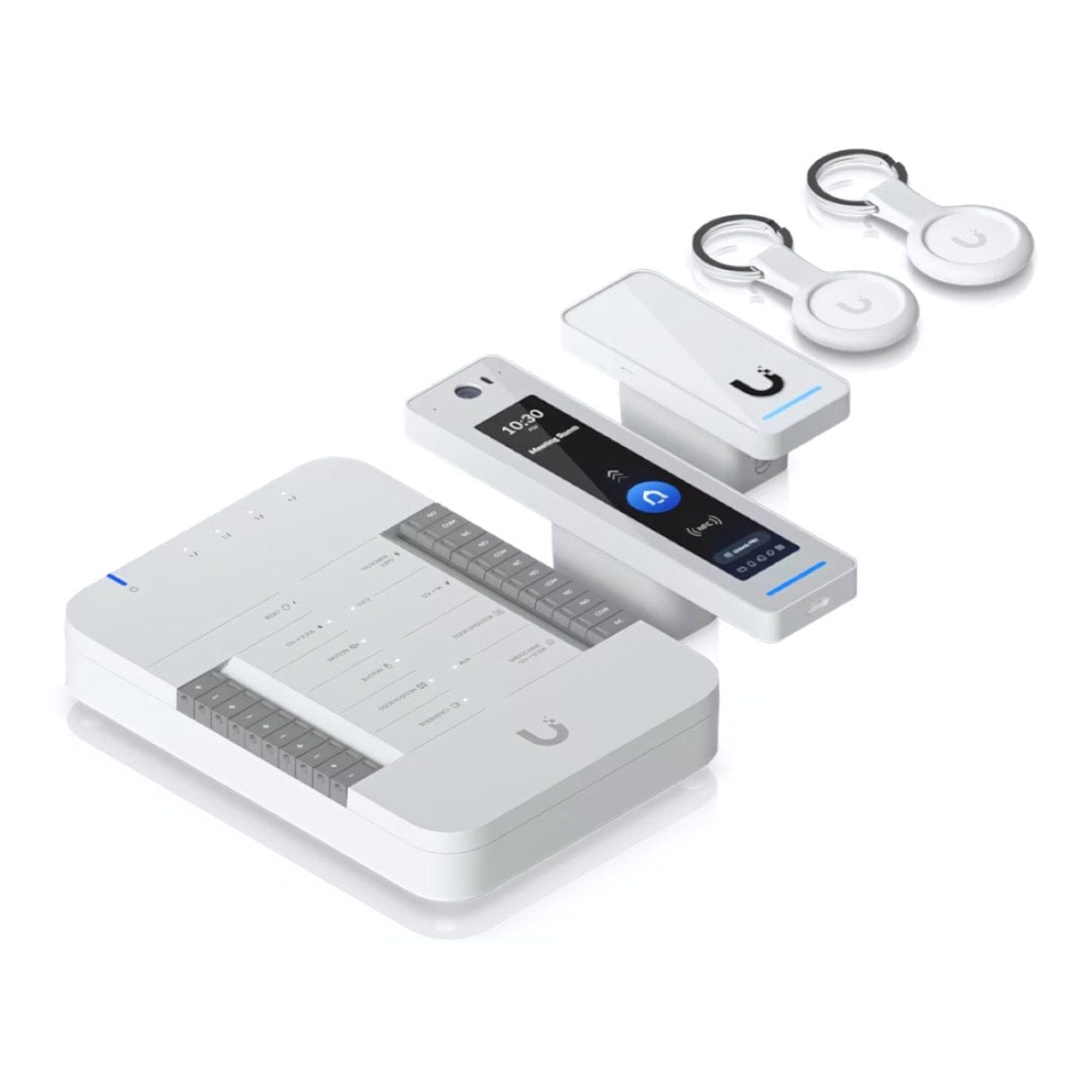

In the Box: 1 × Door Hub, 1 × G3 Reader Pro, 1 × G3 Reader, 2 × Pocket Keyfobs, 10 free 1-year Touch Passes included

Door Hub
Dimensions: 174.9 × 126 × 32.9 mm (6.9 × 5 × 1.3 in)
Supported Doors: 1
Maximum User Count: 6,000
Input Terminals: 2 × Door exit request, 1 × Door position, 1 × Emergency
Power Method: PoE++, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
UL 294 Level: Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
Weight: 363 g (12.8 oz)
Enclosure Material: Polycarbonate
Mount Material: Polycarbonate
Mounting: DIN-rail (Included)
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 5%–95% non-condensing

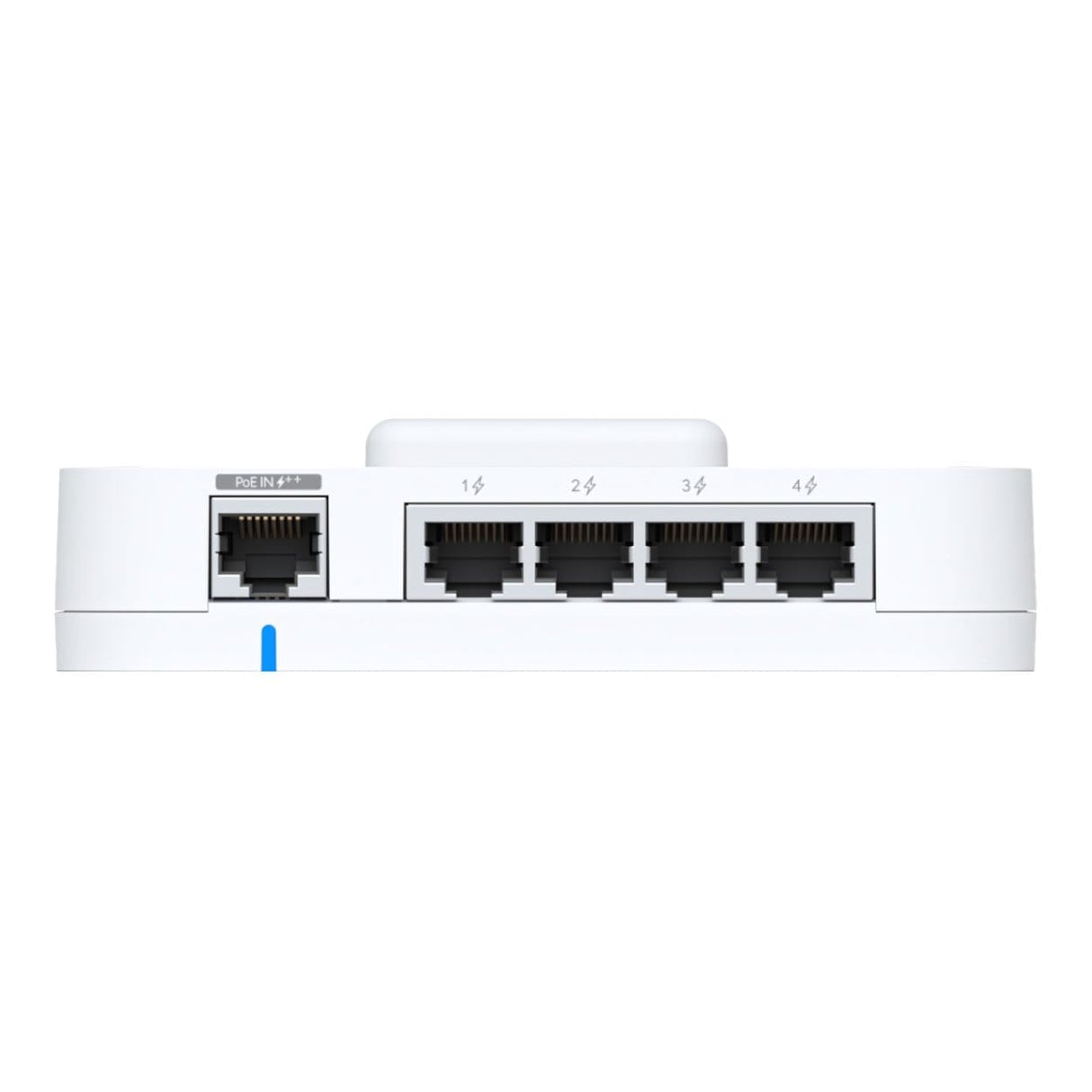

Networking Interface: 5 × 10/100/1000 Base-T
PoE Interface: 1 × PoE++ input, 50 V DC, 1 A; 4 × PoE outputs, 50 V DC, 30 W per port (Max 45 W aggregated)
Max. Power Consumption: 30 W (Without PoE output), 50 W (With PoE output)
Digital Input: Request to exit, request to enter, remote release, door position sensor
Dry Output Relay: Lock: 30 V DC, 1 A; Aux: 30 V DC, 1 A
Powered Output Relay: Lock: 12 V DC, 1 A; Aux: 12 V DC, 0.33 A
LEDs: B/W
Button: 1 × Factory-reset
Recommended Max. Cable Length: See detailed UA-Lock specs for AWG lengths
PoE Cabling Requirements: Cat 5e minimum, conductor gauge 26 AWG (patch cords), 24 AWG (horizontal/riser)
UL 294 Statement: Compliance with IEEE 802.3 specifications not verified as part of UL 294
CAN/ULC-60839-11-1 Grade: 1
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

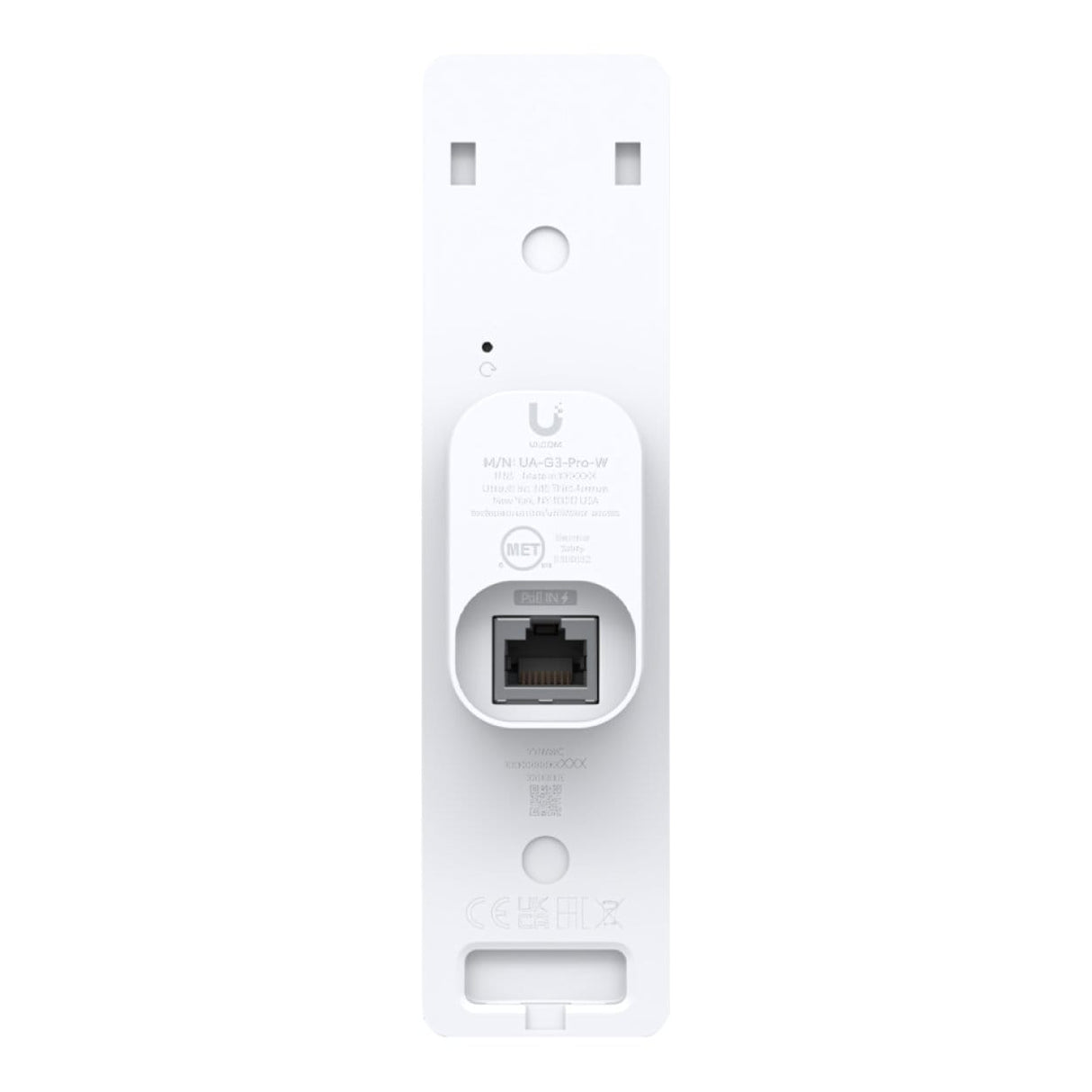

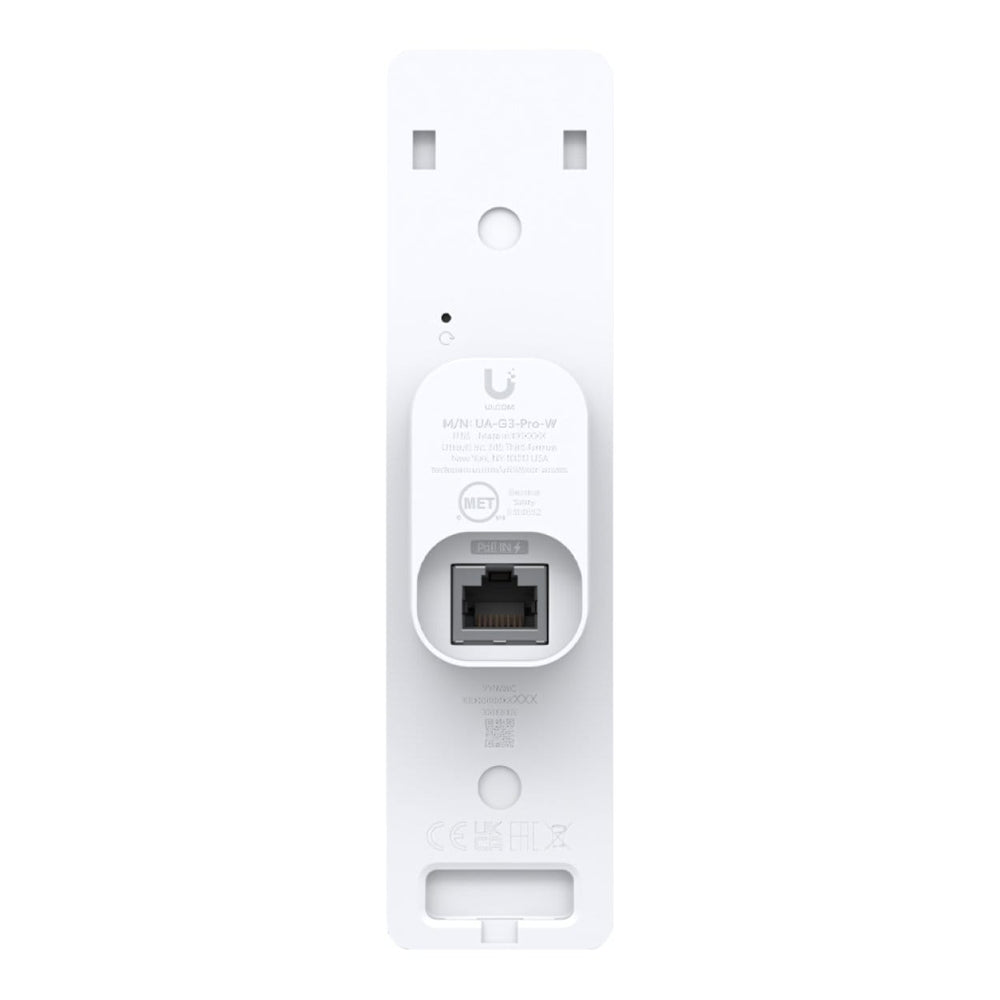

G3 Reader Pro
Dimensions: 160 × 40.4 × 40.55 mm (6.3 × 1.59 × 1.6 in)
Integrated Camera: Yes
NFC Card & Keyfob Access: Yes
PIN Access: Yes
Apple/Google Wallet: Yes
Mobile Unlock: Yes
Face Unlock: Yes
Two-Way Intercom & Doorbell Access: Yes
Weatherproofing: IP55
NDAA Compliant: Yes
UL 294 Level: Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
Weight: 136 g (4.8 oz)
Enclosure Material: Polycarbonate, glass
Mount Material: Aluminum alloy
Mounting: Wall, gang-box mount (Included), Angle mount, junction box (Optional)
Indoor and Outdoor Use: Yes
Ambient Operating Temperature: Device: -30 to 45° C, Display: -10 to 45° C
Ambient Operating Humidity: 5%–90% non-condensing
Networking Interface: 1 × GbE RJ45 port
Connectivity: BLE 4.2, NFC
Power Method: PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption: 6 W
Supported Voltage Range: 48 V DC
ESD/EMP Protection: Air ±15 kV, Contact ±8 kV
Video: Max Frame Rate: 30 FPS, Resolution: 2MP 1200 × 1600 (3:4)
Optics: 12 MP (3072 × 4096), Field of View H: 98.6°, V: 125.7°, D: 157.8°
Sensors: Proximity sensor
Display: 120 mm (4.7") diagonal, Capacitive touch, 480 nits, Portrait orientation, Resolution 1280 × 286 px
Microphone: Yes
Speaker: 1 × 1.5 W
LEDs: R/G/B/W/Amber
Button: 1 × Factory-reset
NFC Frequency: 13.56 MHz
NFC Read Range: <30 mm (1.18 in)
NFC Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340), MIFARE Classic / DESFIRE, Sony FeliCa (ID only), NFC Forum T1T–T5T, ECP 2.0
PoE Cabling Requirements: Cat 5e minimum, 26 AWG (patch cords), 24 AWG (horizontal/riser)
UL 294 Statement: Compliance with IEEE 802.3 not verified
CAN/ULC-60839-11-1 Grade: I
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

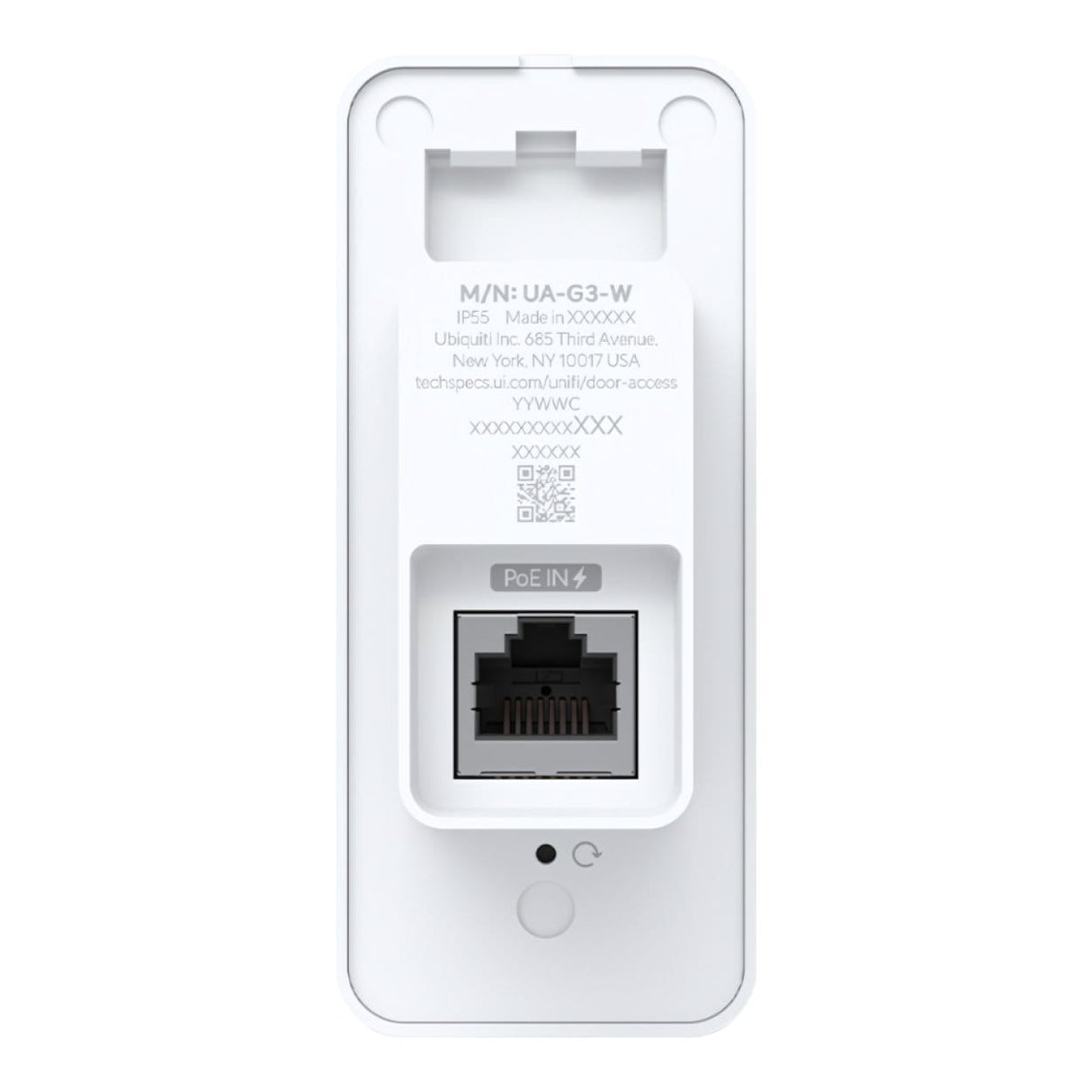

G3 Reader
Dimensions: 93 × 40 × 36.5 mm (3.7 × 1.6 × 1.4 in)
NFC Card & Keyfob Access: Yes
Apple/Google Wallet: Yes
Mobile Unlock: Yes
Handwave Request to Exit: Yes
Weatherproofing: IP55
NDAA Compliant: Yes
UL 294 Level: Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
Weight: 82 g (2.9 oz)
Enclosure Material: Polycarbonate, glass
Mount Material: Aluminum alloy
Mounting: In-wall, gang box (Included), Junction box (Optional)
Indoor and Outdoor Use: Yes
Ambient Operating Temperature: -30 to 45° C
Ambient Operating Humidity: 5%–90% non-condensing
Networking Interface: 1 × 10/100 MbE RJ45 port
Connectivity: BLE 4.1, NFC
Power Method: PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption: 5 W
Supported Voltage Range: 48 V DC
ESD/EMP Protection: Air ±15 kV, Contact ±8 kV
Sensors: Proximity sensor
Speaker: 1 × 0.7 W
LEDs: R/G/B/W
Button: 1 × Factory-reset
NFC Frequency: 13.56 MHz
NFC Read Range: <30 mm (1.18 in)
NFC Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340), MIFARE Classic / DESFIRE, Sony FeliCa (ID only), NFC Forum T1T–T5T, ECP 2.0
PoE Cabling Requirements: Cat 5e minimum, 26 AWG (patch cords), 24 AWG (horizontal/riser)
UL 294 Statement: Compliance with IEEE 802.3 not verified
CAN/ULC-60839-11-1 Grade: I
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Pocket Keyfob
Dimensions: 84 × 39 × 7.4 mm (3.3 × 1.5 × 0.29 in)
Weight: 16 g (0.56 oz)
Enclosure Material: Polycarbonate, stainless steel, silicone rubber
Weatherproofing: IP54
NDAA Compliant: Yes
Ambient Operating Humidity: 10%–90% non-condensing
Ambient Operating Temperature: -10 to 45° C
NFC Frequency: 13.56 MHz
NFC Technology: ISO/IEC 14443 Type A, MIFARE DESFire EV3 4K, UniFi Access Proprietary Security Protocol
Certification: CE

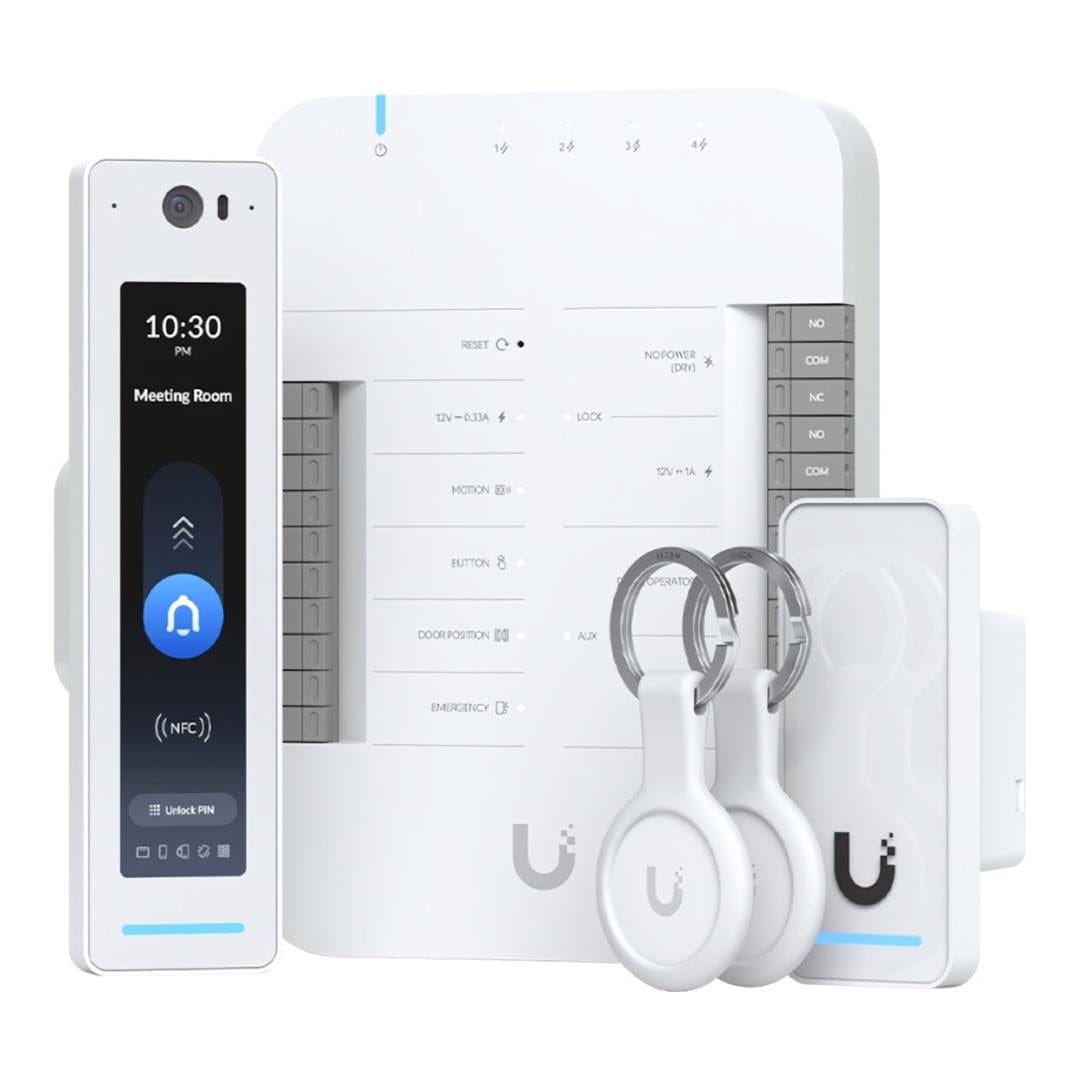

What’s in the Box:

• 1 × Door Hub
• 1 × G3 Reader Pro
• 1 × G3 Reader
• 2 × Pocket Keyfobs
• Quick Start Guide
• Mounting Hardware as required (DIN-rail, Wall/Gang Box Mounts, Screws/Anchors)
