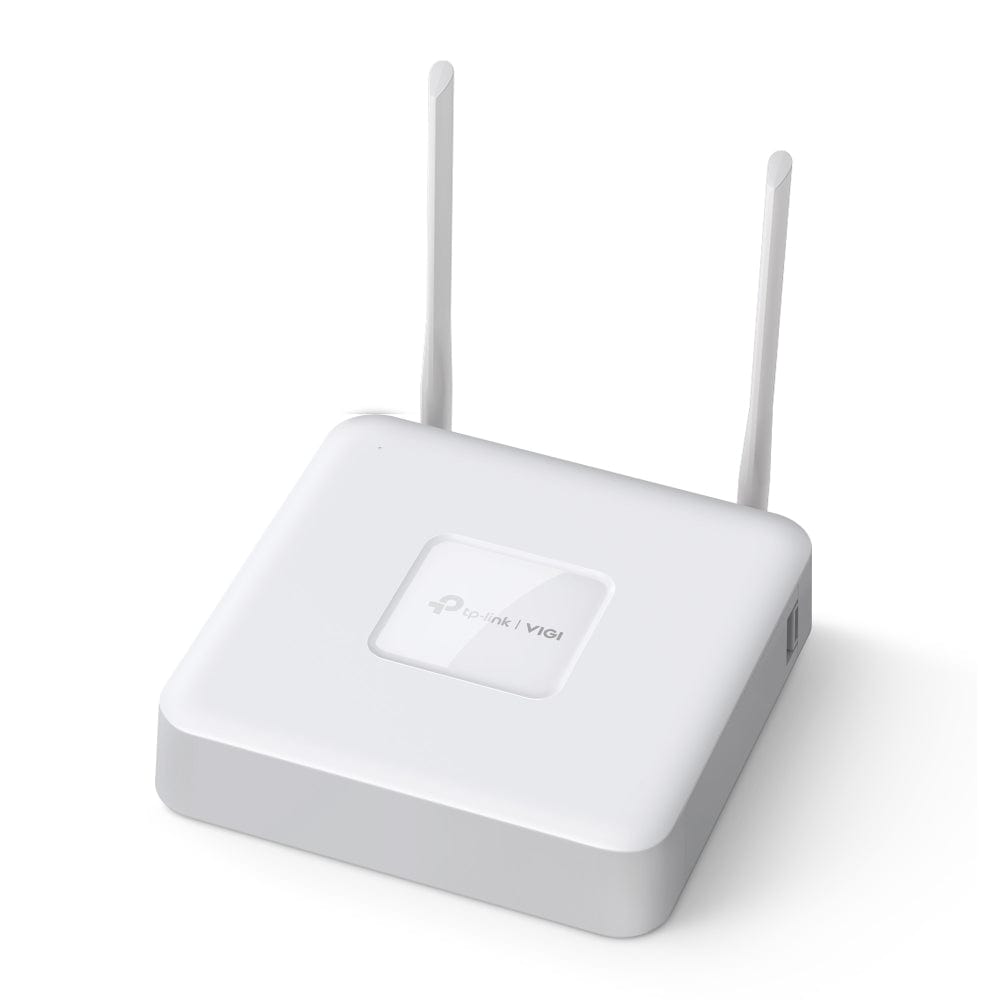

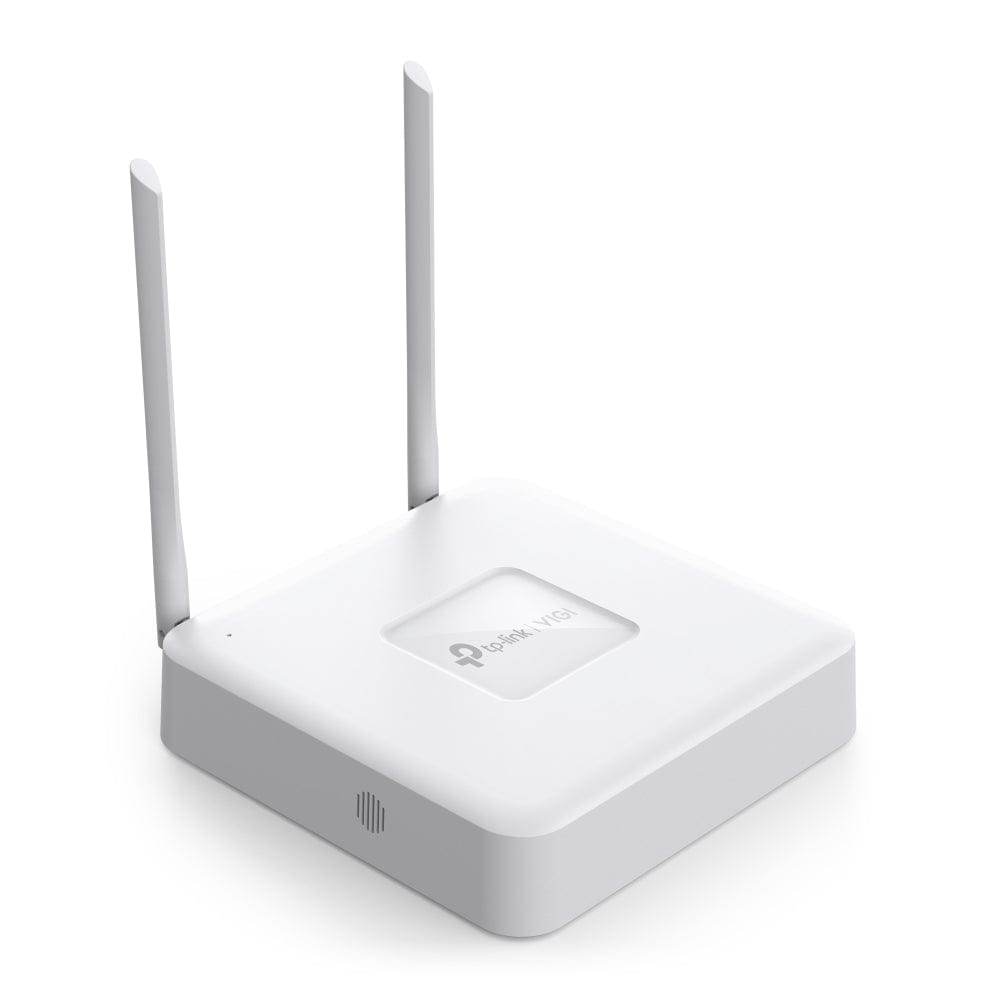

TP-Link Vigi NVR1108H-W 8-ch Wi-Fi Network Video Recorder

TP-Link Vigi NVR1108H-W 8-ch Wi-Fi Network Video Recorder

Features

• 8-Channel Live View and 4K HDMI Video Output
• Built-in Routering Module and Support Wireless Pairing*
• 8-ch @ 2MP / 4-ch @ 4MP Decoding Capability
• 8-Channel Synchronous Playback
• 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
• 1x SATA Interface (up to 16 TB)**
• H.265+ Compression Technology
• HDMI and VGA Simultaneous Output
• Remote Monitoring

Technical Specification

IP Video Input: 8-Channel

Incoming Bandwidth: 80 Mbps

Outgoing Bandwidth: 60 Mbps

Video Output Mode: HDMI/VGA Simultaneous Output

Wireless Standards and Protocols: IEEE 802.11b/g/n

Frequency: 2.4 GHz

Antenna

• Quantity: 2
• Type: 2.4GHz Welded Non-detachable Antenna
• Gain: 5.3dBi
• Radio Frequency Transmit Power: 16dBm
• Length: 198.8 mm for Long Side and 189 mm for Short Side

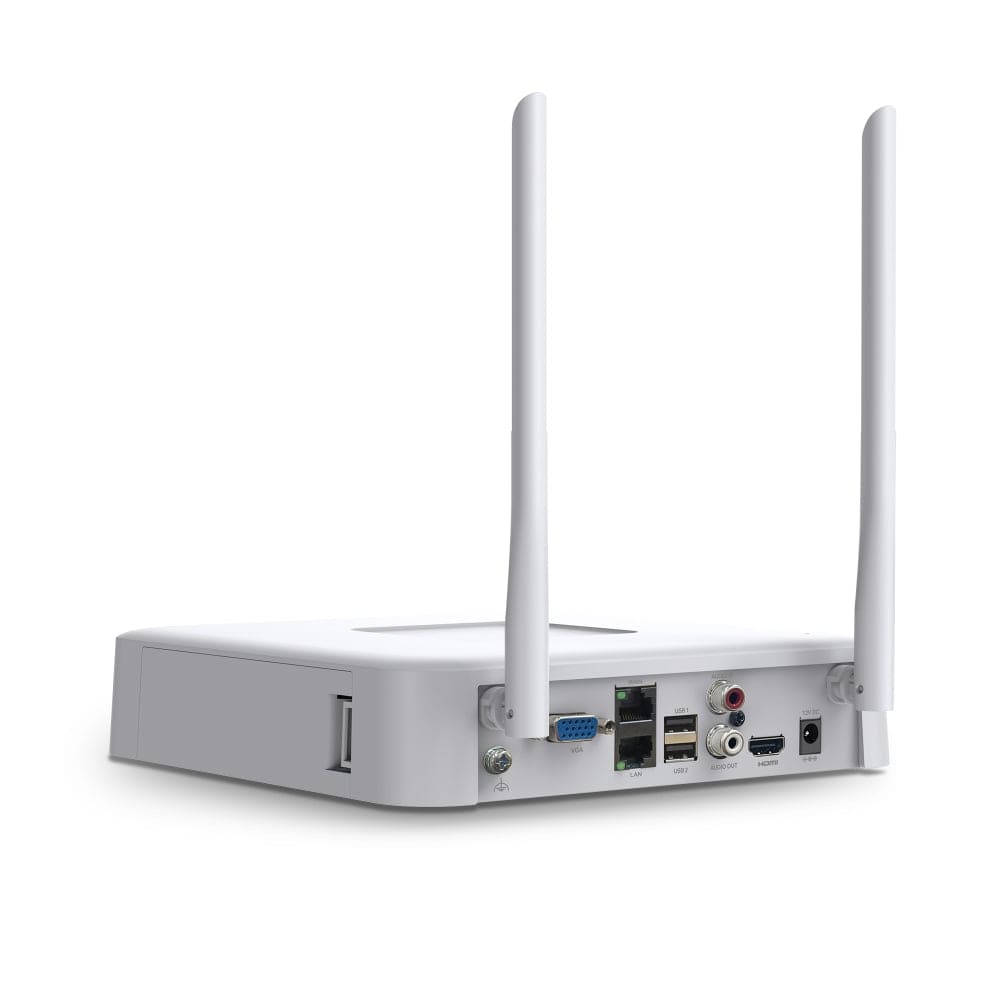

Network Interface

• 1x RJ-45 10/100 Mbps Self-Adaptive WAN/LAN Ethernet Interface
• 1x RJ-45 10/100 Mbps Self-Adaptive LAN Ethernet Interface

USB Interface: 2x USB 2.0

Audio Interface: 1x Audio In and 1x Audio Out

Speaker: 1x Real-time Audio Output without Needing Peripherals.

Video interfaces: 1x HDMI, 1x VGA

SATA: 1x SATA Interface (Up to 16 TB)

Package Content

• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Quick Installation Guide
