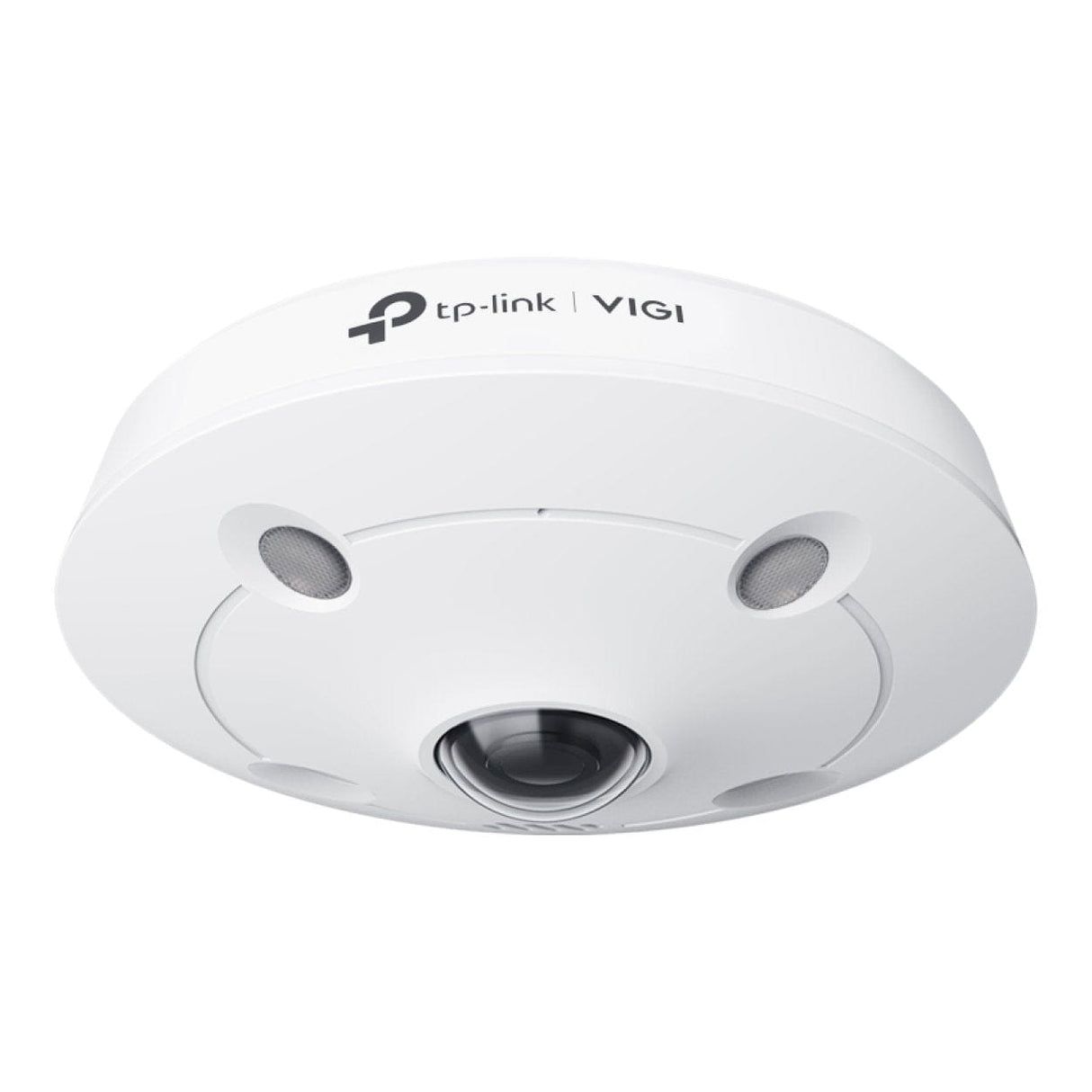

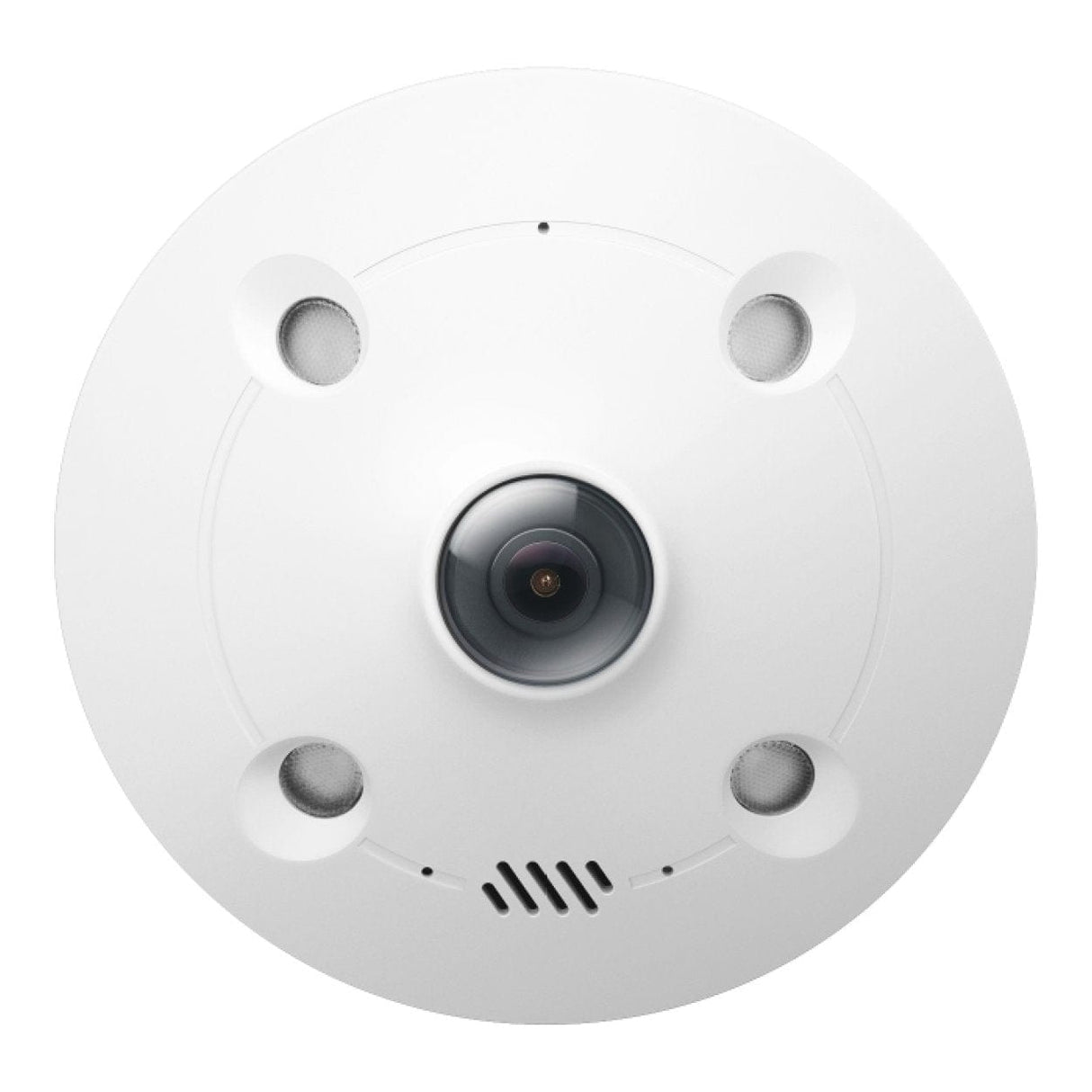

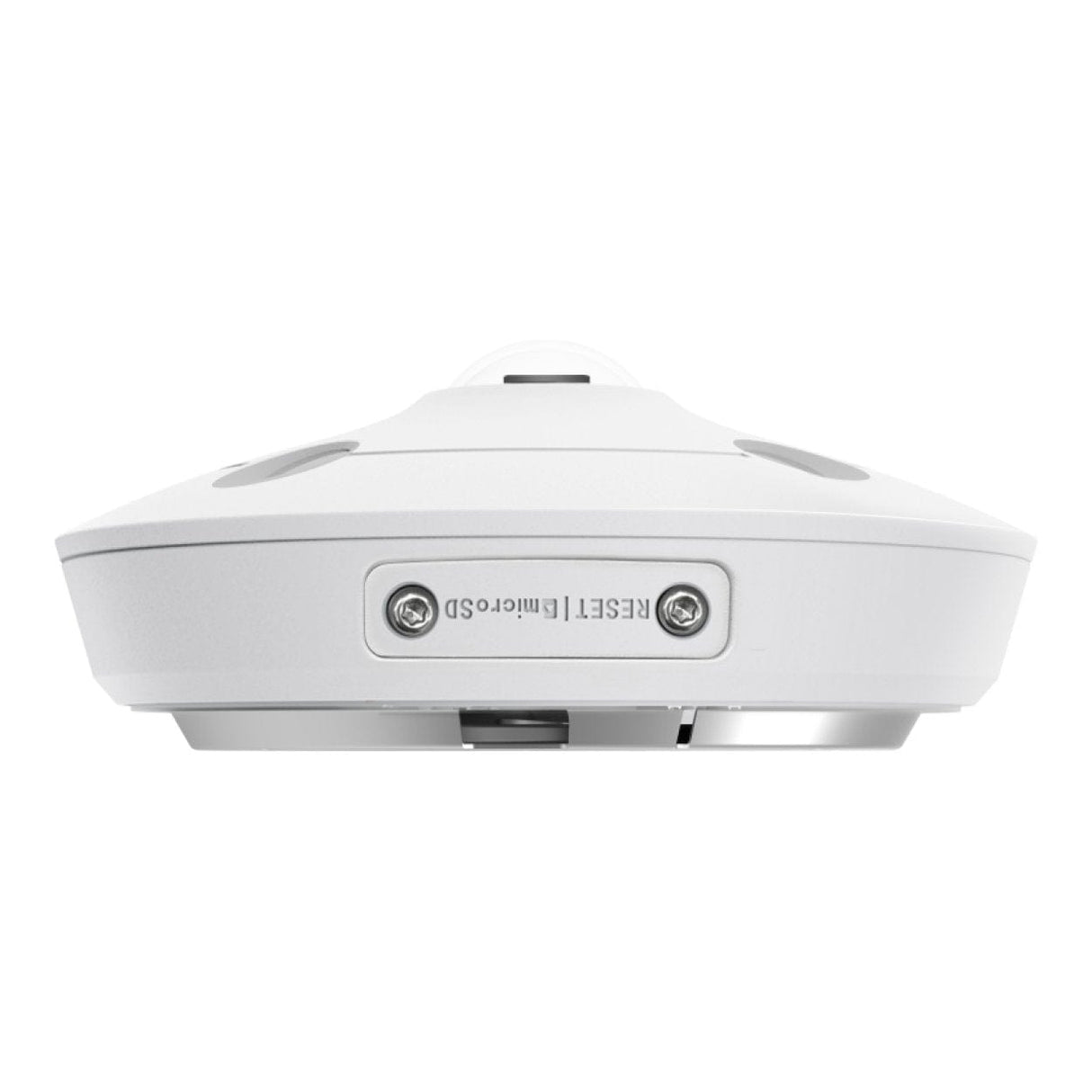

TP-Link Vigi InSight S655I 5MP IR Fisheye Network Camera

TP-Link Vigi InSight S655I 5MP IR Fisheye Network Camera

Features

• 5MP Super-High Definition and IR Night Vision
• 360° Coverage without Blind Spots
• Supports Multiple Display Modes and ePTZ
• Supports Ceiling Mount / Wall Mount / Pendant Mount
• Smart Detection
• Smart Video Enhancement Technology
• Built-In Microphone & Speaker
• IP67 Waterproof and IK10 Vandal-Proof
• H.265+ Compression Technology
• Suitable for Small Indoor Situations like Retail and Offices

360° Coverage with 4-in-1 Cameras

A single fisheye camera can play the role of many, providing a simpler and more competitive security solution. For example, in 4PTZ display mode, it functions as four cameras at once, delivering complete coverage and flexible perspectives.

Multiple Display Modes

Along with the fisheye view, VIGI provides multiple display modes, enabling you to focus on every detail exactly as you prefer.

• Fisheye
• Cylinder
• 360° Panorama
• Fisheye+ 3PTZ
• Fisheye+ 8PTZ

Smart Video Enhancement Technology

• True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
• Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
• 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
• White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Technical Specification

Image Sensor: 1/2.7” Progressive Scan CMOS

Max. Resolution: 2560 x 1920

Focal Length: 1.44 mm

FOV: Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV:180°

DORI Distance: D: 28.8 m, O:12 m, R: 5.7 m, I: 2.8 m

IR LED Quantity: 4

Range: 30m

Wavelength: 850nm

Installation: Ceiling Mount; Wall Mount; Pendant Mount*

Display Mode - Ceiling Mount

• Fisheye, AR Dewarp, 180 Panorama, 360 Panorama
• Cylinder, 2PTZ, 4PTZ, Fisheye + 8PTZ, Fisheye + 3PTZ, 360 Panorama + 8PTZ, 360 Panorama + 6PTZ, 360 Panorama + PTZ

Display Mode - Wall Mount

• Fisheye, 360 Panoramic Unwrap, 360 Panoramic Unwrap+3PTZ, 360 Panoramic Unwrap+8PTZ, 4PTZ, Fisheye + 3PTZ, Fisheye + 8PTZ

Audio Communication: Two-Way Audio

Audio Input: Yes

Audio Output: Yes

Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

Built-in Speaker: Yes

Network Interface: 1x RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Power Supply: 12V DC ± 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug or PoE: 802.3af/at, class 0, Max. 12.14W

• Please note: Power supply is not included

Package Content

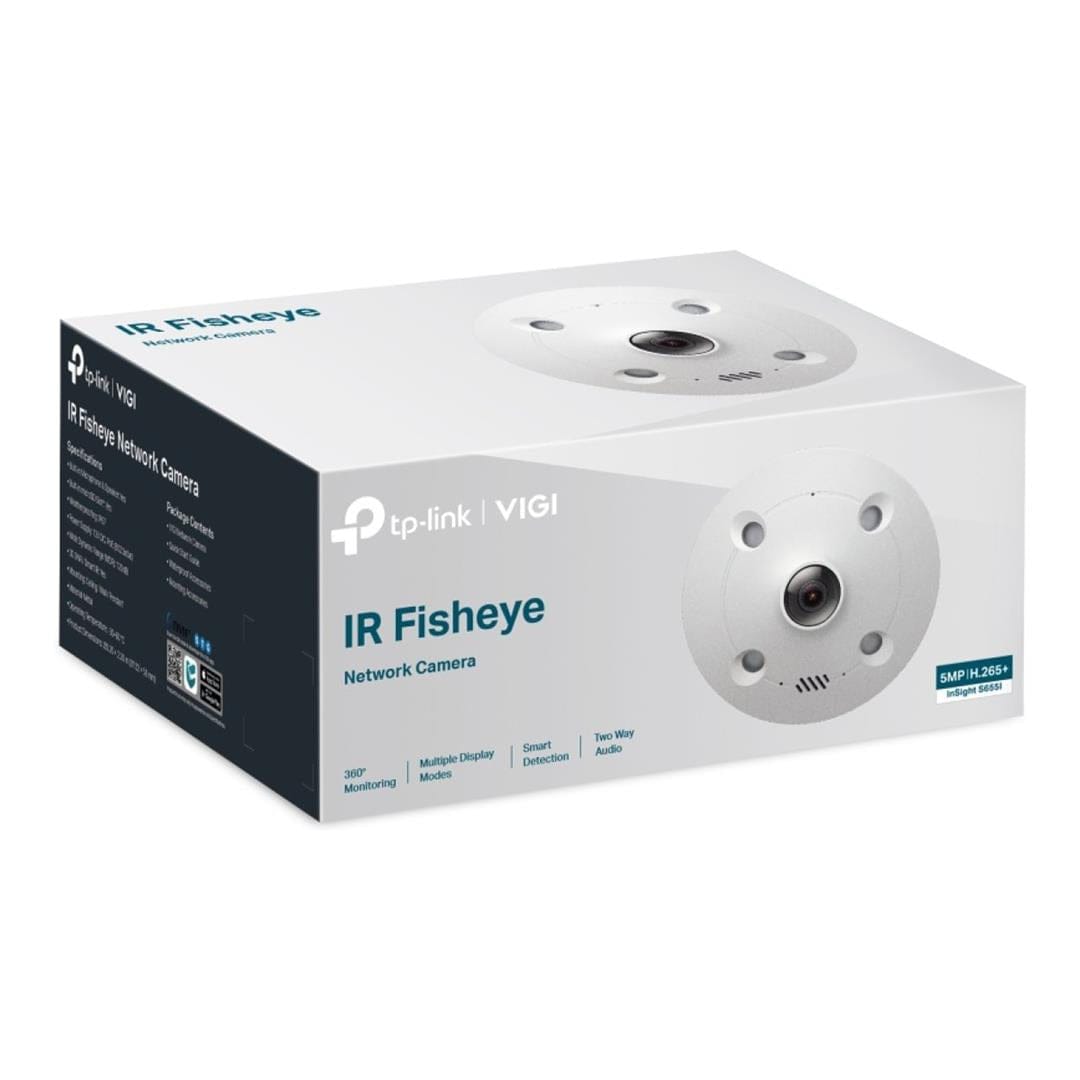

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
