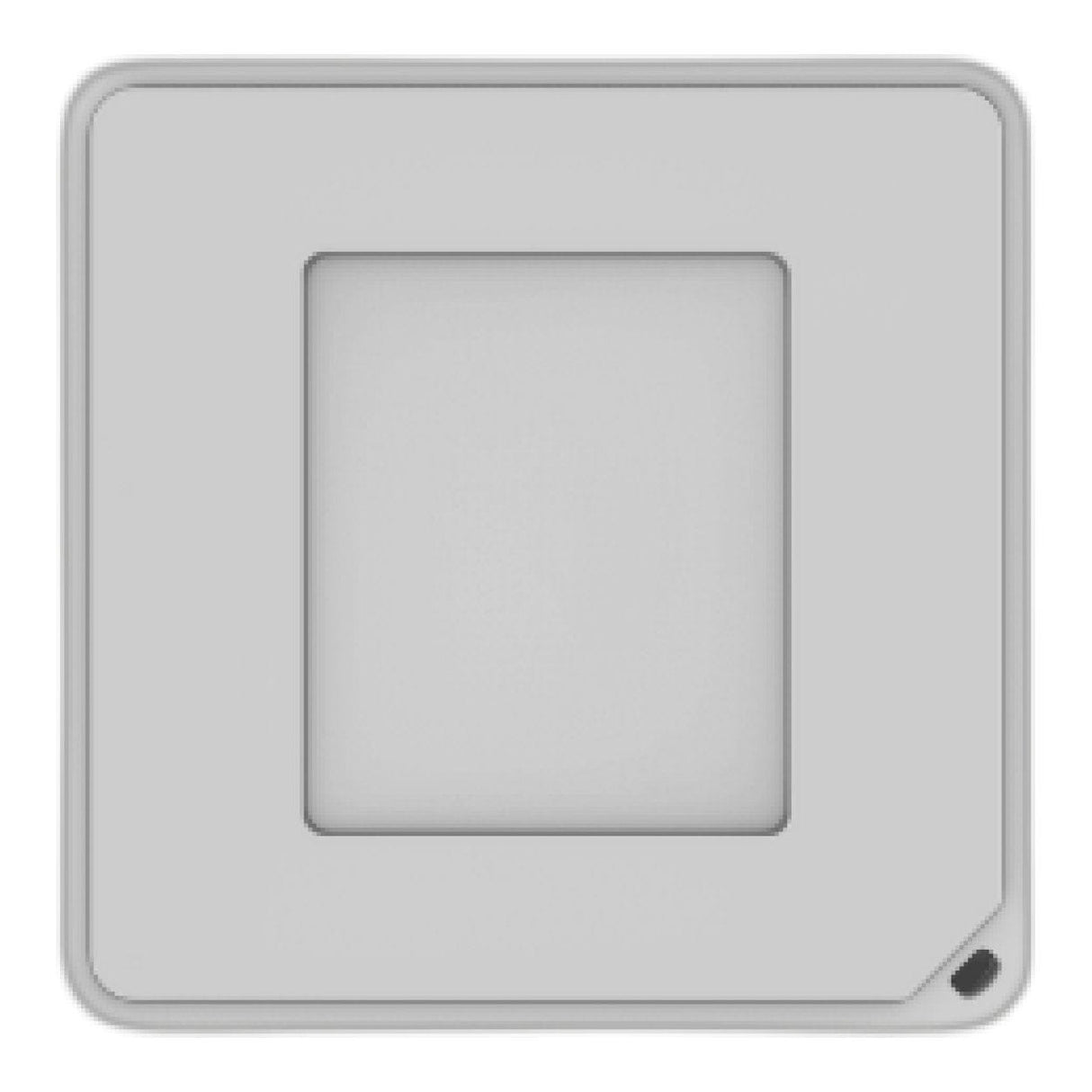

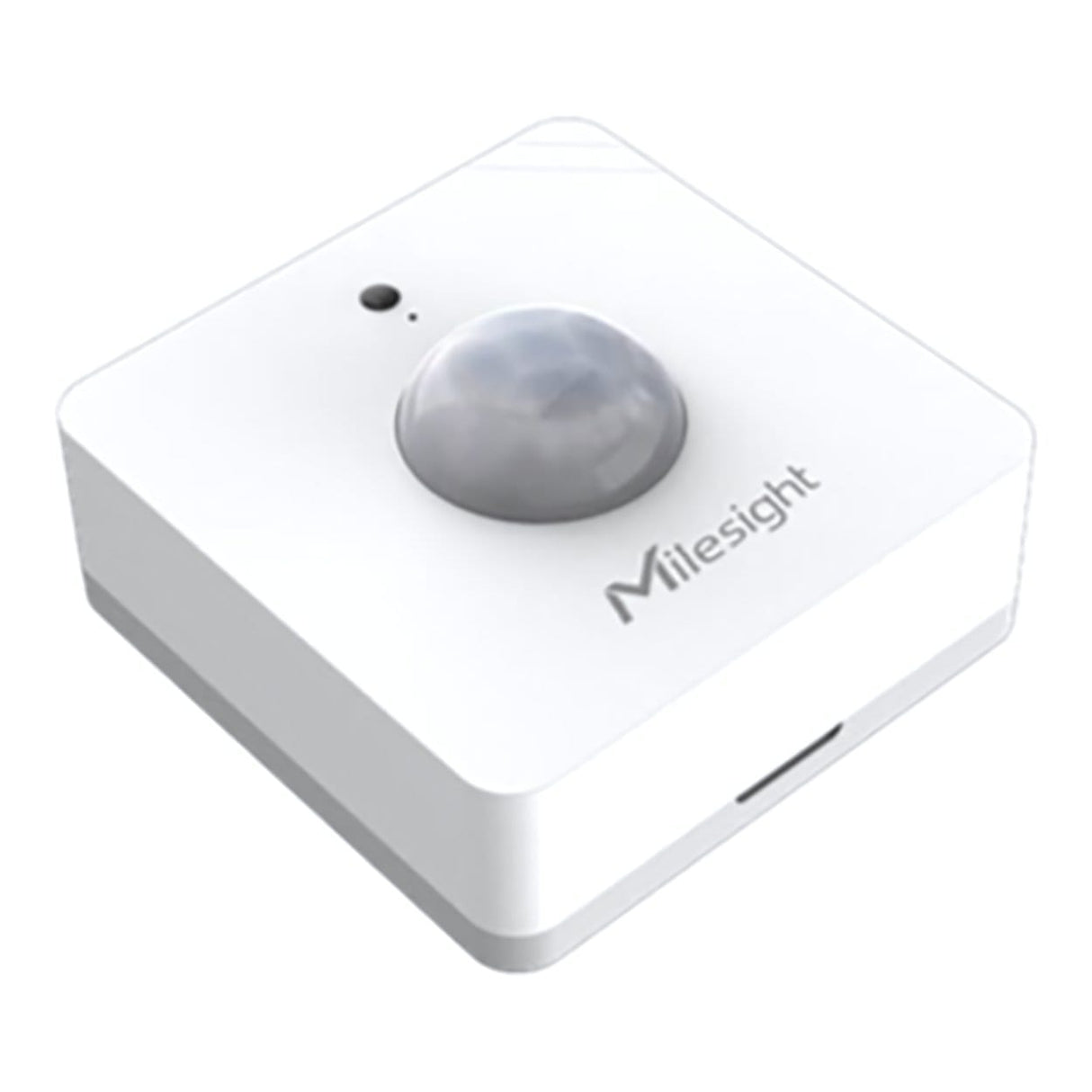

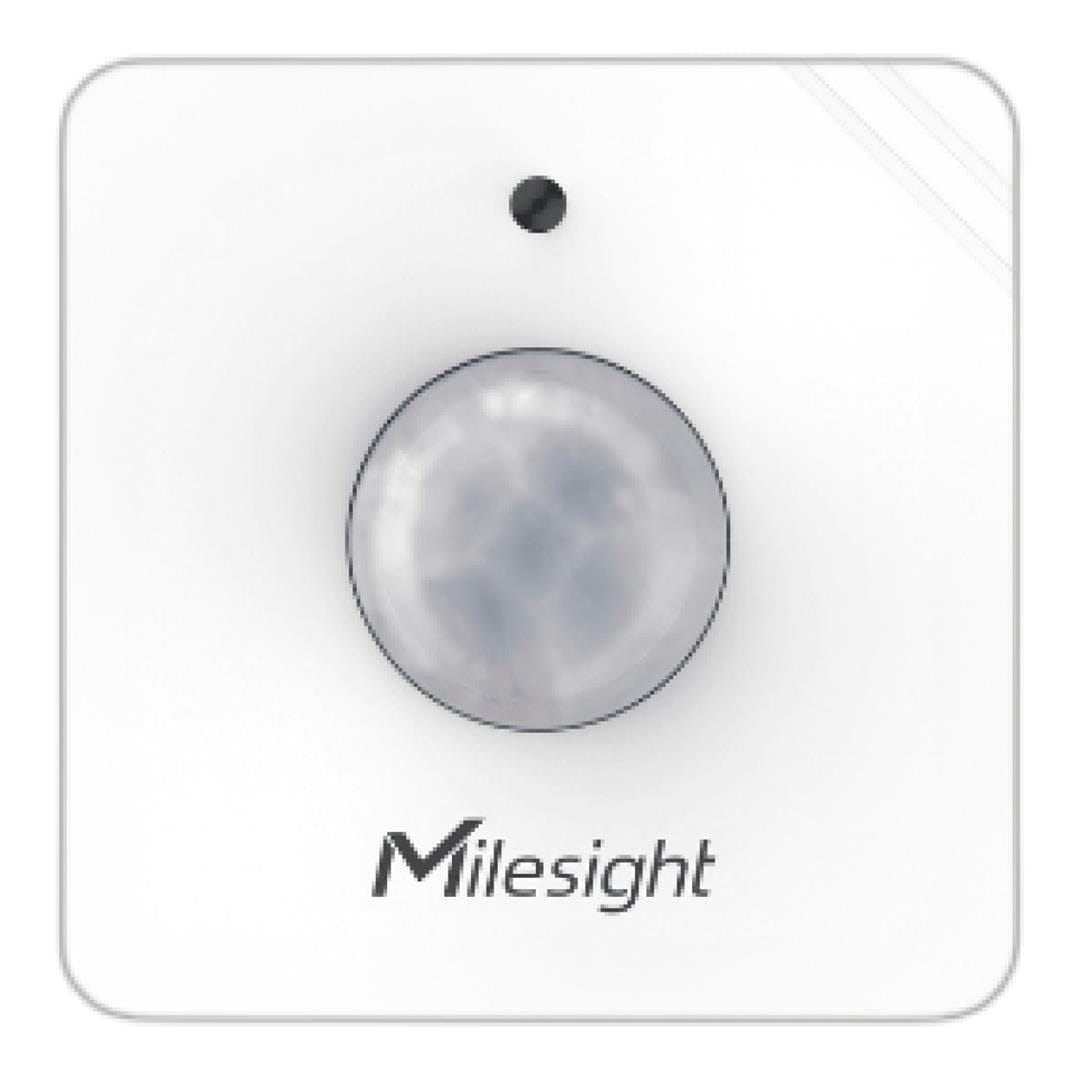

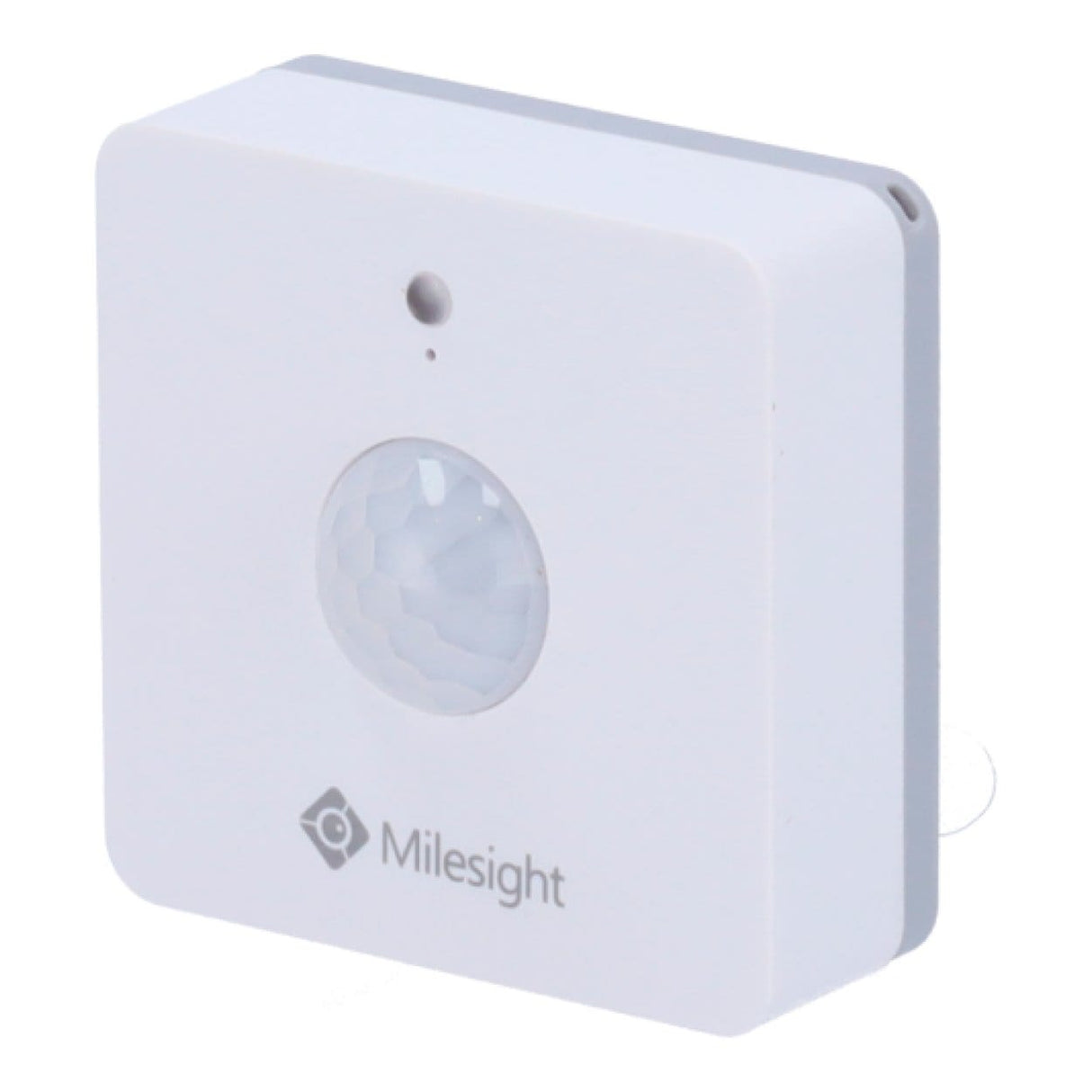

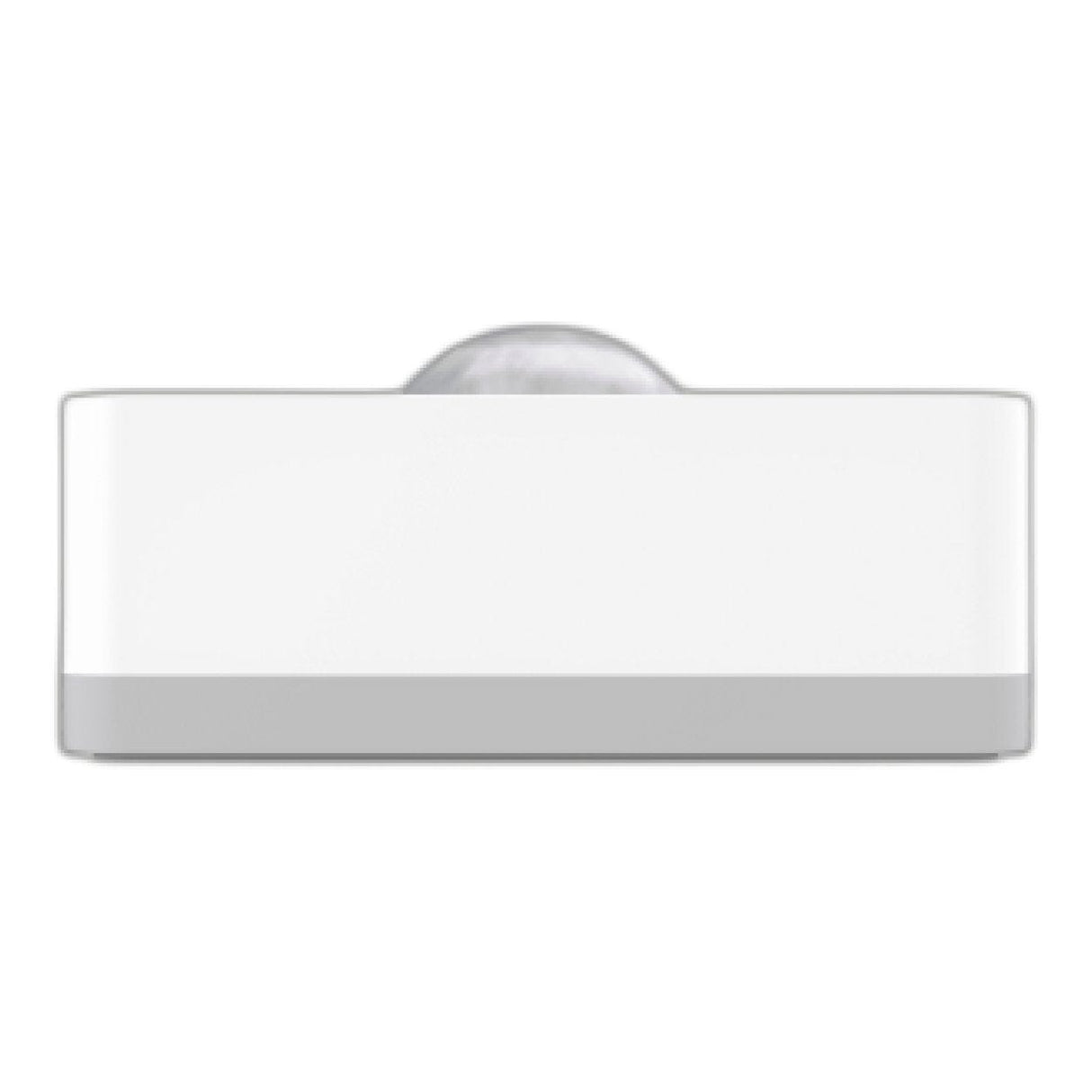

Milesight WS202 LoRaWAN PIR and Light Sensor

Milesight WS202 LoRaWAN PIR and Light Sensor

Reliably Detecting Human
Presence with High Accuracy

WS202 utilizes a powerful combination of PIR detection and brightness measurement, allowing it to determine an indoor area's occupancy or vacancy status effortlessly.

Features:

• Experience Precise PIR Presence Detection
• Accurate Brightness Measurement
• Seamless LoRaWAN® Wireless Transmission
• Effortless NFC Configuration for Easy Setup

Smart Brightness Measurement

WS202 allows users to define a custom threshold, enabling it to determine whether a space should be classified as bright or dark.

• Resolution: 1 lux
• Range: 1 to 60000 lux

Assist Automatic &
Intelligent Lighting Control

By working with Milesight WS50x Wall Switch or WS558 Smart Light Controller, WS202 enables automatic lighting control based on occupancy detection when people enter or leave the space.

Milesight D2D Communication

Milesight D2D (Device to Device) communication protocol featuring LoRa® enables communication among different Milesight LoRaWAN® node devices without a LoRaWAN® gateway.

• Lower Latency
• Secure Transmission
• Reduce Investment Cost

Expand Boundaries with
Ultrawide Range Detection

• 120° Horizontal
• 100° Vertical
• Up to 8 m Distance

Stay Powered Up for Longer

• 1 × 1650 mAh ER14335 Li-SOCL₂ Battery
• 4 Years Battery Life(30 Triggers per Day)

LoRaWAN® Based

Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas

High Compatibility: compliant with standard LoRaWAN® gateways and network servers

Technical Specifications:

Wireless Transmission Technology: LoRaWAN®, Milesight D2D
Antenna: Internal Antenna
Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923
Tx Power: 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity: -137 dBm @300bps
Mode: OTAA/ABP Class A

PIR Detection Area: 120° Horizontal, 100° Vertical
PIR Detection Distance: Maximum 8 m

Light Status: Bright/Dark (Determine 1-60000 lux as Bright or Dark according to custom threshold)

LED Indicator: 1 × Status Indicator
Button: 1 × Reset Button (Internal)

Software Configuration: Mobile App via NFC
Advanced Feature: Milesight D2D Controller, Threshold Alarm

Power Supply: 1 × 1650 mAh ER14335 Li-SOCl2 Battery
Battery Life (30 min interval + 30 triggers per day, 25°C): Around 4.2 years (SF7, EU868), Around 2.4 years (SF10, EU868), Around 3.9 years (SF7, US915), Around 2 years (SF10, US915)

Operating Temperature: -20°C ~ 60°C
Relative Humidity: 0% ~ 90% (non-condensing)
Ingress Protection: IP30
Material: Anti-flaming Polycarbonate
Color: White
Dimensions: 50 × 50 × 23.8 mm (1.97 × 1.97 × 0.94 in), Lens: Ф 17.2 mm (0.68 in)
Weight: 40 g (Battery Included)
Installation: On the flat surfaces with screws or 3M tapes

Regulatory Approvals: CE, FCC, RoHS, LoRaWAN® Certified
Safety: EN62368-1
