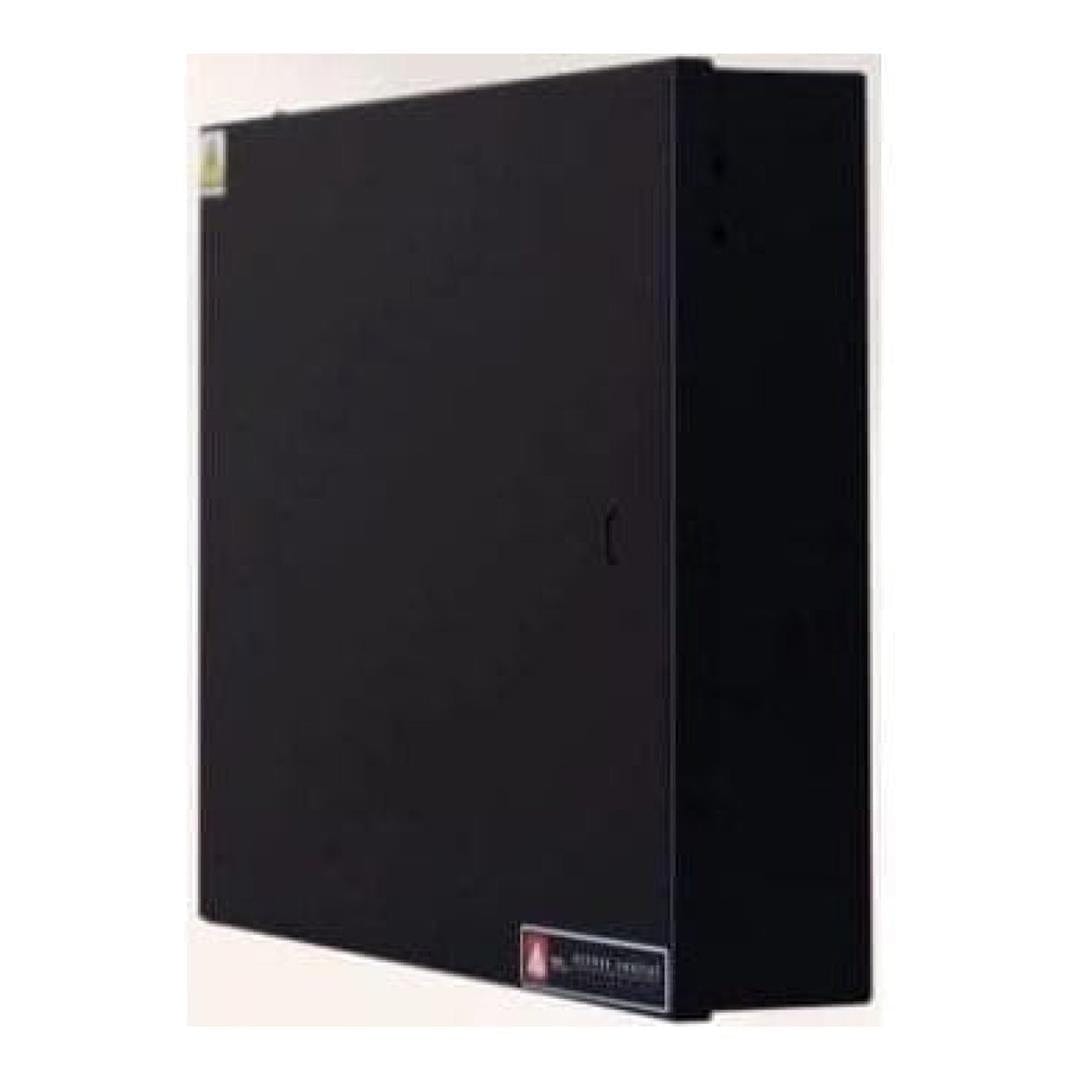

Impro HCD901 iTRT2 Distributed Controller in Metal IPS Box HCD901-0-0-GB-00

Impro HCD901 iTRT2 Distributed Controller in Metal IPS Box HCD901-0-0-GB-00

Features:

• Scalable controller options
• Versatile installation options
• Zero down-time firmware upgrades
• OSDP and Wiegand support
• Communication distance: 150 m for Wiegand, 1000 m for OSDP
• Offline validation
• Tamper protection
• Support for up to 2 doors with 4 inputs and 2 relay outputs
• Auxiliary 3rd relay

Technical Specifications:

Product Description: iTRT2 in steel enclosure with integrated PSU
Colour: Black
Dimensions (D × W × H): 8.2 cm × 38.3 cm × 31.3 cm
Approx. Product Weight: 3.60 kg
Material: Mild Steel Housing

Electrical Specifications
Input Voltage: 100–230 V AC
Power Requirements at 12 V DC: 120 mA
Relay Power Requirements: 0.45 W per relay
Power Input Protection: Reverse polarity and over-current protection

Interconnectivity
Ethernet: 10/100 Base-T
RS-485 Ports: 1 × 38400 RS-485 for controller networking, 1 × 38400 RS-485 for Aperio™ lock hubs
OSDP & Wiegand: 2 hardware-selectable ports for OSDP or legacy Wiegand
Status LEDs: 20

Input Specification
Digital Inputs: 2 × Door Open Sensor inputs, 2 × Request to Exit Button inputs
Input Type: 4 dry contact inputs with end-of-line (EOL) sensing

Output Specification
Number of Relay Outputs: 3
Output Type: 3 × independent SPDT dry contact relays (NO, COM, NC)
Relay Contacts: Normally Open, Common, Normally Closed
Contact Ratings: 5 A @ 28 V DC (TV-5 Rated), 100k operations minimum

Environmental Specifications
Operating Temperature: -25 °C to +60 °C (-13 °F to +140 °F)
Storage Temperature: -40 °C to +85 °C (-40 °F to +176 °F)
Operating Humidity: 0–95% RH non-condensing (at +40 °C / +104 °F)
Environmental Rating: IP10

Certifications
CE (EU): Yes
UL: On request
SABS (RSA): Yes
RoHS Compliance: Yes
