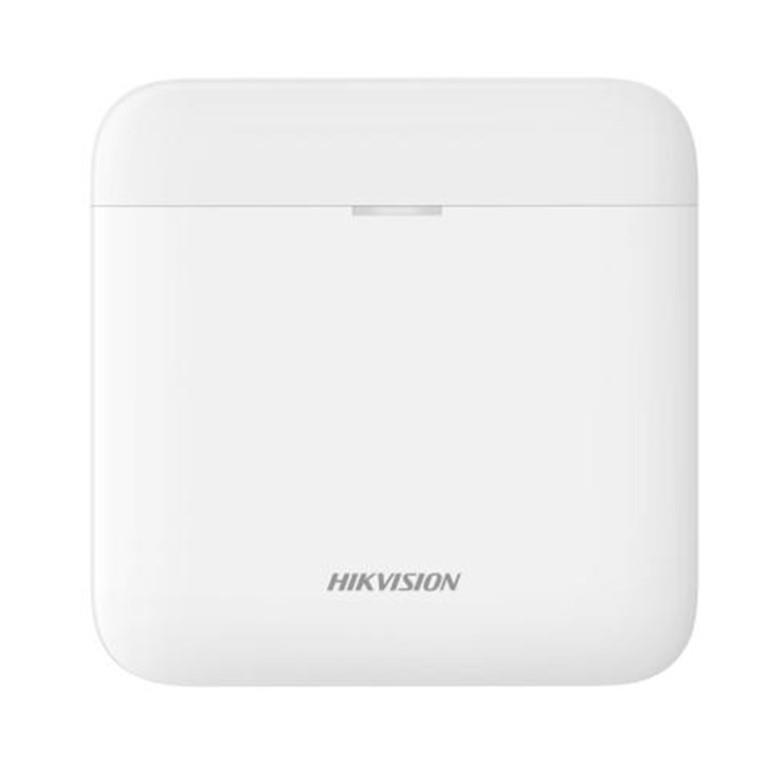

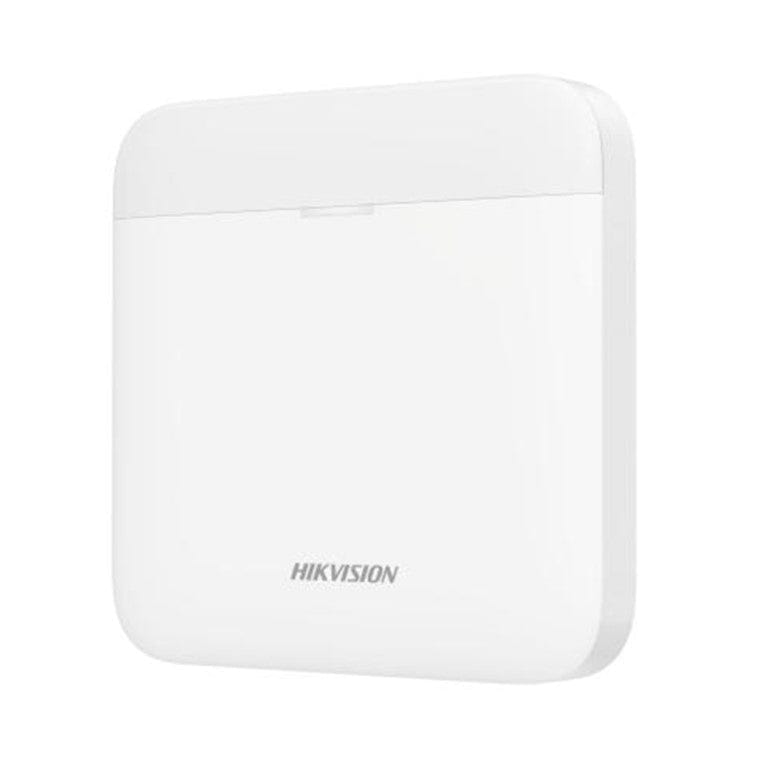

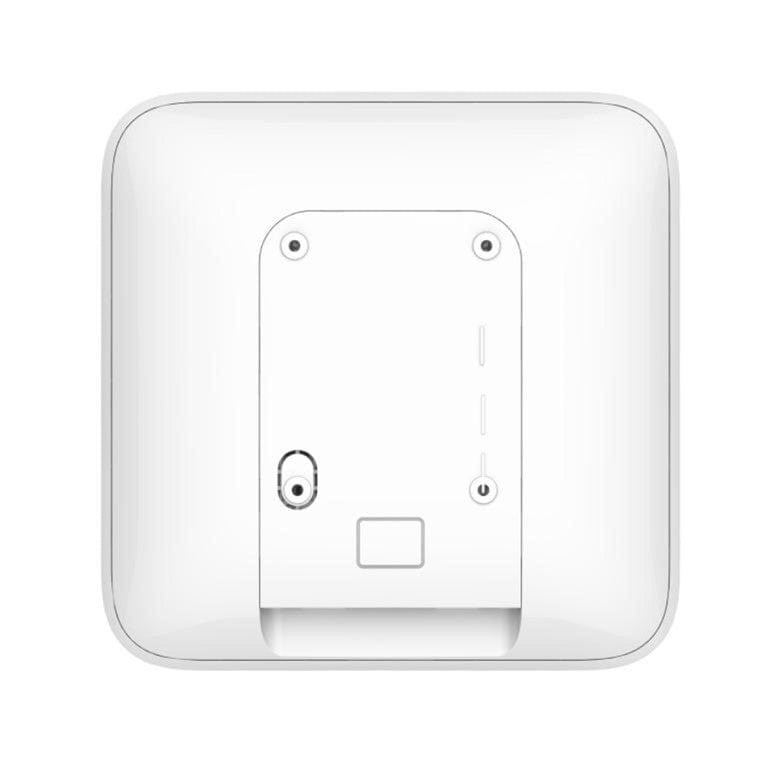

Hikvision AX Pro 868MHz Wireless Alarm Control Panel with IP, Wi-Fi and GPRS Network DS-PWA64-L-WE

Hikvision AX Pro 868MHz Wireless Alarm Control Panel with IP, Wi-Fi and GPRS Network DS-PWA64-L-WE

Features

• TCP/IP, Wi-Fi, and GPRS network
• New generation wireless protocol: Tri-X/Cam-X
• Long RF transmission distance
• Two-way communication with AES-128 encryption
• Connects up to 64 wireless zones/outputs (including 48 PIRCAMs), 32 wireless keyfobs, 2 repeaters, 4 sounders(2 internal+2 external), 8 tag readers and keypads.
• Supports up to 32 network users, including 1 installer, 1 administrator, and 30 normal users
• Voice prompt
• Configuration via Web client, mobile client, and Convergence Cloud
• Hik-Connect and Hik-ProConnect configuration depends on the user access level
• Pushes alarm notification via messages or phone calls
• Views live videos from Hik-Connect
• Alarm video clips via emails and APP
• Supports LED indicator to indicates system status
• 4520 mAh lithium backup battery
• SIA-DC09 protocol, and supports both Contact ID and SIA data format
• Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

Technical Specification

• Diagnostics via the APP or Web: Supported
• Installer: 1
• Installer APP for programming: Supported
• Web server for maintenance (offline configuration): Supported
• Wi-Fi standard: Supported
• Arm modes: Away/Stay
• Firmware upgrade: APP/Web Portal
• Admin: 1
• Wired network: Supported
• Programming tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
• Forced arming with open zones: Supported
• Memory log stored: 5000
• User: 30
• User APP for operating: Supported
• Voice prompt: Supported
• Area: 16
• Automatic arm/disarm timers: Supported

• RS232 output: Supported
• SIM slot: Single
• GPRS on board: Supported
• Loudspeaker built in: Supported

• Battery type: Built in on board Battery Li
• Power supply: Built in power supply
• Battery life span: Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)

• RF frequency: 868 Mhz
• Wireless security: Frequency Hoping 128 AES Encryption

• LEDs status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

• Shell material: Plastic
• Colour: White
• Weight: 557.5 g

• Tag: 32
• PIR cam: Supported
• Zones: 64 (up to 48 PIRCAMs)
• Keypad: 8 (including tag reader)
• Wireless sounder: 4(2 internal+2 external)
• Wireless repeater: 2
• Keyfob: 32
