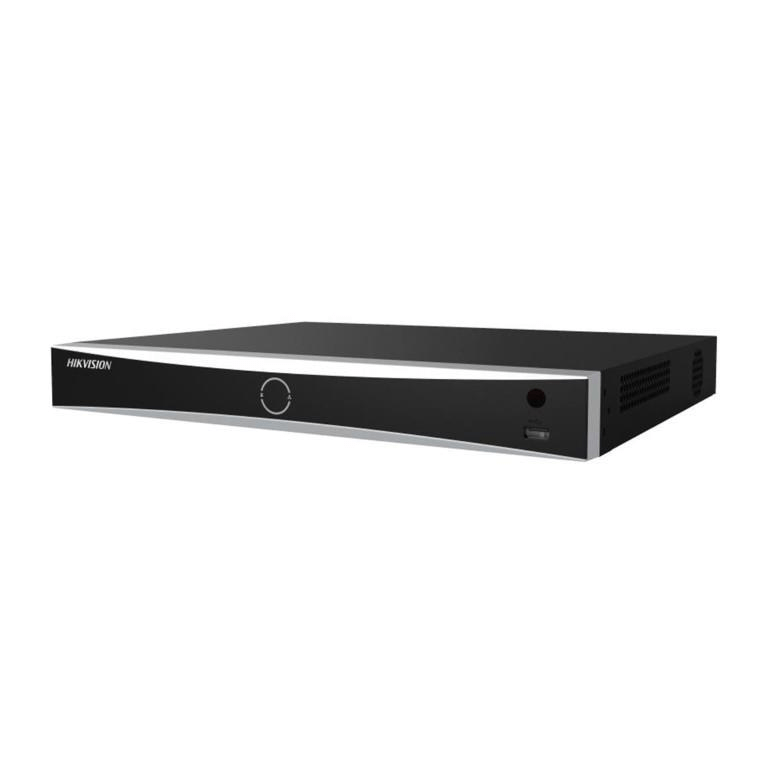

Hikvision 7600 Pro Series 16-ch PoE AcuSense 4K 1U NVR DS-7616NXI-K2/16P

Hikvision 7600 Pro Series 16-ch PoE AcuSense 4K 1U NVR DS-7616NXI-K2/16P

Features:

• Up to 16-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth
• Adopt Hikvision Acusense technology to minimize manual effort and security costs

Technical Specifications:

Intelligent Analytics
AI by Device: Facial recognition, perimeter protection, motion detection 2.0
AI by Camera: Facial recognition, perimeter protection, throwing objects from building, motion detection 2.0, ANPR, VCA

Facial Recognition
Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
Face Picture Library: Up to 16 face picture libraries, up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection and Analytics Performance: 1-channel, 8 MP
Face Picture Comparison: 4-channel

Motion Detection 2.0
By Device: All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms
By Camera: All channels

Perimeter Protection
By Device: 2-channel, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
By Camera: All channels

Video and Audio
IP Video Input: 16-channel
Incoming Bandwidth: 160 Mbps
Outgoing Bandwidth: 160 Mbps
HDMI Output: 1-channel, 4K (3840 × 2160) @ 30 Hz, 2K (2560 × 1440) @ 60 Hz, 1920 × 1080 @ 60 Hz, 1600 × 1200 @ 60 Hz, 1280 × 1024 @ 60 Hz, 1280 × 720 @ 60 Hz, 1024 × 768 @ 60 Hz
VGA Output: 1-channel, 1920 × 1080 @ 60 Hz, 1280 × 1024 @ 60 Hz, 1280 × 720 @ 60 Hz
Video Output Mode: HDMI/VGA independent output
CVBS Output: N/A
Audio Output: 1-channel, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Two-Way Audio: 1-channel, RCA (Linear, 1 KΩ)

Decoding
Decoding Format: H.265, H.265+, H.264+, H.264
Recording Resolution: 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Synchronous Playback: 16-channel
Decoding Capability:
AI On: 1-channel @ 12 MP (30 fps), 2-channel @ 8 MP (30 fps), 4-channel @ 4 MP (30 fps), 8-channel @ 1080p (30 fps)
AI Off: 2-channel @ 12 MP (30 fps), 3-channel @ 8 MP (30 fps), 6-channel @ 4 MP (30 fps), 12-channel @ 1080p (30 fps)
Smooth Playback (HC) On & AI On: 1-channel @ 12 MP (30 fps), 1-channel @ 8 MP (30 fps), 3-channel @ 4 MP (30 fps), 7-channel @ 1080p (30 fps)
Smooth Playback (HC) On & AI Off: 1-channel @ 12 MP (30 fps), 2-channel @ 8 MP (30 fps), 5-channel @ 4 MP (30 fps), 11-channel @ 1080p (30 fps)
Stream Type: Video, Video & Audio
Audio Compression: G.711ulaw, G.711alaw, G.722, G.726, AAC

Network
Remote Connection: 128
API: ONVIF (Profile S/G), SDK, ISAPI
Compatible Browser: IE11, Chrome v57, Firefox v52, Safari v12, Edge v89 or later
Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Network Interface: 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
Interface: 16 × RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
Power: ≤ 200 W
Standard: IEEE 802.3af/at

Auxiliary Interface
SATA: 2 SATA interfaces
Capacity: Up to 16 TB per HDD
USB Interface: Front panel: 1 × USB 2.0, rear panel: 1 × USB 2.0
Alarm In/Out: 4 / 1

General
GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian
Power Supply: 100 to 240 VAC, 50 to 60 Hz
Consumption: ≤ 15 W (without HDD, PoE off)
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10% to 90%
Dimensions (W × D × H): 385 mm × 315 mm × 52 mm (15.2" × 12.4" × 2.0")
Weight: ≤ 3 kg (without HDD, 6.6 lb.)

Certification
FCC: Part 15 Subpart B, ANSI C63.4-2014
CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained Certification: CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS
