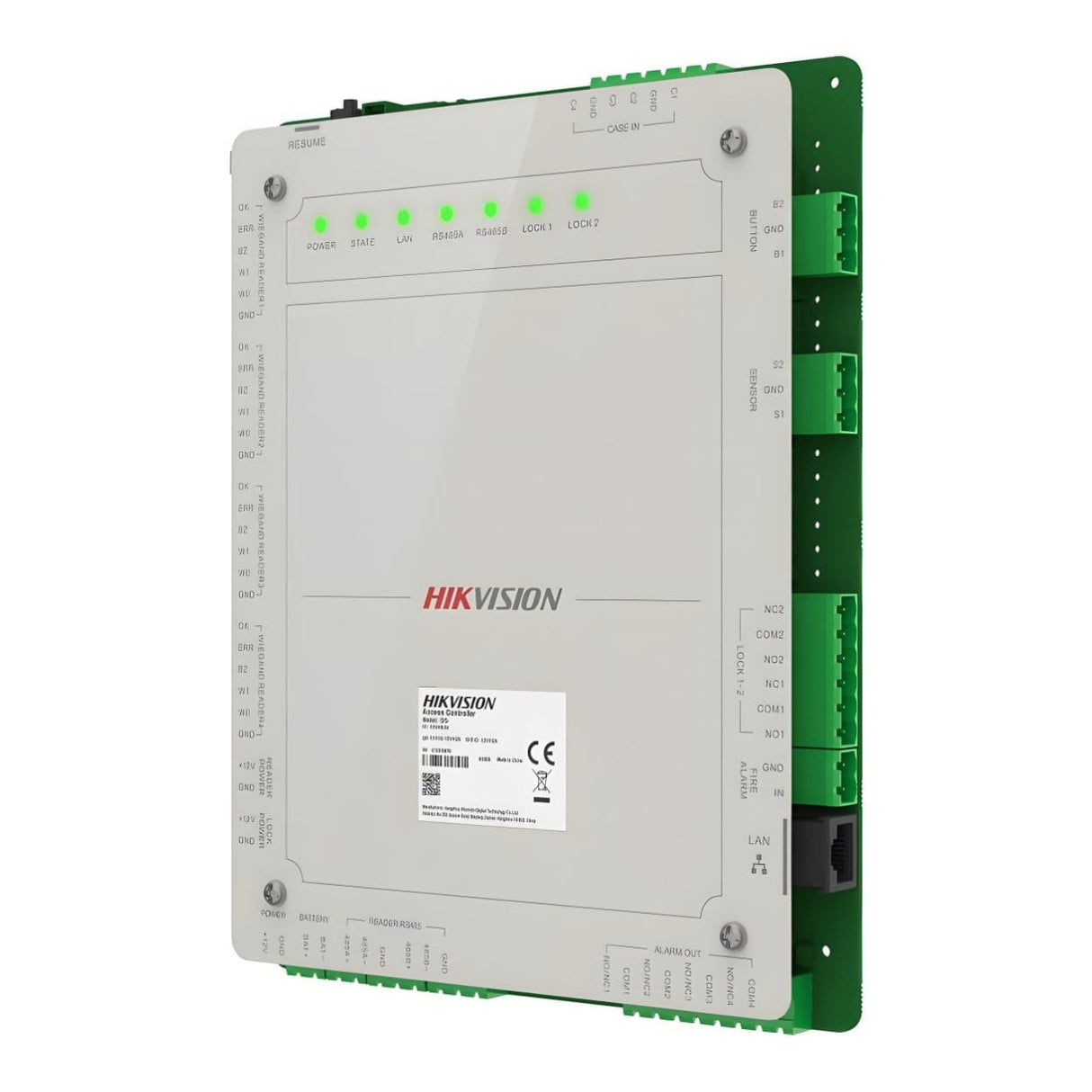

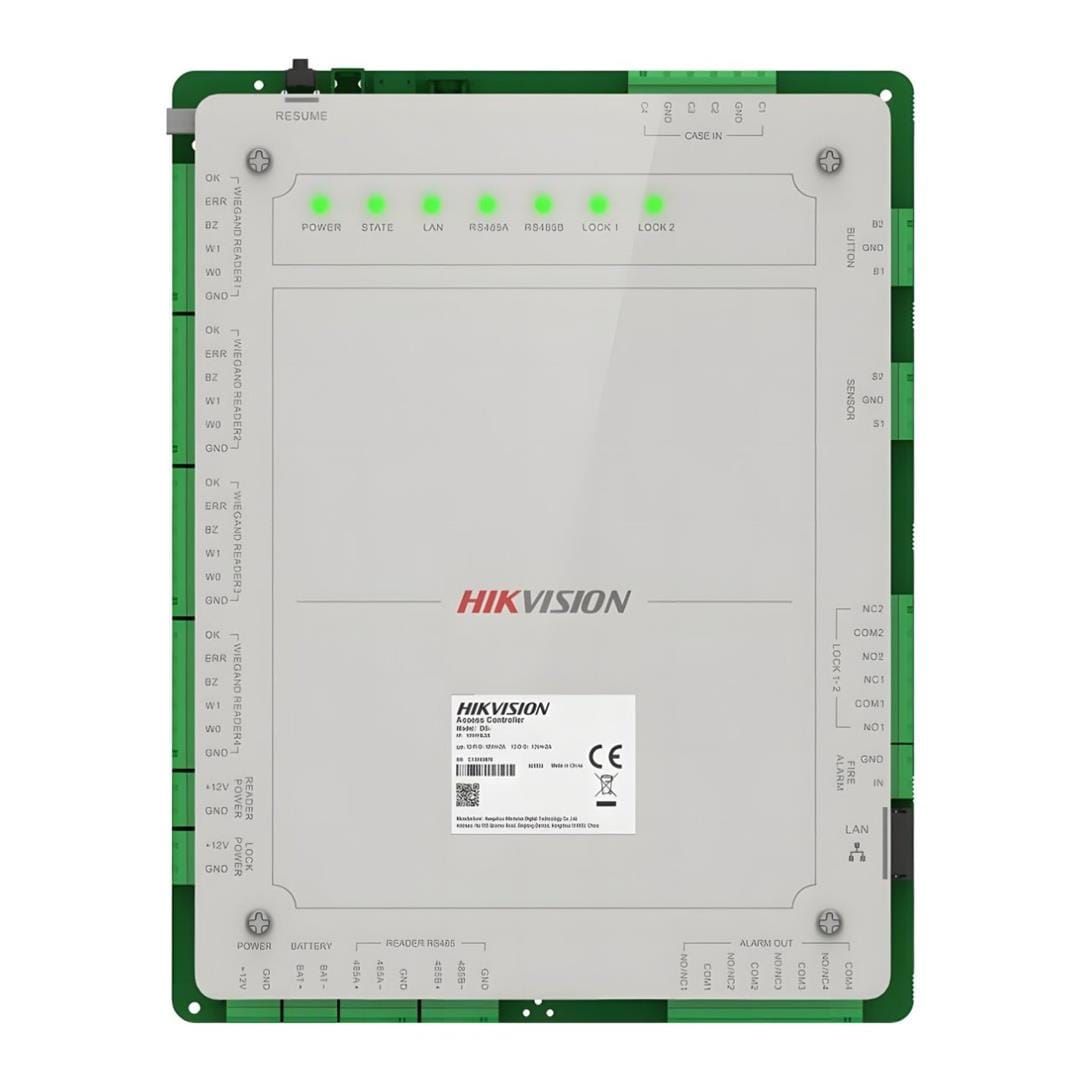

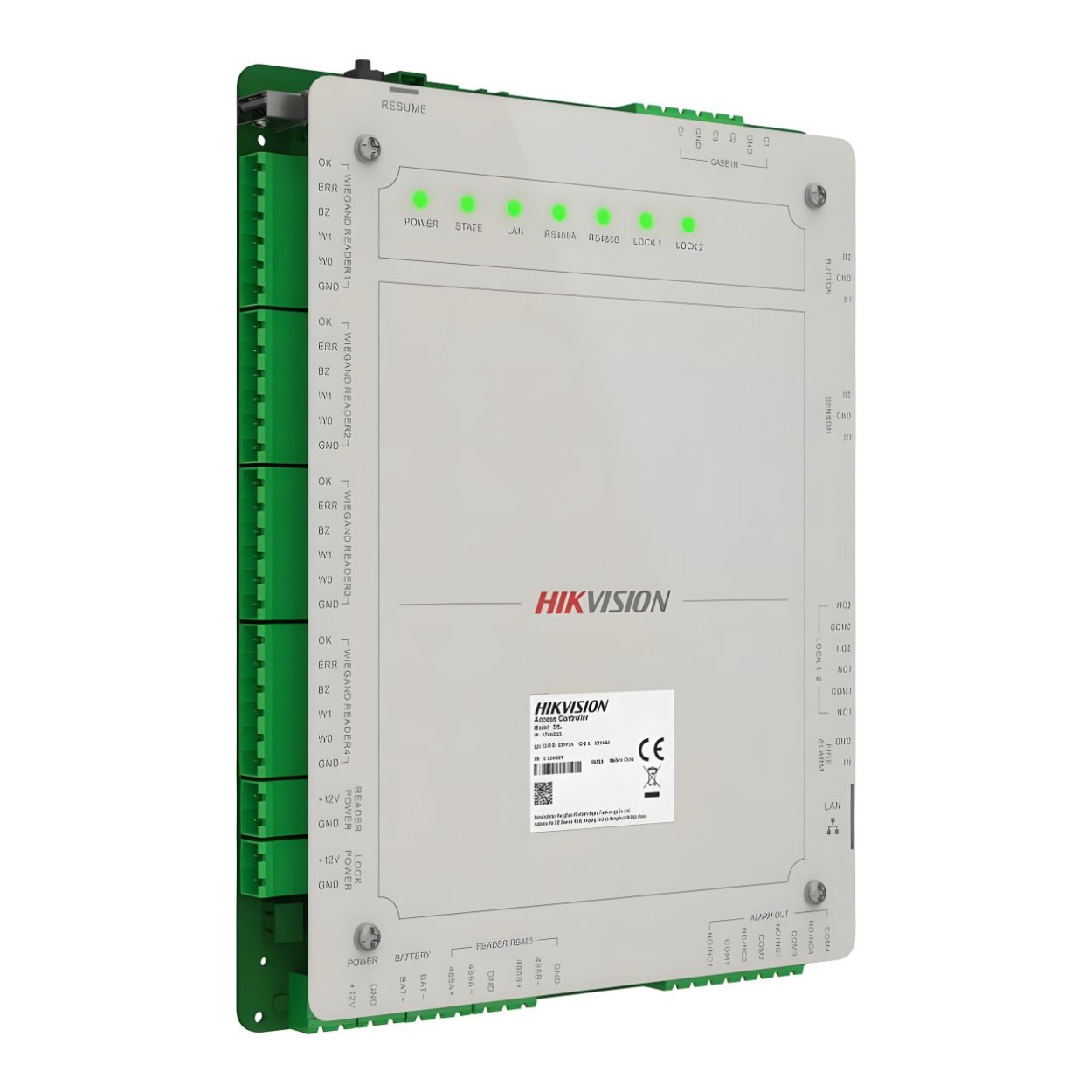

Hikvision 2 Door Pro Series Access Contoller DS-K2622X(P)

Hikvision 2 Door Pro Series Access Contoller DS-K2622X(P)

Features:

• Supports IPv4, IPv6 and DHCP
• Supports AES256, RSA2048, and TLS 1.2 encryption protocols
• Web configuration management. All configurations can be realized via web without software application
• Supports professional access control applications such as multi-door interlocking and anti-passback
• Supports backup battery access
• Supports OSDP, and a variety of wiegend formats to connect to third-party card readers
• It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
• Supports 2-door control

Technical Specifications:

Network
Wired Network 10/100 Mbps self adaptive

Interface
Network Interface 1
Lock Control 2
Exit Button 2
Door Contact Input 2
Alarm Input 4
Alarm Output 4
TAMPER 1
RS-485 2 for card reader (1 for communication, 1 for redundancy; each interface can connect up to 4 readers)
Wiegand 4, standard 26/34 input, supports custom Wiegand settings
Fire Interface Support

Capacity
Linked Door Capacity 2
Linked Card Reader Capacity 4 RS-485 card readers (OSDP protocol) and 4 Wiegand card readers

General
Battery Charge and discharge
Power Supply 12 ± 15% VDC
Power Consumption ≤ 72 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 0% to 90% (No condensing)
Installation Wall mounting
Language English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian and Turkish

Function
Configuration via Web Browser Support
Multi-factor Authentication Support
Anti-passback Support
Multi-door Interlocking Support
