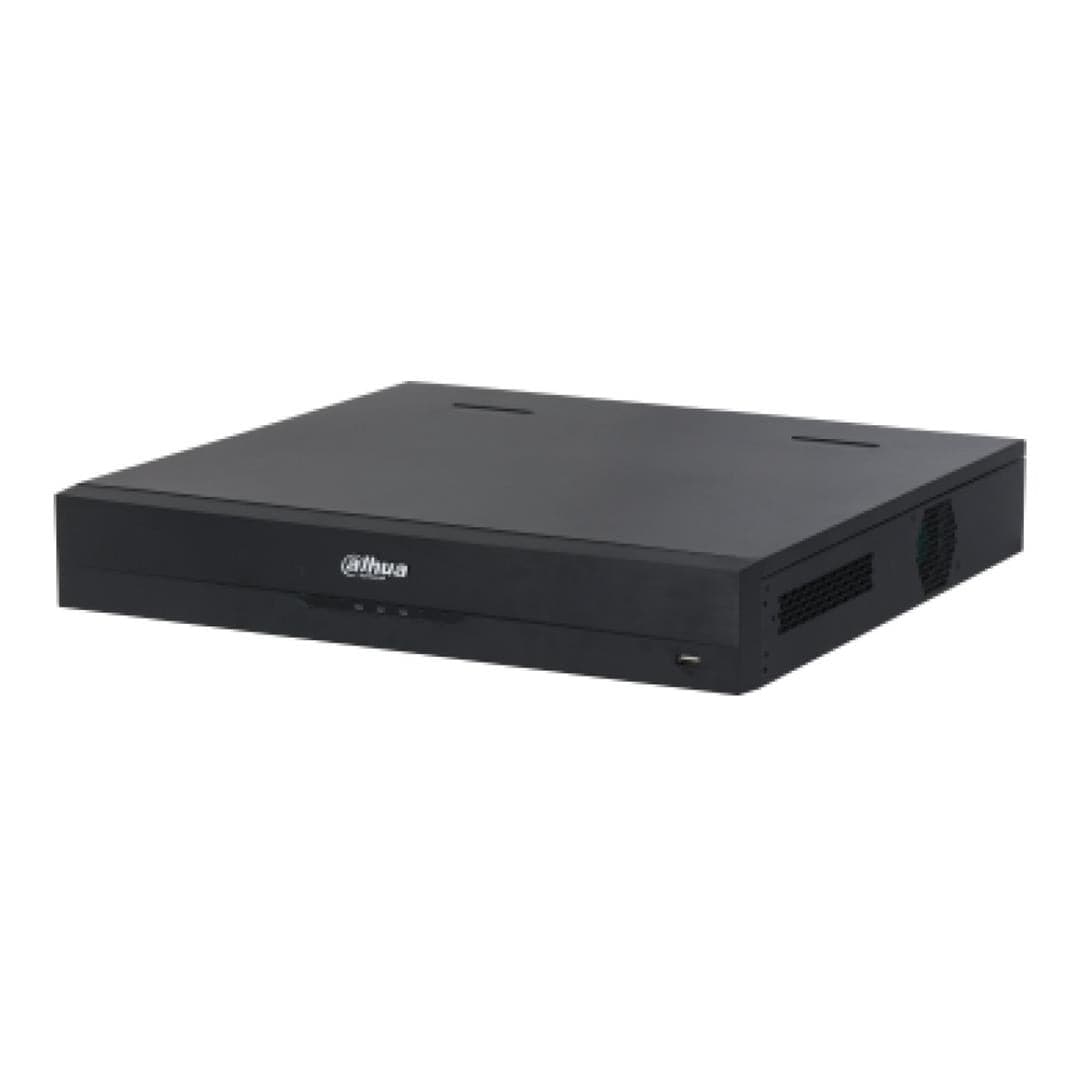

Dahua XVR5432L-I3 WizSense 32-channel Penta-brid 1.5U 4 HDDs DVR

Dahua XVR5432L-I3 WizSense 32-channel Penta-brid 1.5U 4 HDDs DVR

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.

Face Recognition

Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database. *Face Recognition conflicts with SMD Plus and Perimeter Protection.

Perimeter Protection

Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.

SMD Plus

With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

QuickPick 2.0

By employing the back-end perimeter protection algorithm, QuickPick 2.0 not only retains the capability to identify the color of clothing and vehicles, which was offered by its predecessor QuickPick 1.0, but it also possesses the enhanced ability to detect various types of hats, clothing and vehicles, thus greatly improving the accuracy of the search function.

Irregular Black Block Masking

Dahua's black block masking function supports the use of irregular shapes for masking, ensuring privacy in public and private locations.

Specifications:

Main Processor: Industrial-grade processor

Operating System: Embedded Linux

Operating Interface: Web; Local GUI

QuickPick 2.0 AI by Recorder (Number of Channels): 2 channels

Perimeter Performance AI by Recorder (Number of Channels)

• Advanced Mode: 2 channels, 10 IVS rules for each channel
• General Mode: 8 channels, 10 IVS rules for each channel

Face Attributes: 6 attributes

Face Detection Performance of AI by Recorder (Number of Channels): 2 channels(up to 12 face images/s each channel)

Face Database Capacity: Up to 10 face databases with 10,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels

SMD Plus by Recorder: 32 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera: 48 channels

AI Video Quality Analytics by Recorder: 32 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

Scene Changing by Recorder: 1 channel

Irregular Black Block Masking by Recorder: 1 channel

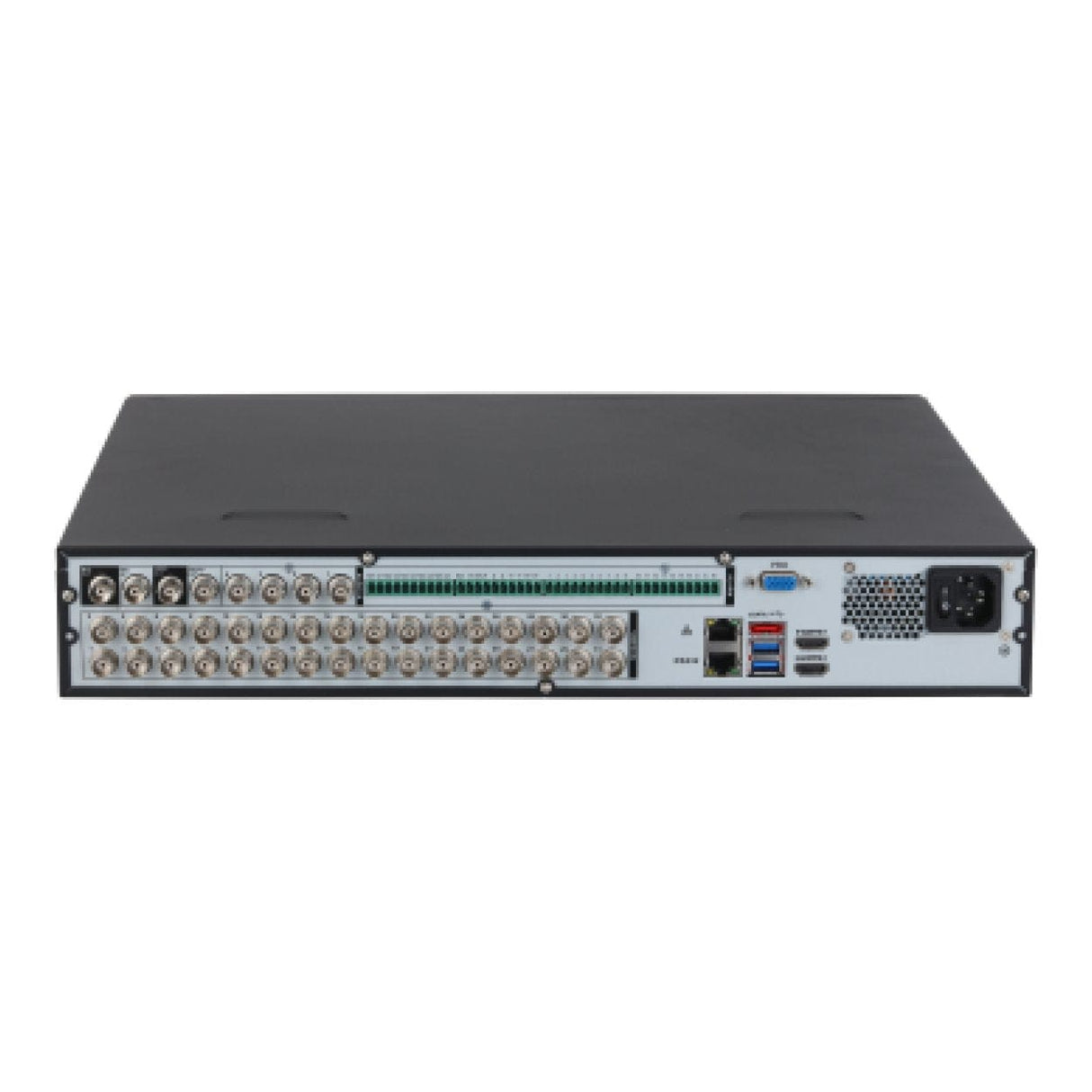

Analog Camera Input: 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

• CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps.
• TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
• AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

• Up to 48 channels of IPC access
• 16 IP channels by default +32 channels (analog channels are converted to IP channels)
• incoming bandwidth: 192 Mbps, recording bandwidth: 192 Mbps and outgoing bandwidth: 192 Mbps
• *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection and QuickPick 2.0 cannot be used.

Encode Enhancement disabled:

Main stream:

• Channels 1-4 and 17-20 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps);
• Channels 1-4 and 17-20 4M-N/1080p@(1 fps–30 fps), others 4M-N/1080p@(1 fps–15 fps);
• 1080N/720p/960H/D1/CIF@(1 fps–30 fps);
• Sub stream: D1/CIF@(1 fps–15 fps);

Encode Enhancement enabled:

Main stream:

• Channels 1-8 and 17-24 5M-N@(1 fps–20 fps), others 5M-N@(1 fps-12 fps); (4 channels can be transformed to 5MP@6 fps)
• Channels 1-8 and 17-24 4M-N/1080p@(1 fps–25 fps), others 4M-N/1080p@(1 fps–15 fps);
• 1080N/720p/960H/D1/CIF@(1 fps–30 fps);
• Sub stream: D1/CIF@(1 fps–15 fps);

*When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and QuickPick 2.0 cannot be used.

Dual-stream: Yes

Video Bit Rate: 32 kbps–6144 kbps

Audio Sampling: 8 kHz, 16 bit

Audio Bit Rate: 64 kbps

Video Output

• 2 HDMI, 1 VGA, 1 CVBS
• HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720

*Heterogeneous video sources output for HDMI 2 is configurable.

Multi-screen Display: 1/4/8/9/16/25/36

Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression: G.711a; G.711u; PCM

Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access: iOS; Android

Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK

Browser

• Chrome; IE; Safari; Edge; Firefox
• Recording Playback

Record Mode: General; alarm; motion detection; intelligent; POS

Recording Playback: 1/4/9/16

Backup Method: USB device and network

Playback Mode: Instant playback; general playback; event playback; tag playback; smart playback
