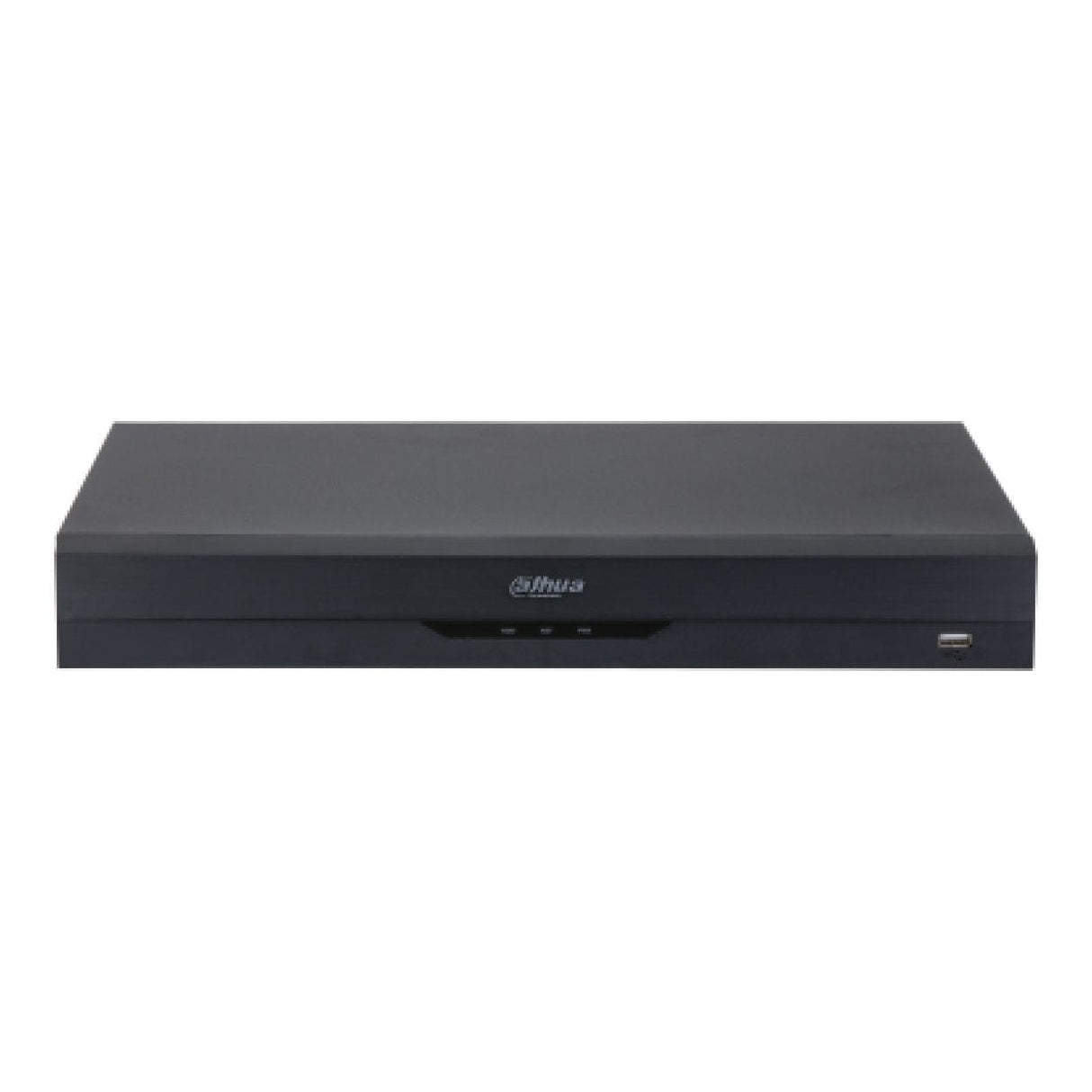

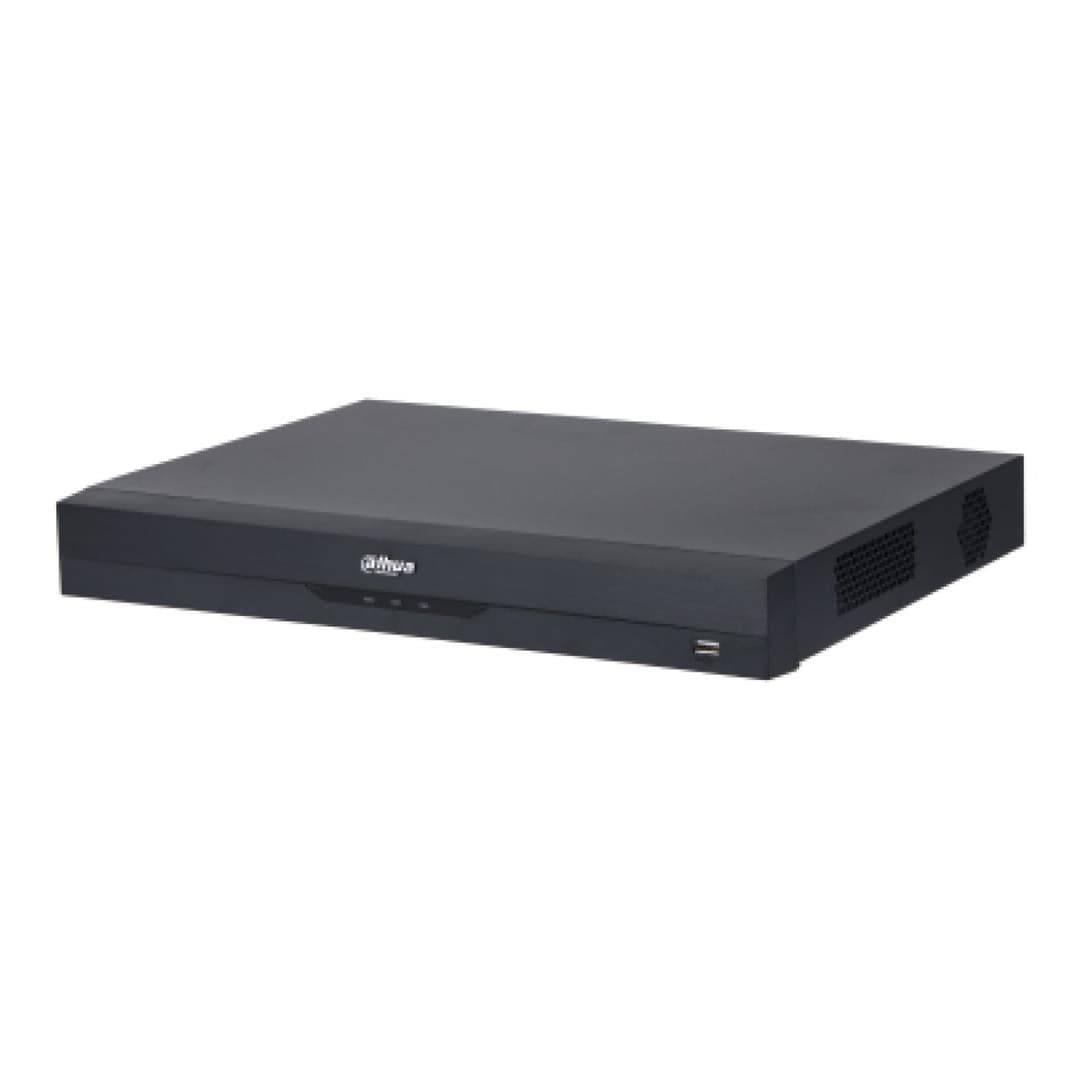

Dahua XVR5216A-4KL-I3 WizMind 16-channel Penta-Brid 1U 2 HDDs NVR with 8x PoE Ports

Dahua XVR5216A-4KL-I3 WizMind 16-channel Penta-Brid 1U 2 HDDs NVR with 8x PoE Ports

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-4KL-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.

Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database. *Face Recognition conflicts with SMD Plus and Perimeter Protection.

Perimeter Protection

Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.

SMD Plus

With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

EPTZ

With advanced target detection and tracking algorithms, Dahua EPTZ technology can simultaneously zoom in and track multiple humans and vehicles that trigger alarms. It provides rich details and a panoramic view at the same time.

QuickPick 2.0

By employing the back-end perimeter protection algorithm, QuickPick 2.0 not only retains the capability to identify the color of clothing and vehicles, which was offered by its predecessor QuickPick 1.0, but it also possesses the enhanced ability to detect various types of hats, clothing and vehicles, thus greatly improving the accuracy of the search function.

Privacy Protection

Dahua Privacy Protection technology is capable of masking detected human faces and subsequently removing the mask, ensuring the privacy of specific individuals is protected.

Irregular Black Block Masking

Dahua's black block masking function supports the use of irregular shapes for masking, ensuring privacy in public and private locations.

HDMI (4K)

The HDMI port can support up to 4K output, delivering clear and highly detailed images.

Specifications:

Main Processor: Industrial-grade processor

Operating System: Embedded Linux

Operating Interface: Web; Local GUI

• Quick Pick
• QuickPick 2.0 AI by Recorder (Number of Channels)

2 channels: Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels):

• Advanced Mode: 2 channels, 10 IVS rules for each channel
• General Mode: 8 channels, 10 IVS rules for each channel

Face Detection

Face Attributes: 6 attributes

Face Detection Performance of AI by Recorder (Number of Channels): 2 channels(up to 12 face images/s each channel)

Privacy Protection

Privacy Protection Performance of AI by Recorder (Number of Channels): 1 channel

Face Recognition

Face Database Capacity: Up to 10 face databases with 20,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels

SMD Plus

SMD Plus by Recorder: 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera: 32 channels

AI Video Quality Analytics

AI Video Quality Analytics by Recorder: 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

Scene Changing

Scene Changing by Recorder: 1 channel

Irregular Black Block Masking by Recorder: 1 channel

EPTZ by Recorder: 1 channel

Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access: iOS; Android

Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK

Browser: Chrome; IE; Safari; Edge; Firefox

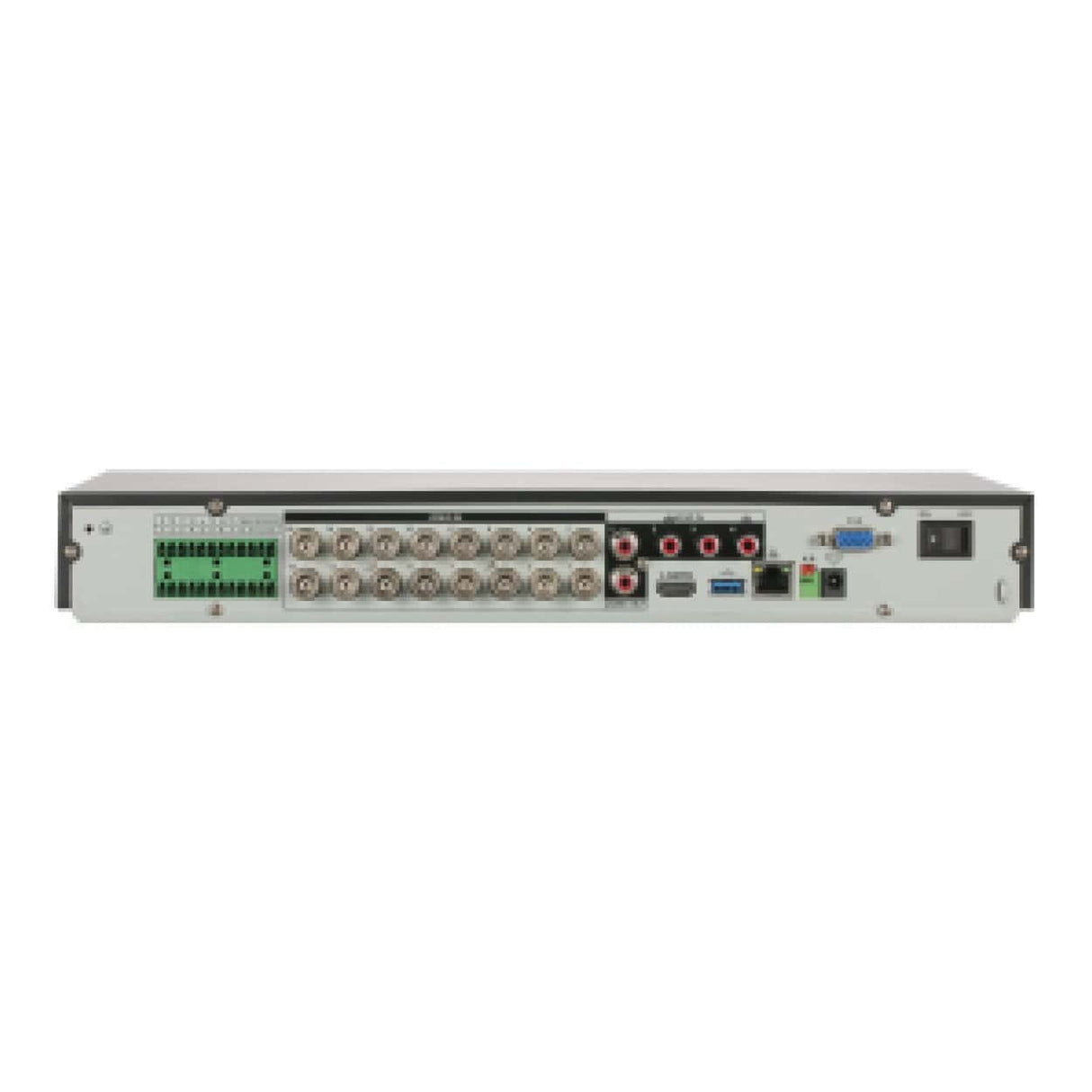

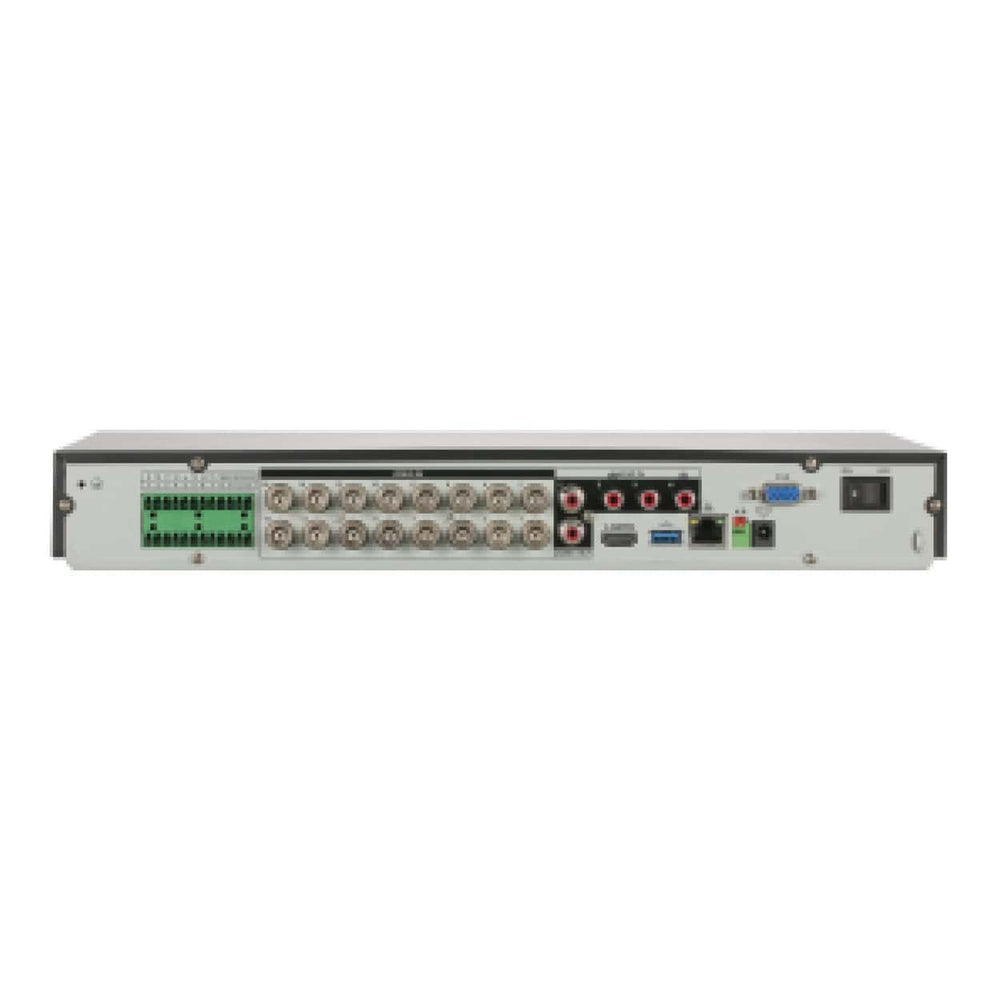

Audio Input:

• 4-channel RCA
• 16-channel BNC (Coaxial Audio)

Audio Output: 1-channel RCA

Two-way Talk: Yes (share the same audio input with the first channel)

Alarm Input: 16 channels

Alarm Output: 3 channels

Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.

RS-485: 1

USB: 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI: 1

VGA: 1

Network Port: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
