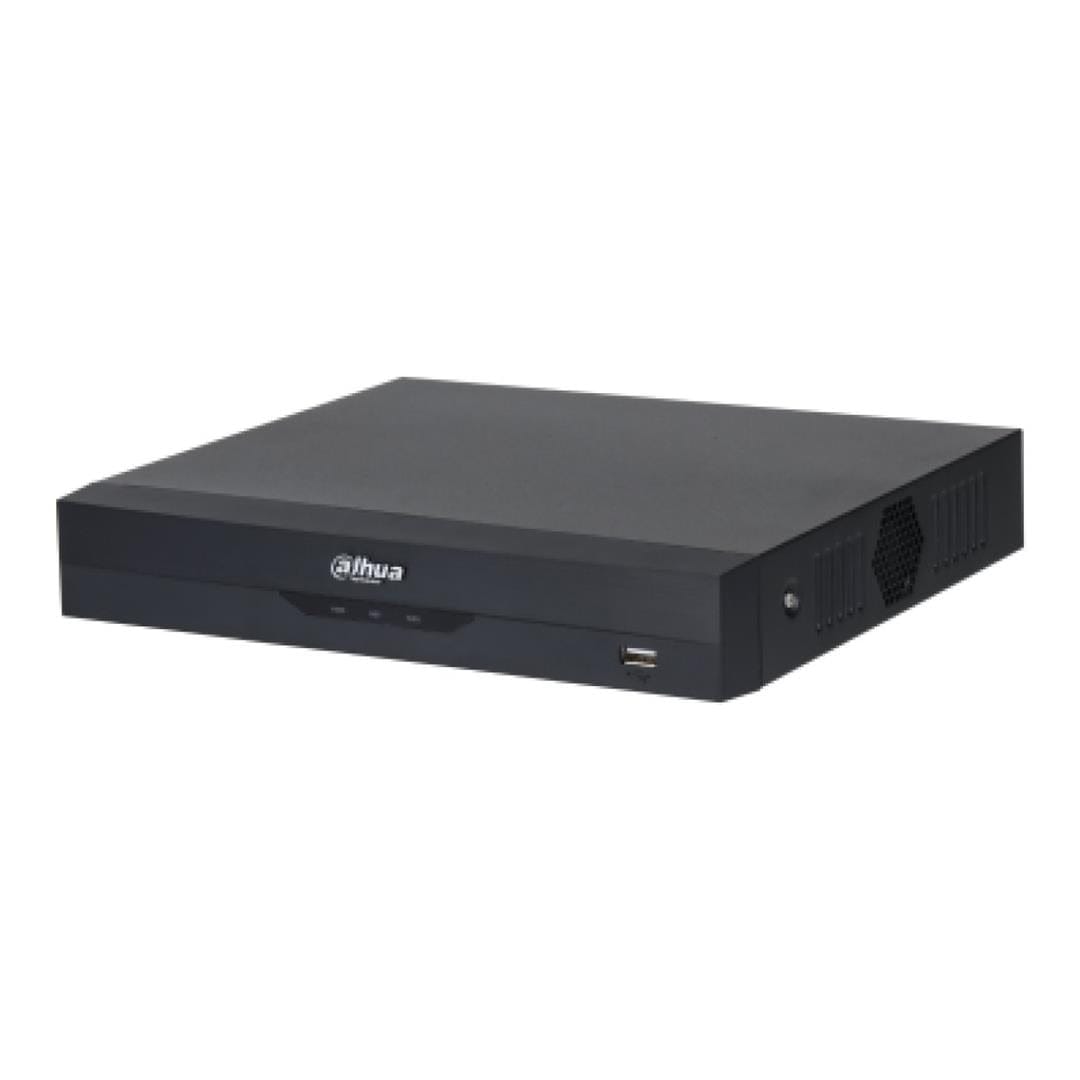

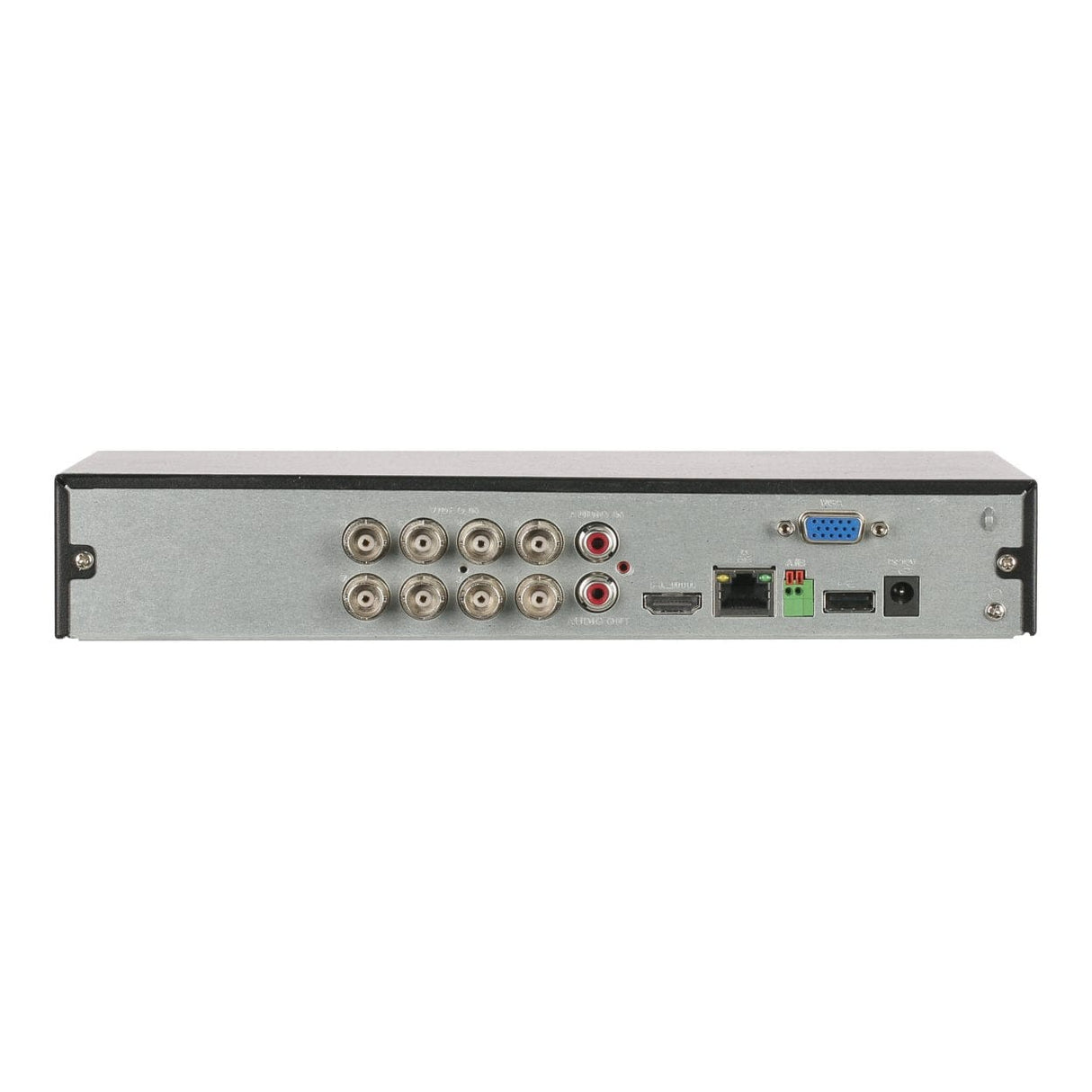

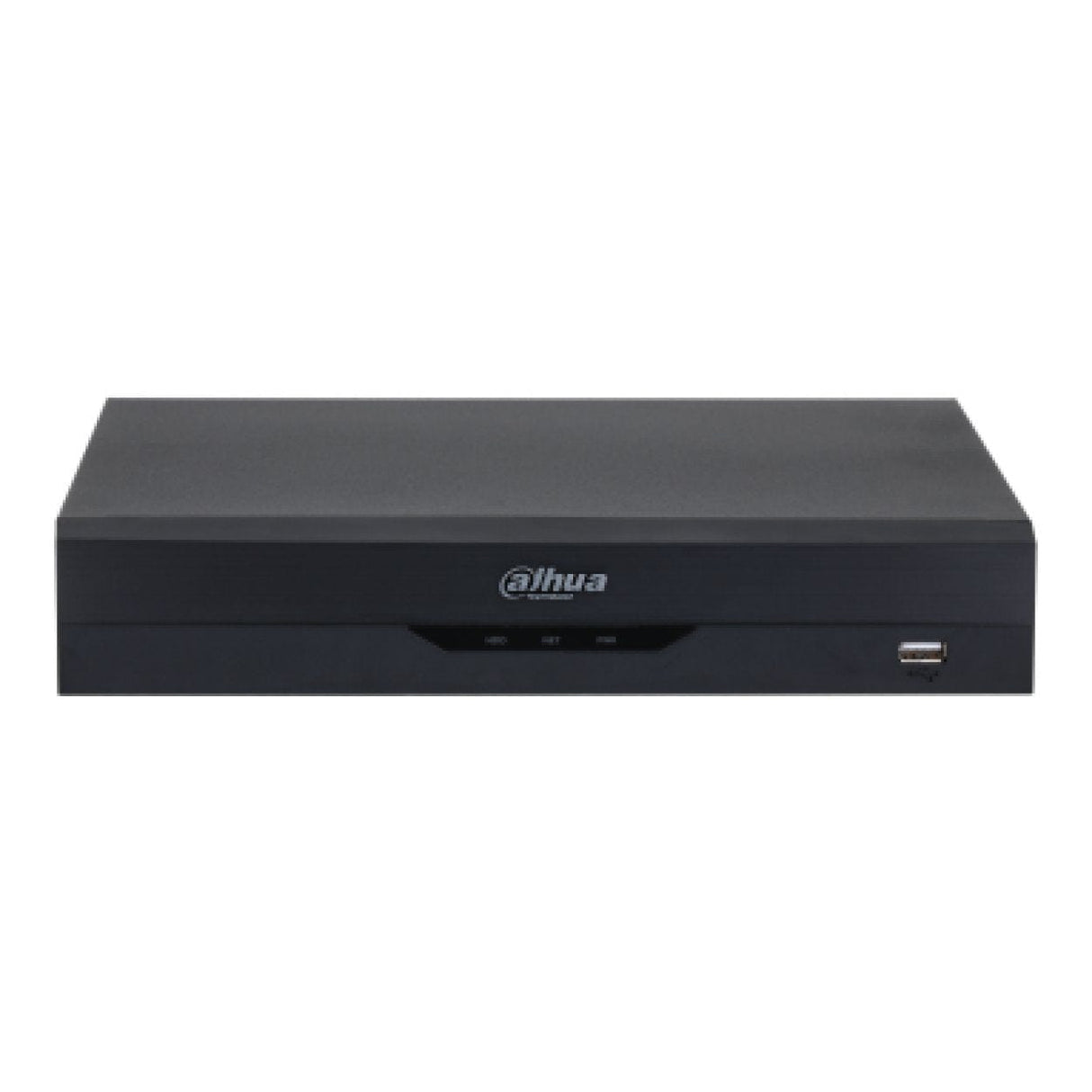

Dahua XVR5108HS-I3/T WizSense 8-channel Penta-brid Compact 1U 1 HDD DVR

Dahua XVR5108HS-I3/T WizSense 8-channel Penta-brid Compact 1U 1 HDD DVR

8CH Penta-brid 5MP Value/1080P Compact 1U 1HDD WizSense Digital Video Recorder

• *Dolynk cloud version: DMSS 2.0.30 and above, Dolynk Care 2.50.20 and above.
• 8-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder.
• 2-channel AcuPick for analog channels which improves the efficiency of target retrieval.
• 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
• 2-channel face recognition for analog channels which supports face comparison.
• 8-channel SMD Plus for analog channels or 12-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
• 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
• Supports HDCVI, AHD, TVI, CVBS and IP video input.
• Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
• Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes.
• Smart H.265+ and H.265 dual-stream video compression.

Specifications:

Main Processor: Industrial-grade processor

Operating System: Embedded Linux

Operating Interface: Web; Local GUI

AcuPick Performance of AI by Recorder (1080P) (Number of Channels): 2 channels

Perimeter Performance AI by Recorder (Number of Channels): 4 channels, 10 IVS rules for each channel

Face Attributes: 6 attributes

Face Detection Performance of AI by Recorder (Number of Channels): 2 channels (up to 8 face images/s each channel)

Face Database Capacity: Up to 10 face databases with 10,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels

SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD by Camera: 12 channels

Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression: G.711a; G.711u; PCM

Network

Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access: iOS; Android

Interoperability: ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

Browser: Chrome; IE; Safari; Edge; Firefox

Audio Input:

• 1-channel RCA
• 8-channel BNC (Coaxial Audio)

Audio Output: 1-channel RCA

Two-way Talk:

• Coaxial two-way talk: 8-channel BNC
• Local and network user two-way talk: Shares the same audio input with the first channel

Disk Interface: 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.

RS-485: 1

USB: 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)

HDMI: 1

VGA: 1

Network Port: 1 (10/100 Mbps Ethernet port, RJ-45)
