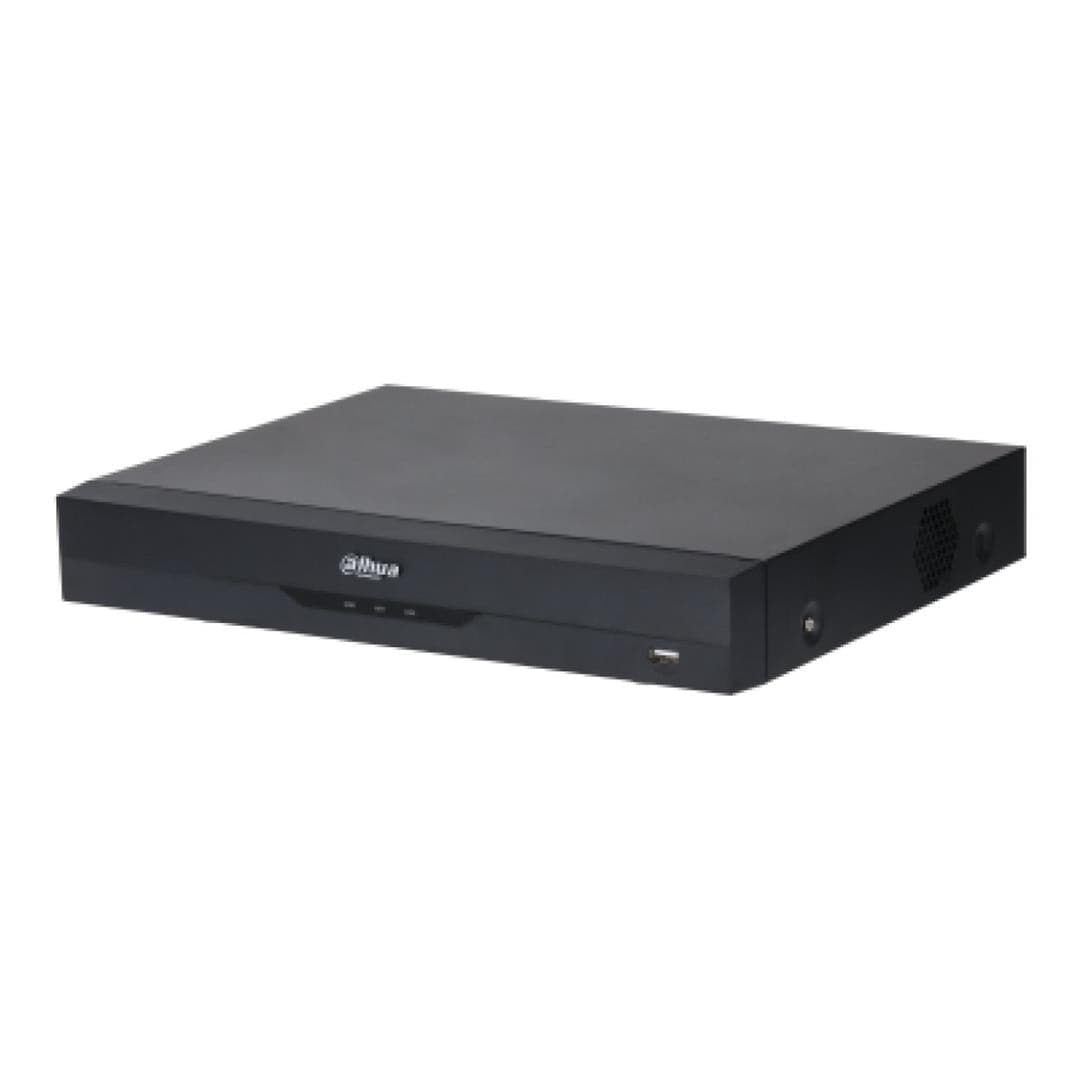

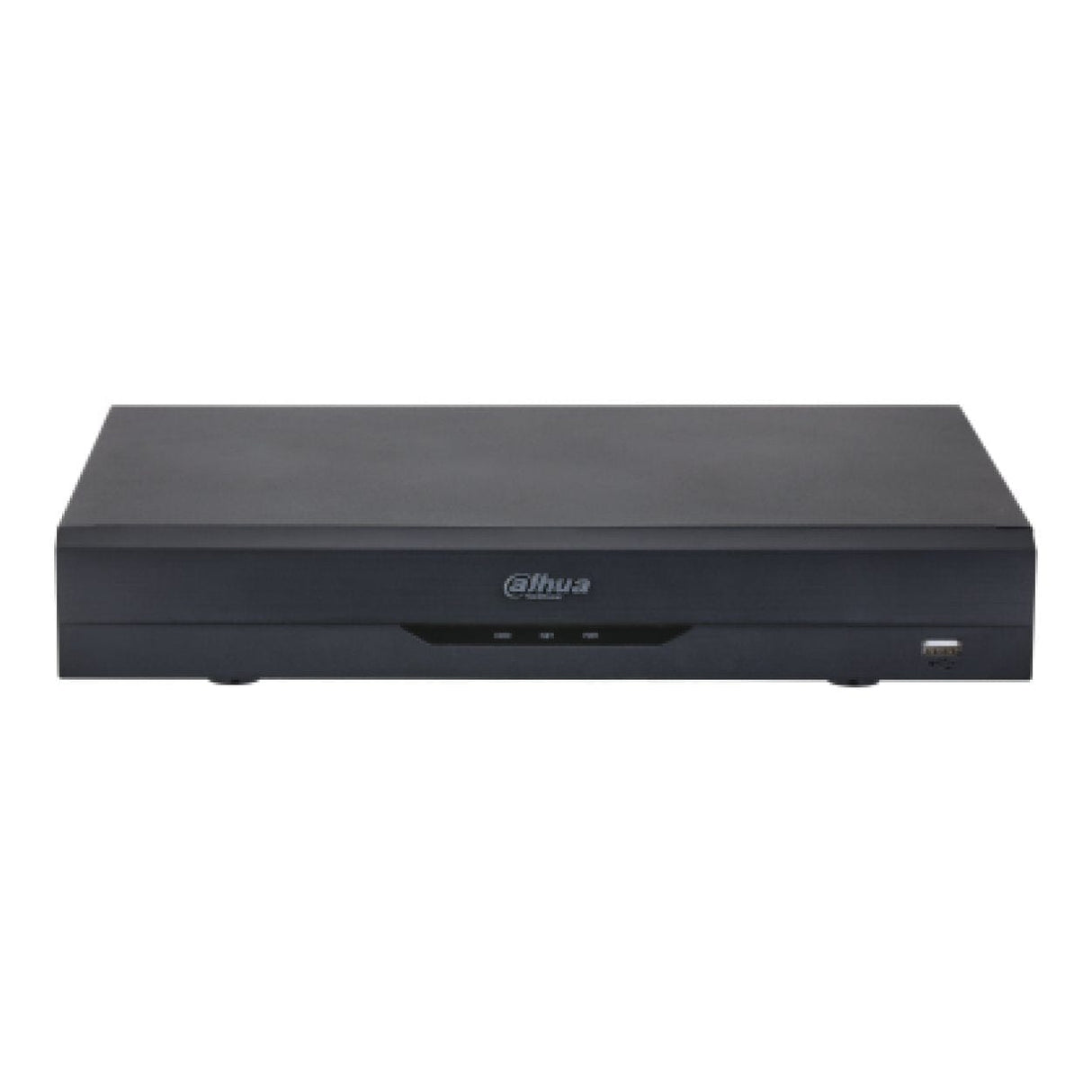

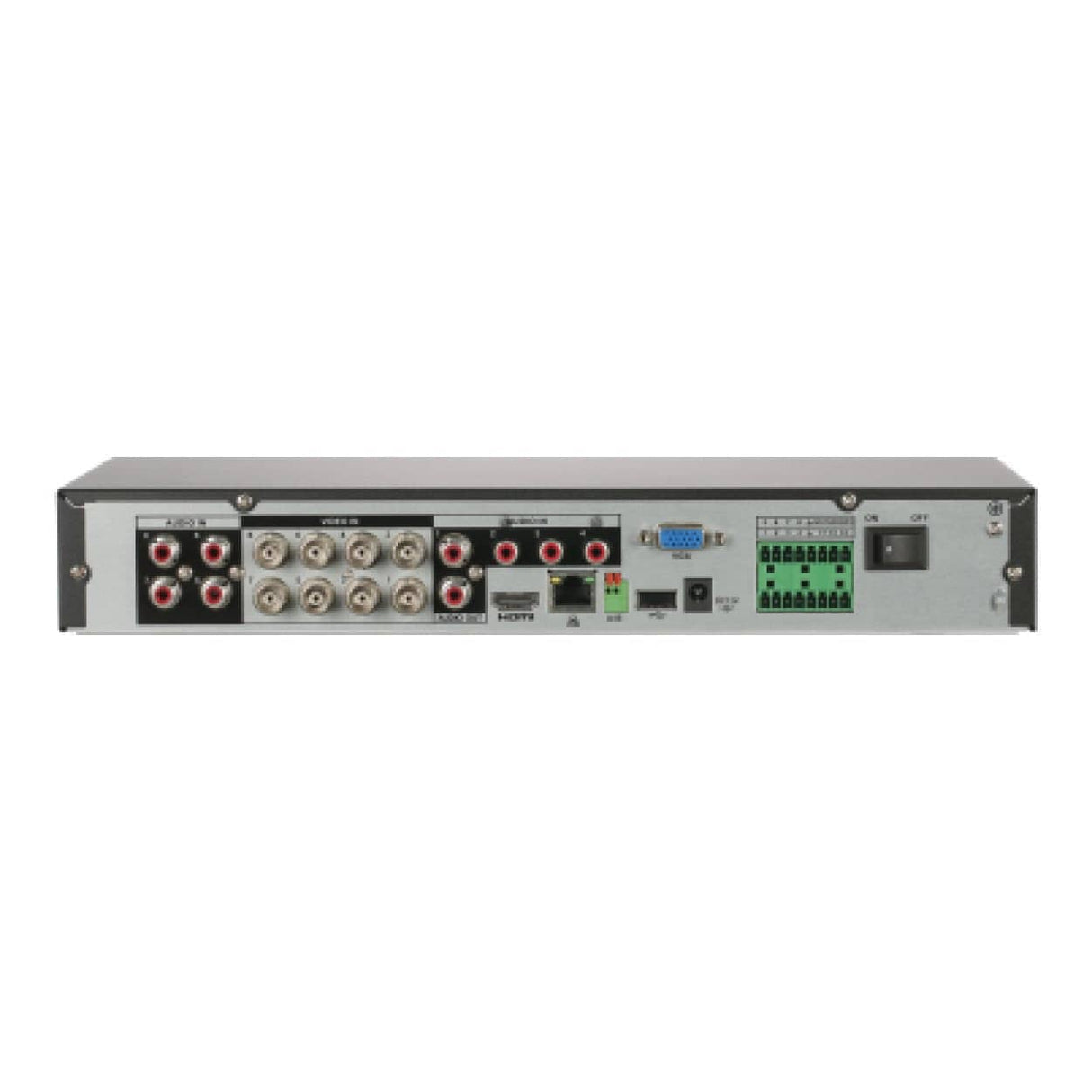

Dahua XVR5108HE-I3/T WizSense 8-channel Penta-brid Mini 1U 1 HDD DVR

Dahua XVR5108HE-I3/T WizSense 8-channel Penta-brid Mini 1U 1 HDD DVR

* The information below only applies to hardware version 3.0. of the product.

• 2-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
• 8-channel SMD Plus for analog channels or 12-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
• 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
• 2-channel face recognition for analog channels which supports face comparison.
• 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
• Supports HDCVI, AHD, TVI, CVBS and IP video input.
• Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
• Smart H.265+ and H.265 dual-stream video compression.
• IoT and POS capabilities.

Specifications:

Main Processor: Industrial-grade processor

Operating System: Embedded Linux

Operating Interface: Web; Local GUI

QuickPick 2.0 AI by Recorder (Number of Channels): 2 channels

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

• Advanced Mode: 2 channels, 10 IVS rules for each channel
• General Mode: 4 channels, 10 IVS rules for each channel

Face Detection

Face Attributes: 6 attributes

Face Detection Performance of AI by Recorder (Number of Channels): 2 channels (up to 8 face images/s each channel)

Face Recognition

Face Database Capacity: Up to 10 face databases with 10,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels

SMD Plus

SMD Plus by Recorder: 8 channels:Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera: 12 channels

AI Video Quality Analytics by Recorder: 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

Scene Changing by Recorder: 1 channel

Irregular Black Block Masking by Recorder: 1 channel
