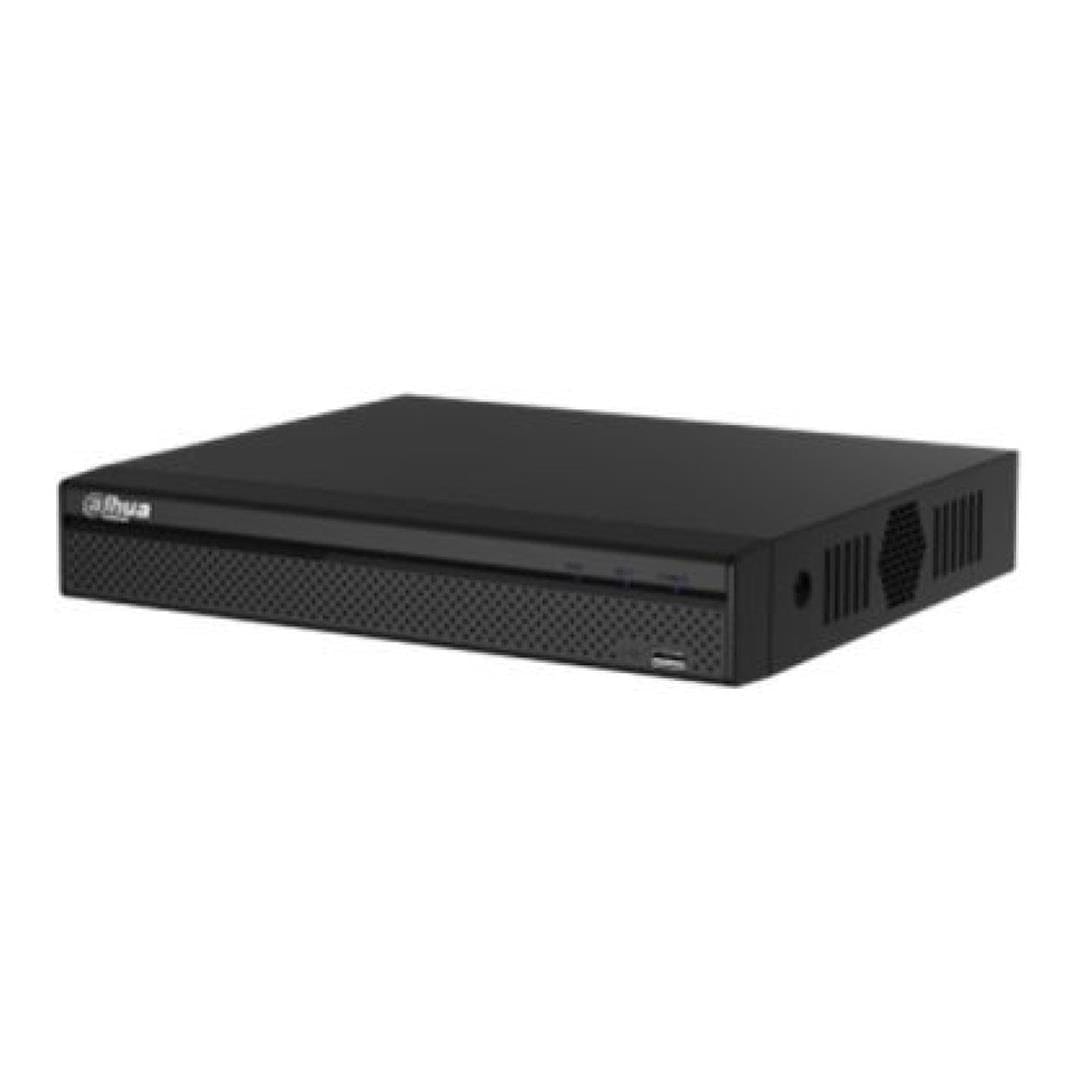

Dahua XVR5104HS-X1 4-channel Penta-brid Compact 1U 1 HDD DVR

Dahua XVR5104HS-X1 4-channel Penta-brid Compact 1U 1 HDD DVR

With the surveillance operators pursuing to HD/UHD which further adds the storage and transmission cost, HDCVI H.265+/H.265 has been released to incredibly decrease the required bitrate while ensuring the video quality in realizing high resolution surveillance such as 4MP/4K. The Lite Series is designed for high cost performance and quality. The range offers a great solution for users facing budget constraints who both require quality and performance. And with the adoption of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs, and significantly reducing the Total Cost of Ownership (TCO)

Smart H.265+

Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras.

HDCVI/AHD/TVI/CVBS Auto-detect

The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.

High Definition Camera Input

The XVR supports up to 5MP HDCVI camera and 6MP IP camera input. Coaxial Audio/Upgrade/Alarm The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.

Specifications:

Main Processor: Embedded Processor

Operating System: Embedded LINUX

Video and Audio4 Channel, BNC

HDCVI Camera: 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera: 5MP, 4MP, 1080P@25/30, 720P@25/30fps

TVI Camera: 5MP, 4MP, 1080P@25/30, 720P@25/30fps

CVBS Camera: PAL/NTSC

IP Camera Input: 4+2 Channel, each channel up to 6MP

Audio In/Out: 1/1, RCA

Two-way: Talk Reuse audio in/out, RCA

RecordingH.265+/H.265/H.264+/H.264

Resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF

Record Rate

• Compression:
• Analog Camera Input:
• Main stream:the 1st channel 5M-N(1~10fps), other channels
• 4M-N/1080P(1~15fps); 1080N/720P/960H/
• D1/CIF (1~25/30fps)
• Sub stream: D1/CIF(1~15fps)

Bit Rate: 32Kbps ~ 6144Kbps Per Channel

Record Mode: Manual, Schedule (General, Continuous), MD (Video detection:

Motion: Detection, Video Loss, Tampering), Alarm, Stop

Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec

Audio Compression: AAC(only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate: 8KHz, 16 bit Per Channel

Audio Bit Rate: 64Kbps Per Channel

Interface: 1 HDMI ,1 VGA

Resolution: 1920×1080, 1280×1024, 1280×720

Multi-screen Display: When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6

OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Interface: 1 RJ-45 Port (100M)

Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access: 128 users

Smart Phone: iPhone, iPad, Android

Interoperability: ONVIF 16.12, CGI Conformant

Internal HDD: 1 SATA Port, up to 6TB capacity

eSATA: N/A

USB: 2 USB 2.0

RS232: N/A

RS485: 1 Port, for PTZ Control
